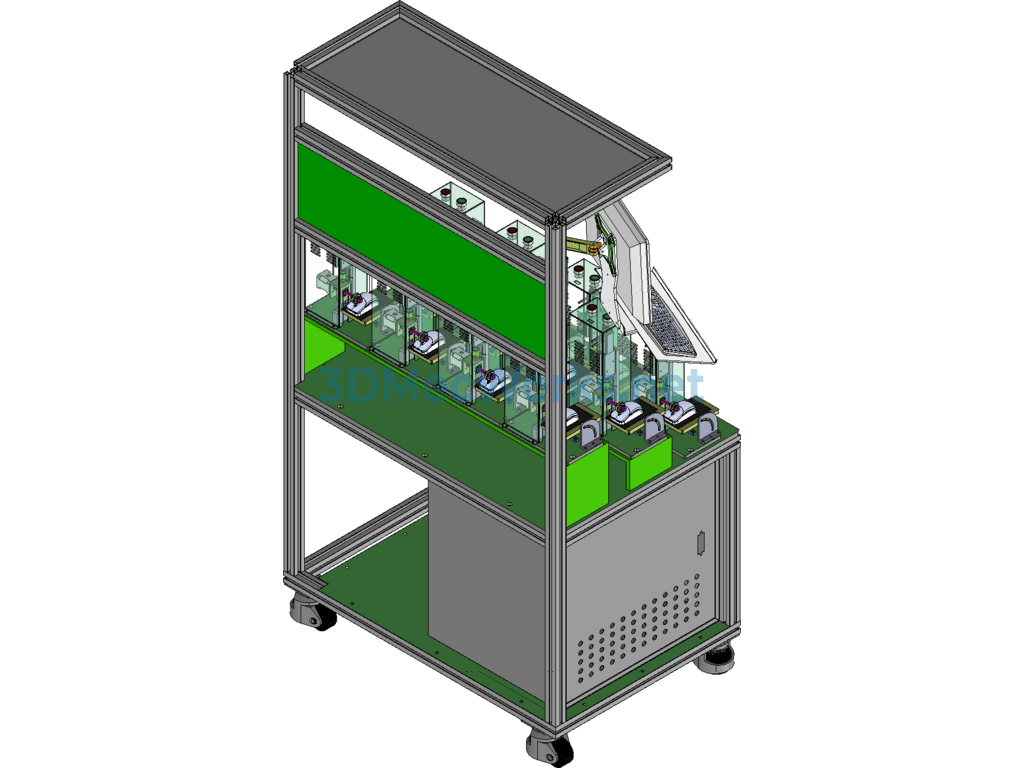

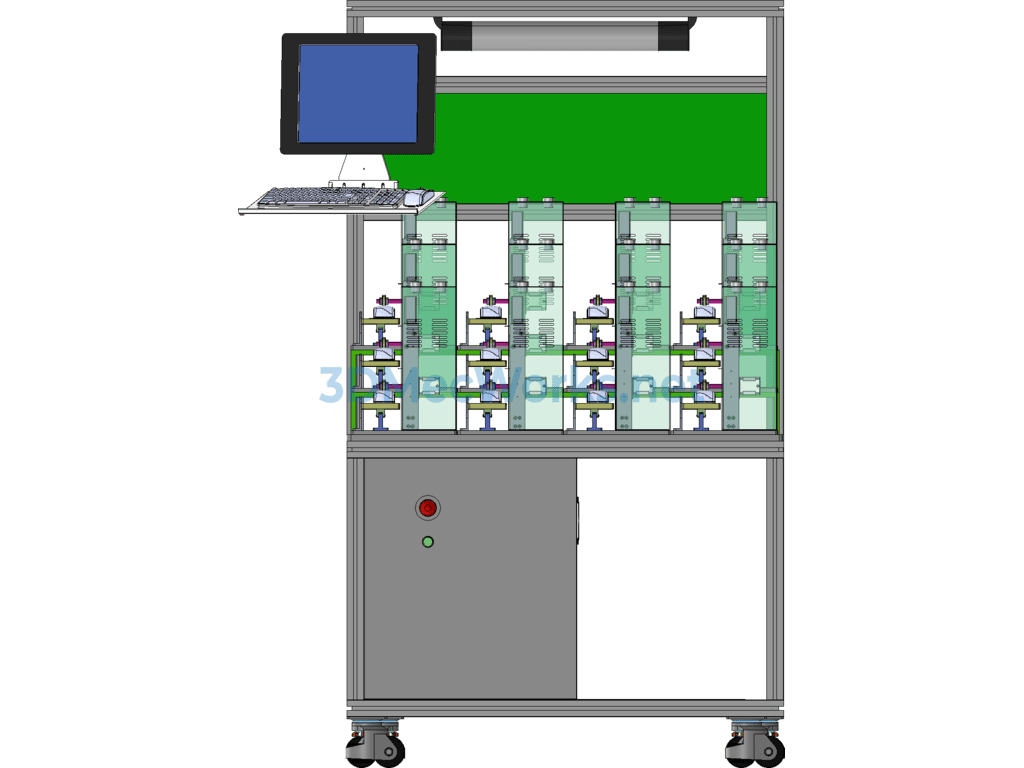

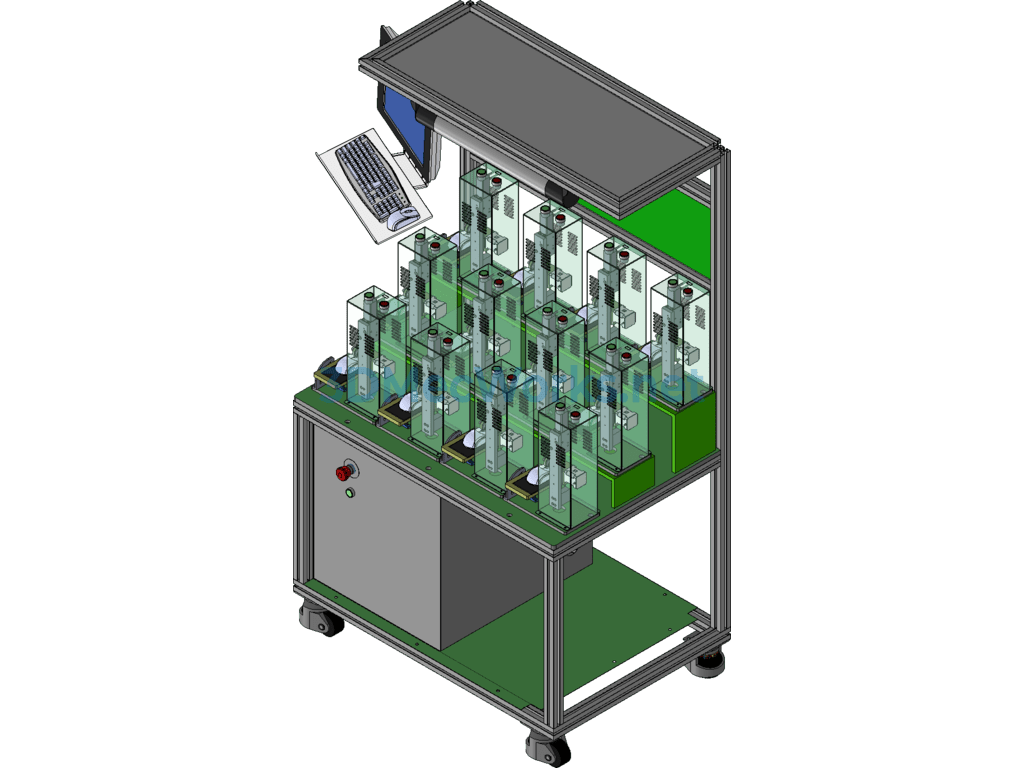

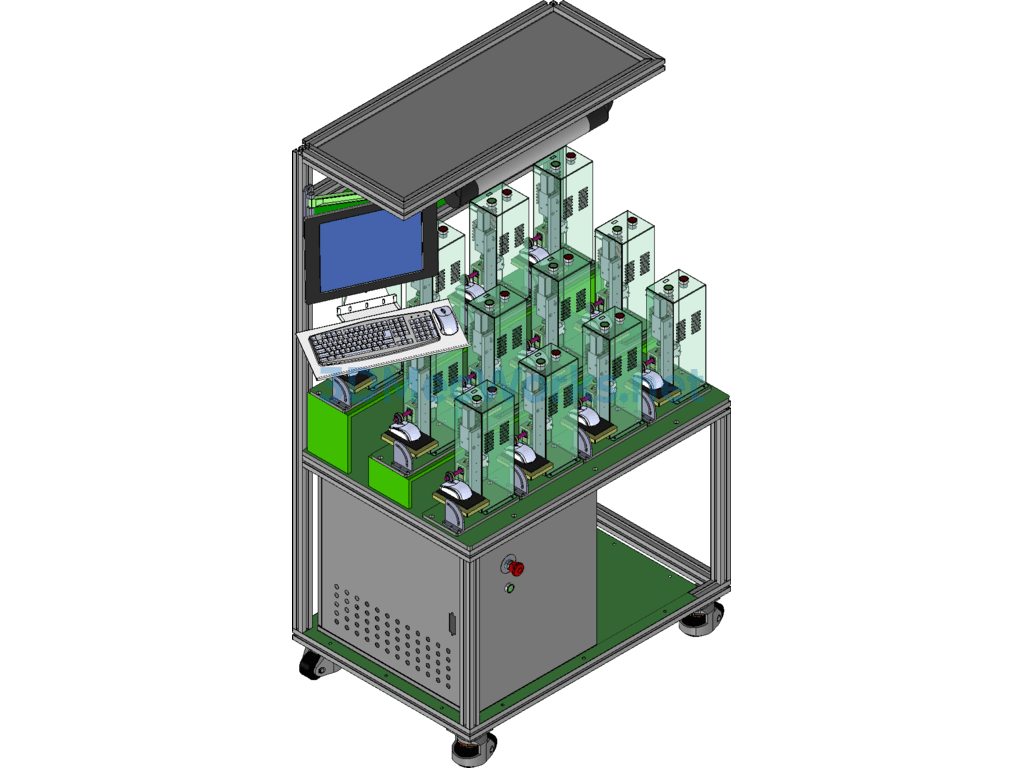

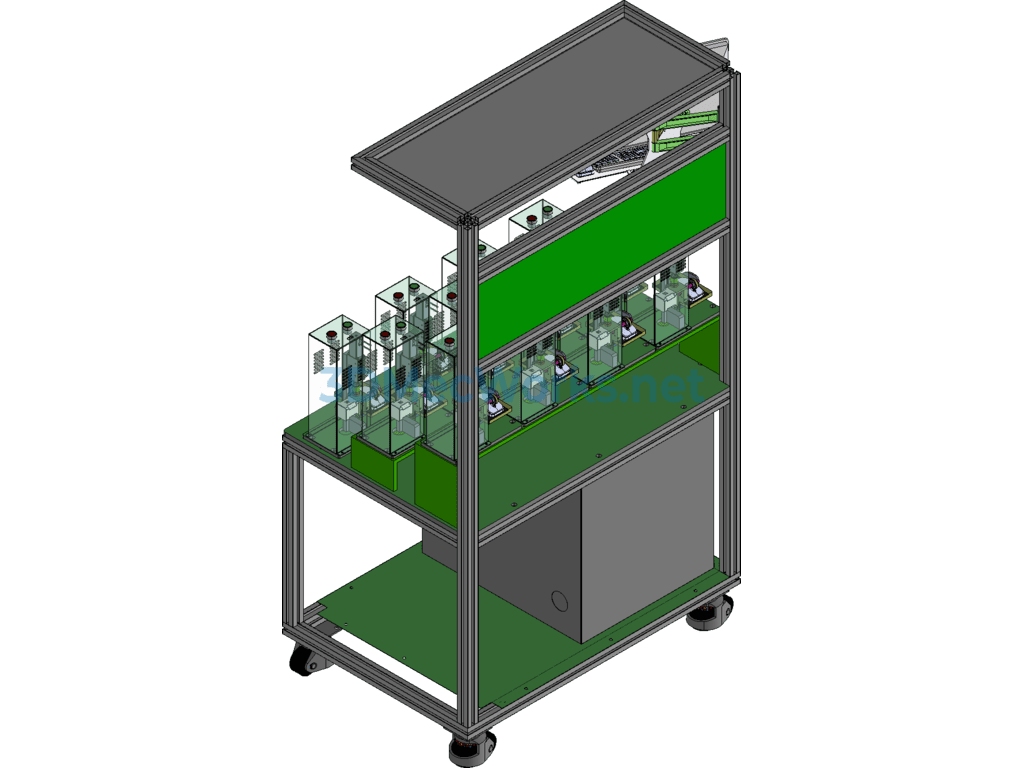

Automatic Control Force Mouse Wheel Testing Aging Equipment

This equipment parameters:
1. Equipped with 12 product test positions (each position can independently control force and test individually).
2. Adjustable test force, adjustable strength: 0~1KG.
3. Test roller speed: 2~5 rotations per second.
4. Equipped with a mouse powered socket testing function.
5. Configured with a set of computer and software to record the number of tests.
6. Accurately record the force exerted on the product.
7. Can stop operation in emergency situations.
8. Equipped with electrical safety setting functions.
The automatic control force mechanism uses a pulse-driven servo motor to drive the ball screw nut mechanism, pressing downward to maintain contact pressure between the test roller and the mouse roller. The force is set by a pressure sensor, and when it reaches the set value, the servo motor stops. The force is maintained for the roller rotation fatigue test.
