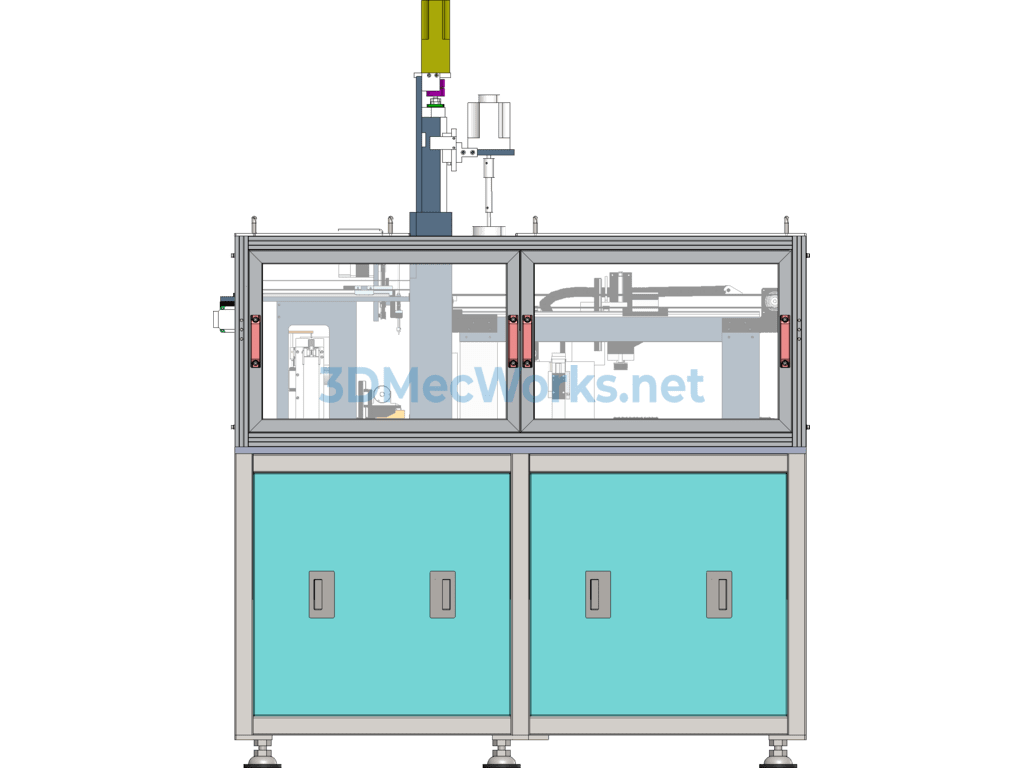

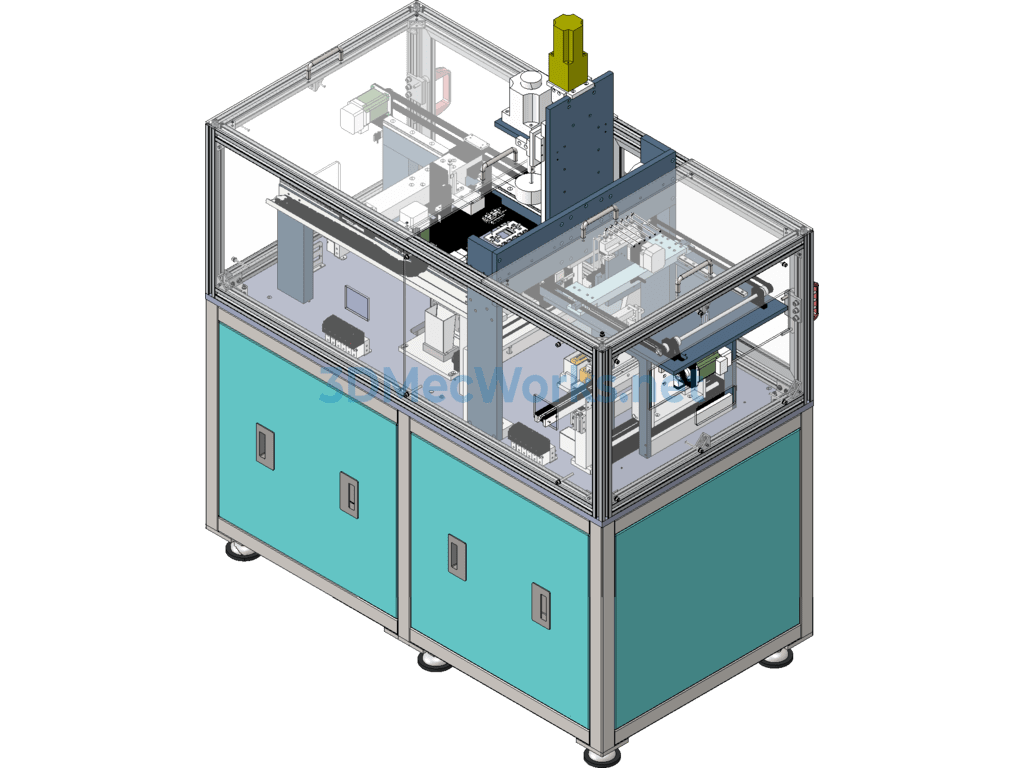

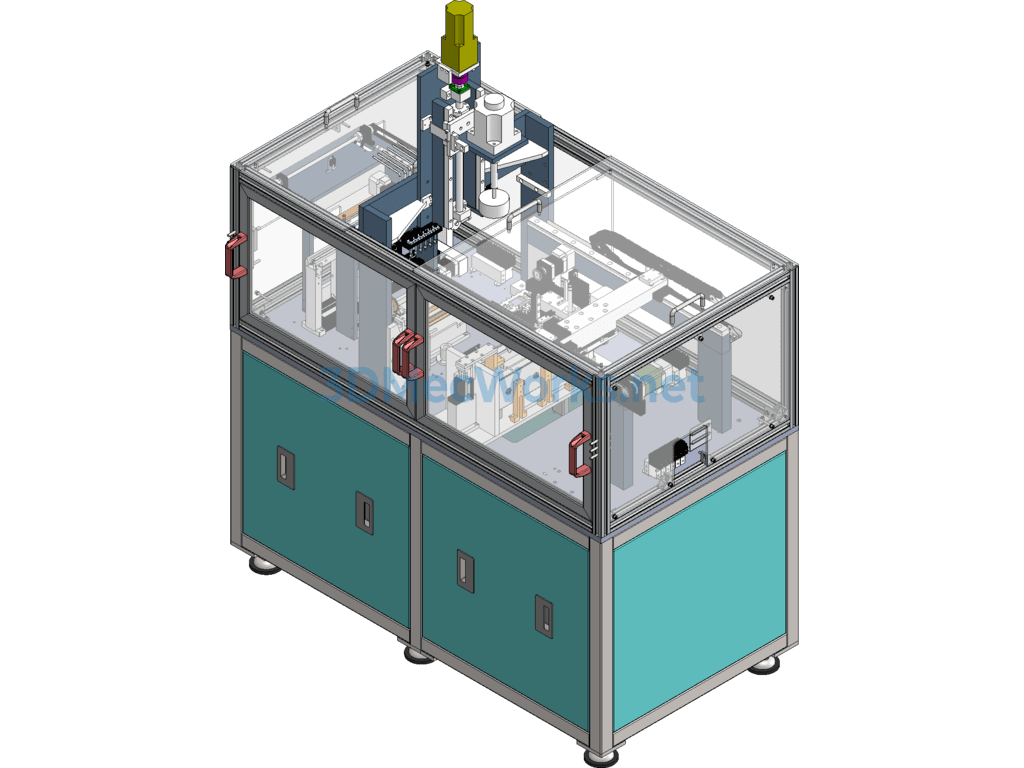

Automatic Contact Switch Assembly Line

The contact switch automatic assembly line equipment mechanism designed by SW2016 includes editable part features. The contact switch automatic assembly line uses a touch screen, with an intuitive interface, and is simple and safe to operate. It features automatic counting, output setting, fault shutdown, fault alarm, and fault display. There are three operation modes: manual, semi-automatic, and fully automatic. This equipment is characterized by a reasonable structure, good quality, and wide applicability. With the cooperation of automatic feeding units and automated robotic arms and other handling and positioning systems, its application efficiency is greatly enhanced, saving operation time and more manpower, and improving production efficiency, so that traditionally inefficient work is no longer a bottleneck on the production line. It can simultaneously test three test samples of the same model that meet the contact requirements. It includes pressing mechanisms, force measurement mechanisms, and drive mechanisms. The contact switch force measurement and life tests are divided into two stations, with one test sample for force measurement and three test samples for life tests. The accuracy of the force sensor is 0.01N. Detection items include insulation resistance test, withstand voltage test, operating force test, recovery force test, contact resistance test, and reliability test. Among them, the insulation resistance and withstand voltage tests are manual tests, but some operating procedures can be automatically completed. It includes editable formats such as STP and UG.
