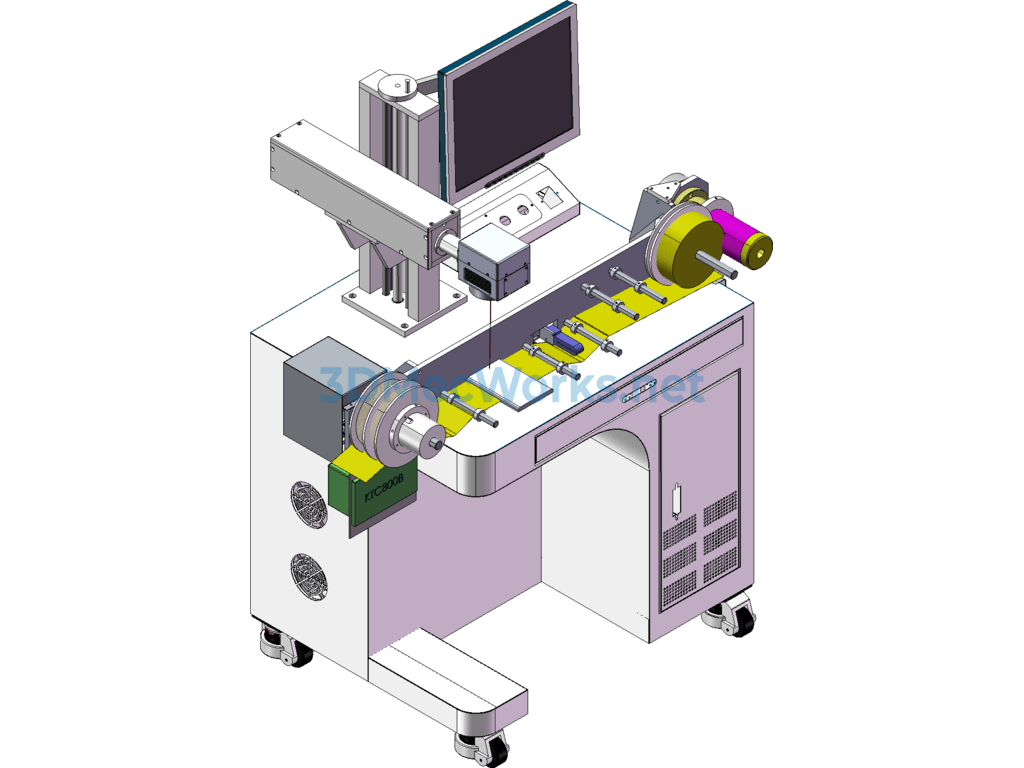

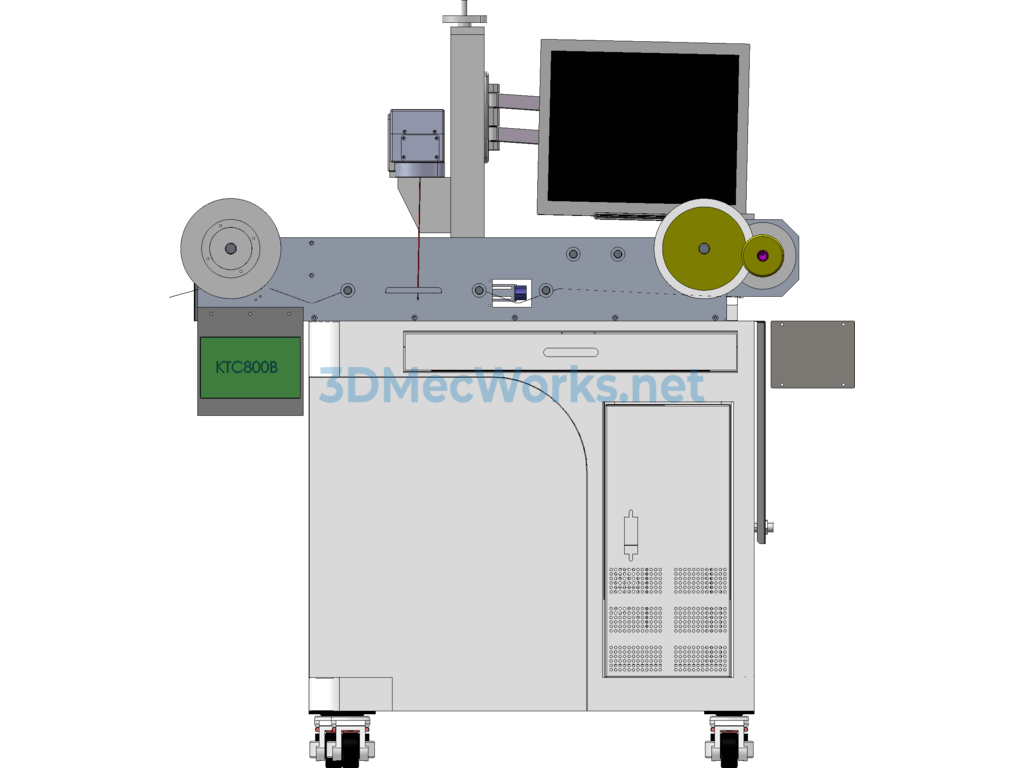

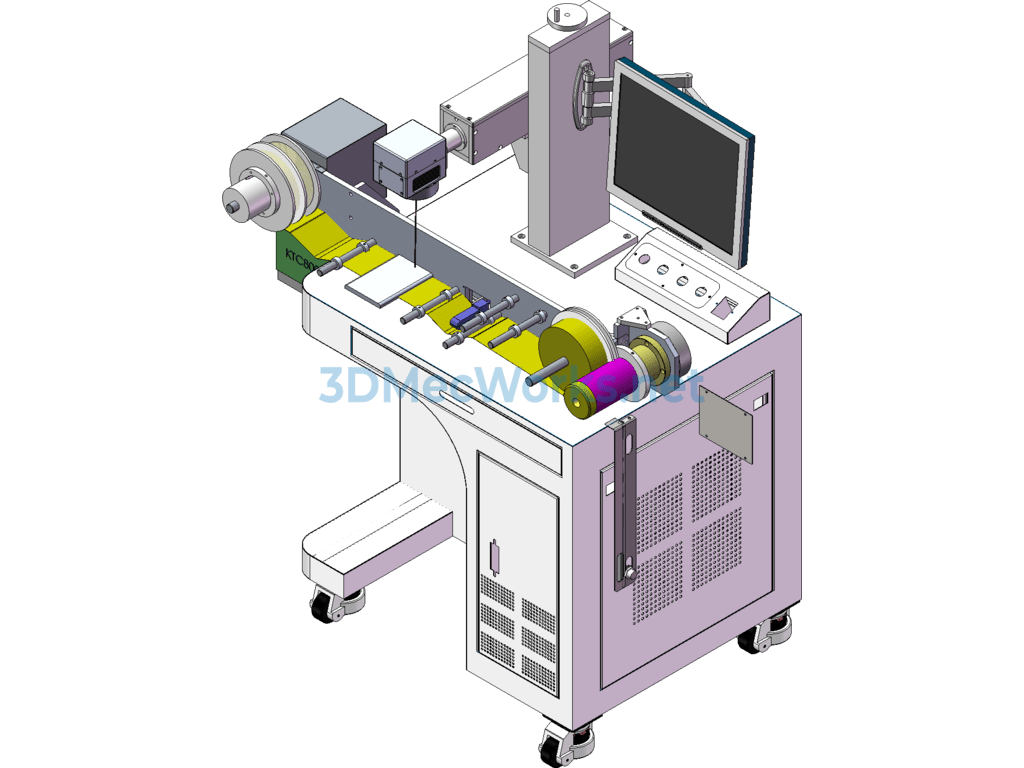

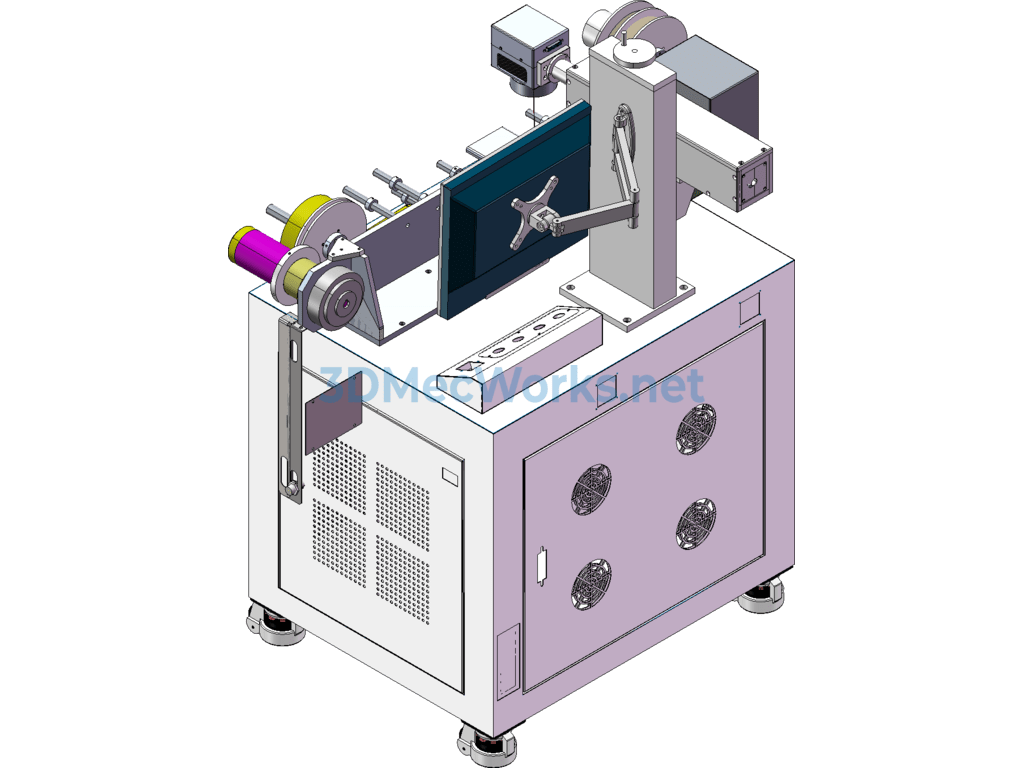

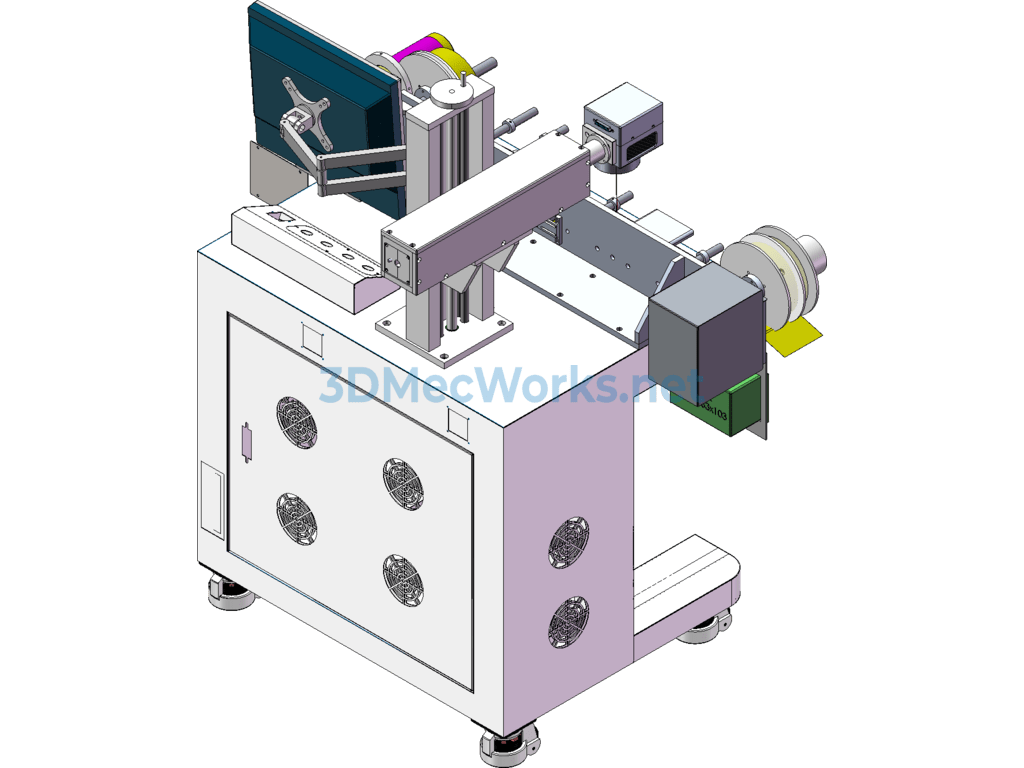

Automatic Coil Feeding Laser Marking (Including DFM) - SolidWorks - Free Download

Introduction to Automatic Feeding Laser Marking Process for Coil Material:
1. The marking strip is loaded into the coil machine and fed through the guide shaft;
2. The coil machine rotates synchronously and at a constant speed through the stepper motor and encoder;
3. The strip begins laser engraving when passing through the laser platform, and once completed, the stepper motor rotates to pull the material;
4. After laser engraving is complete, manually unload and load the strip.
