Automatic Circlip Assembly Tooling, Mass Production - SolidWorks - Free Download

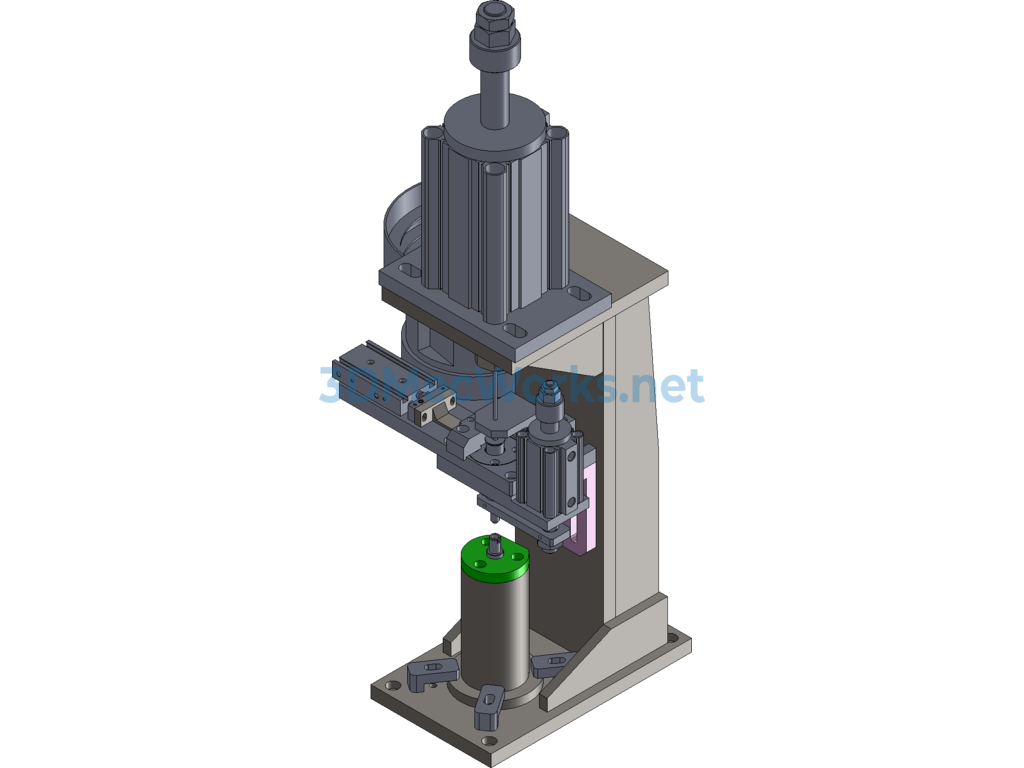

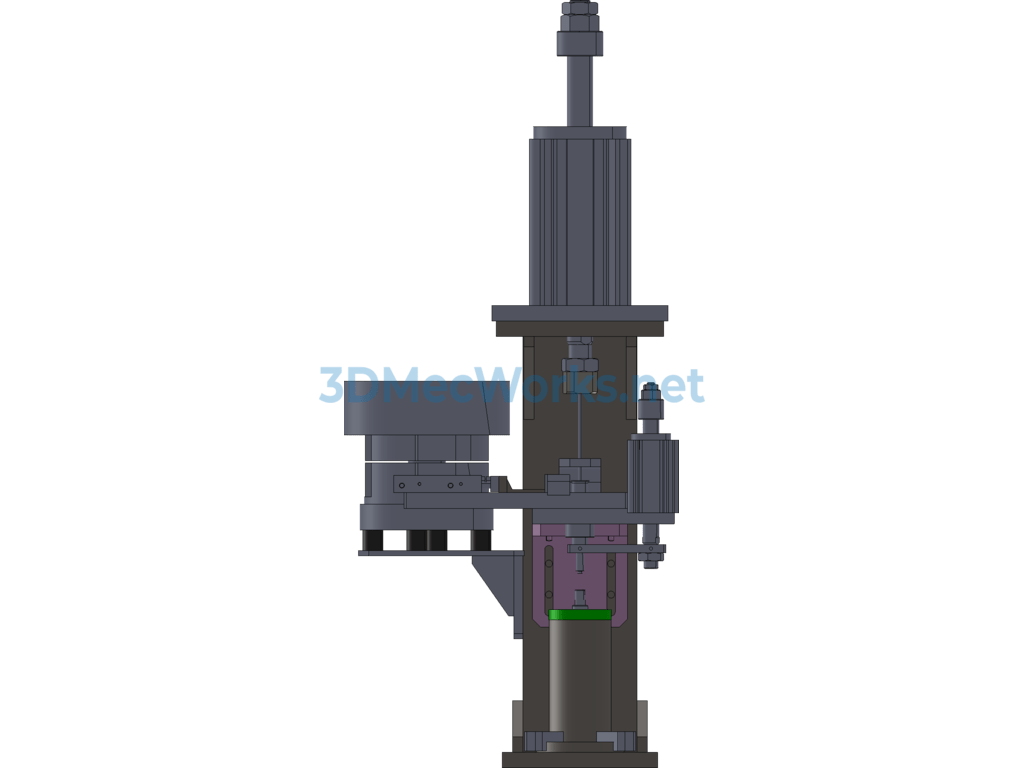

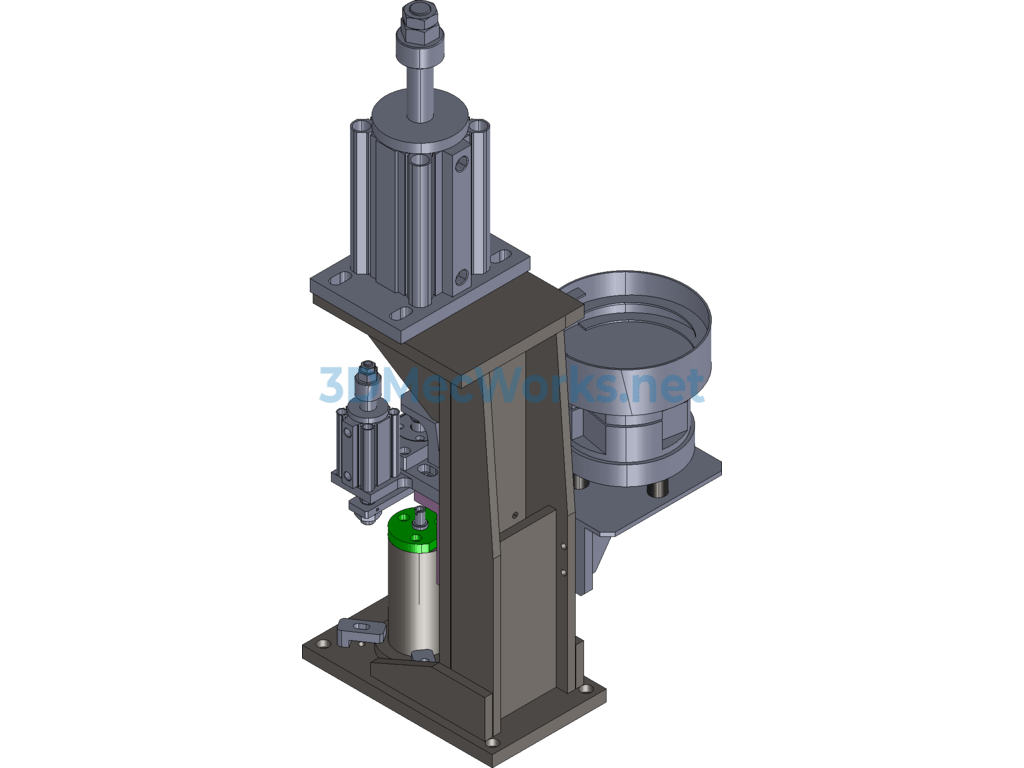

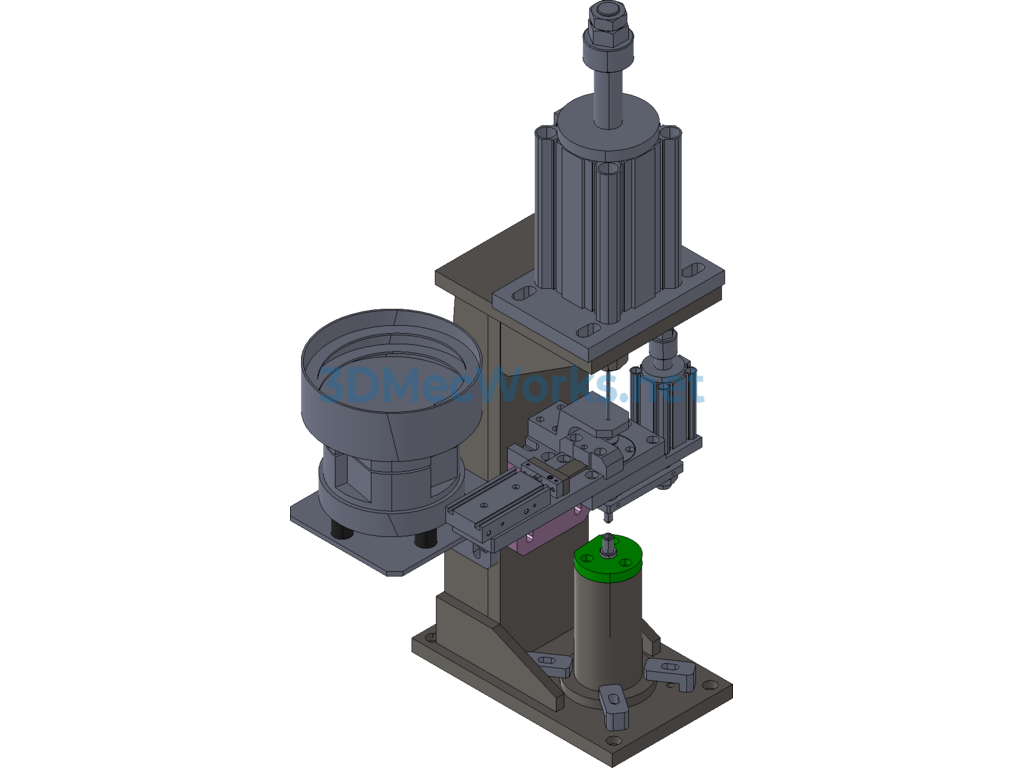

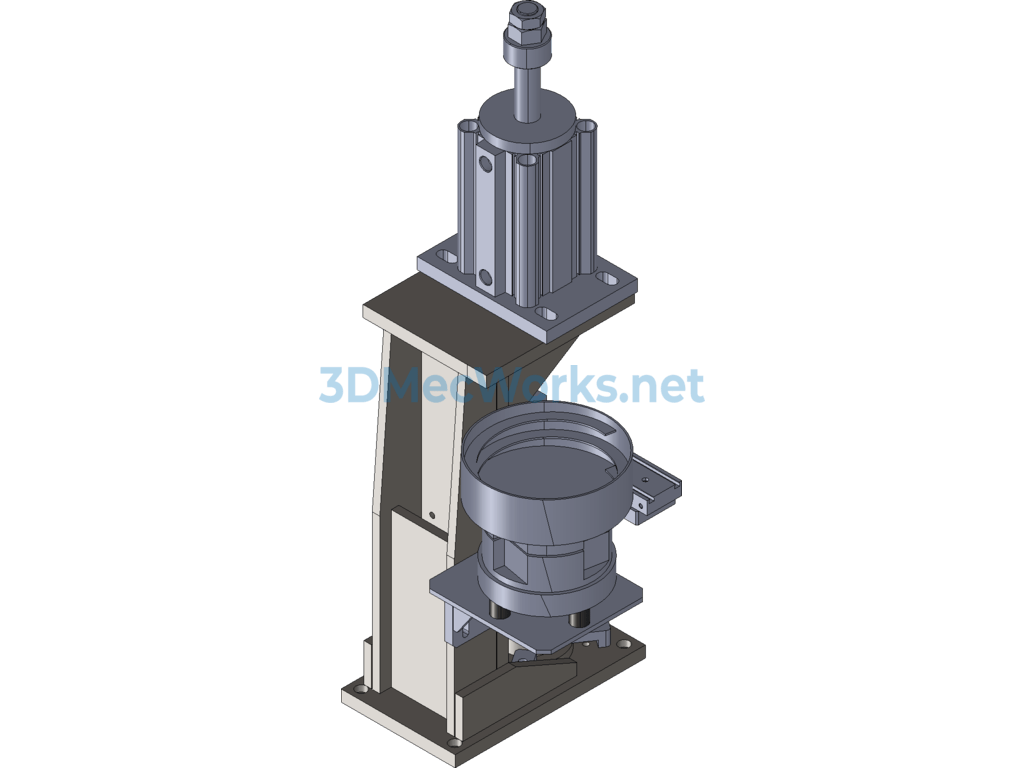

Retaining Ring Automatic Assembly Fixture, mass production, 3D detailed. SolidWorks, STEP, this equipment is used for press-fitting retaining rings onto products. The retaining ring is automatically fed by the vibrating plate, and a pushing mechanism positions the retaining ring above the product. After the product is manually placed and fixed, a cylinder drives the press-fitting of the retaining ring. The structure is compact and practical, including parametric modeling, welcome to download.
