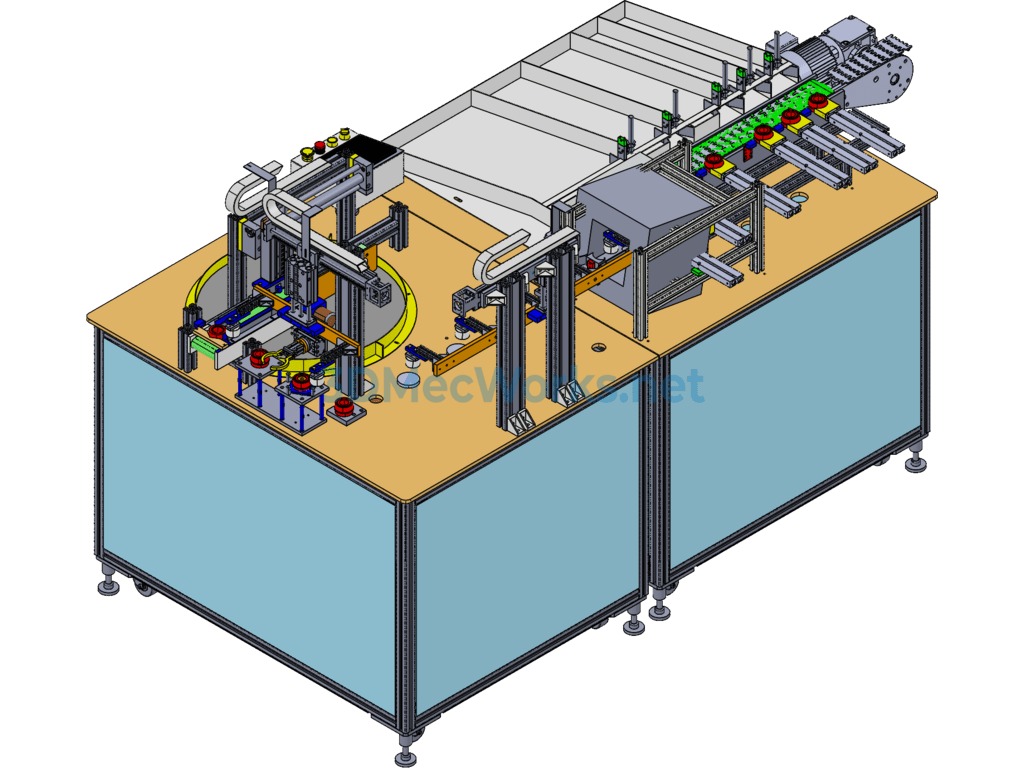

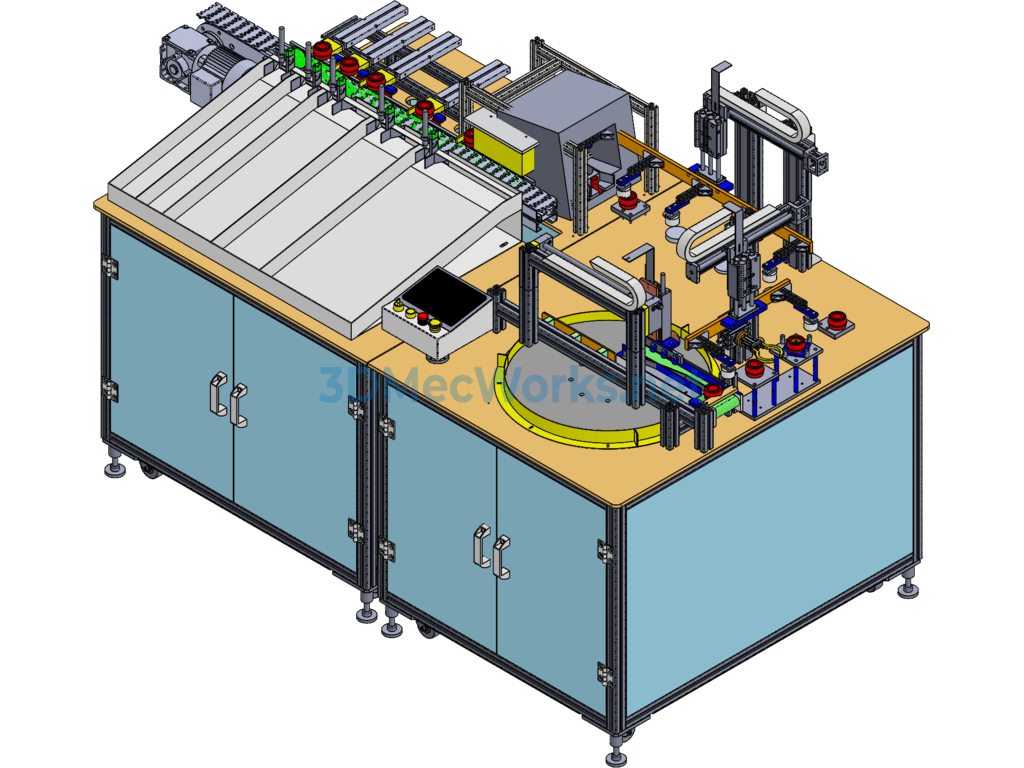

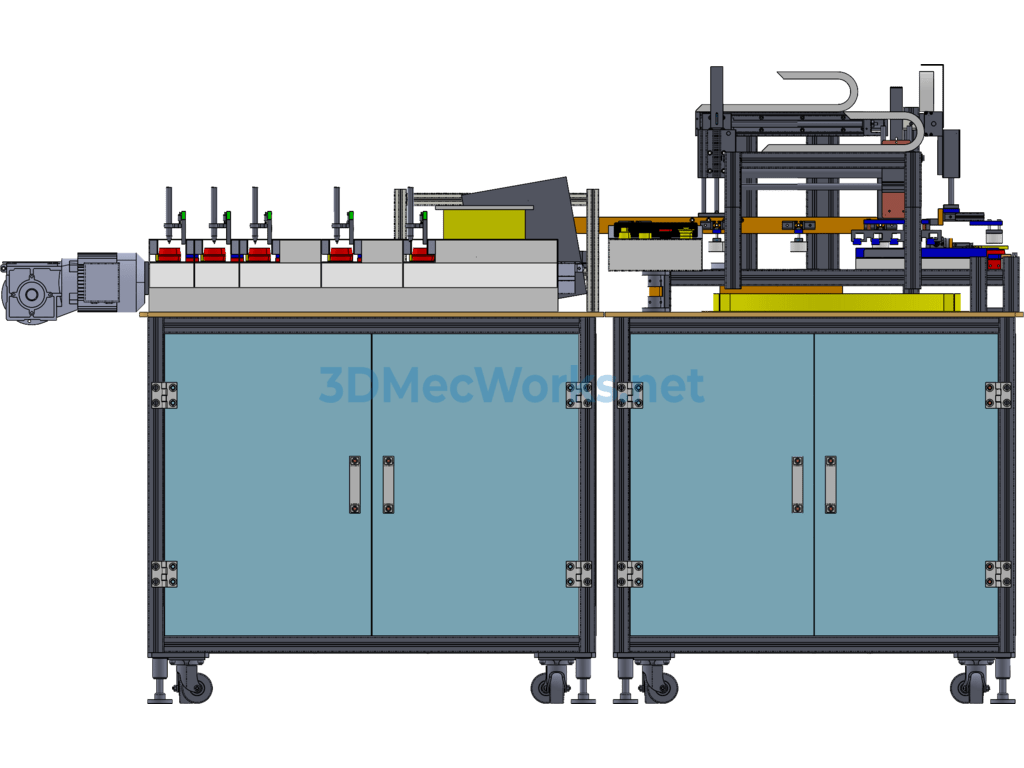

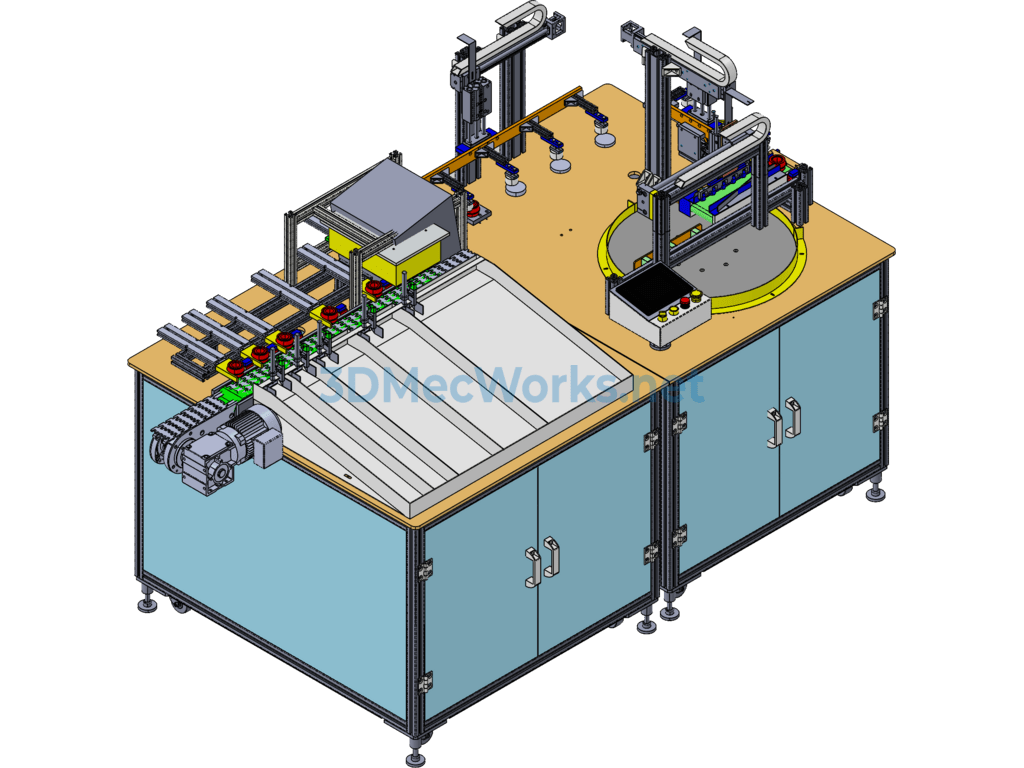

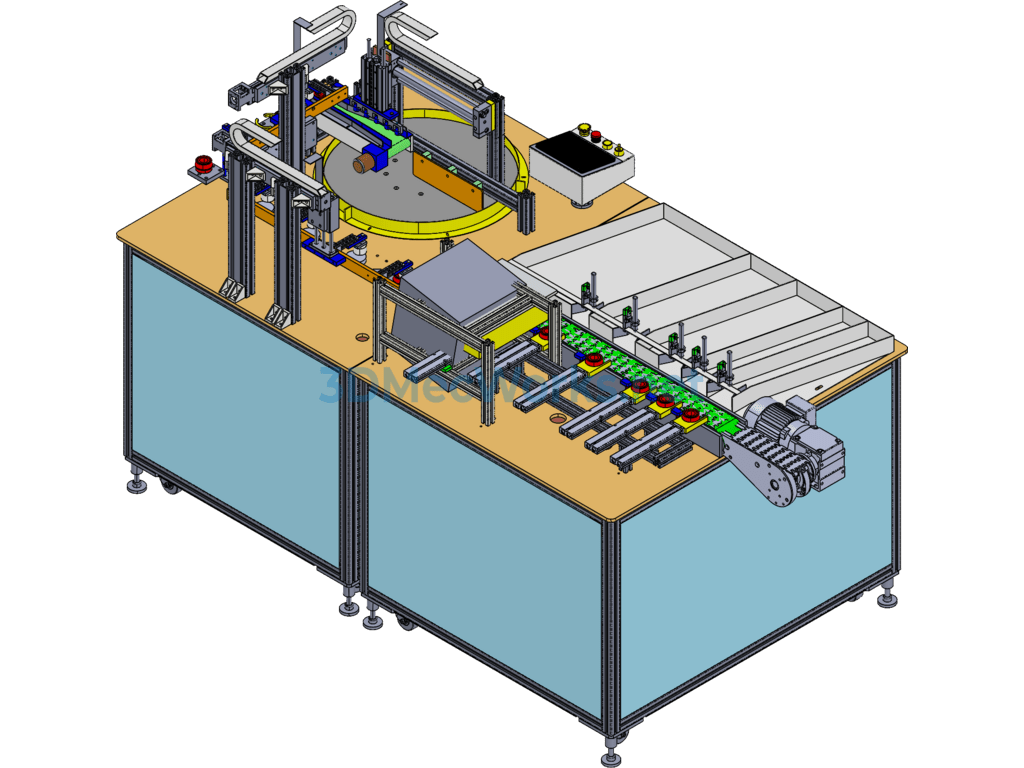

Automatic CG Inner Ring Inspection Equipment 3D + Engineering Drawings + Complete PLC Program

Precision detection equipment for inner and outer semi-circular grooves (spline-like grooves) of CG inner rings, featuring manual feeding-auto feeding-double-sided detection and adjustment-inner and outer groove detection-product demagnetization-classification and placement according to precision range and rejection of unqualified products. Includes editable Creo 3D models with parameters, editable CAXA engineering drawings with parameters, PLC and industrial control screen electrical control programs and wiring diagrams, Word manuals, and other complete technical documents.
