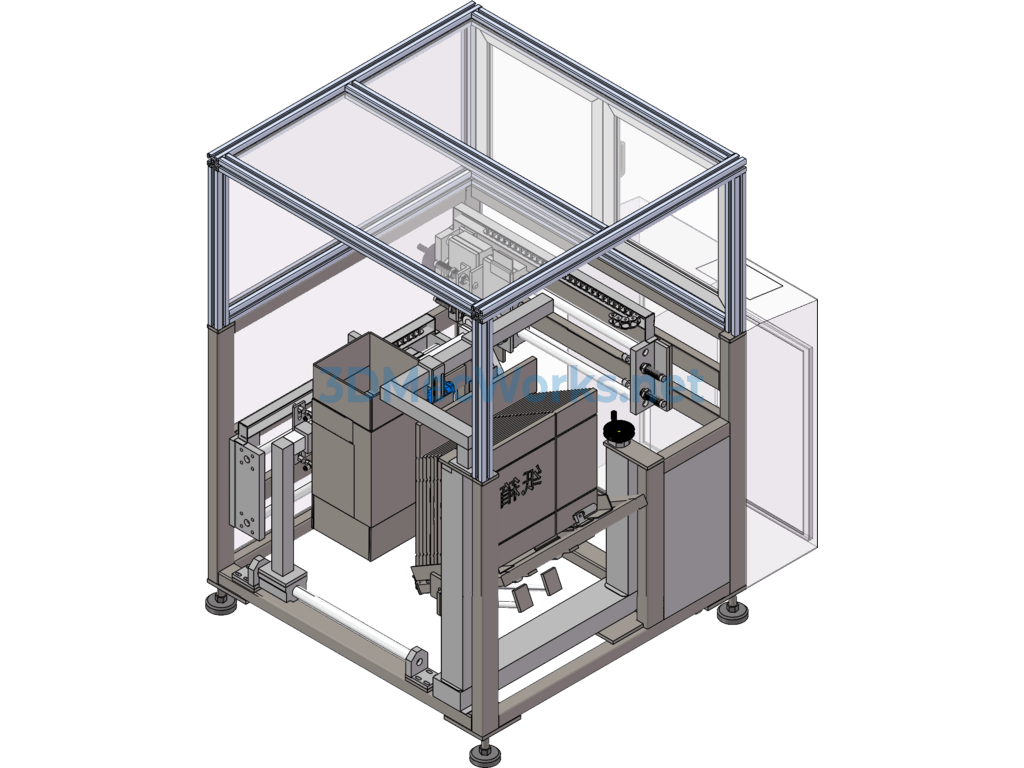

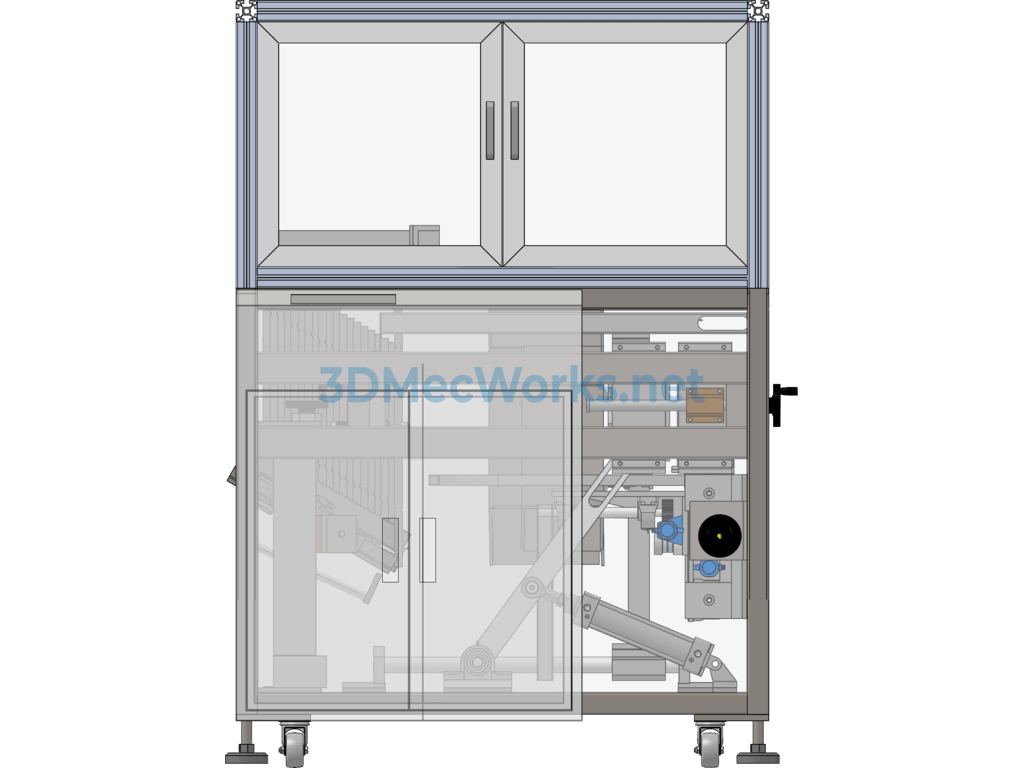

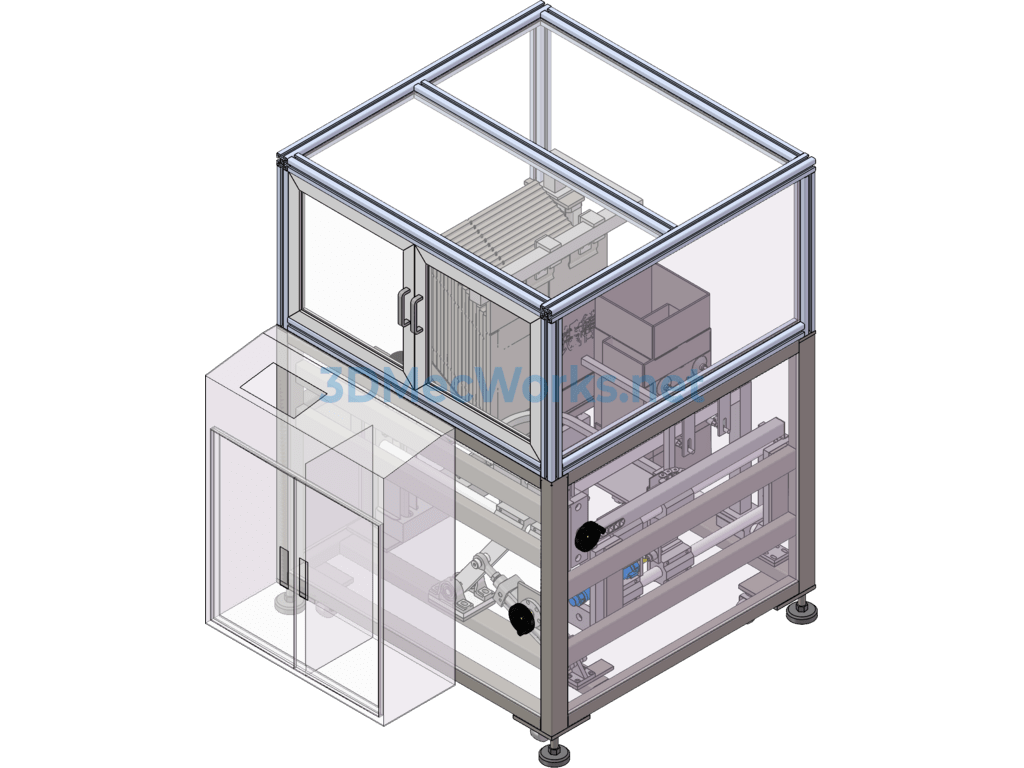

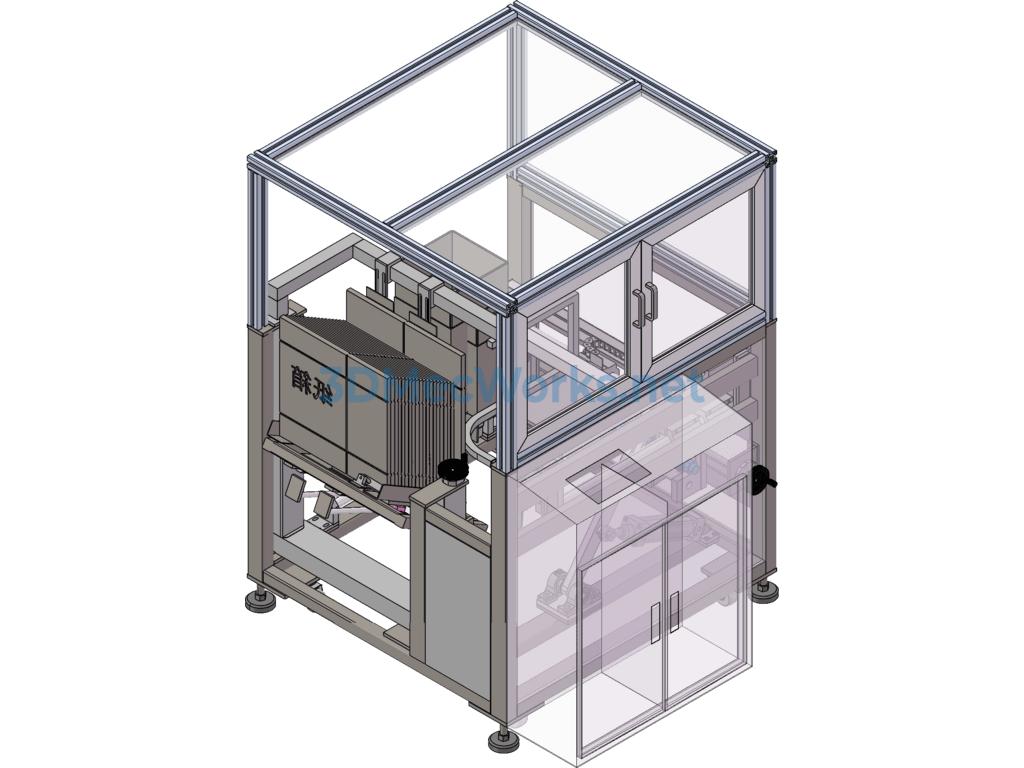

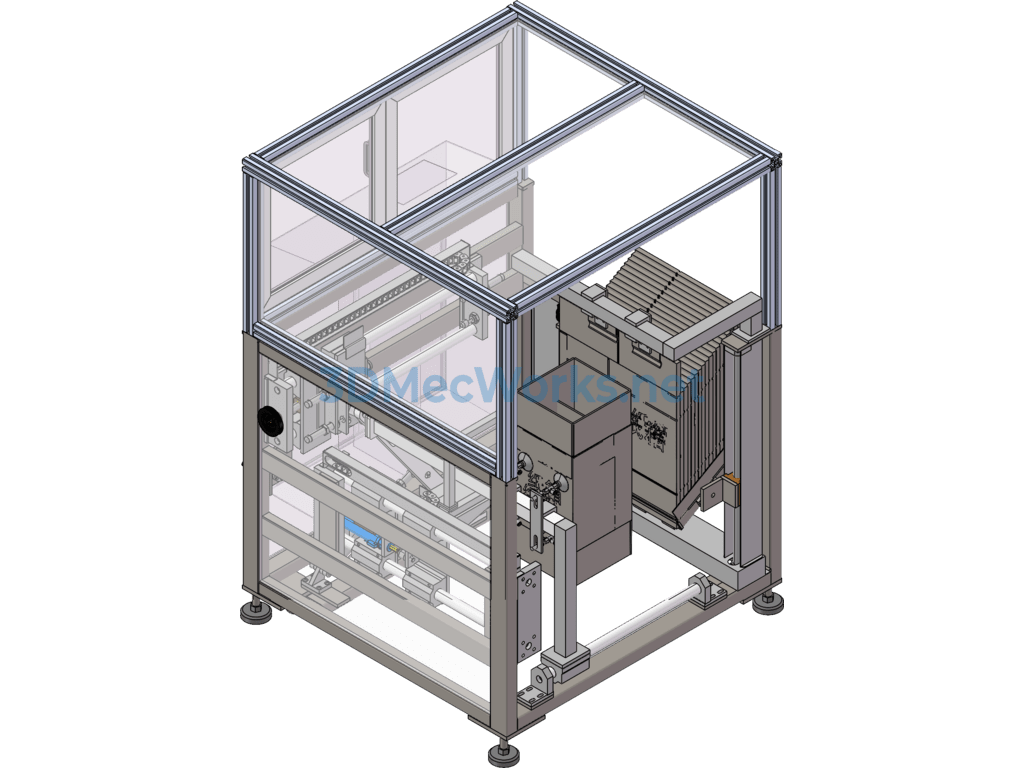

A 3D model of an automatic carton opening machine. The cylinder drives a sliding frame with a suction head, causing the suction head to hold the carton. With the assistance of the guide rods, the carton is opened. The push rod pushes the carton forward, the folding rod closes the bottom flaps of the carton, and the machine’s core seals it with tape. Not prototyped, for reference only.
Automatic carton opener, carton sheet opened, the bottom of the box folds according to a certain procedure, and after being sealed with tape, it is conveyed to a dedicated device for the packing machine. 2015 SW design source file shared.
Specification: Automatic Carton Unpacking Machine
|
