Automatic Carton Folding Machine

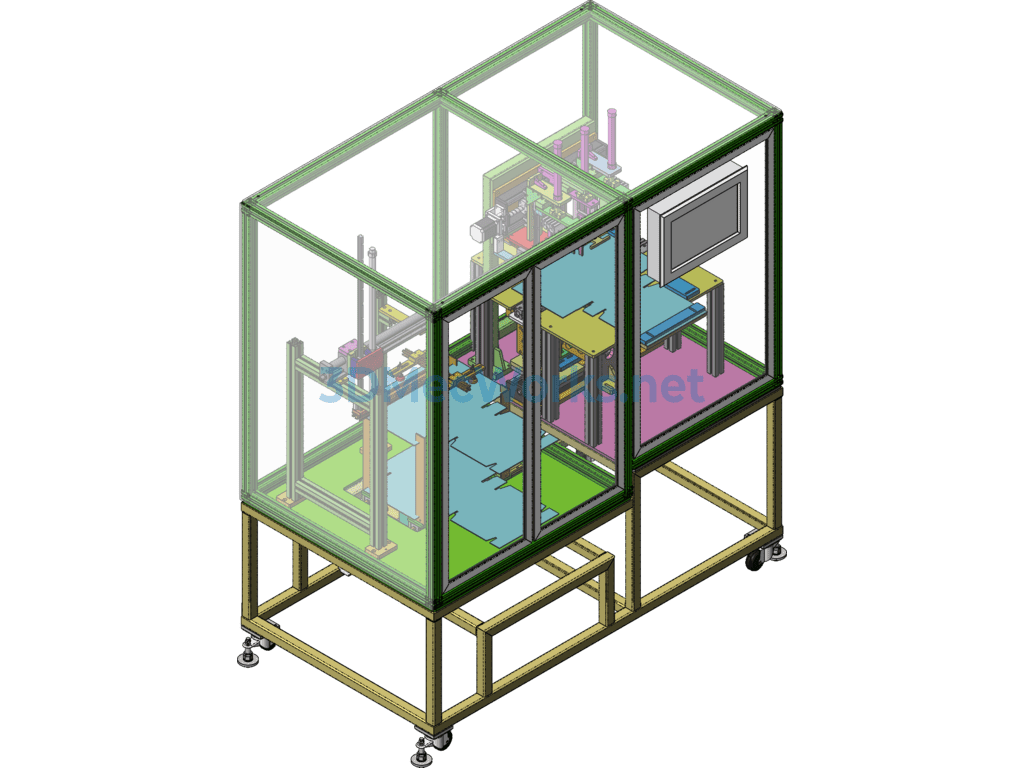

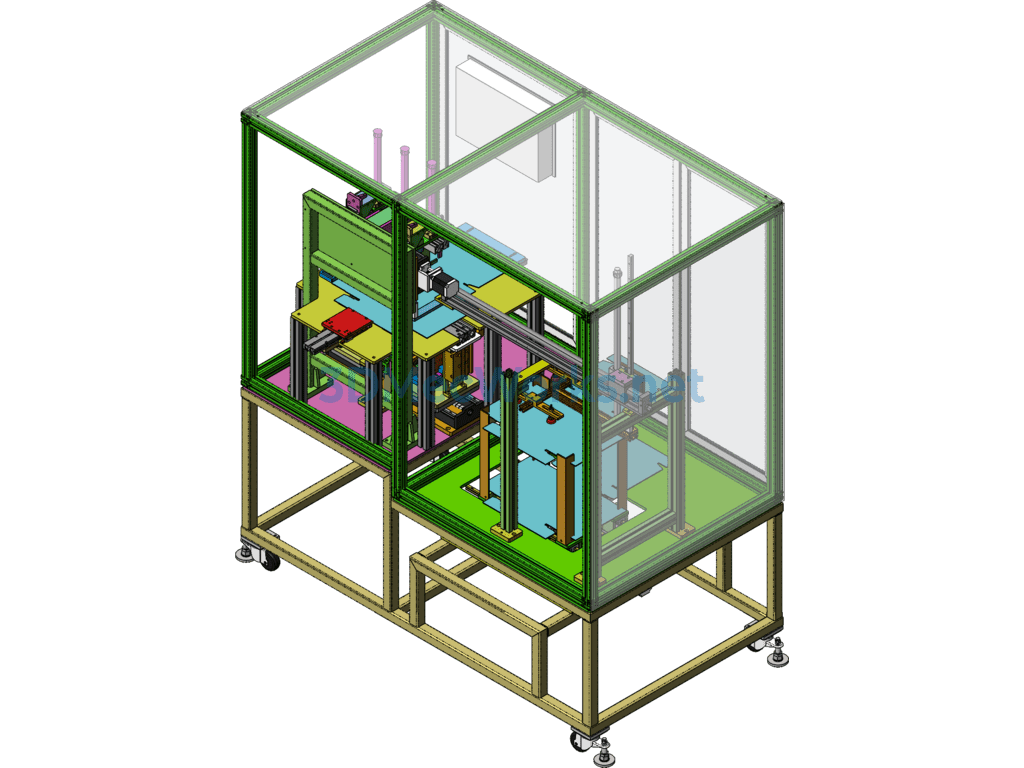

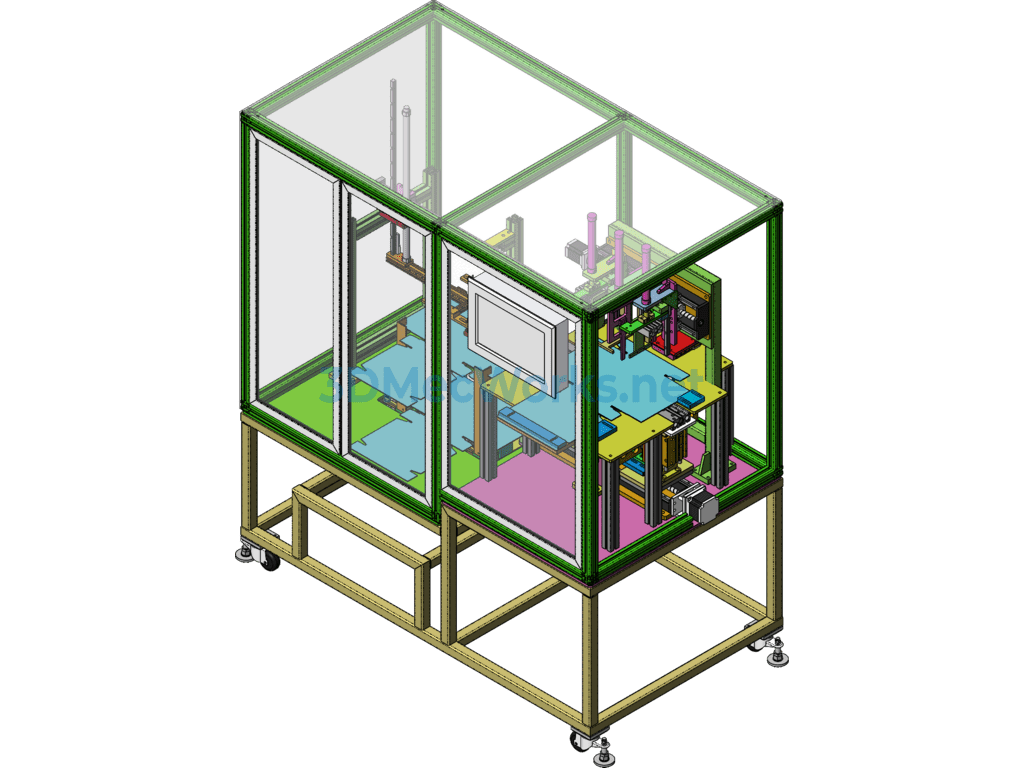

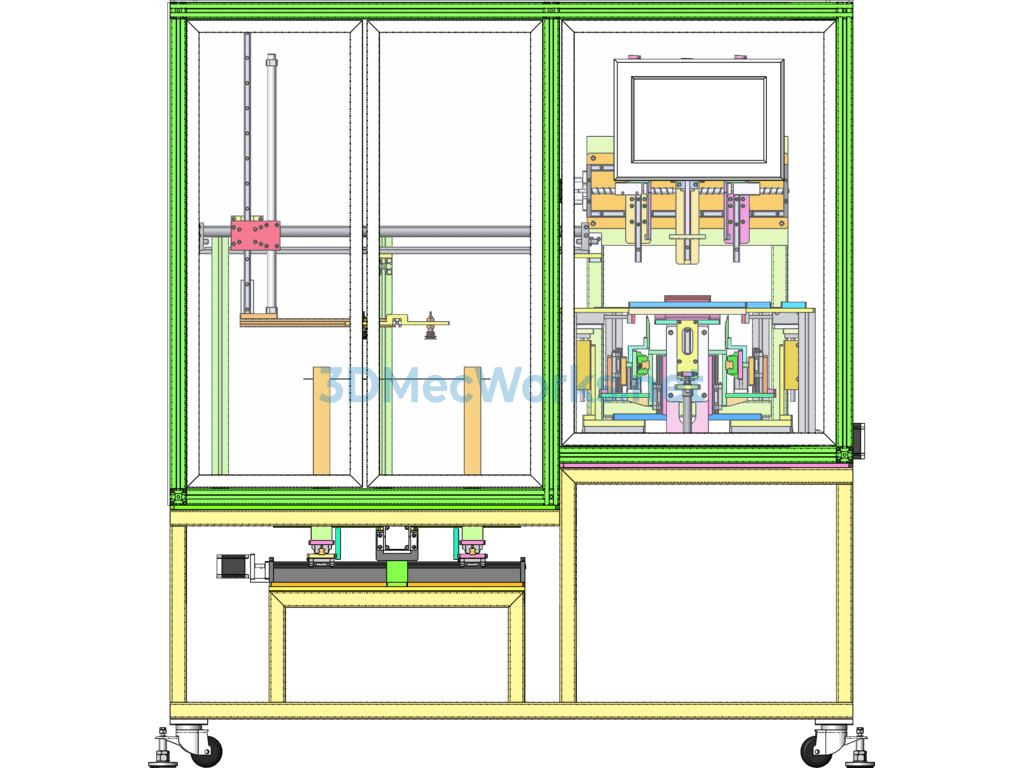

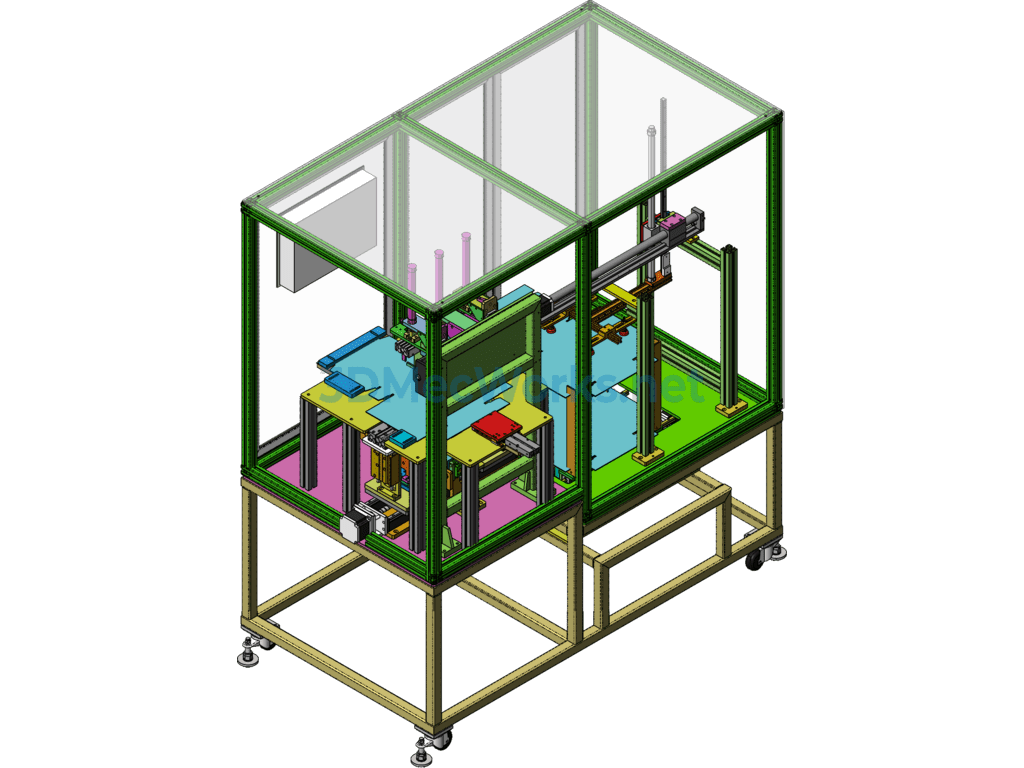

This is a model diagram of an automatic box folding machine. The drawing has already been used for actual processing and production. The structure of the drawing is detailed and the structural principle is relatively complex. The equipment mainly involves two processes: paperboard feeding and folding. The feeding is done using vacuum adsorption with suction nozzles installed, feeding through the cylinder to the paper folding machine. The folding machine completes the folding process through a series of actions. The drawing format is SolidWorks 2018. Welcome to download and refer.
