Automatic Button Attaching Machine

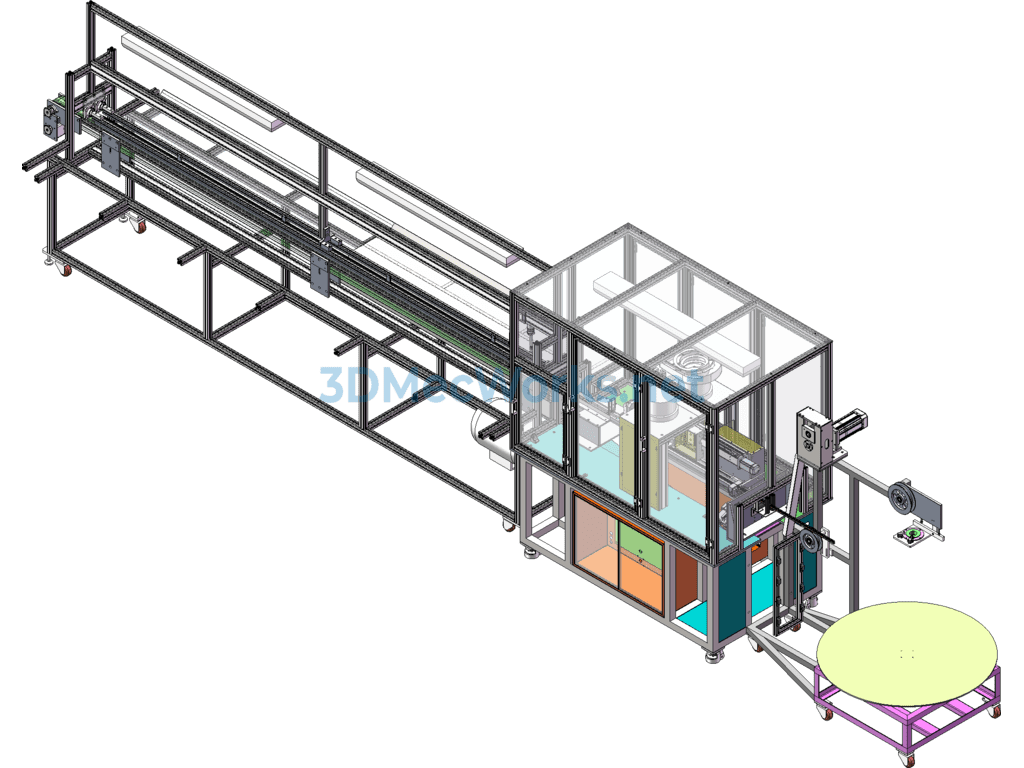

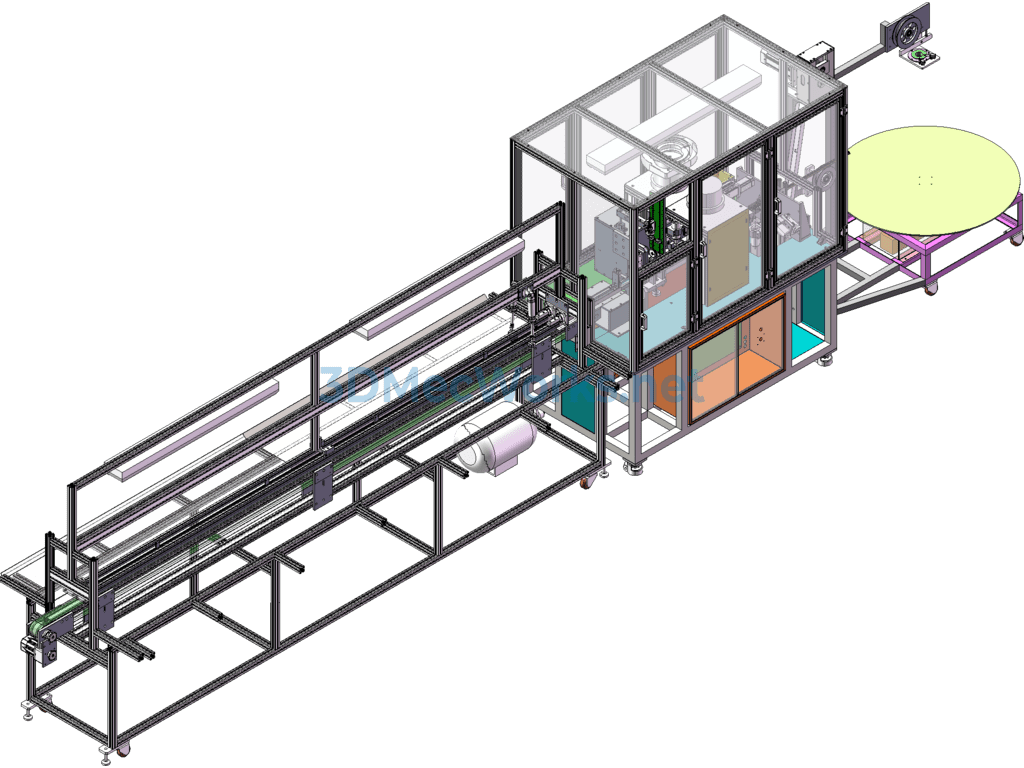

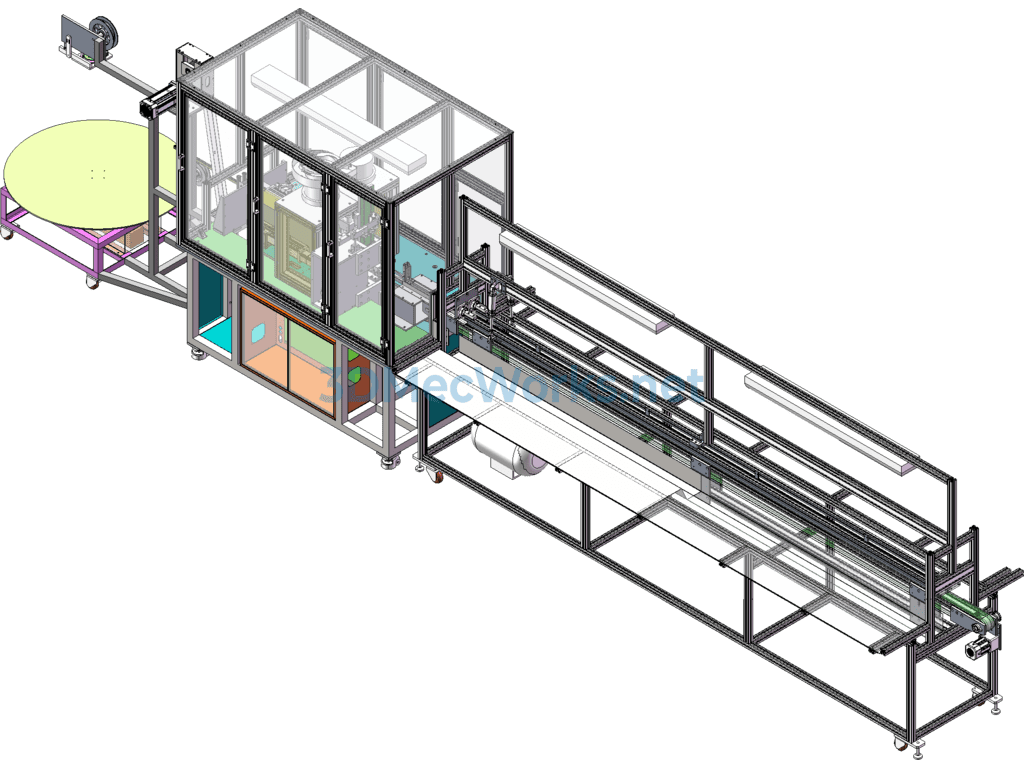

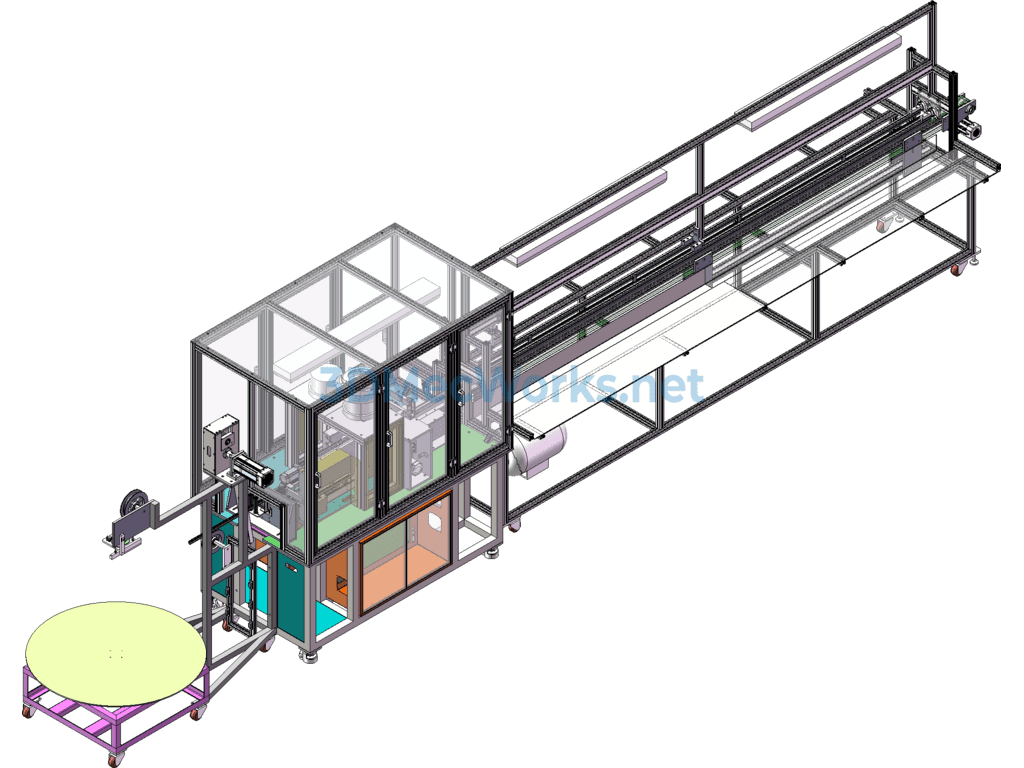

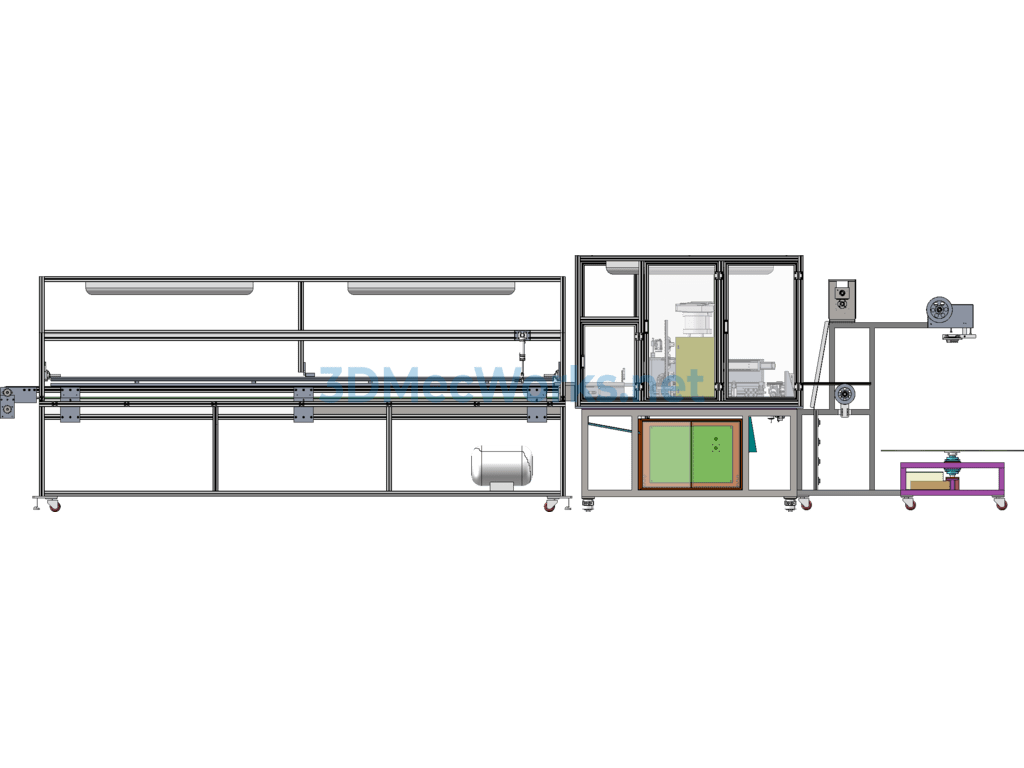

This is a 3D model drawing of an automatic button attaching machine, a device for automatically installing fasteners on automotive seals. The equipment mainly consists of three parts: an automatic feeding rack, an automatic perforating and button attaching machine, and an automatic receiving machine. The drawing structure is very detailed and includes engineering drawings. Working principle: The product roll material is automatically fed through the turntable, punched by the perforating machine, fasteners are attached, cut, and finally delivered to the receiving platform. The drawing format is SolidWorks 2018. Welcome to download.
