Automatic Assembly Of Motor Magnetic Rings - SolidWorks - Free Download

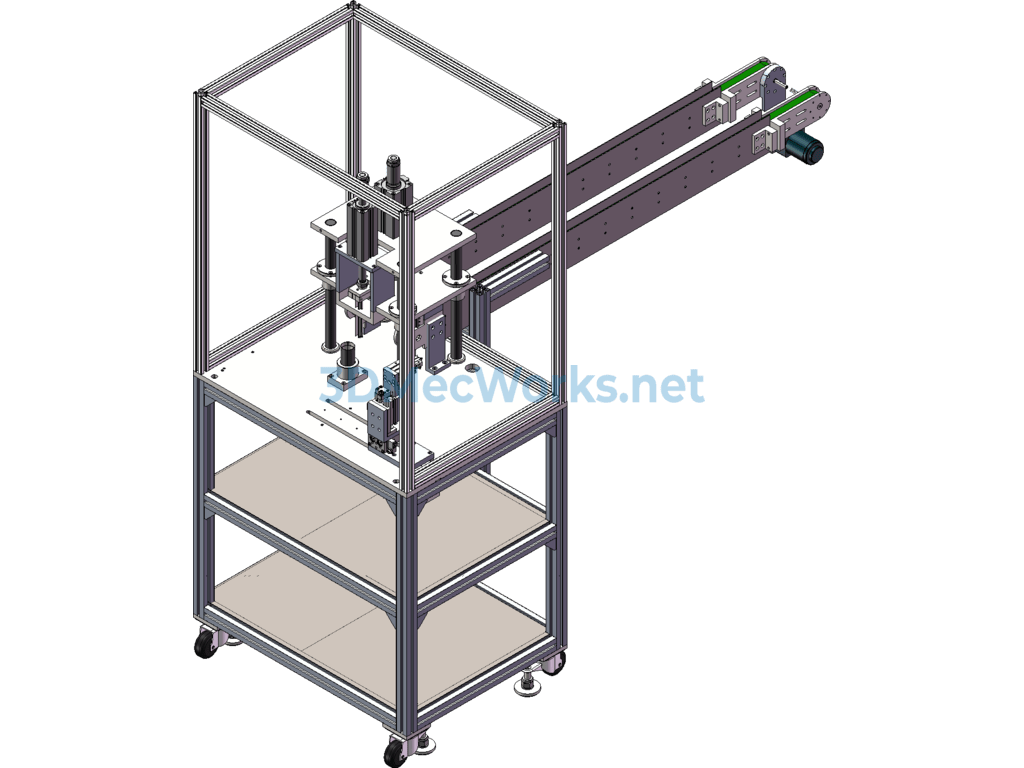

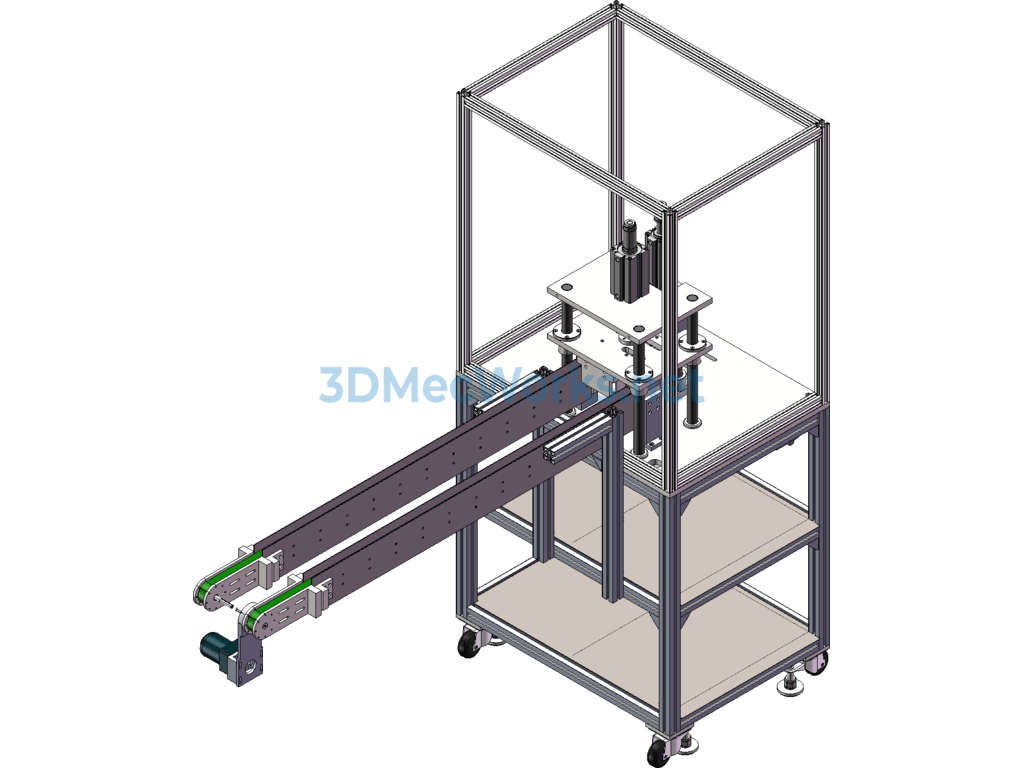

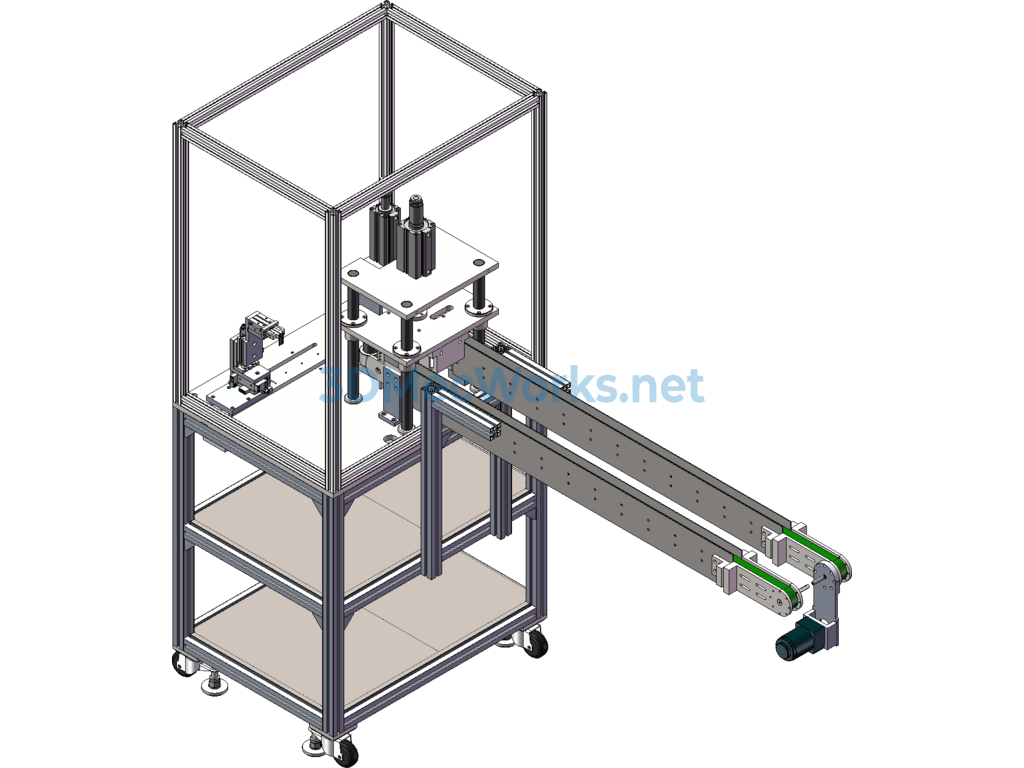

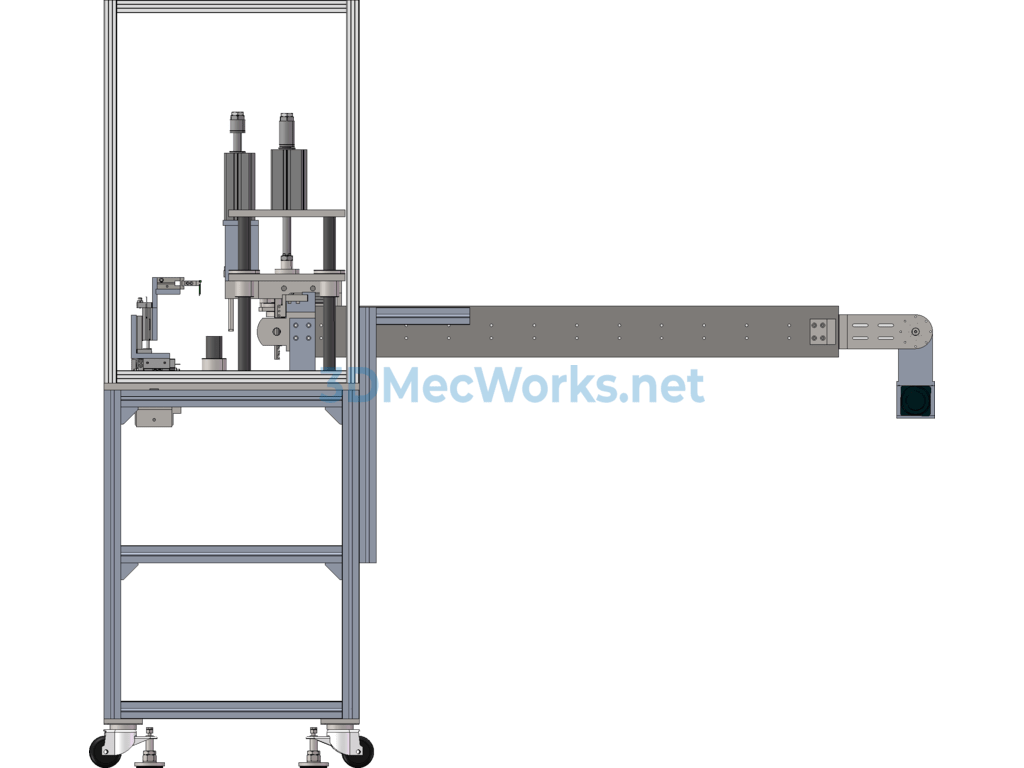

This is a complete set of motor magnetic pole installation equipment drawings. By manually placing the magnetic ring into the designated state, automatic installation can be achieved, which has strong reference significance. The drawings have been used in actual production. Equipment function: Installation of magnetic poles and magnetic pole fixing clips. Working principle: The conveyor belt transports the magnetic poles to the specified position. Through structures such as feeding tooling, they are installed into the motor housing, and the clips are used to fix the magnetic poles. The drawing version is SolidWorks 2018, everyone is welcome to download.
