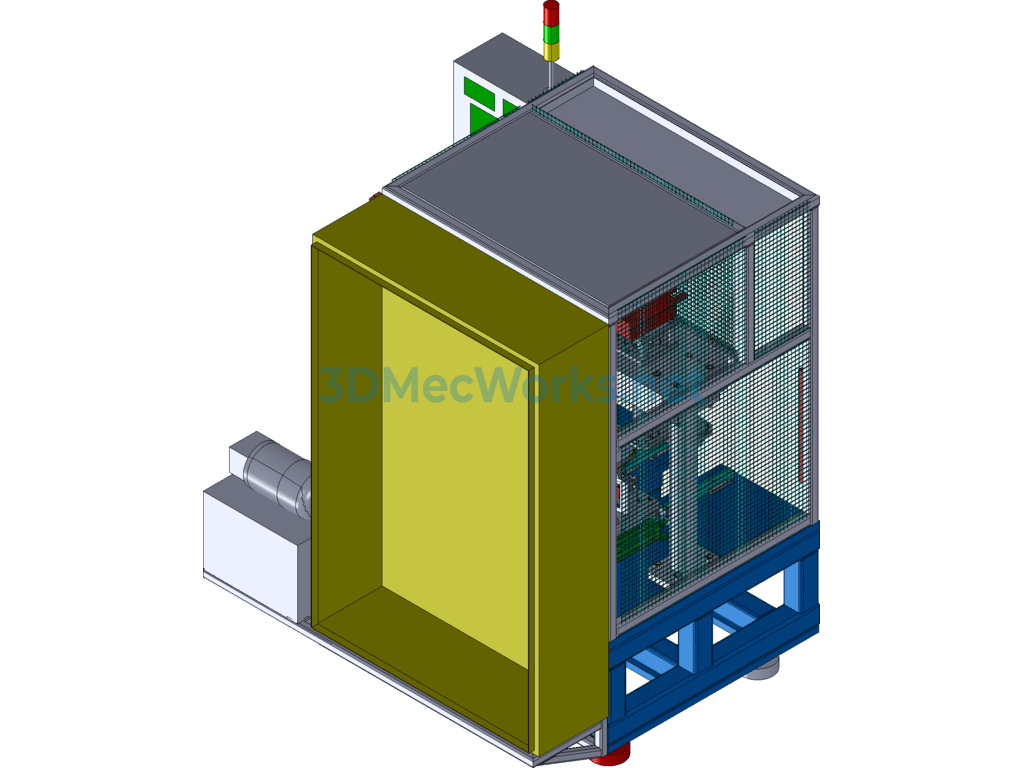

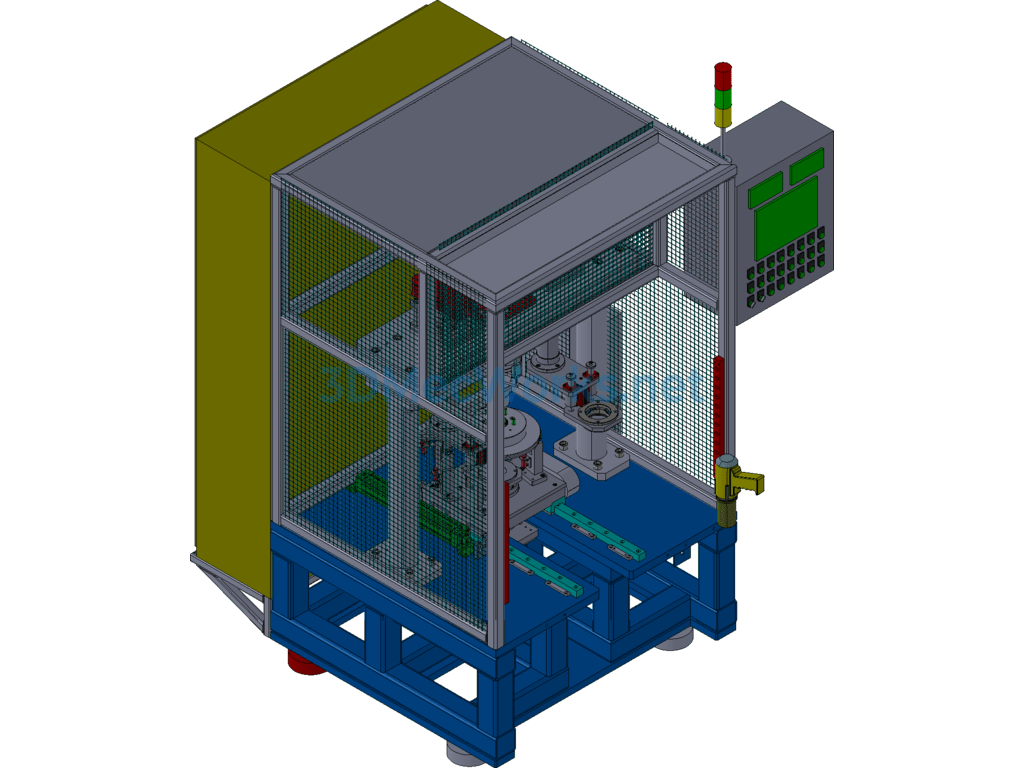

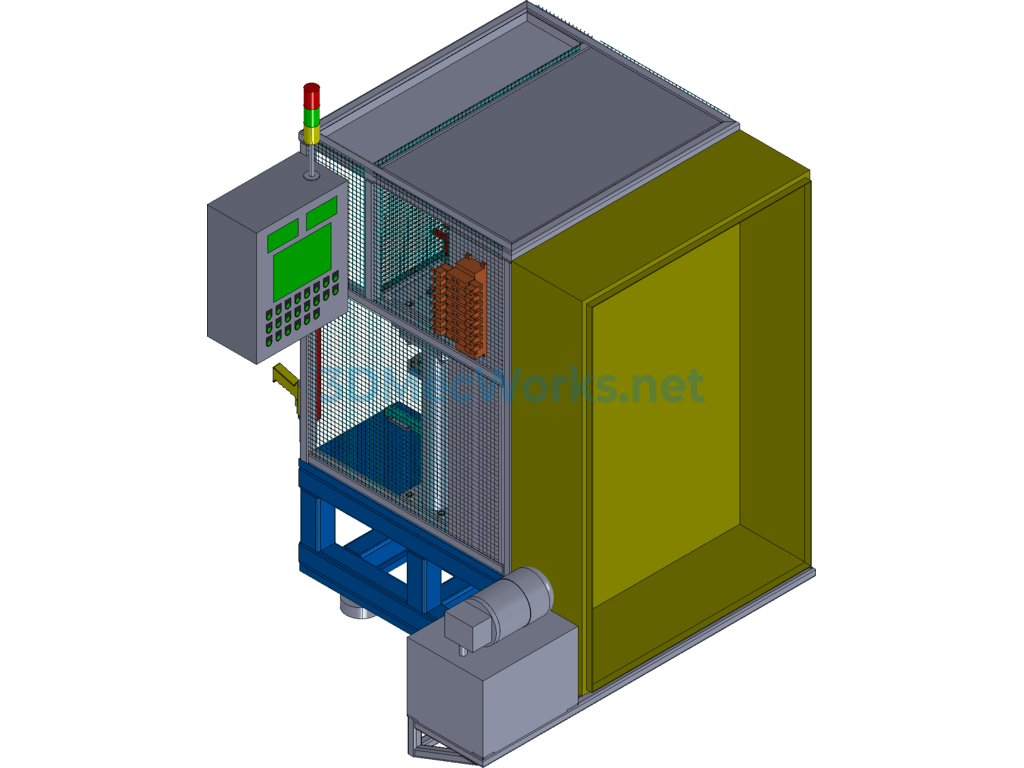

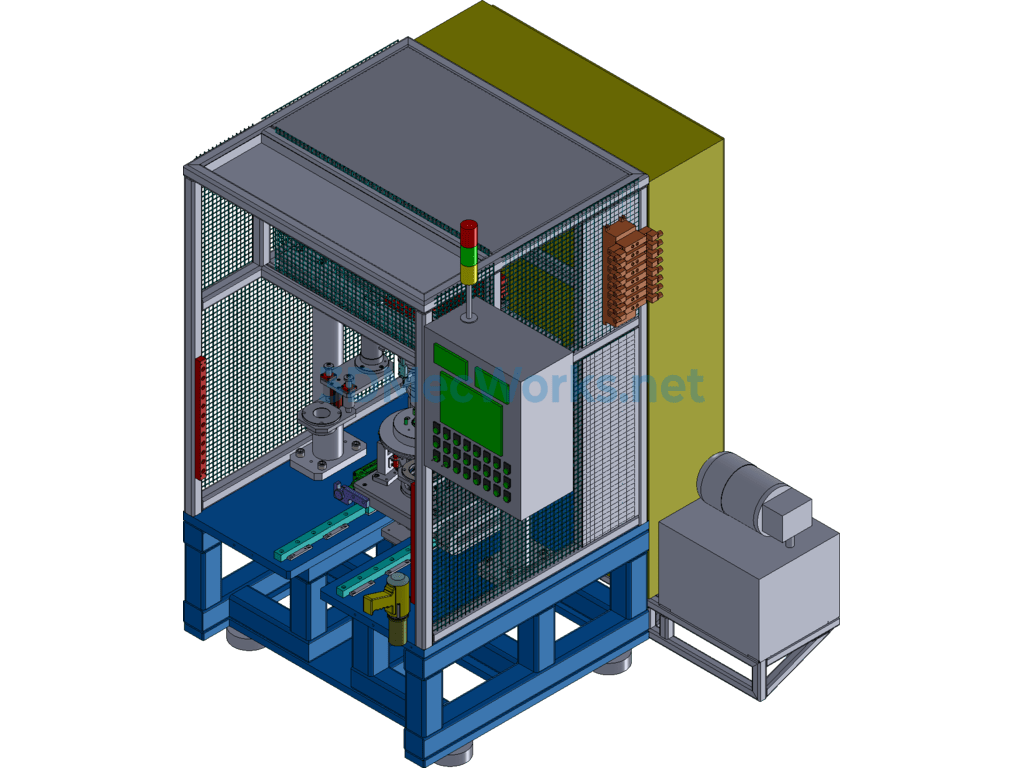

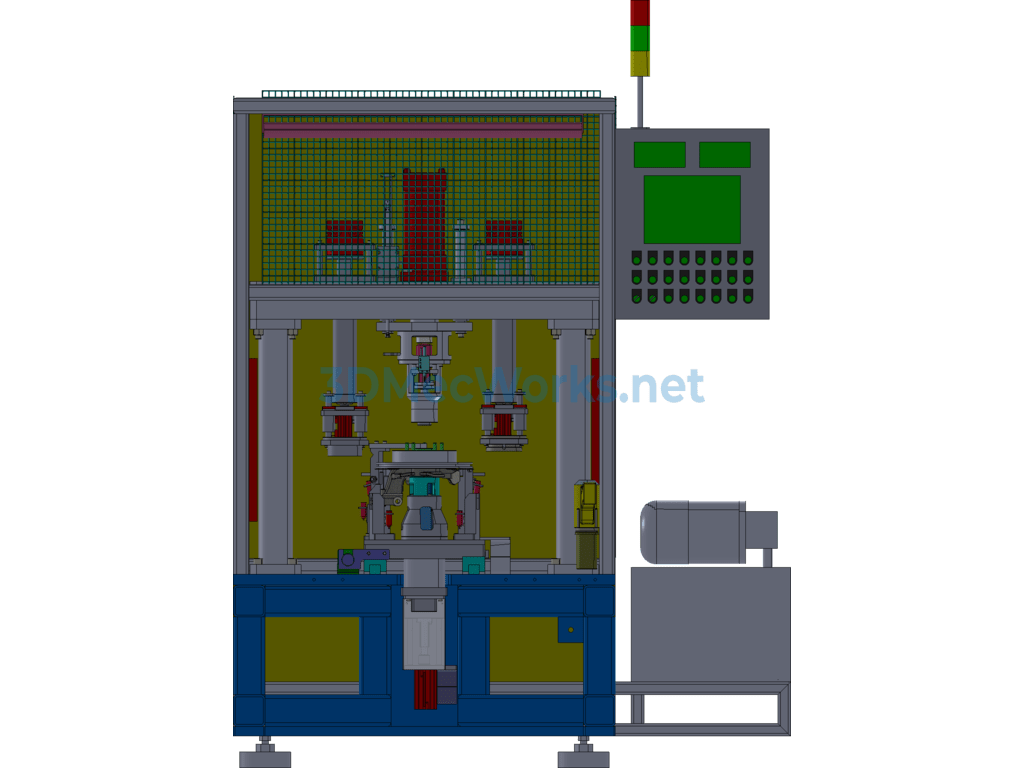

Automatic Assembly Machine for Steering Knuckle Assembly

The equipment realizes automatic assembly of the steering knuckle assembly, with the front axle press-fitting machine including automatic press-fitting of the bearing, snap ring, dust cover plate, wheel hub shaft, and brake disc. It also features setting and monitoring of press-in depth and press-fitting force, detection of press-fit positioning, and alarms for exceeding set upper and lower limits.
The document includes a 3D model, BOM list, hydraulic and pneumatic solenoid valve action table, and press-fitting process.
