Automatic Assembly Equipment Scheme Diagram for Refrigerator Magnets

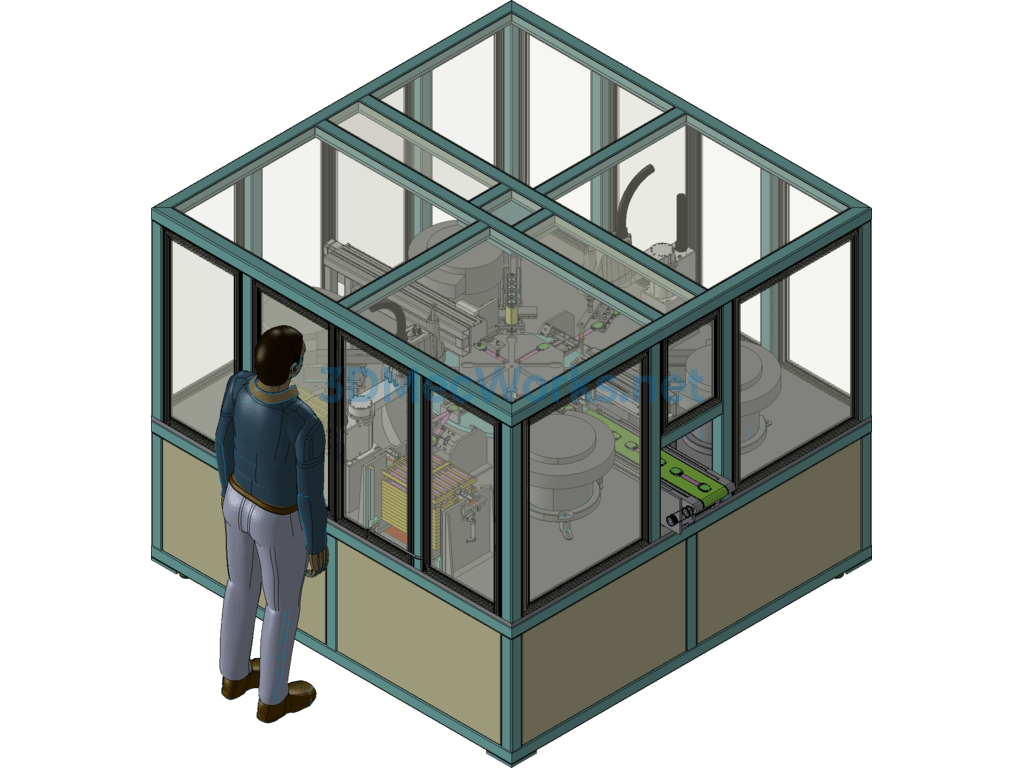

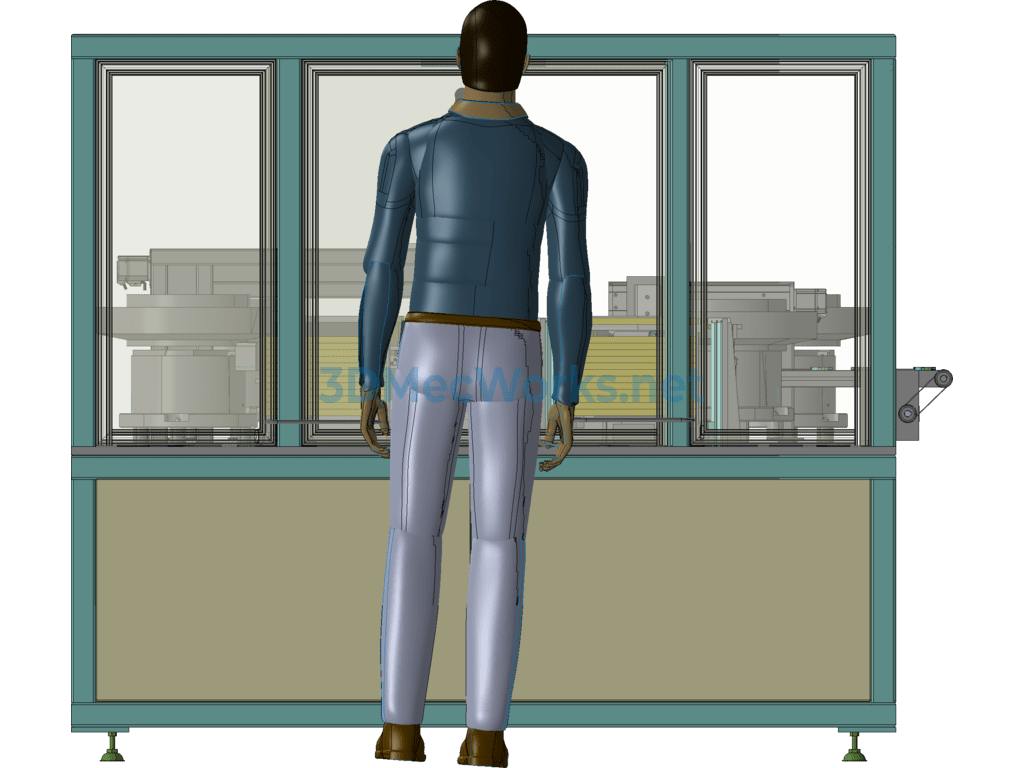

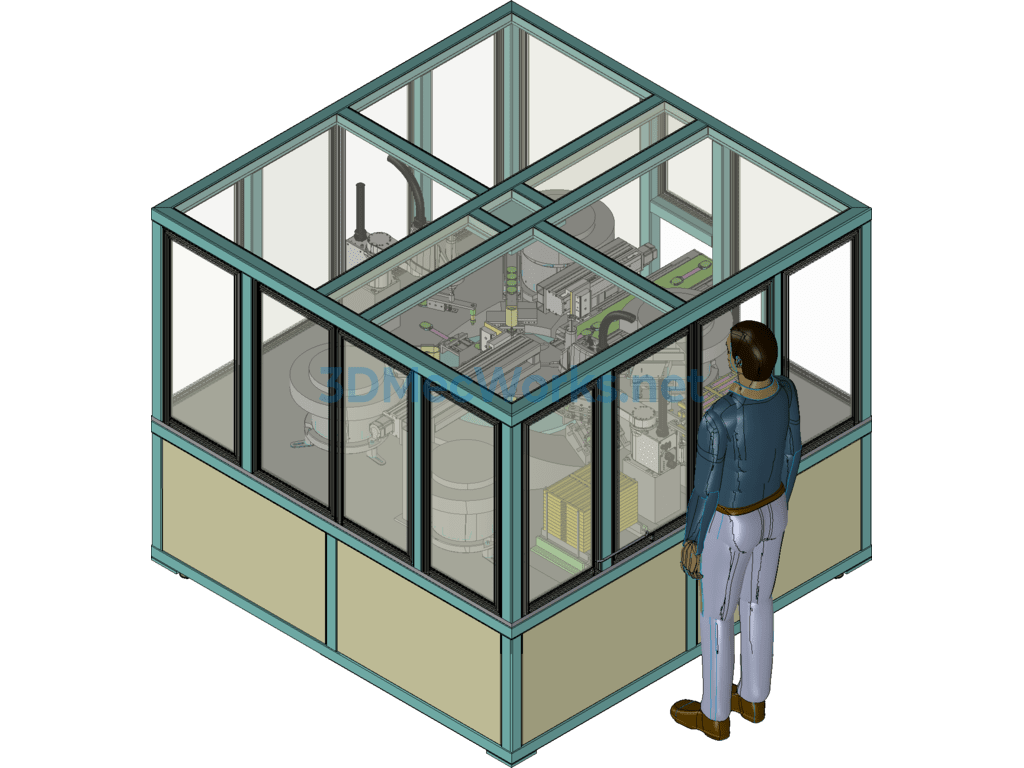

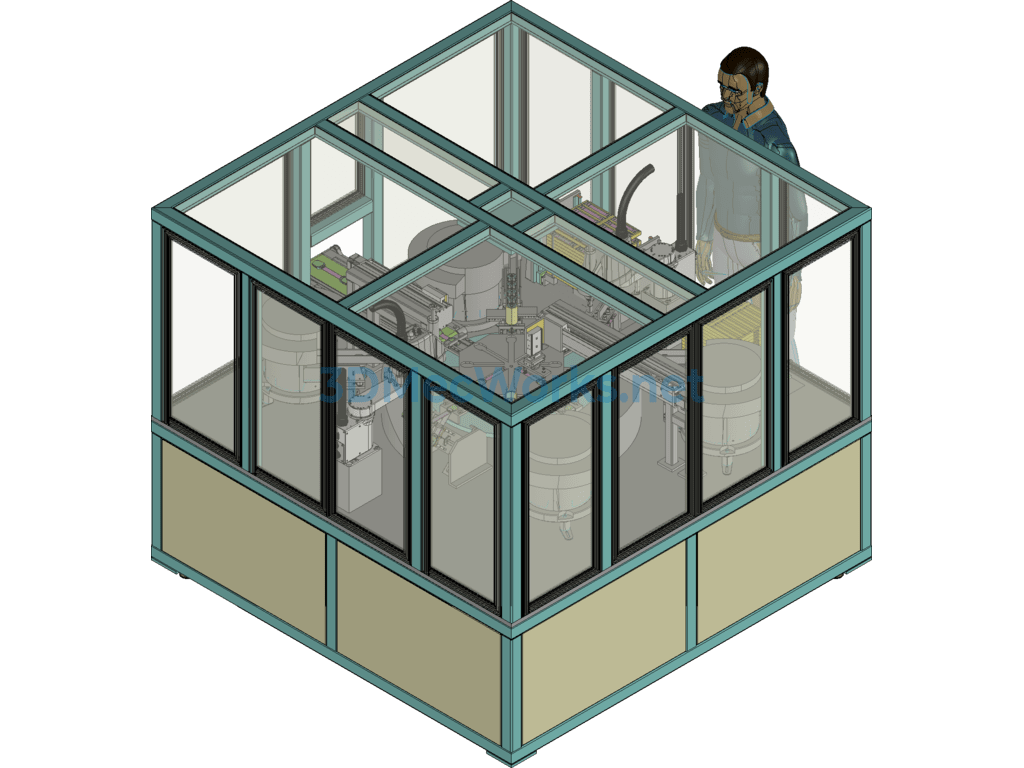

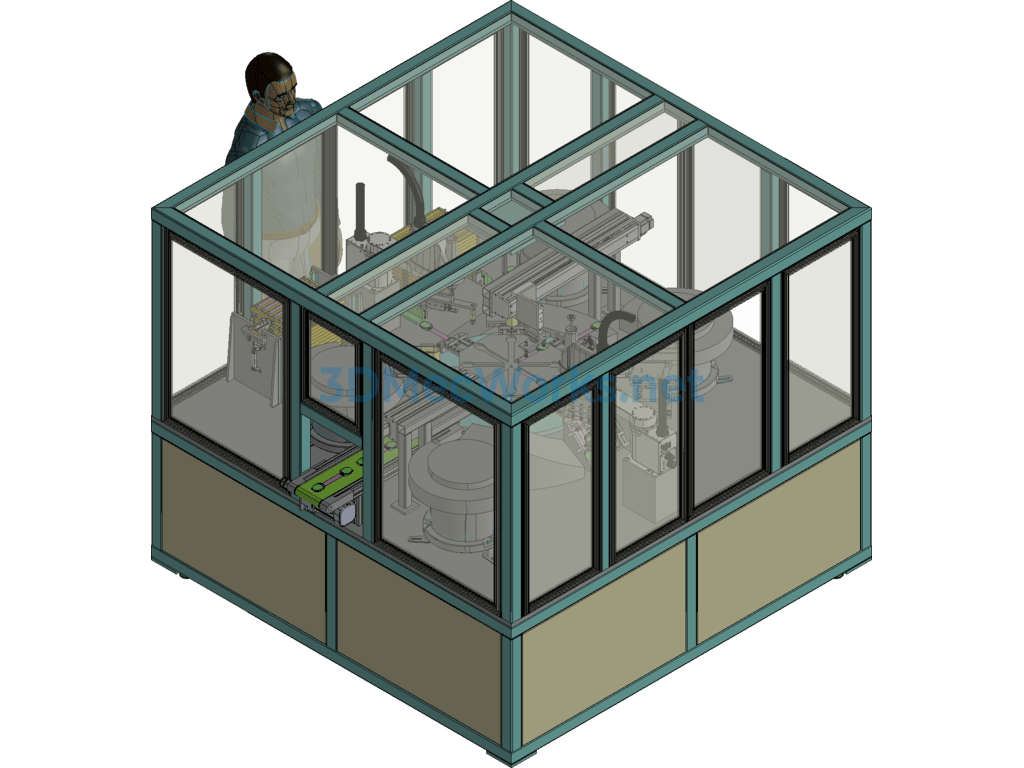

This drawing is the automation assembly equipment scheme for refrigerator magnets. The main requirement of this project is for the equipment to complete the assembly of refrigerator magnet parts. Refrigerator magnets are mainly used to decorate refrigerators. The drawing includes structures such as a mechanical arm for material handling, a fixture, a feeding mechanism, a conveyor line, a linear slide, a vibratory plate, and a rotating platform. Equipment dimensions: L2000*W2000*H2000mm; equipment voltage: AC220V/AC380; equipment efficiency: 400 units/hour; number of operators: 1 person; control method: human-machine interface. The drawing is complex and detailed, with a rational design, including assembly drawings and more than 200 part diagrams. It has high reference value. Everyone is welcome to download and reference. (Includes STEP format, can be opened with various 3D software.)
