Automatic assembly testing cycle line equipment, complex automation equipment production line drawings

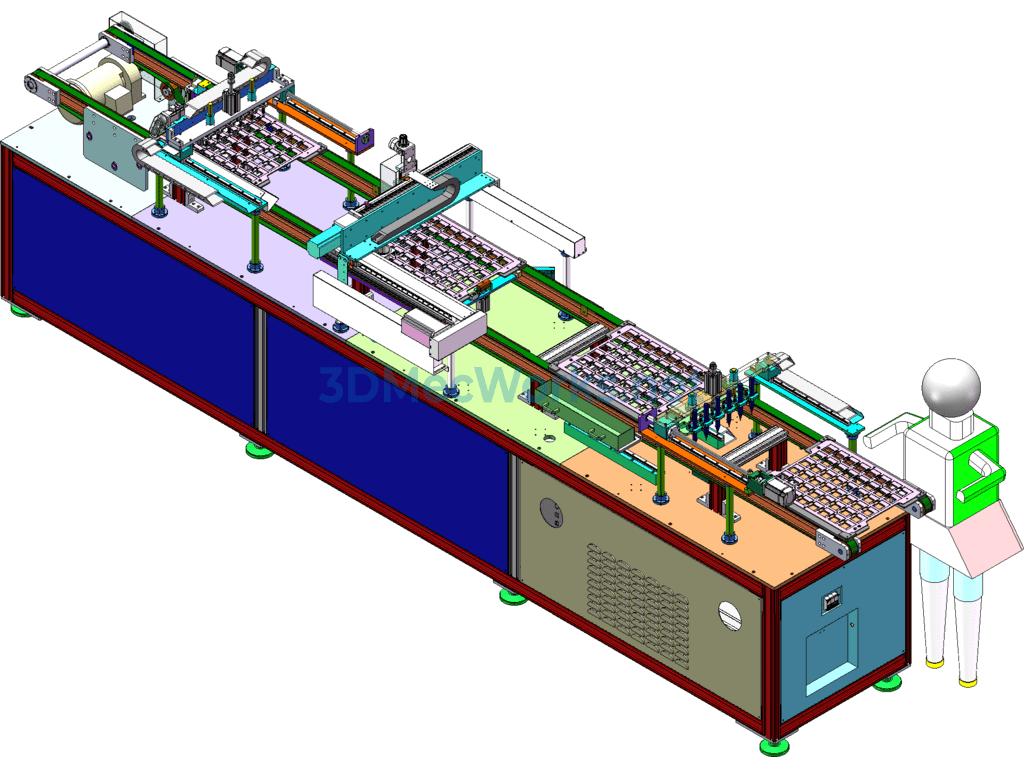

This set of non-standard automatic line is over 6 meters in total length, with the entire line composed of aluminum profile structure. The conveyor belt connection also adopts a simple low-cost profile design. Its main purpose is to implement processes such as automatic testing, assembly, and dispensing.

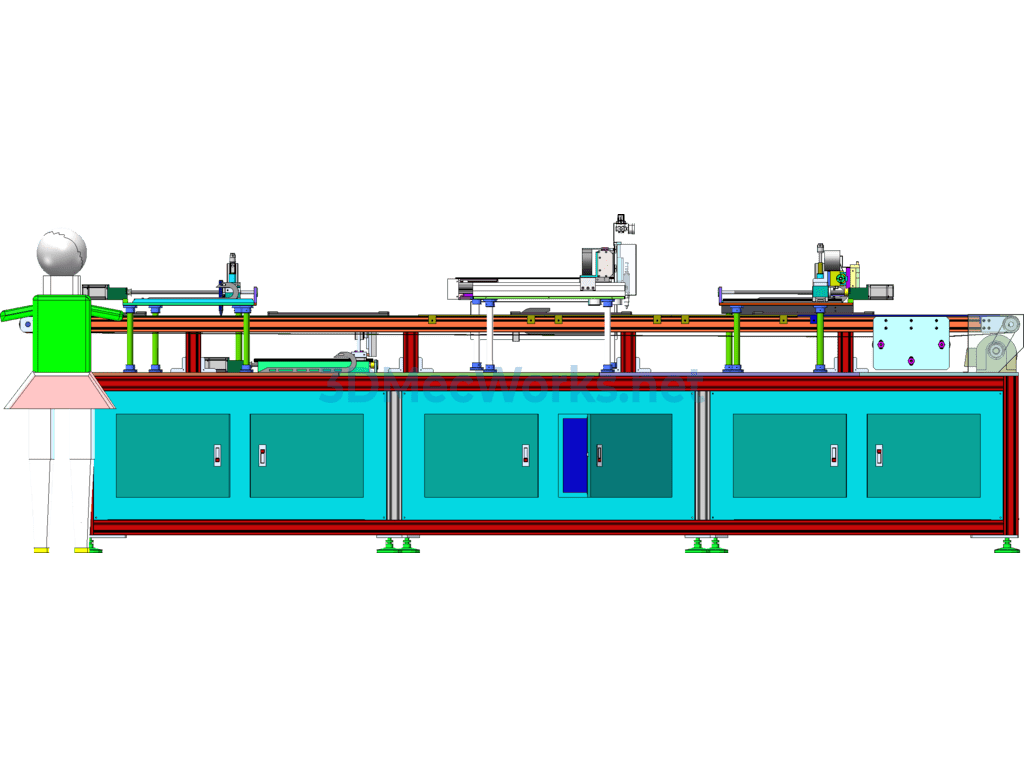

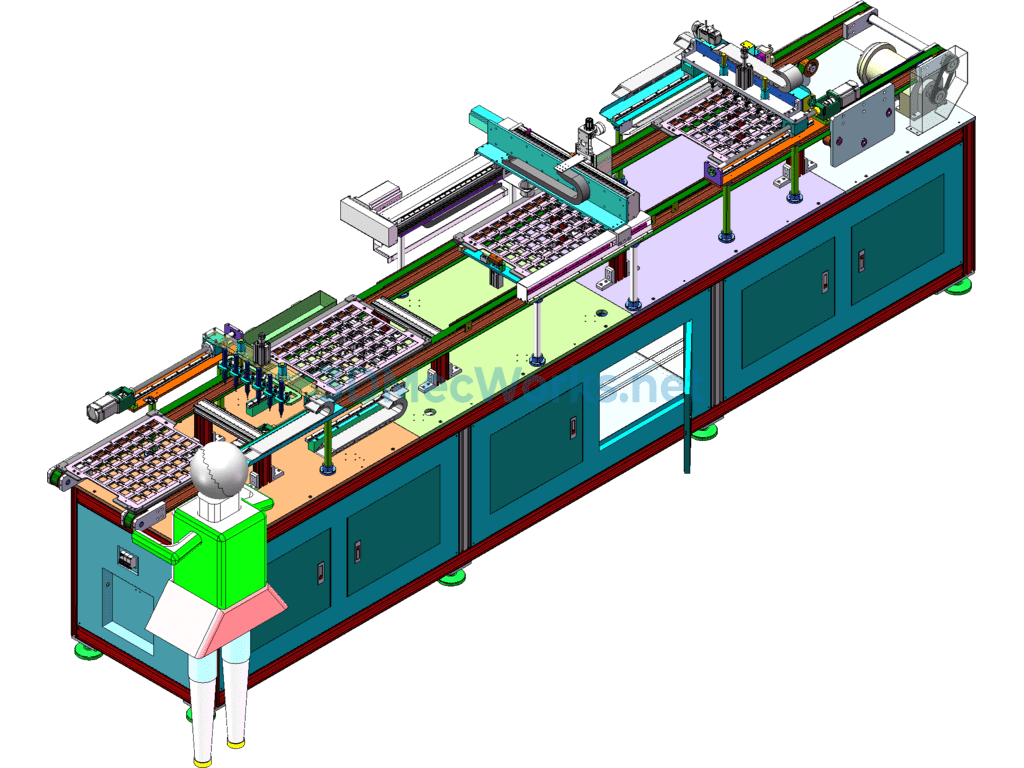

The line features 4 sets of three-axis robotic movement modules, each employing a servo motor and lead screw connection. The details of each part are clearly visible and every component is accurately drawn in place.
The quality of the drawings is excellent. Those involved in automation line work can download for reference and take inspiration from the structure in these drawings.

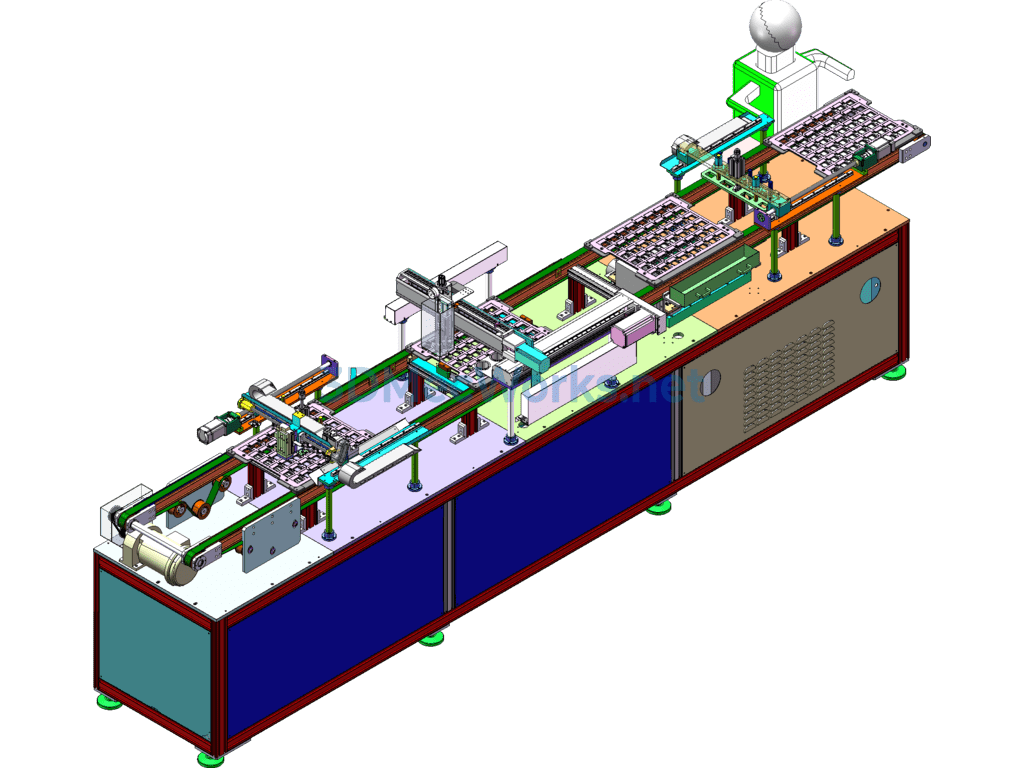

The middle conveyor belt is used for transporting and lifting positioning of carrier boards.
Under each workstation, there are lifting and blocking structures. Additional detection stations can be attached outside the stations. Interested individuals are welcome to download for learning and reference.
