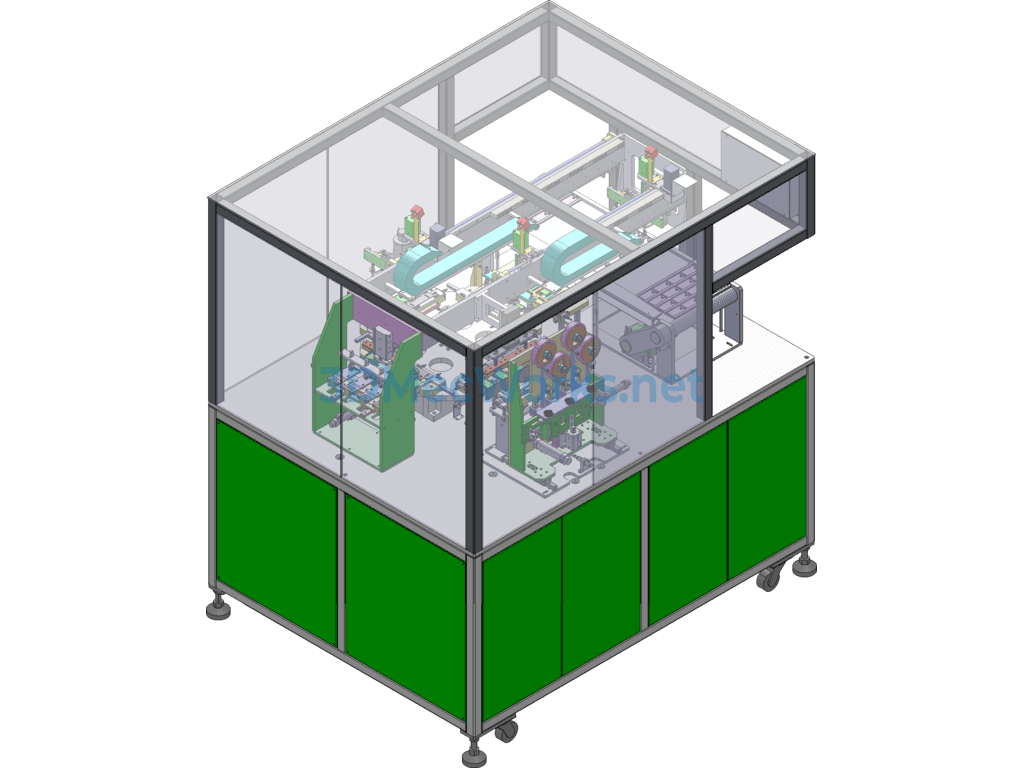

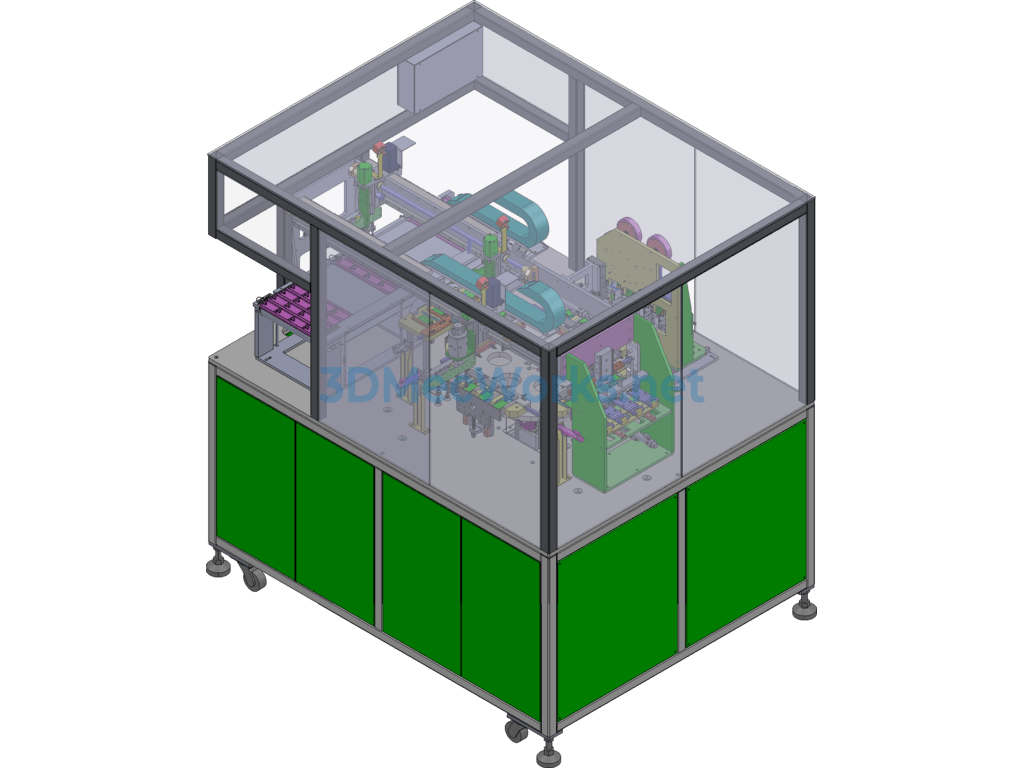

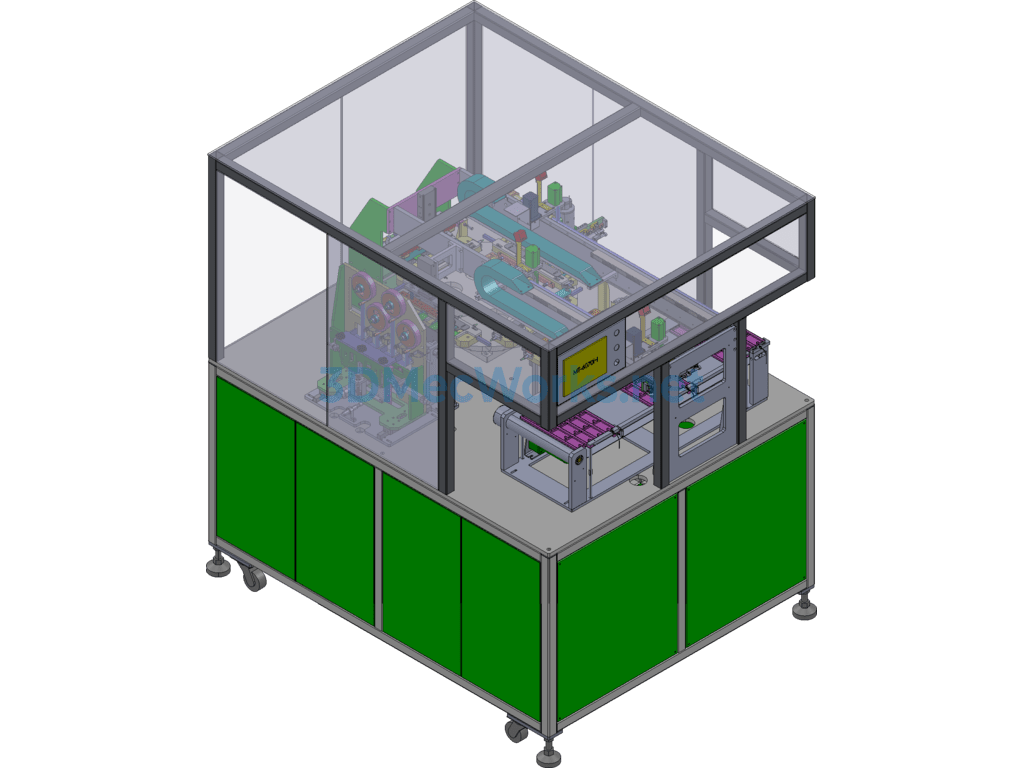

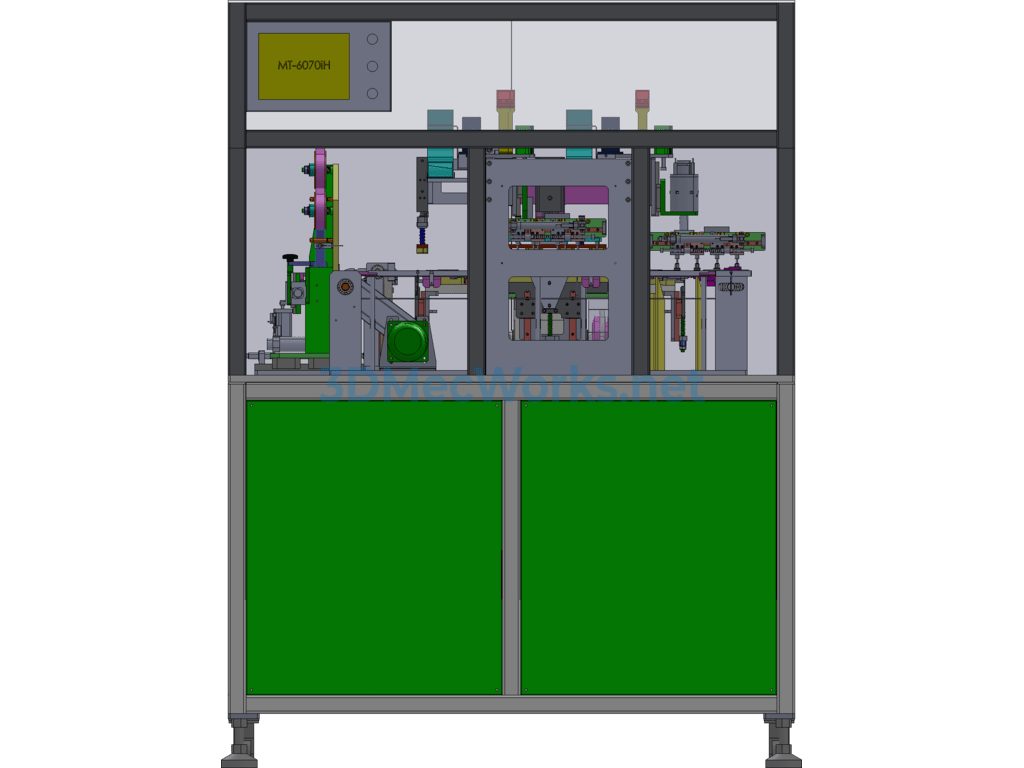

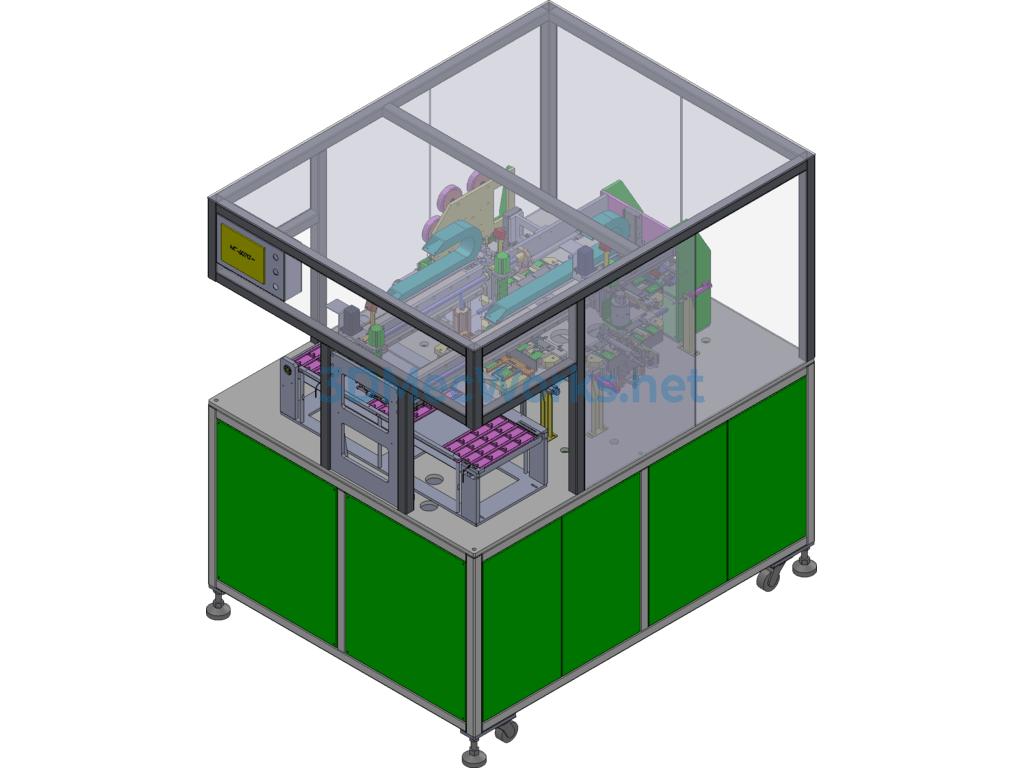

Automatic Adhesive Taping Machine for Small Square Battery Bottom (including Engineering Drawings + Bom List)

The small square battery bottom adhesive machine is specifically designed for automatically applying bottom adhesives to square batteries, a non-standard automated machine, which includes source files with parameters, engineering drawing files, and a parts list BOM. Function Overview: to apply bottom adhesives to bare cells after winding; The equipment is suitable for feeding with blister trays of 4×4 and 4×3 stations; A precision cam splitter with four stations is used to implement the bottom adhesive application function; Automatic loading, adhesive preparation, adhesive application, and unloading; The loading position uses a conveyor belt to automatically transport blister trays at 4×4 and 4×3 stations. Efficiency: 40 PPM. Cell length range: 36-70 mm; Cell width range: 30-60 mm; Cell thickness range: 3-10 mm;
