Automated Welding Machine (integrated Machine With Automatic Loading/unloading, Conveying, and Welding)

3D model of an automated welding machine, consisting of 641 SW objects, fully offered, complete model available for download.

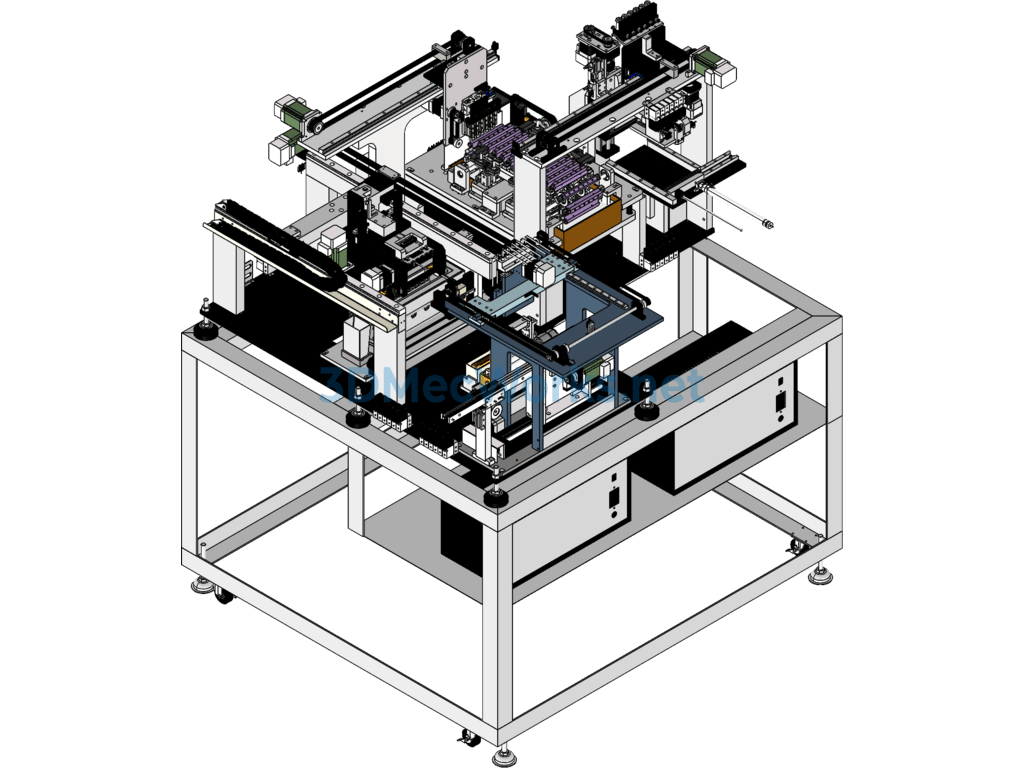

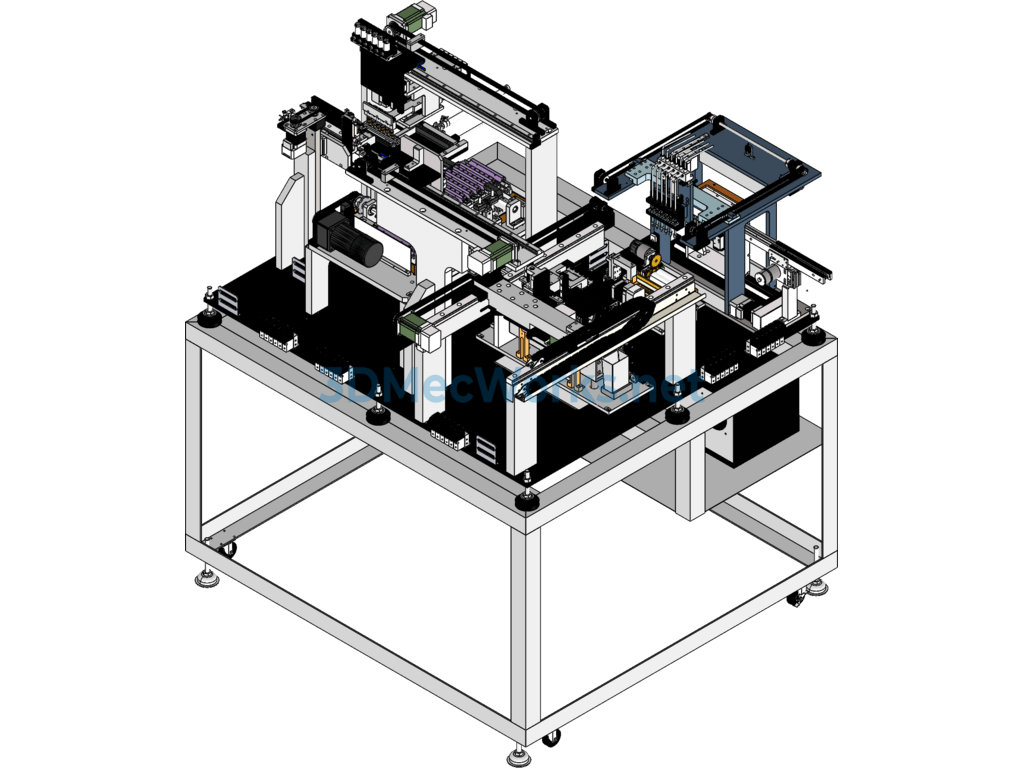

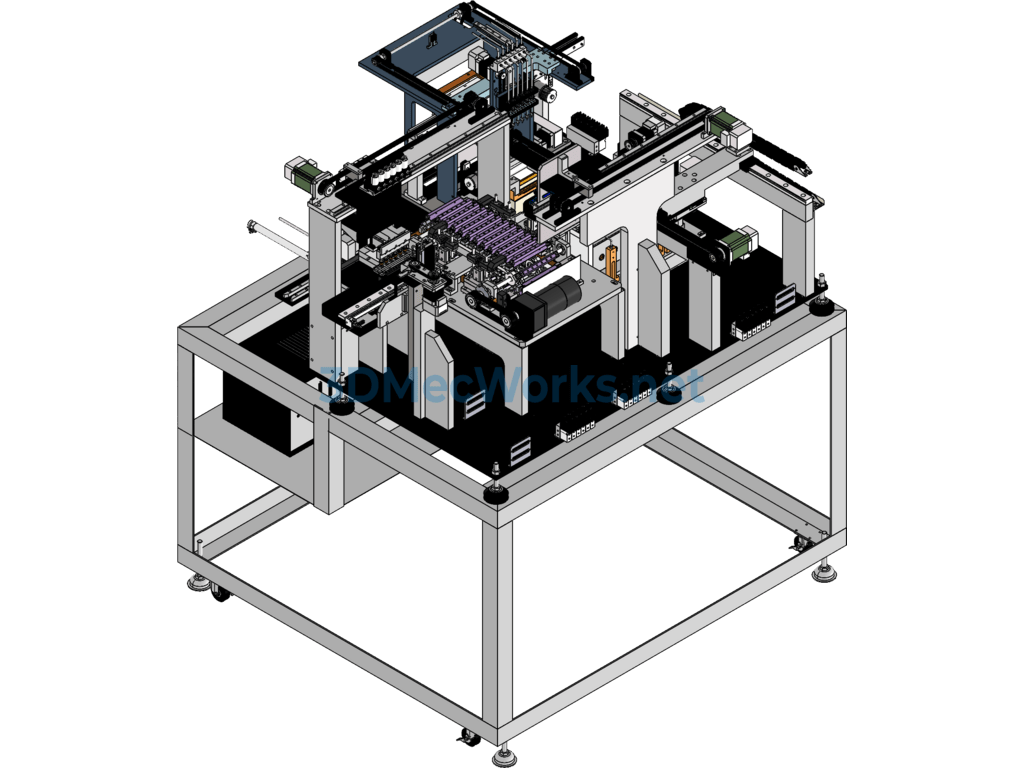

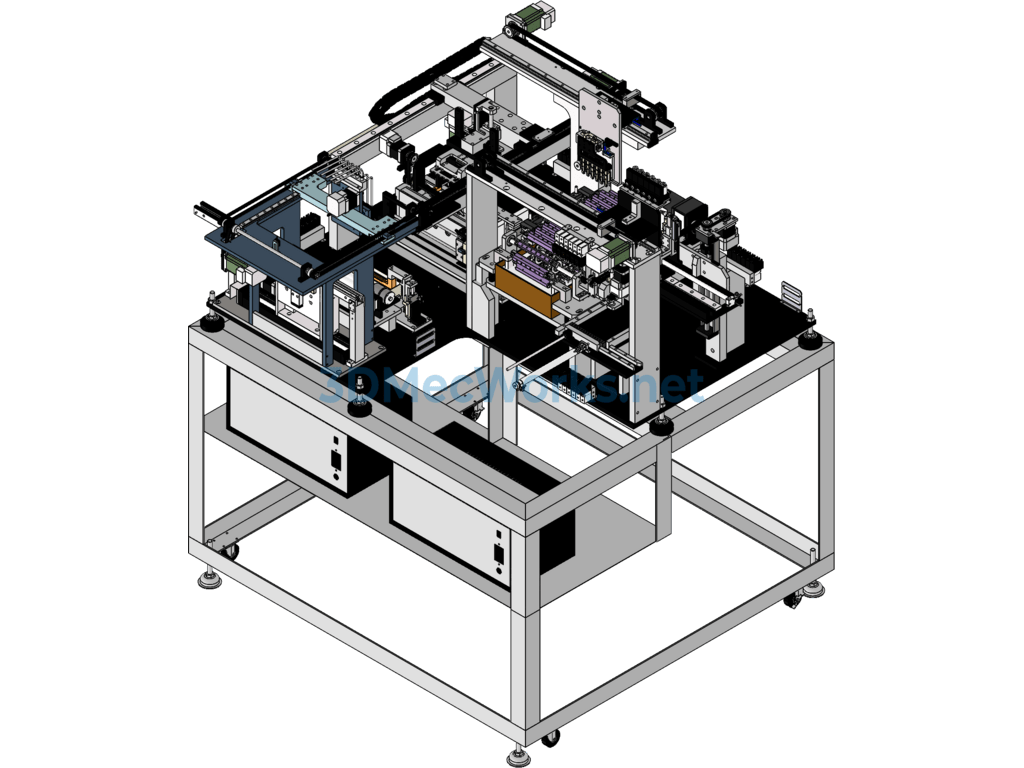

The automated welding machine is based on technologies such as motor control, microcontroller control, PLC control, and numerical control. It primarily consists of the automated workpiece loading and unloading mechanisms, workpiece station automatic transfer mechanism, workpiece automatic clamping mechanism, as well as an automated system for the welding process and integrated system control. The image on the right shows an overall diagram of an automated welding machine used in a water heater production line, which includes mechanisms for automatic loading and unloading, automatic conveyance, automatic clamping, and automation of the welding process.
