Automated Six-Station Assembly Machine

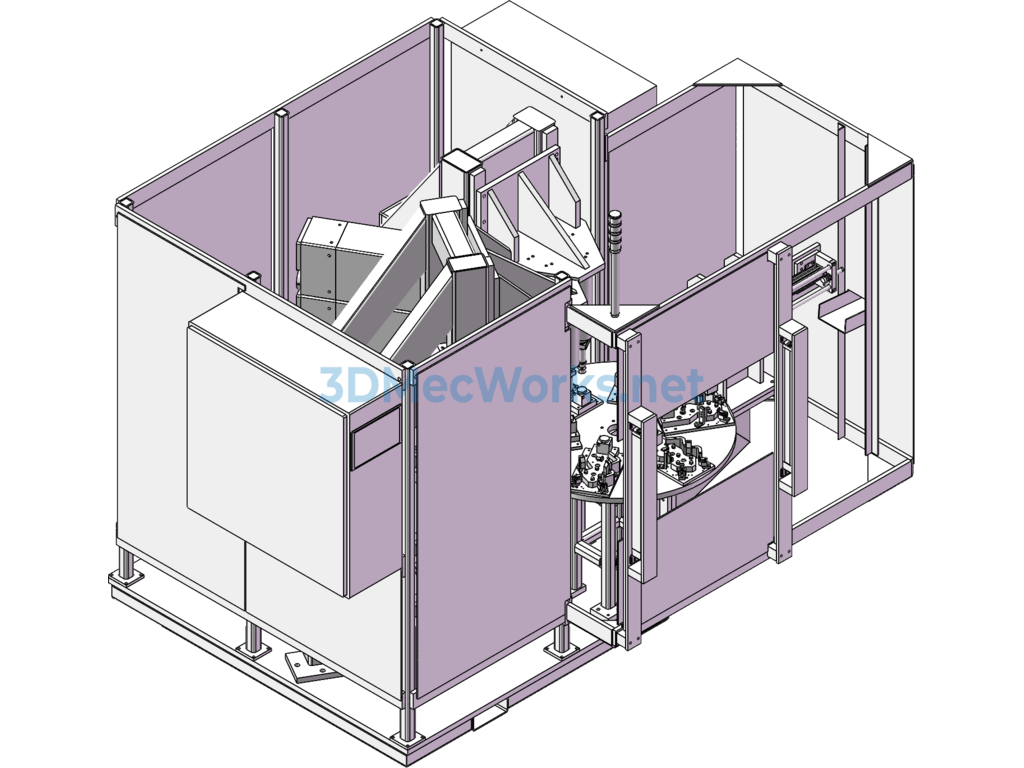

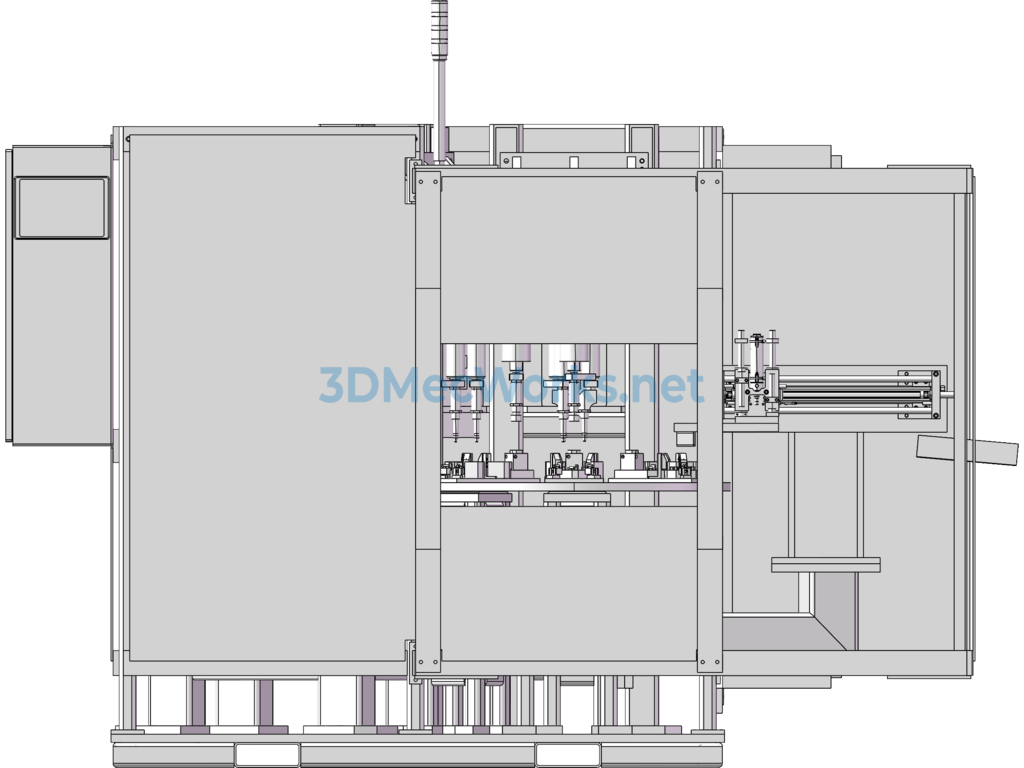

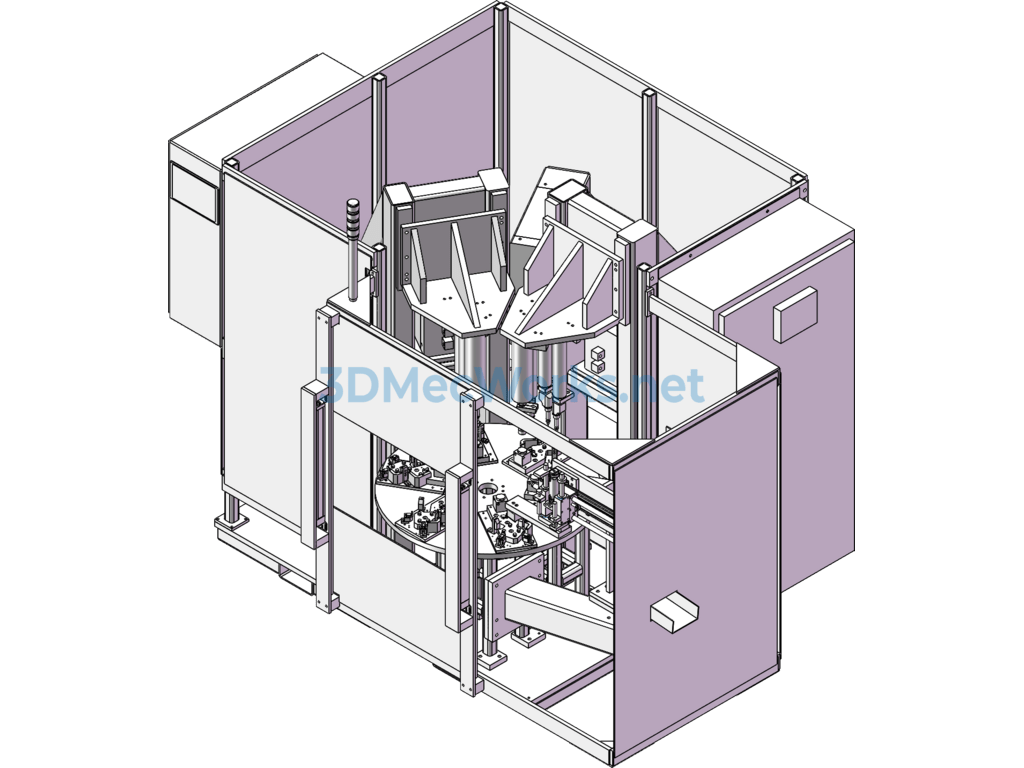

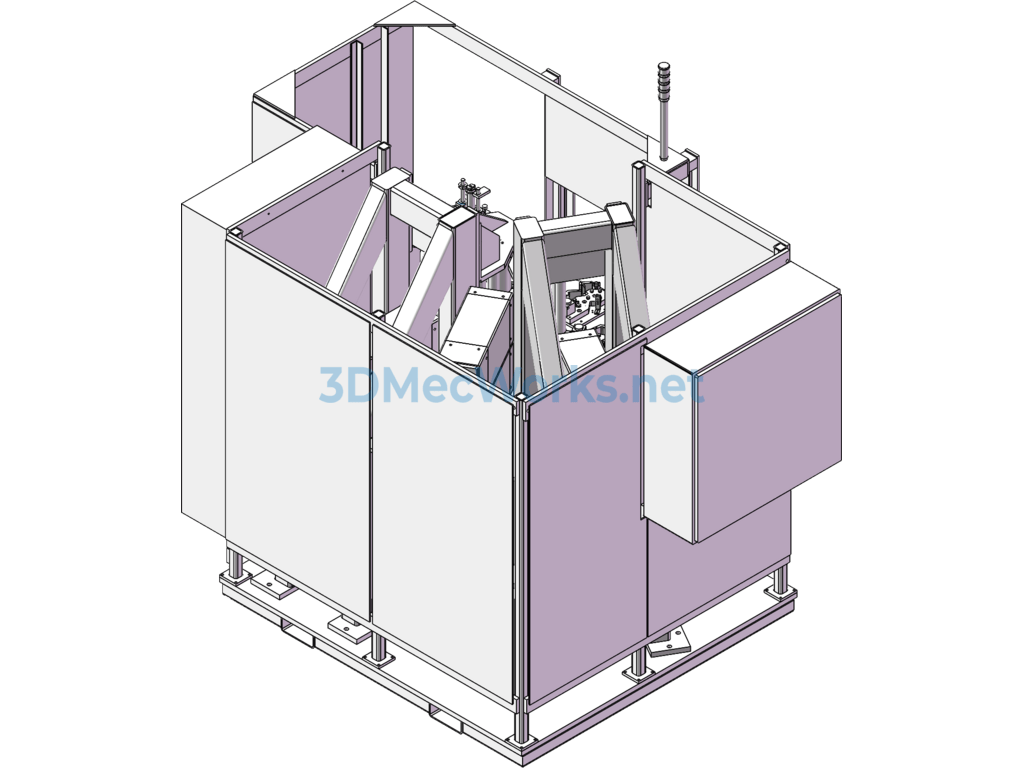

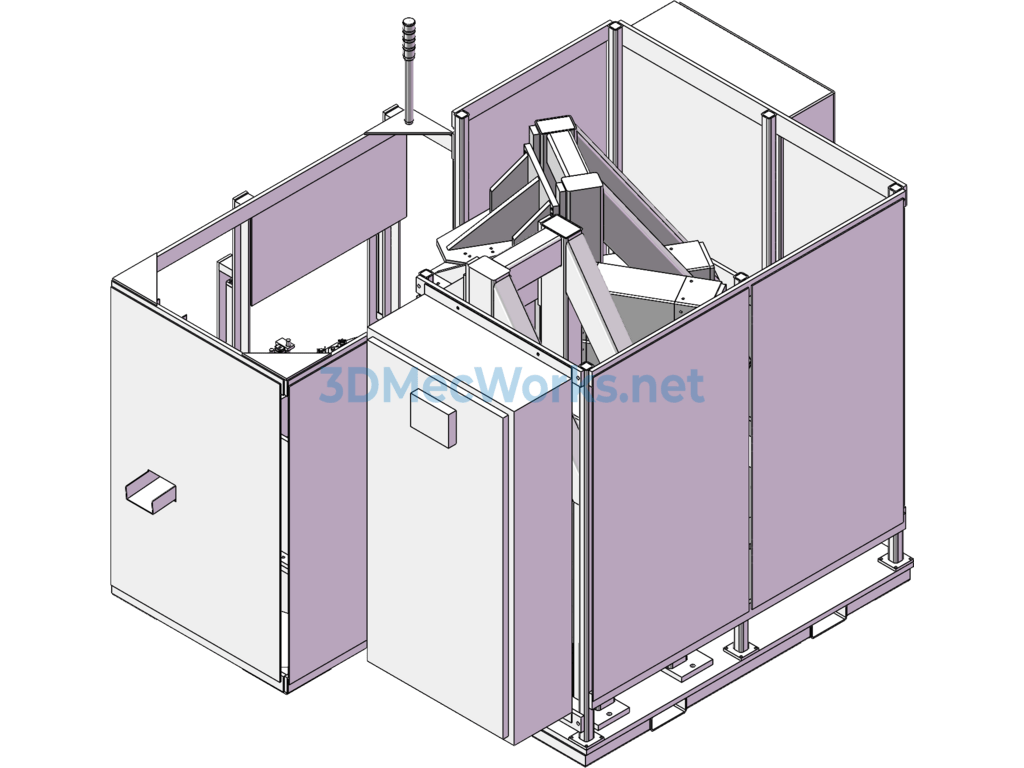

Automation Six-Station Assembly Machine 3D Model SW Design
The six-station assembly machine uses cylinders and servo motors as power sources to automatically complete the assembly of dual-row six-hole audio socket components.
The assembly parts include one plastic main body, six plastic insulators, three double-position iron shells, and one six-hole plastic cover plate.
This equipment is designed with Solidworks 2014 and uses a DD motor to achieve six-station indexing assembly.
You are welcome to download it.
