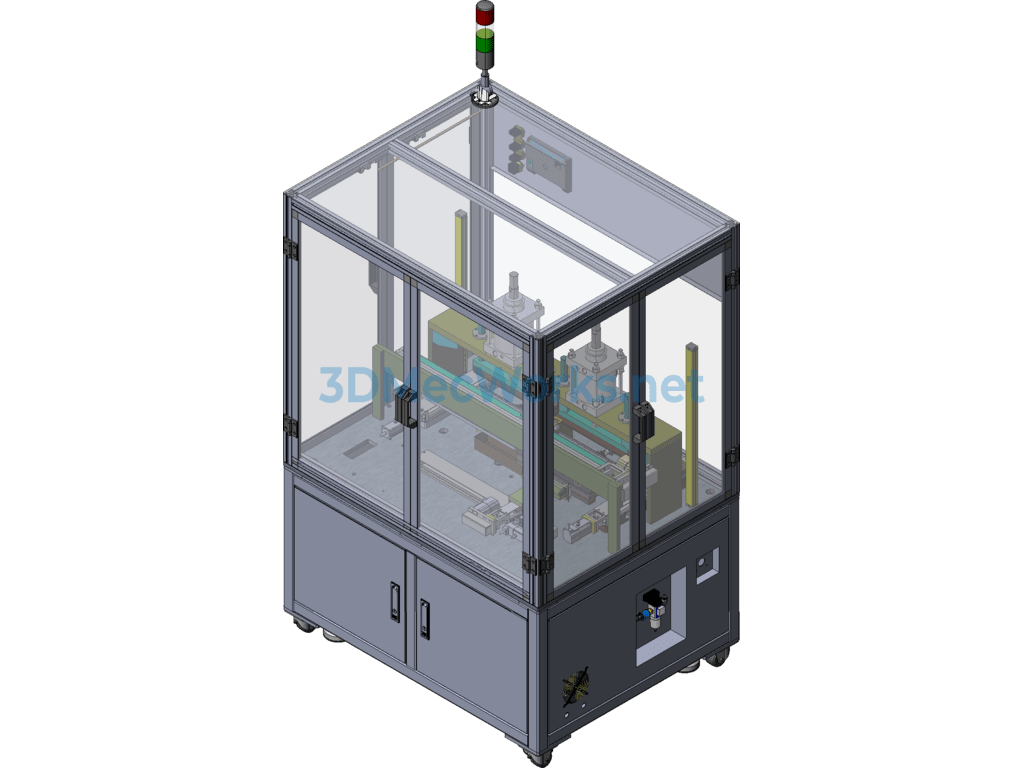

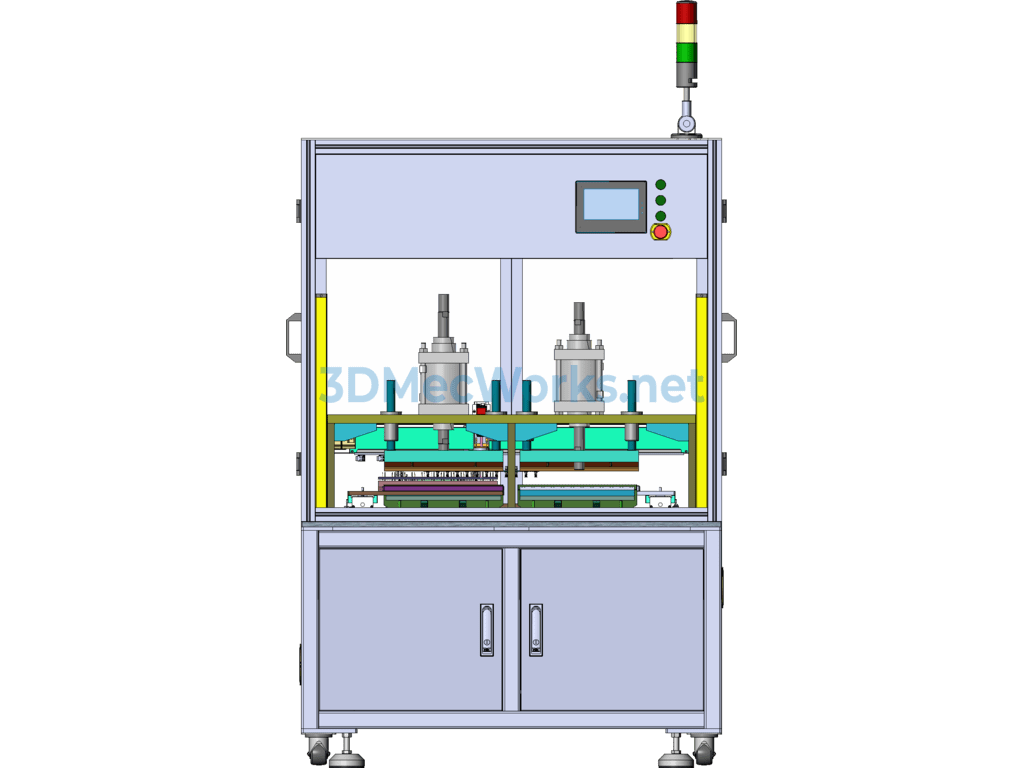

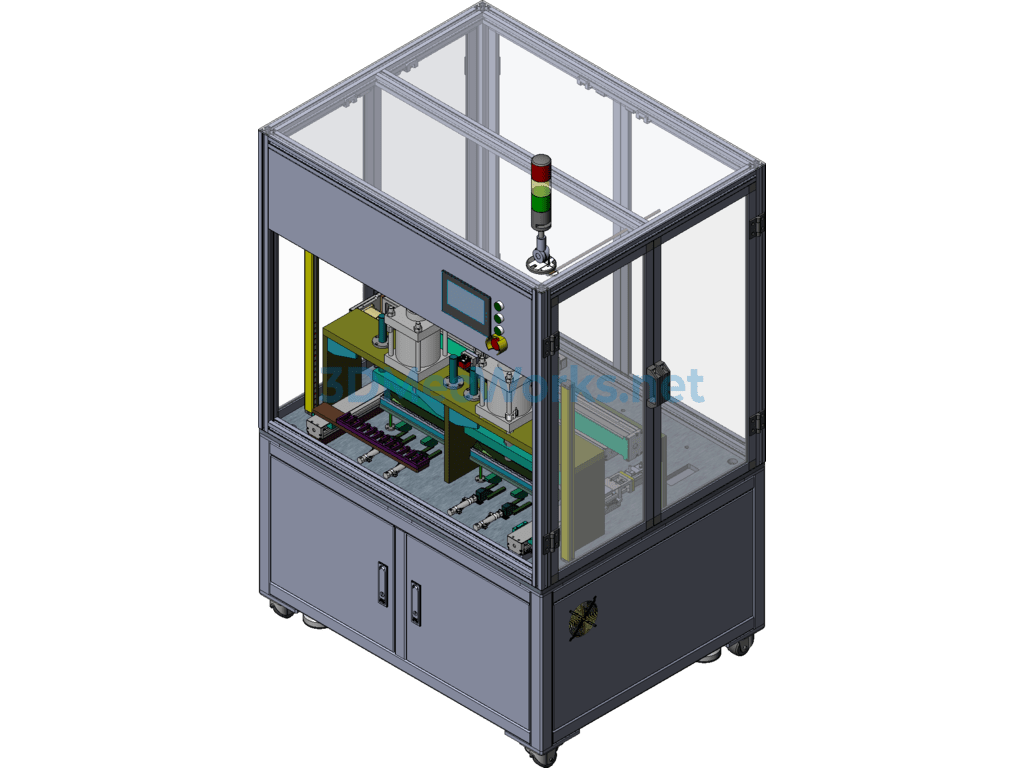

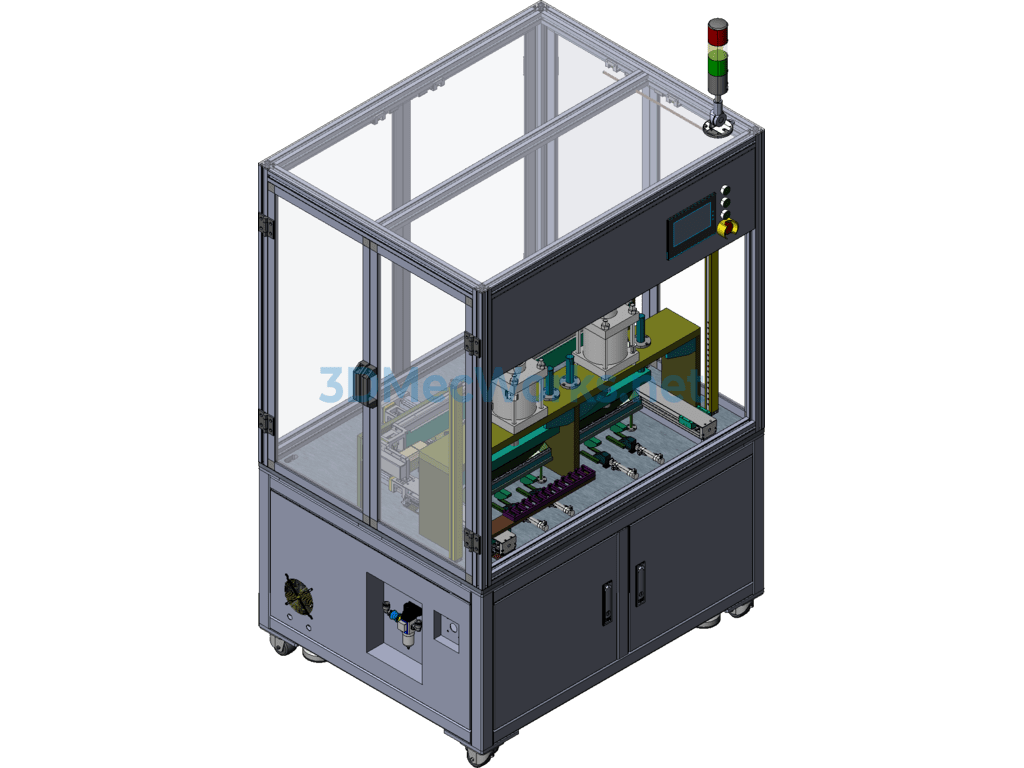

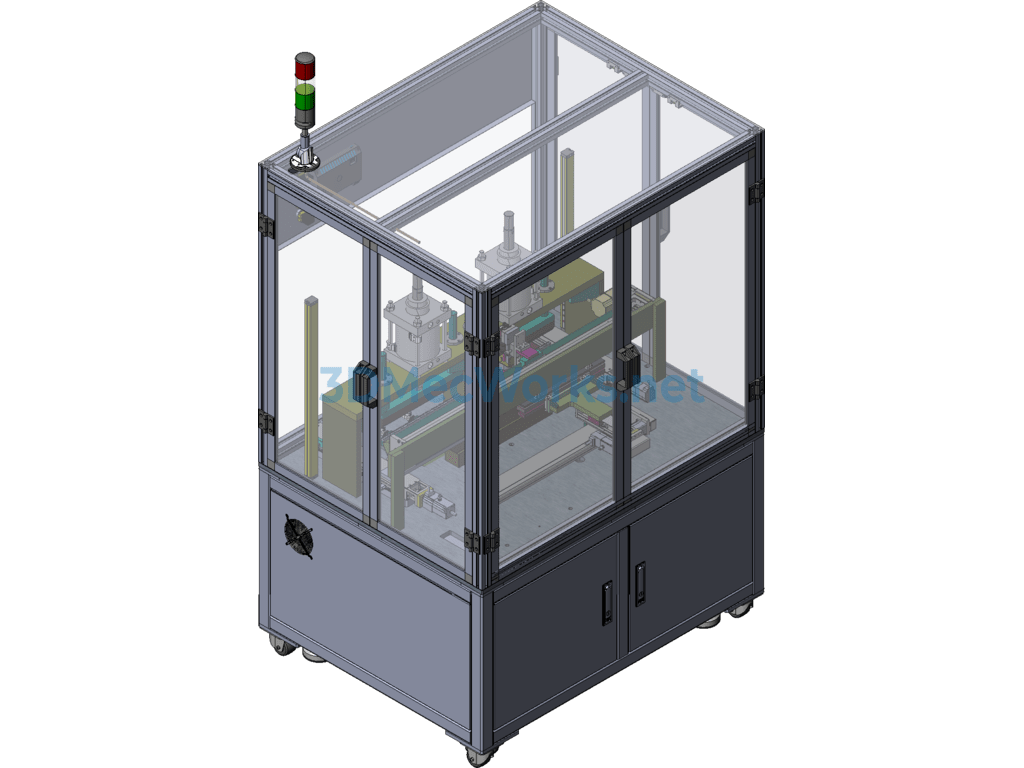

Automated Resistance Cutting Tester Equipment (Including Detailed DFM) - SolidWorks - Free Download

Resistance Cutting Test Machine Equipment Process:
1. Manually place the product into the left and right feeding fixtures for positioning;
2. The feeding module moves the product into the equipment;
3. The straightening module straightens the electrode arms, and the module can switch between left and right straightening;
4. The feeding module sends the product into the electrification testing module to measure the resistance value;
5. The module moves the product to the left and right cutting for stamping and cutting;
6. After completion, manually unload the material.
