Automated Pallet Conveying for Uphill and Downhill Slopes

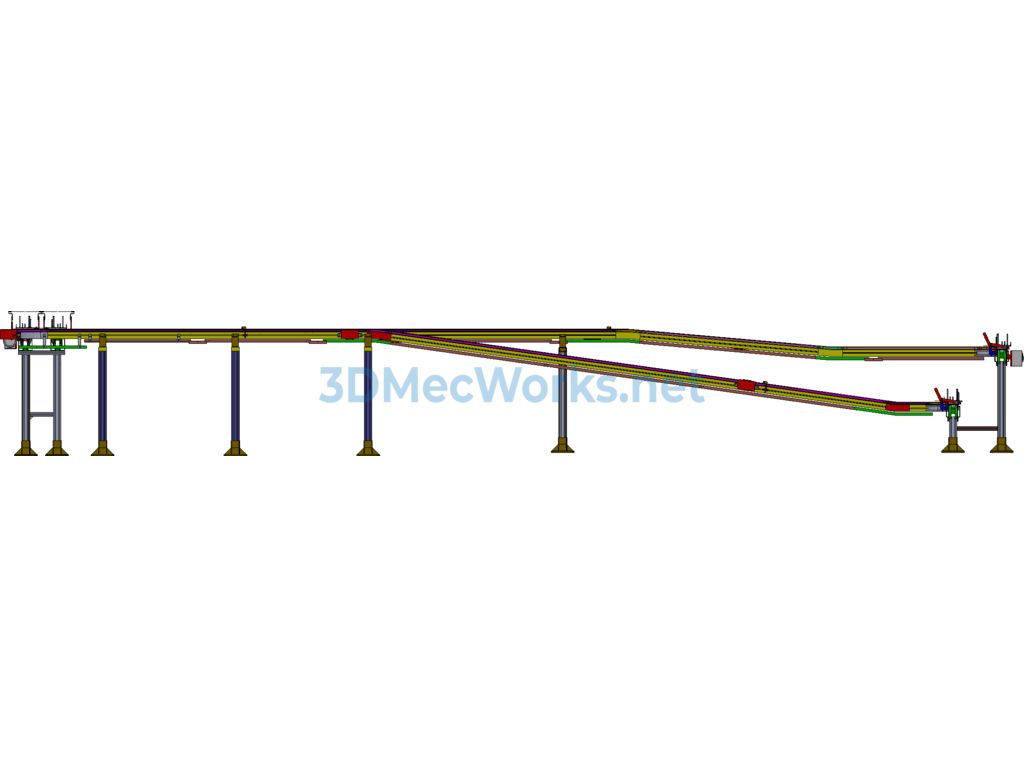

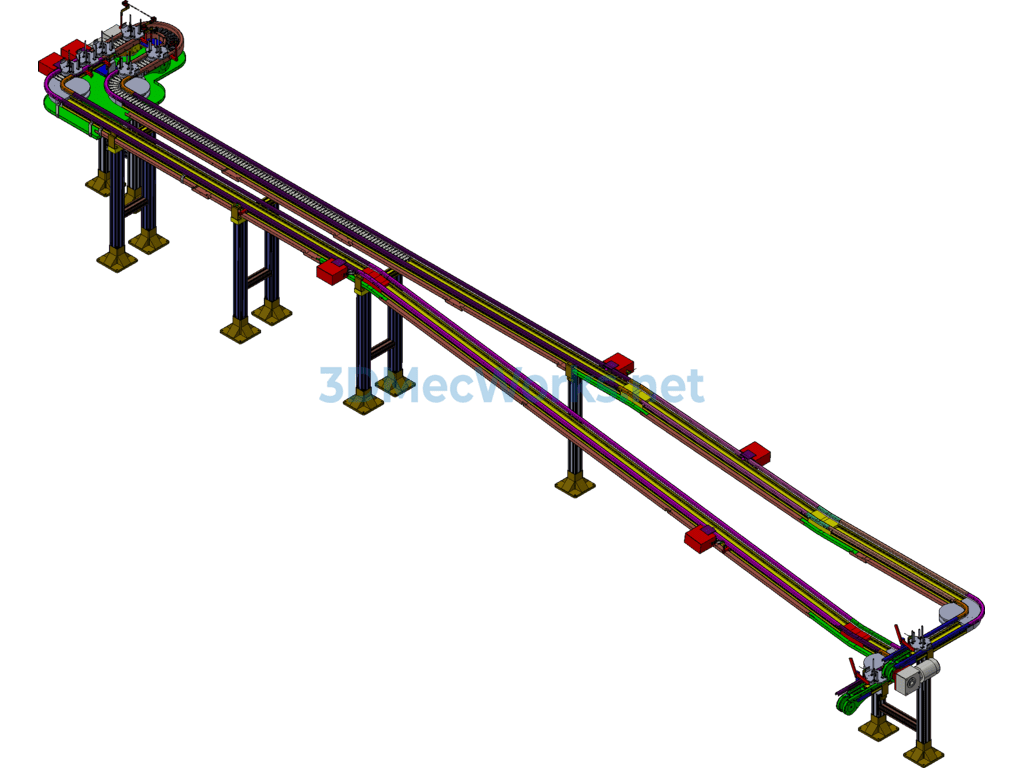

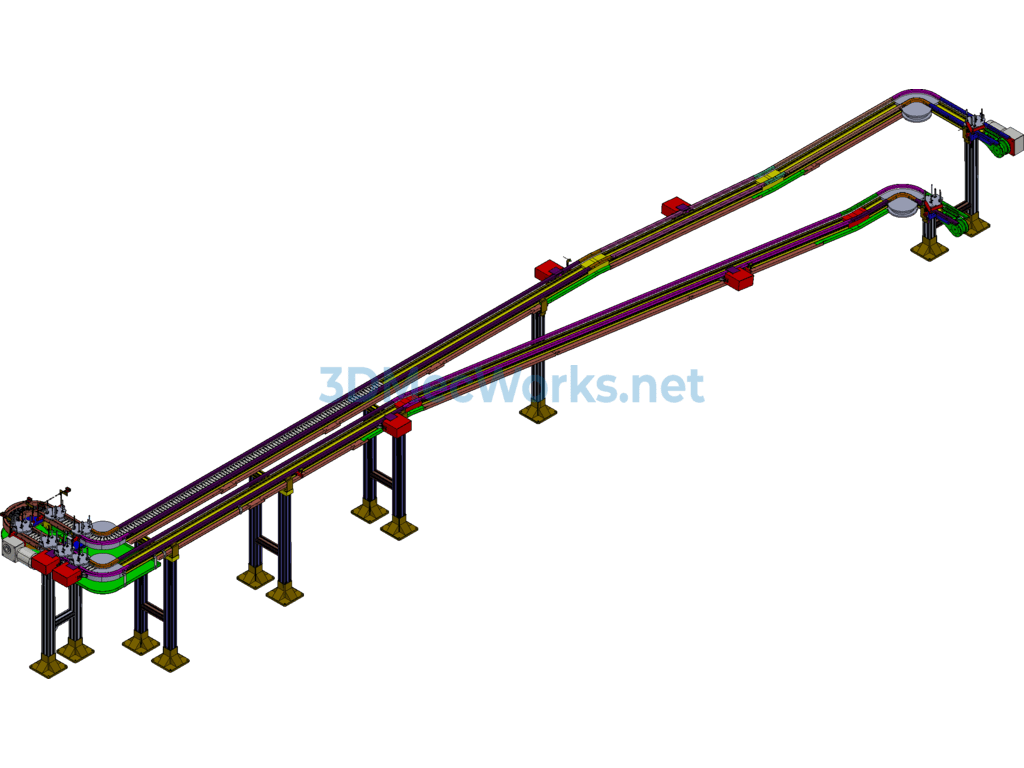

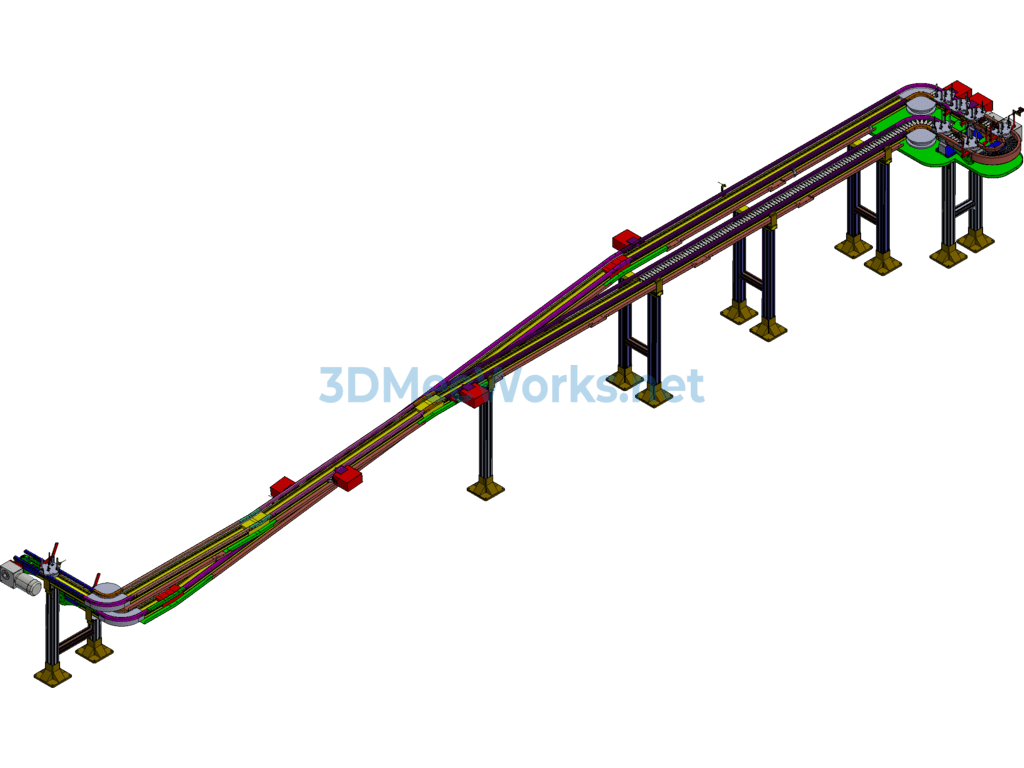

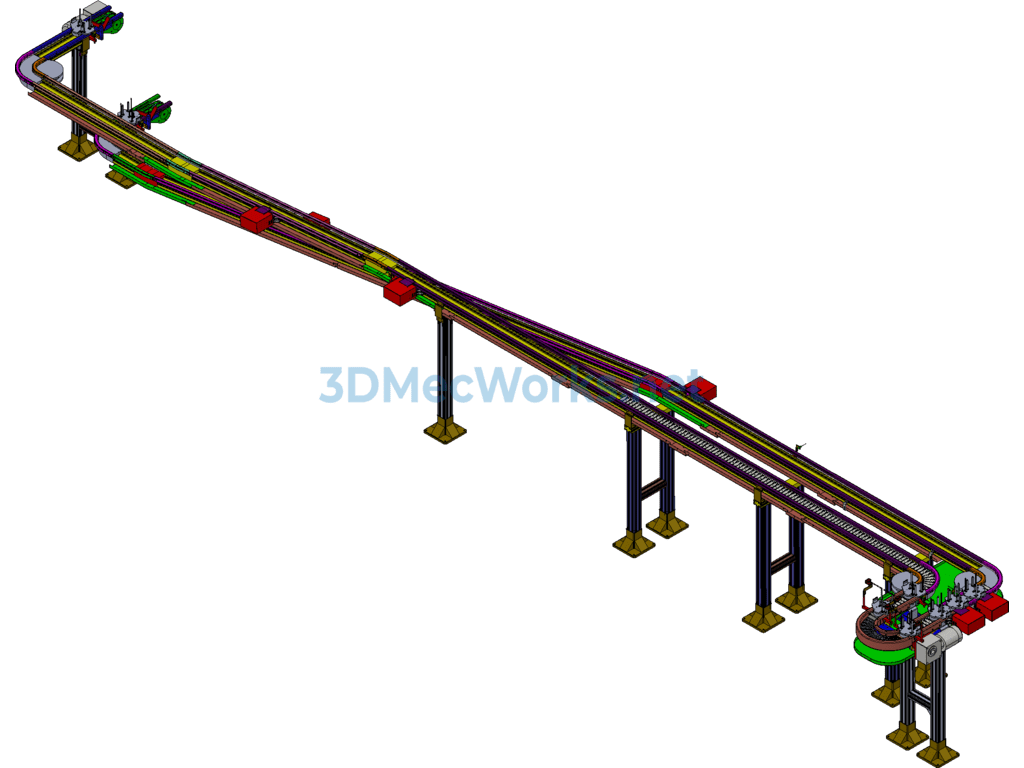

3D model of the pallet uphill and downhill conveyor automation equipment. This equipment features an automatic pallet ascent and descent chain conveyor line, where the pallet positions the product. The conveyor line has a sorting mechanism to facilitate product arrival at the respective workstation for related processes such as dispensing, welding, etc. The conveyor line can handle slopes of up to 7 degrees. It is a standard flexible line composed of various models of chain plates and accessories, providing significant reference value for designers in the conveyor industry. This large conveyor provides ProE5.0 documents (editable but without parameters) and STEP documents, and we welcome downloads.
