Automated Motor Rotor Deburring Equipment (bom List + Complete Set of Drawings)

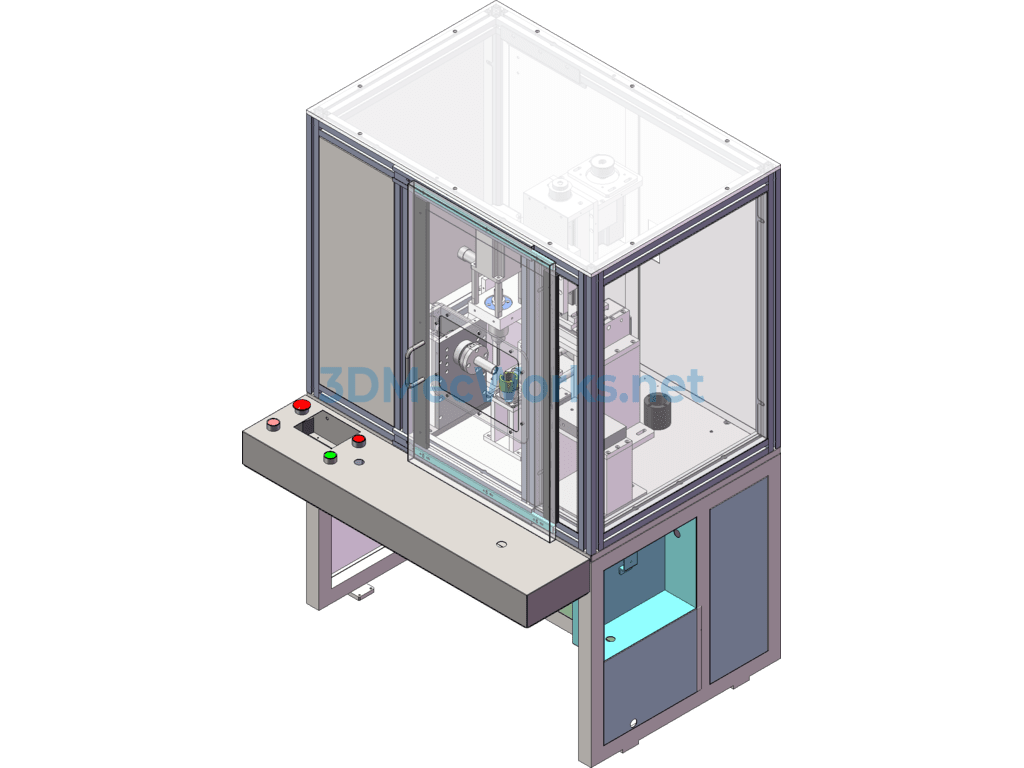

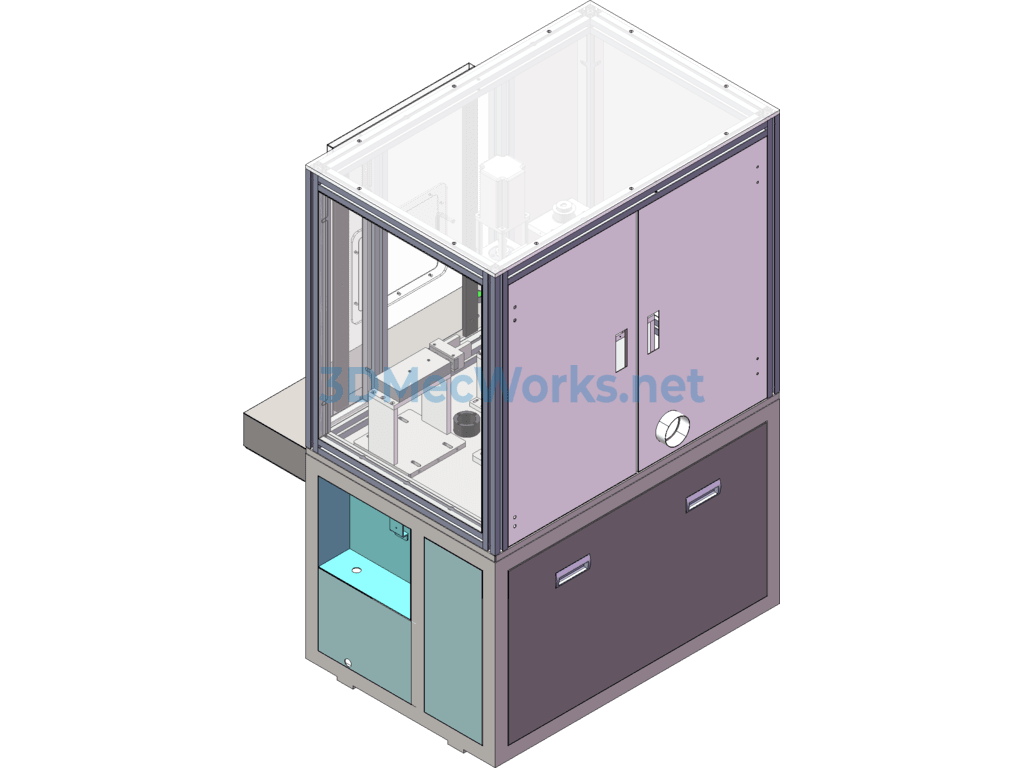

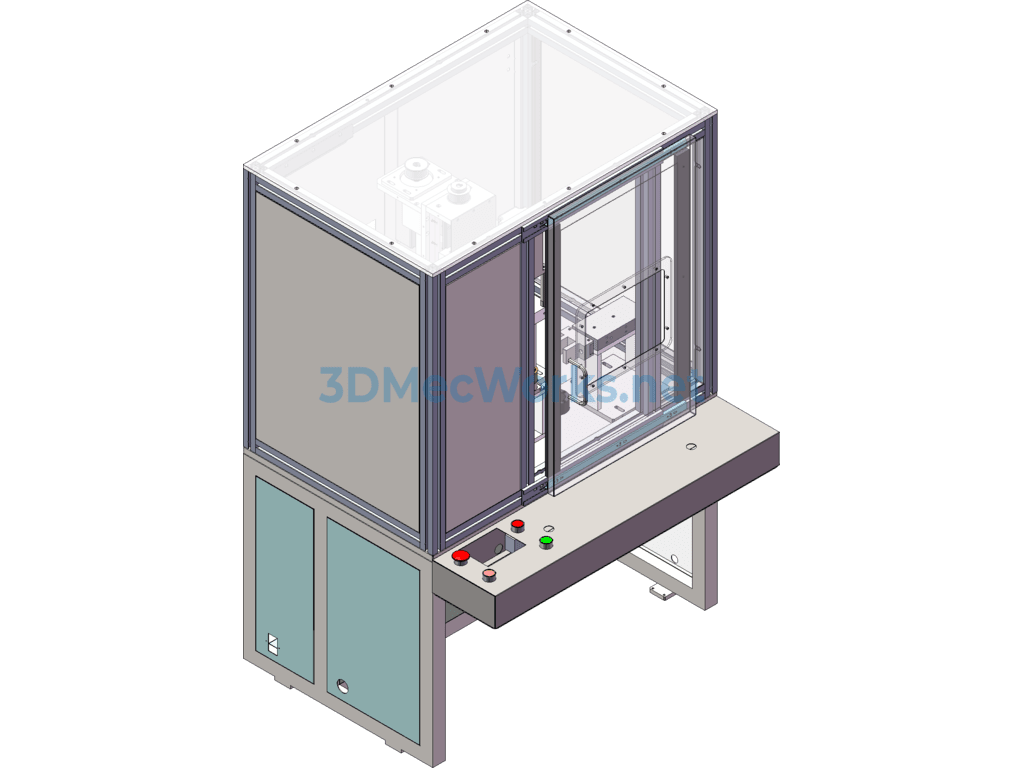

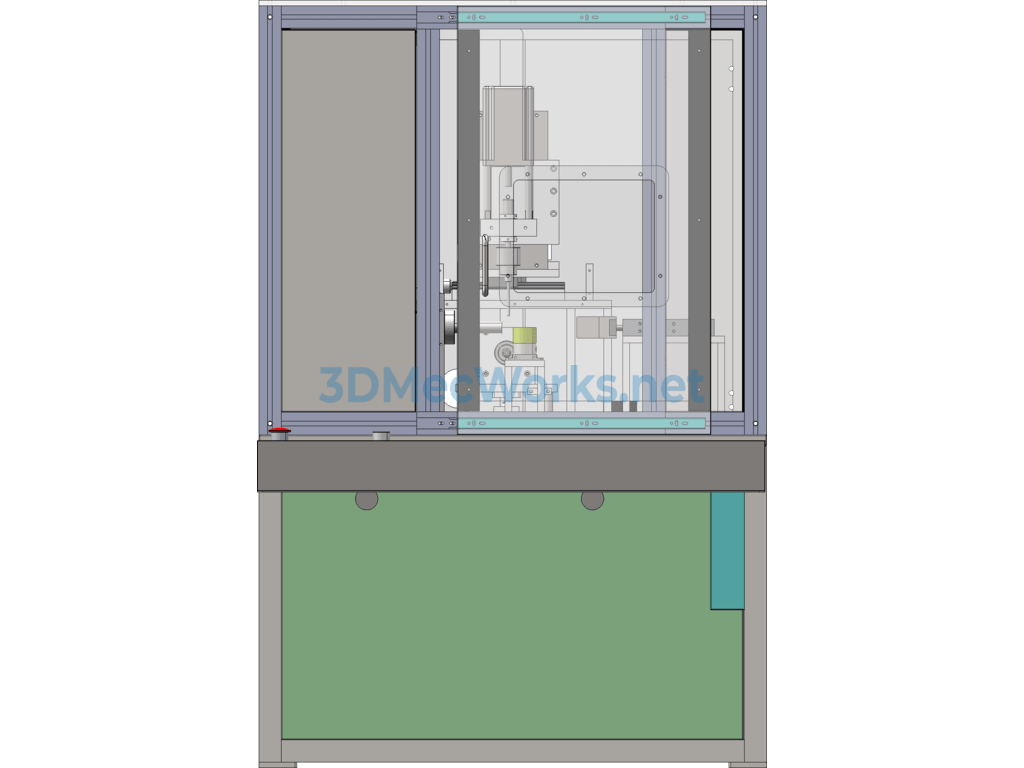

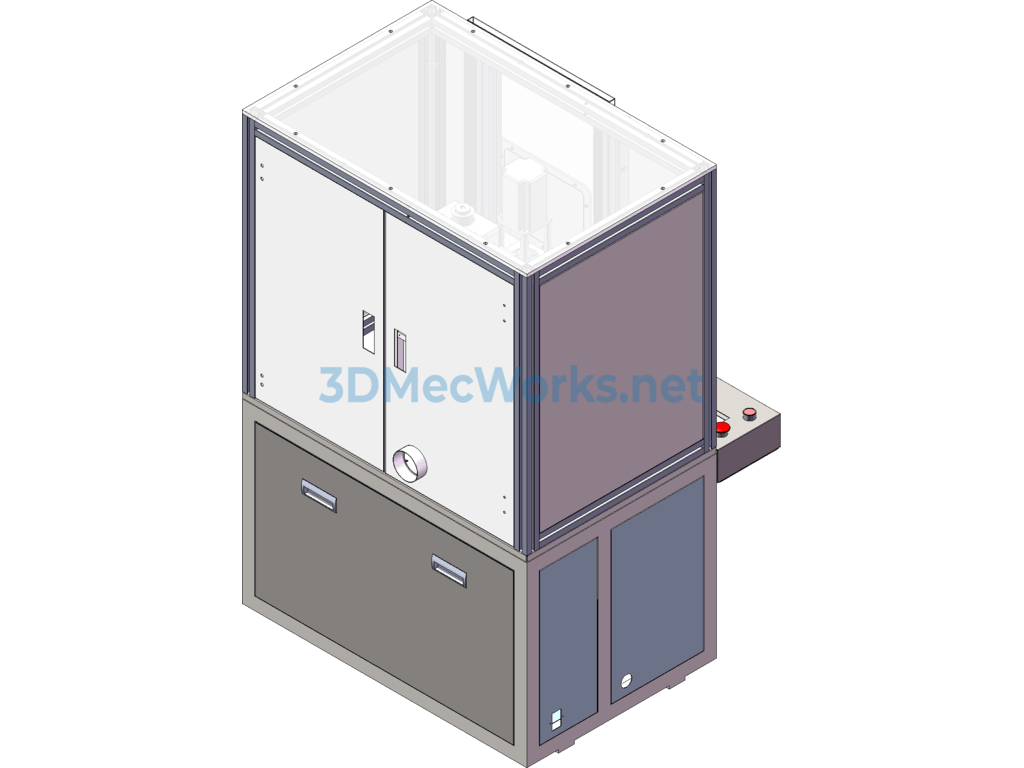

Yao Wei Rotor Deburring Equipment 3D Model, this is a set of motor rotor deburring equipment, complete set of drawings available for download. This equipment is a non-standard customized set of rotor polishing equipment, equipped with a protective cover for operational safety and aesthetics. Inside, a stepper motor drives the lead screw and module movement for one-round polishing and deburring of the rotor.
A complete set of non-standard automated rotor polishing equipment comes with a full BOM parts list, purchase list, and engineering drawings. Zhongshan Yao Wei is a large company currently using this equipment; the non-standard customized rotor deburring equipment follows the same principle as polishing equipment, using rotating sand grinding to achieve deburring on parts that require sanding and polishing. Both the rotating and feeding parts are controlled by stepper motors. The entire machine’s exterior design is very aesthetic, with every detail considered for safe production and operation. The additional cover on the equipment also serves for styling.
SolidWorks 2011 design 3D documents, includes editable parameters, available for download.
