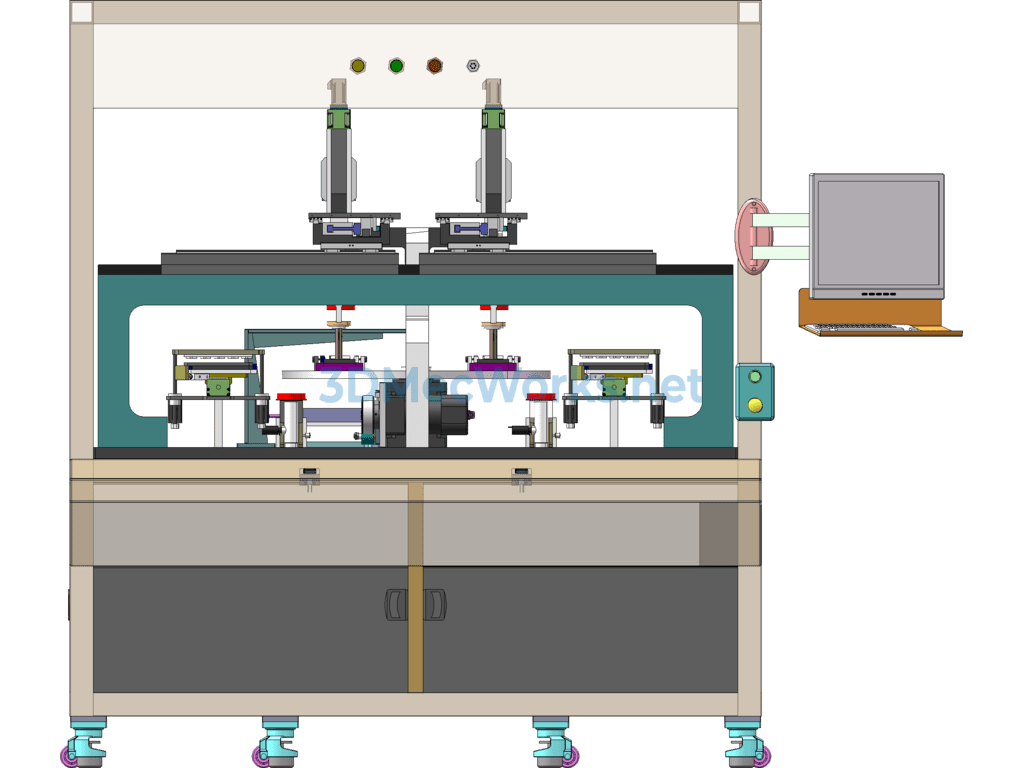

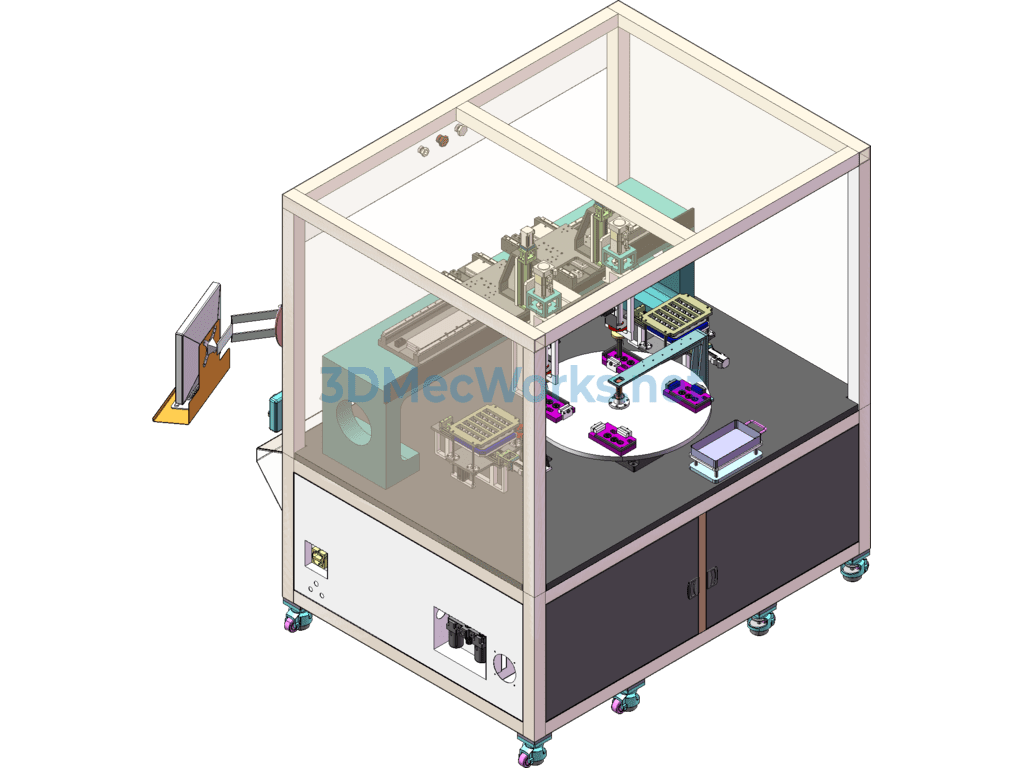

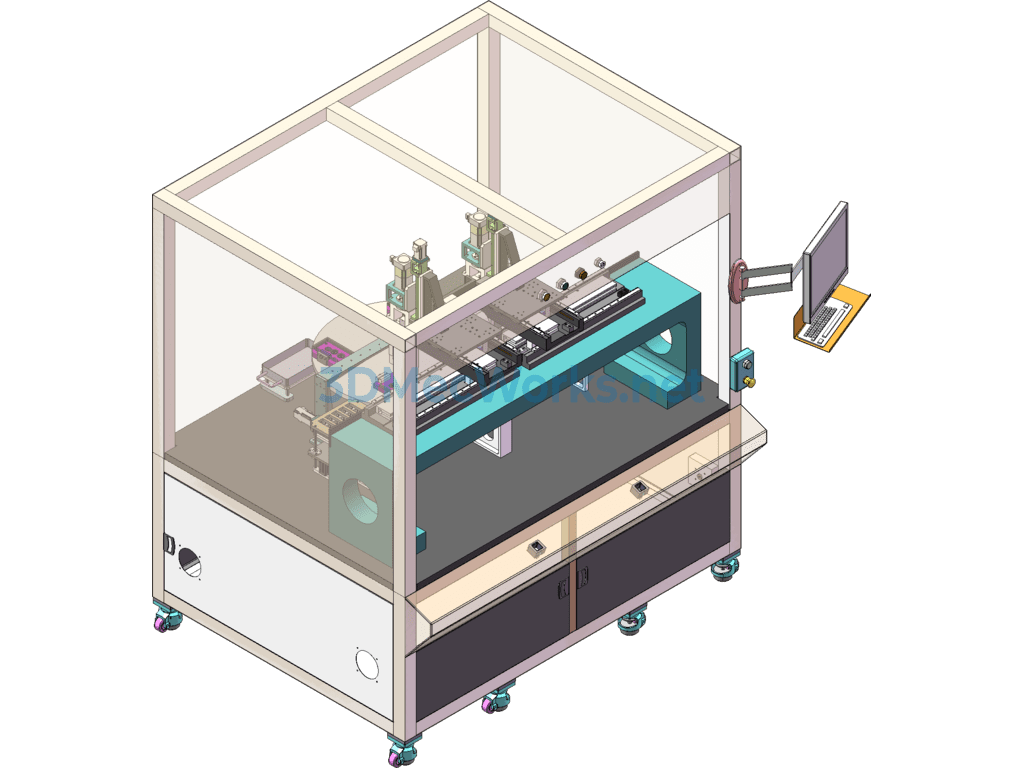

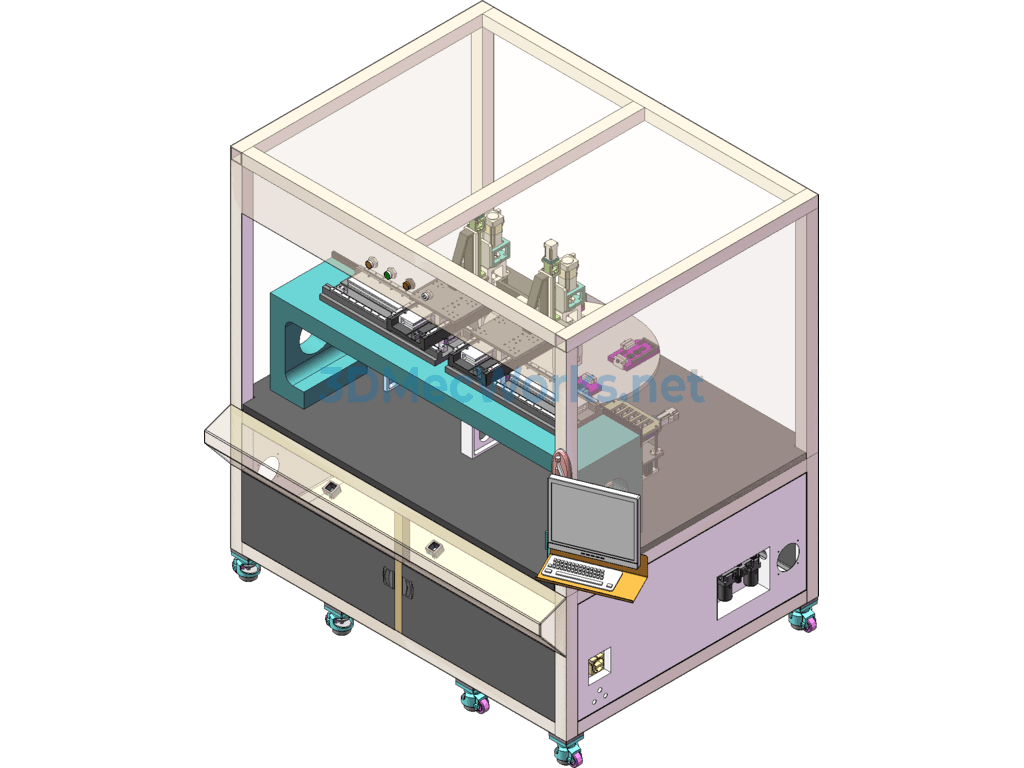

Automated Mobile Phone Nameplate Assembly Machine (Including DFM, NOM) - SolidWorks - Free Download
Automation Mobile Phone Nameplate Assembly Machine Action Process:
1. Tray loaded manually and positioned within the equipment;
2. Product manually loaded and attached onto the rotary four-station for positioning;
3. The module grabs the nameplate and moves to the vision system for photo location;
4. The divider rotates to the assembly workstation;
5. Left and right XYZ assembly modules align simultaneously.
Specification: Automated Mobile Phone Nameplate Assembly Machine (Including DFM, NOM) - SolidWorks - Free Download
|
