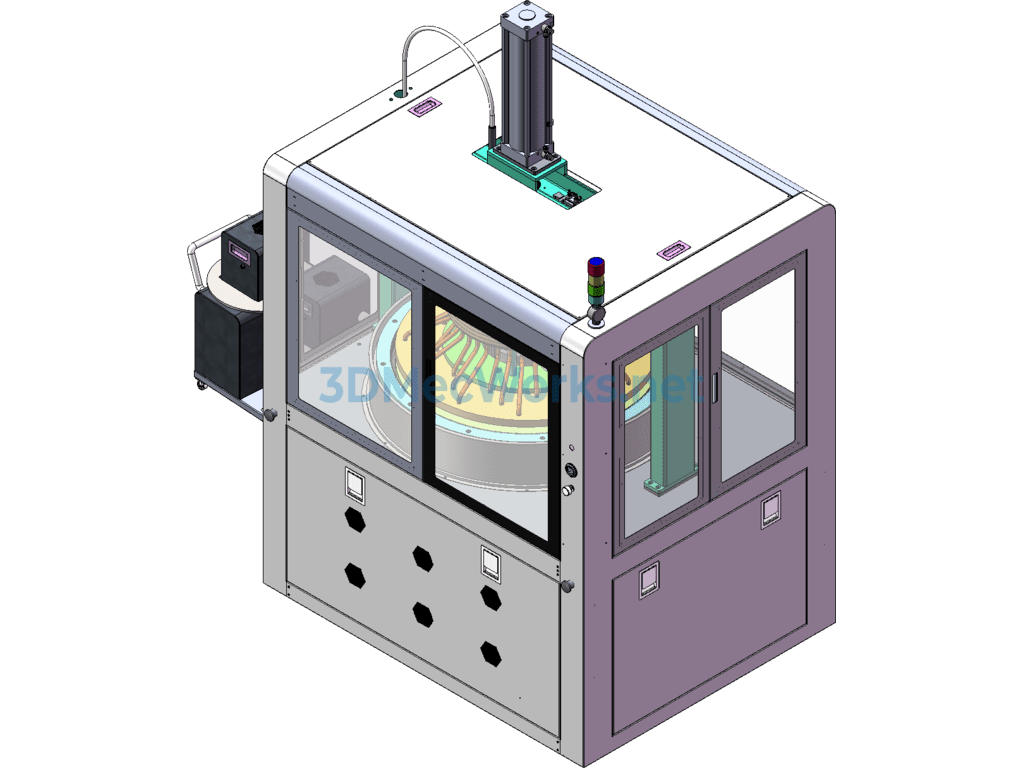

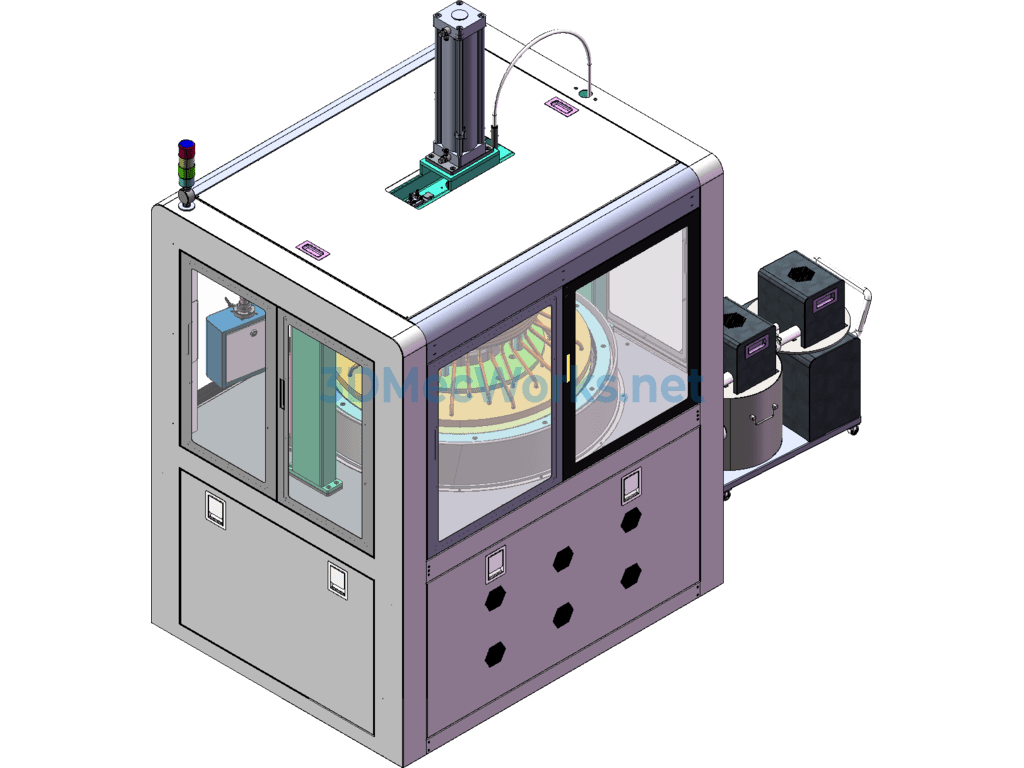

Non-standard High-Precision Automated Glass Polishing Machine (3D+2D+CAD Engineering Drawing+BOM List Details)_x000D_
_x000D_
I. Main Uses_x000D_
Mainly used for high-precision double-sided grinding/polishing of sapphire, blue glass, ceramic pieces, crystals, semiconductors, and other hard and brittle materials. It is particularly advantageous for processing ultra-thin workpieces._x000D_
_x000D_
II. Main Features_x000D_
1. Precise Pressure Control: The use of PLC + PT + electrical proportional valve + low friction cylinder achieves high precision pressure closed-loop control;_x000D_
2. Upper Disc Shock Absorption Device: A vibration-damping elastic connection method applicable both statically and dynamically;_x000D_
3. Precision Transmission System: High-precision full-gear transmission with small backlash;_x000D_
4. Lower Disc Support: High-precision plane fluid bearing support with a large load capacity, stable operation, and maintenance-free;_x000D_
5. Pinion Gear Drive: The use of pinion gear drive in internal and external gears extends carrier lifespan, offers easy maintenance, and can also use involute gear drive;_x000D_
6. Transmission System: Three-motor synchronous drive, the speeds of the upper disc, lower disc, ring gear, and sun gear (can rotate forward or reverse) can be set arbitrarily with a formula function.
