Automated Glass Bracket Assembly Machine 3D Model

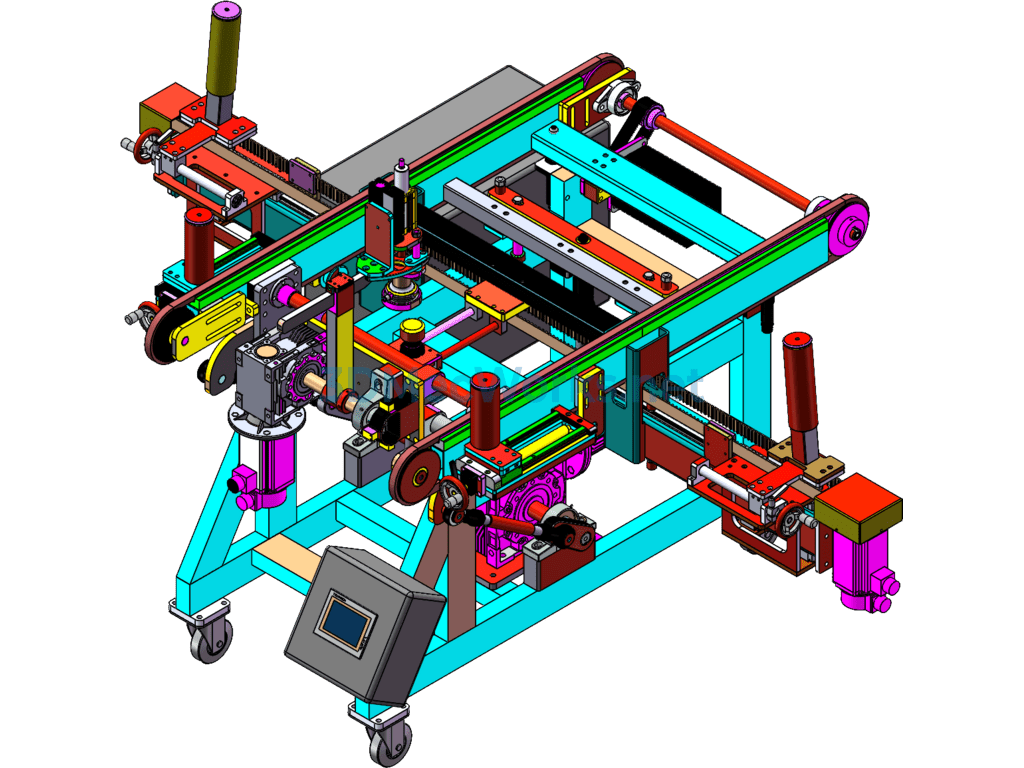

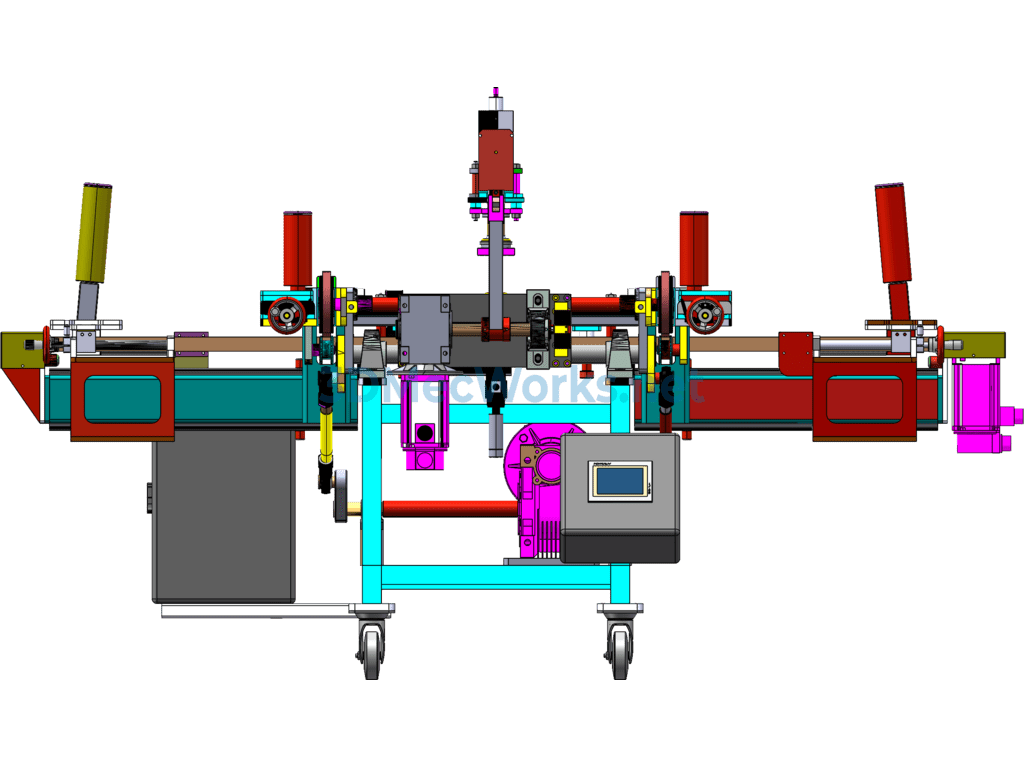

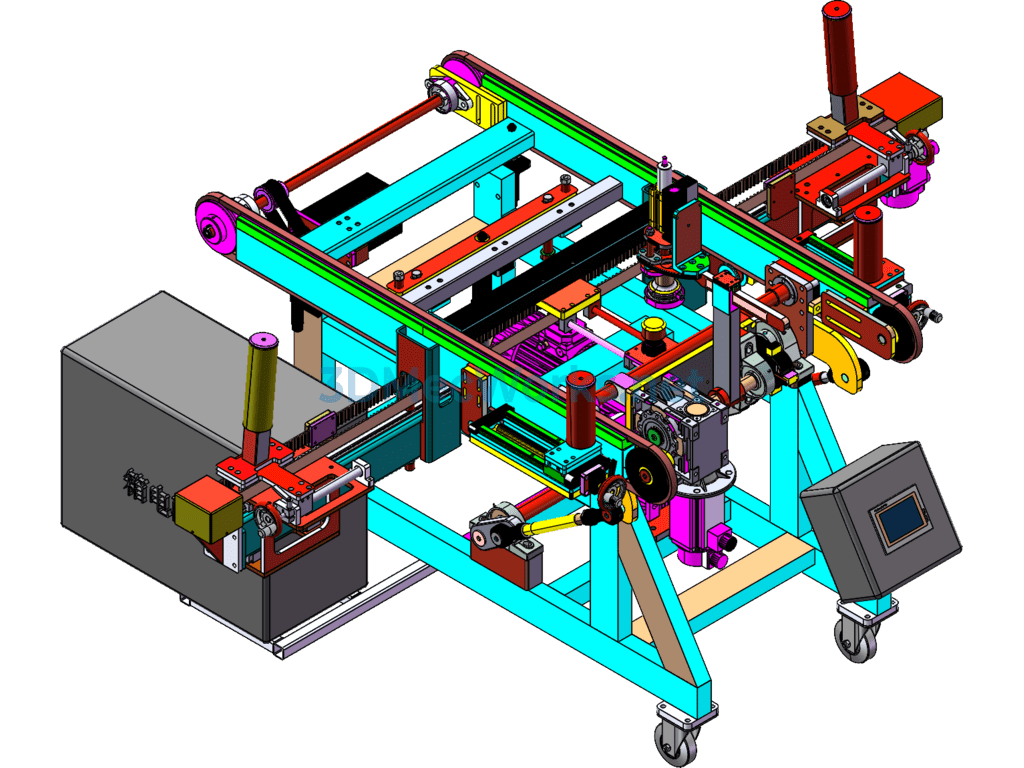

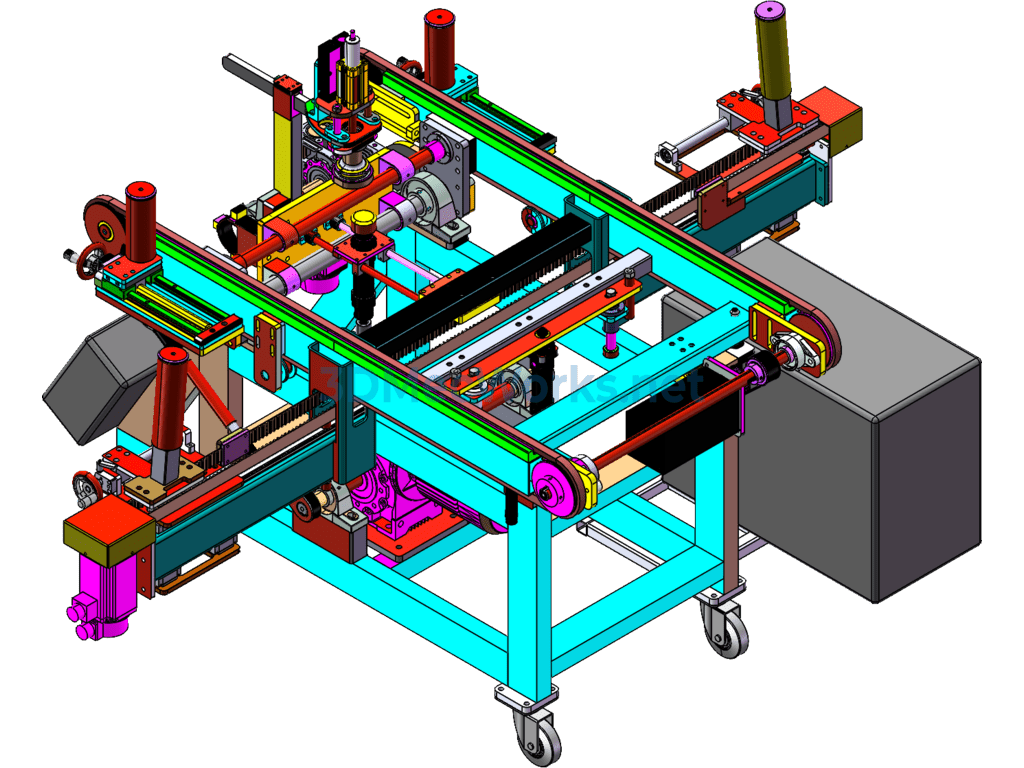

This is a model of an automated glass bracket assembly machine, utilizing various transmission mechanisms such as timing belts, lead screws, and crank linkages for the assembly of bracket-type workpieces. The structure is very classic and can serve as a reference for mechanical designers. The file is in SolidWorks format and is available for download.

Specification: Automated Glass Bracket Assembly Machine

Design Software	SolidWorks
Editable	Editable, No parameters
File Formats	Sldprt, step(stp)
Industry Application	Mechanical Equipment
Sharing Level	Platinum
Version	2014
