Automated Box Flipping Equipment

3D Model SW Design for Automated Box Flipping Equipment

The automated box flipping equipment is designed to automatically flip a box 180 degrees while synchronizing with the original production line, ensuring that the newly added automated flipping machine does not affect the production line’s pacing.

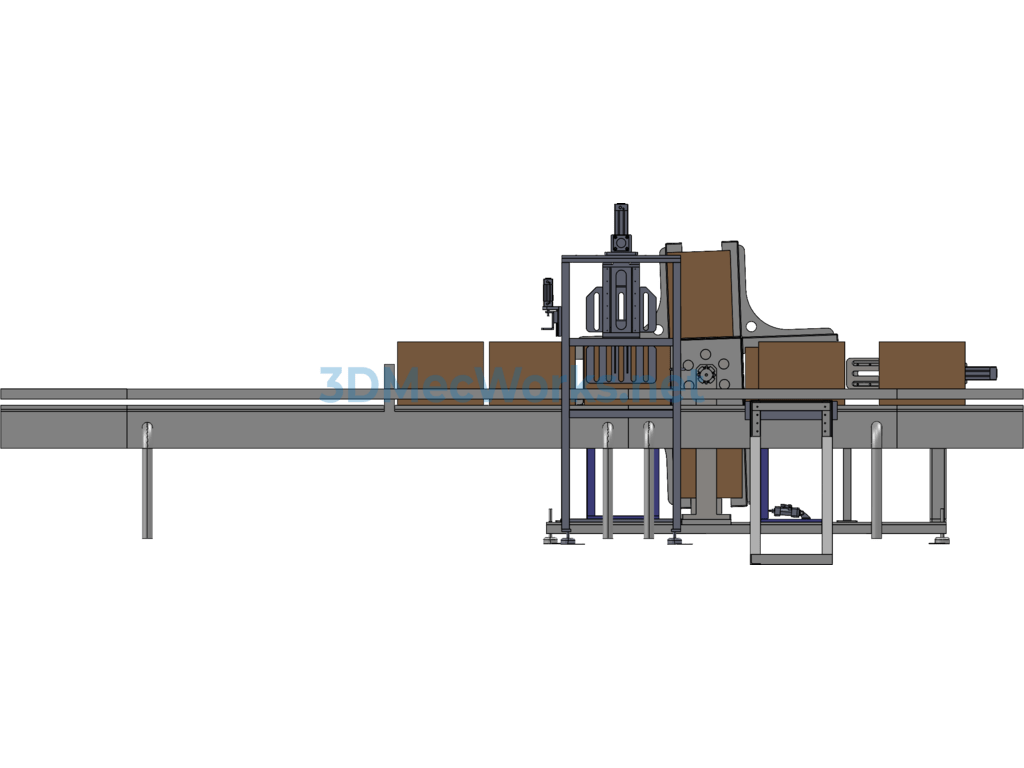

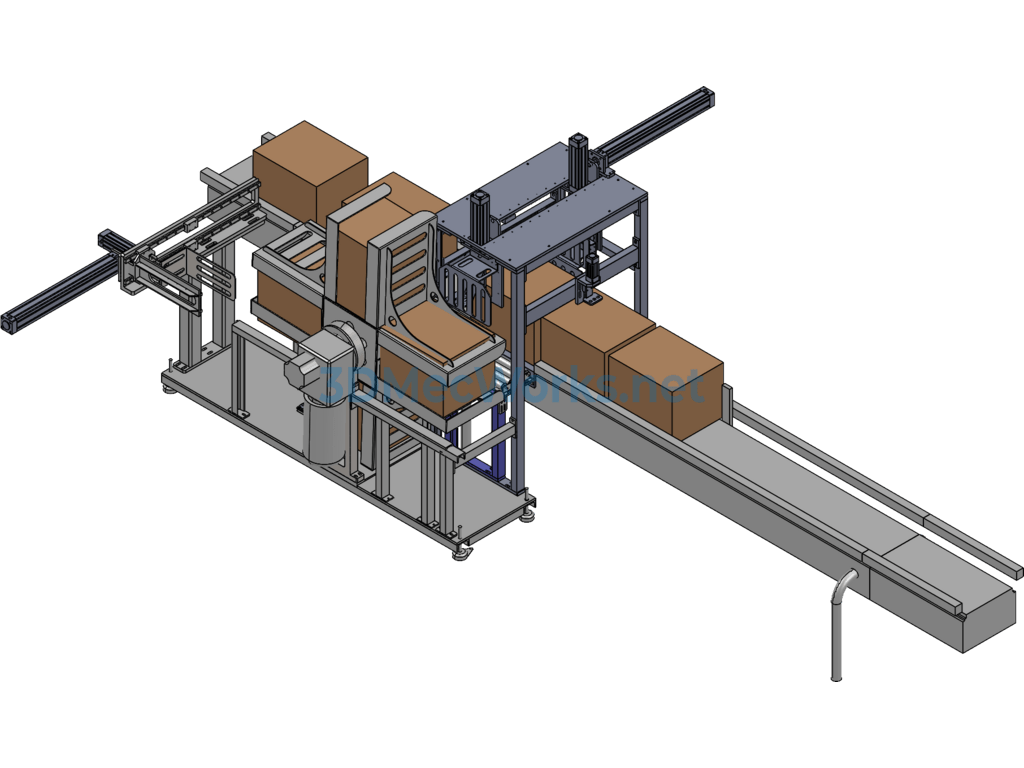

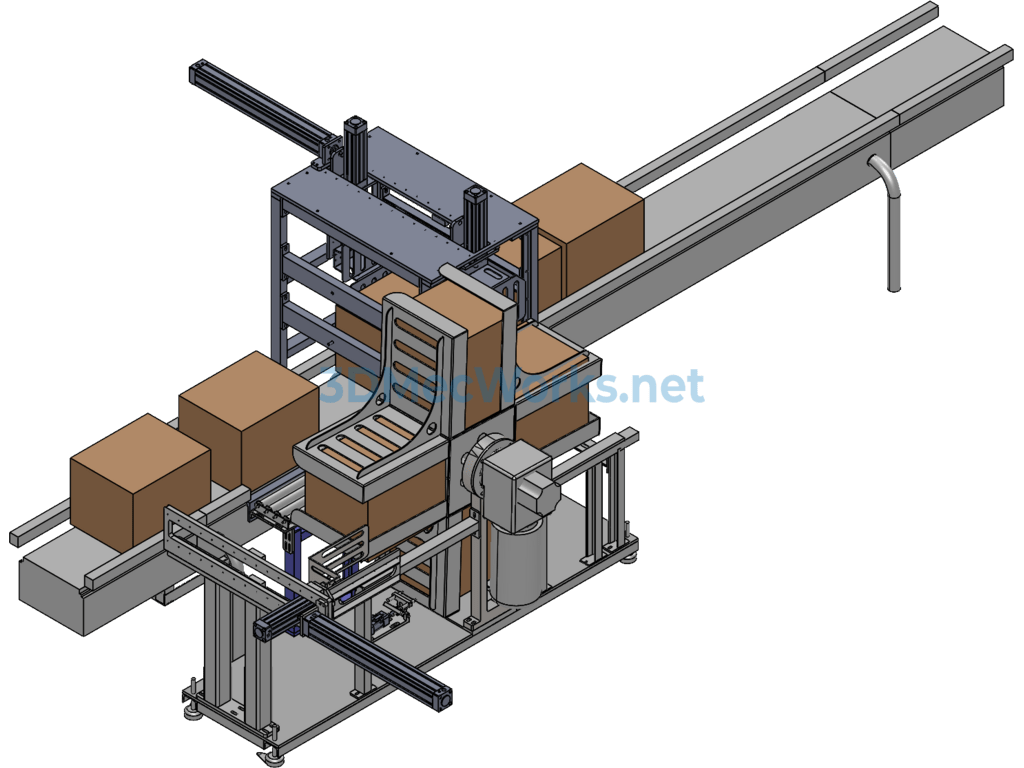

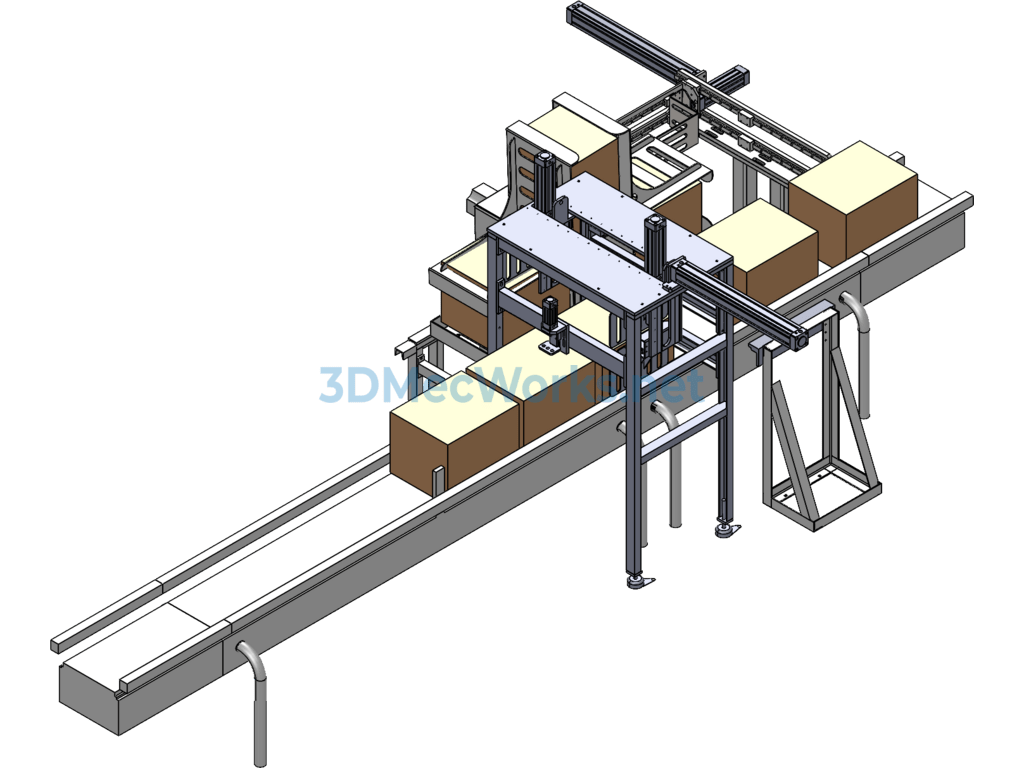

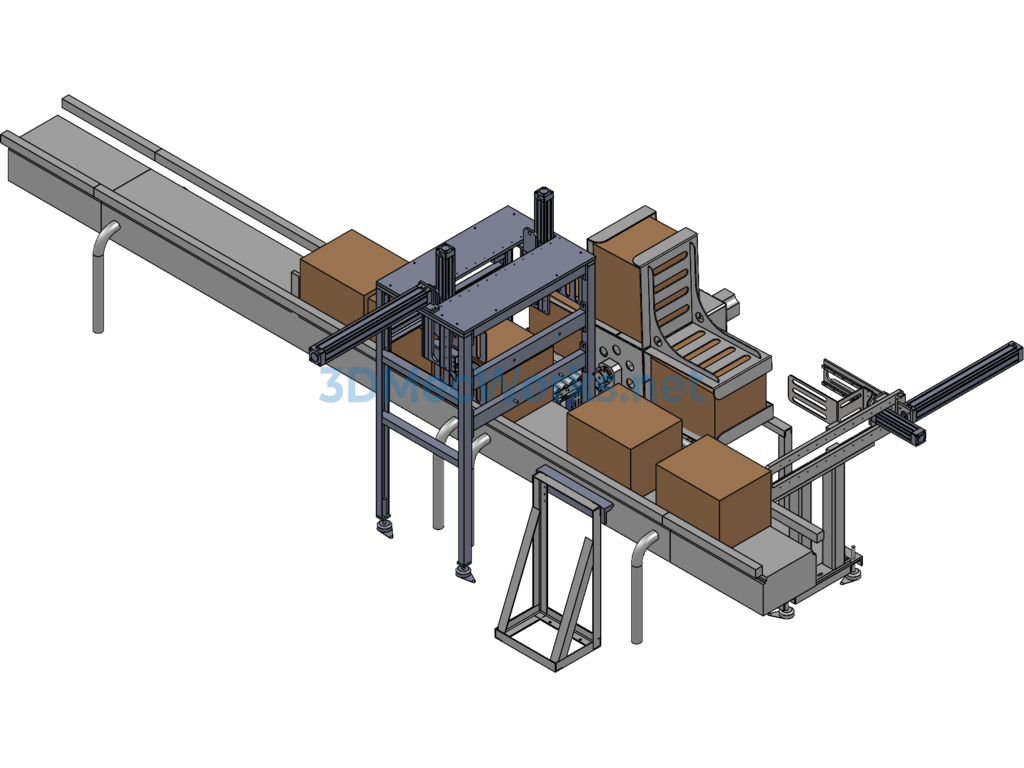

The box is conveyed out by a conveyor belt and needs to be flipped 90 degrees. This equipment pushes the box from the conveyor belt into a turntable, which rotates 90 degrees each time. The box is then pushed back onto the conveyor belt. This box flipping equipment includes assembly diagrams, component diagrams, and part diagrams, which may be helpful for your studies.
