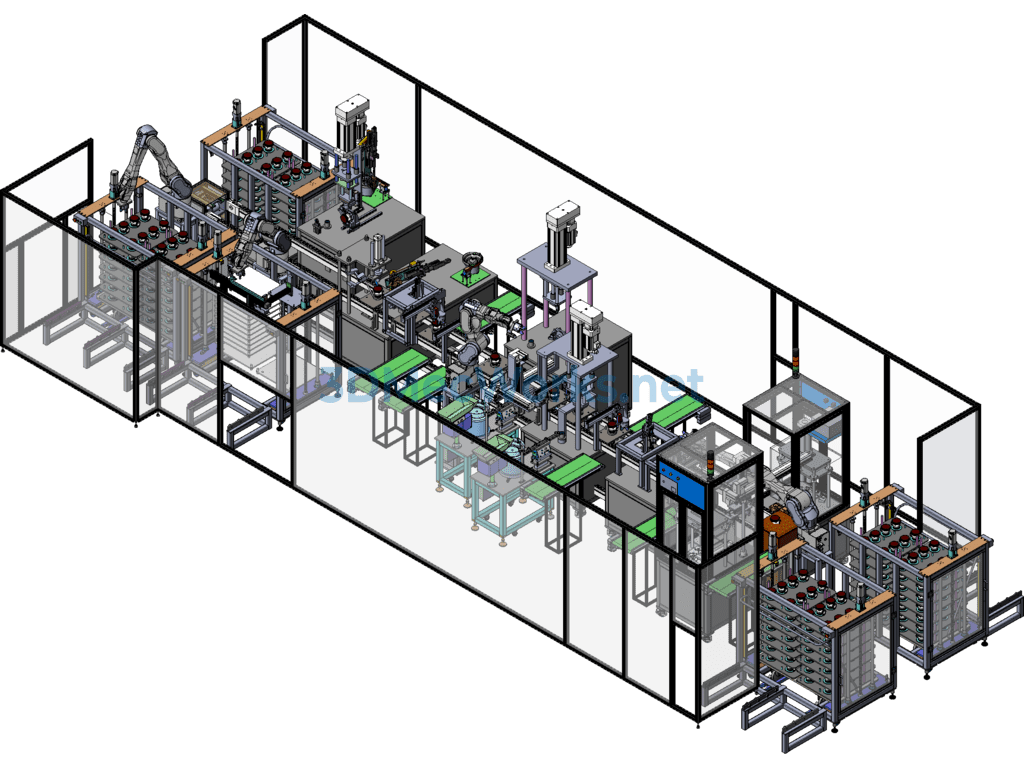

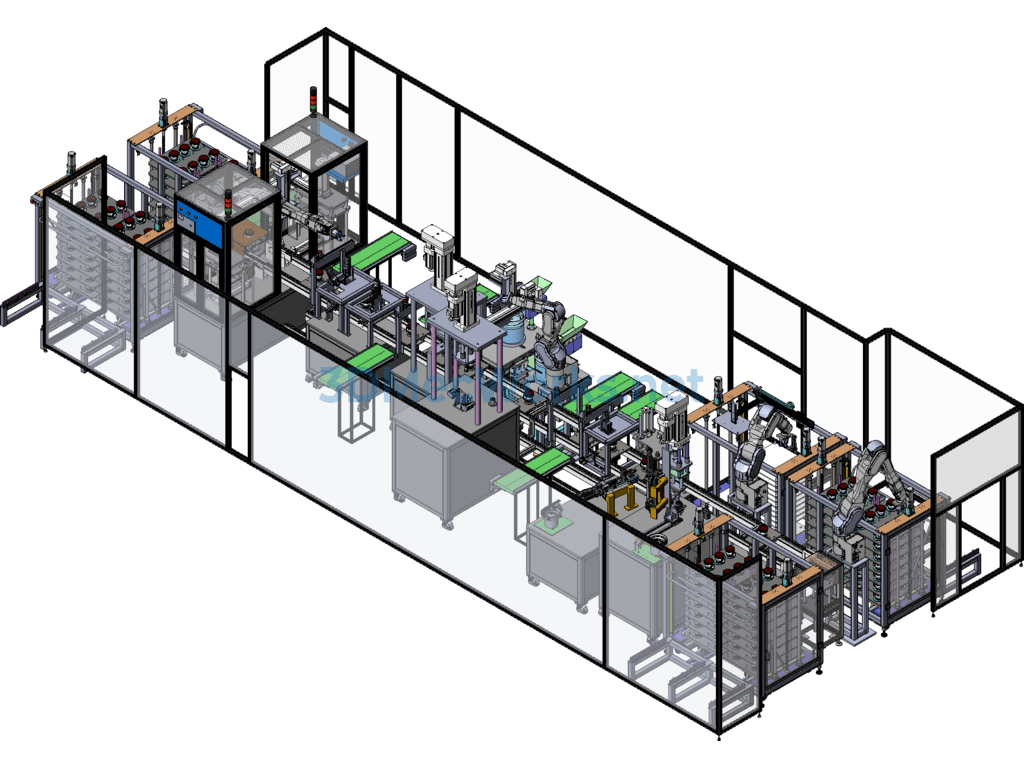

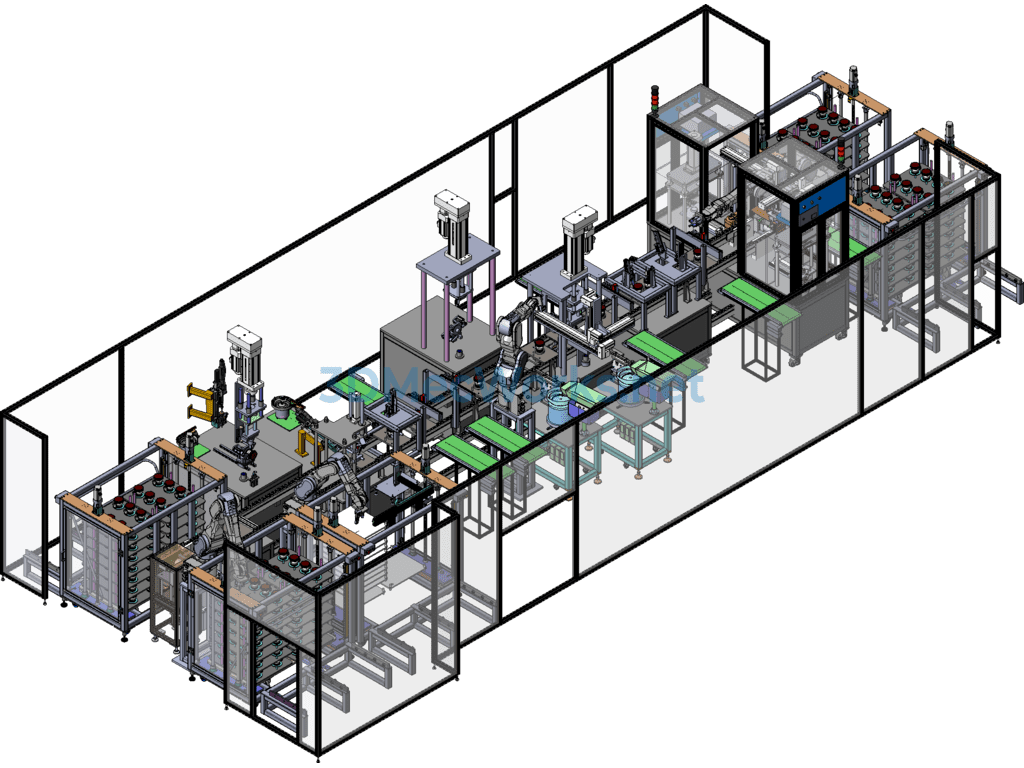

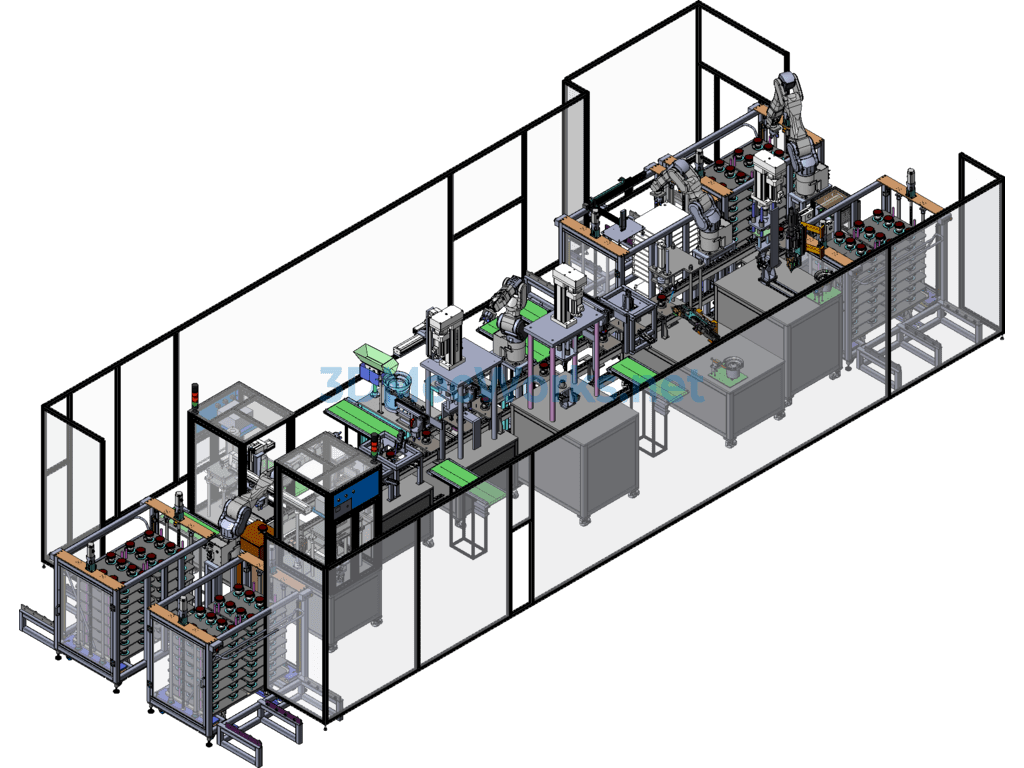

Automated Booster Impeller Assembly and Press-Fit Integrated Production Line (including Dfm + Timing Diagram)
Non-standard Automation Booster Impeller Assembly Press Line with Timing Analysis Diagram Description
1. This production line is composed of multiple assembly special machines and various types of conveyor line combinations to achieve full-line automation;
Each component execution unit adopts well-known domestic and foreign brands to ensure the stability and service life of the equipment;
2. Equipment performance: Cycle time: approximately 38s/1PCS
3. Equipment dimensions and required number of operating personnel:
1. Line length of 9 meters, width of 4.5 meters, and operating height of 0.9 meters.
2. The line requires a total of 1 person to operate for feeding, loading/unloading pallets, and NG (defective product) unloading:
Specification: Automated Booster Impeller Assembly and Press-Fit Integrated Production Line (including Dfm + Timing Diagram)
|
