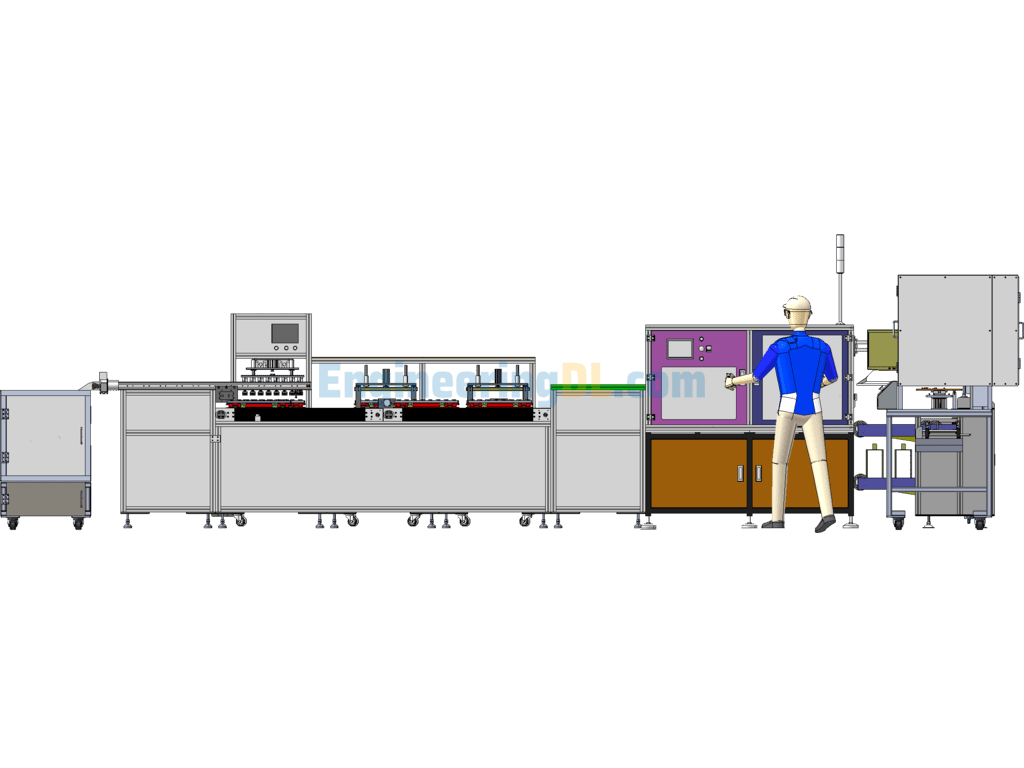

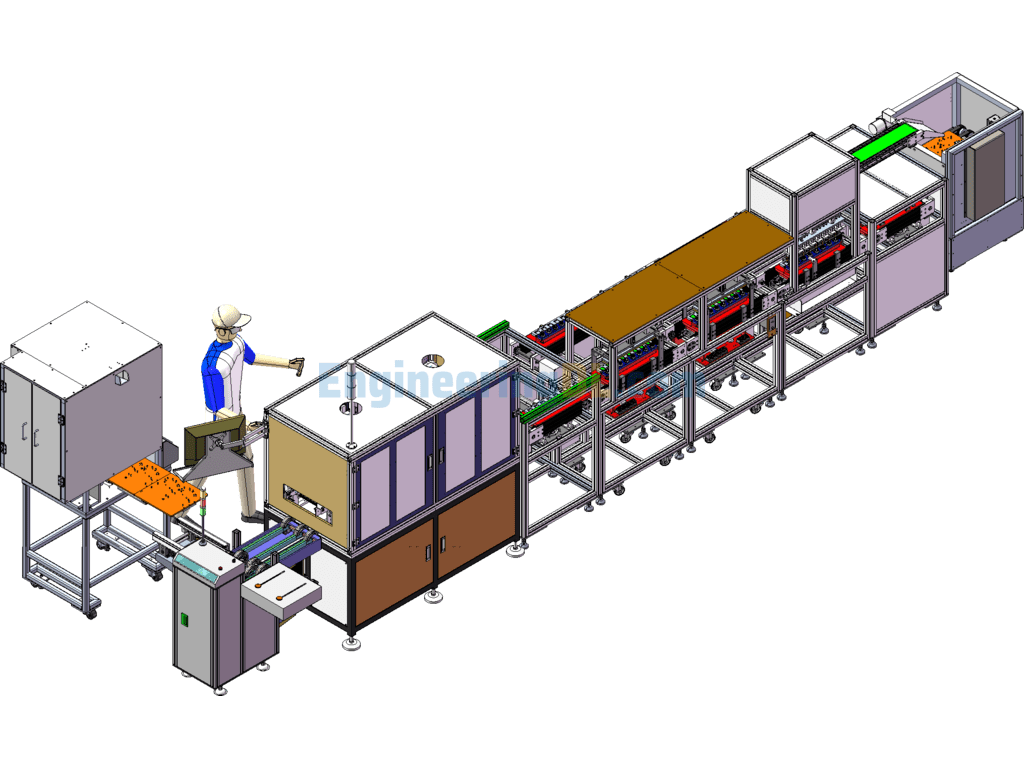

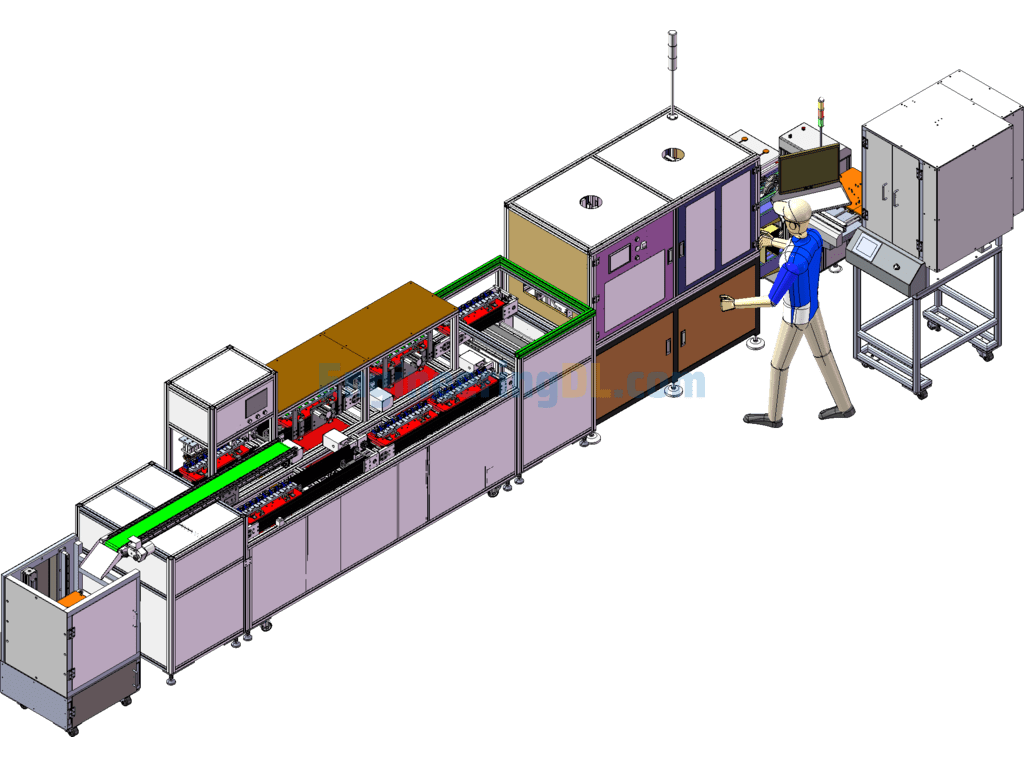

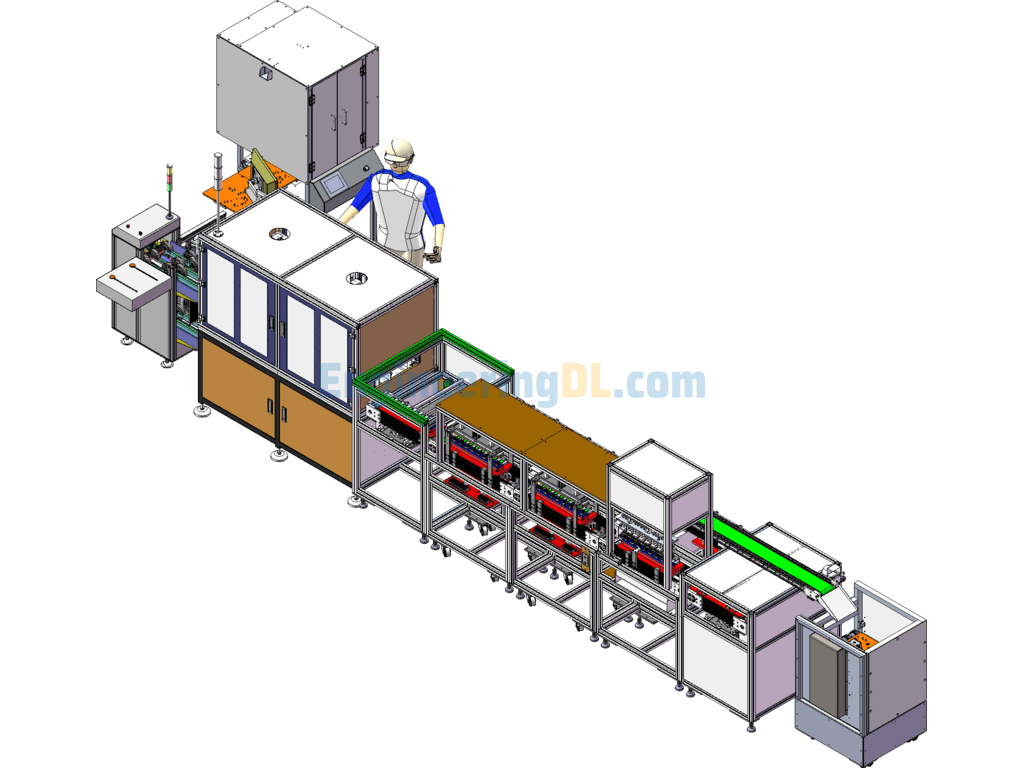

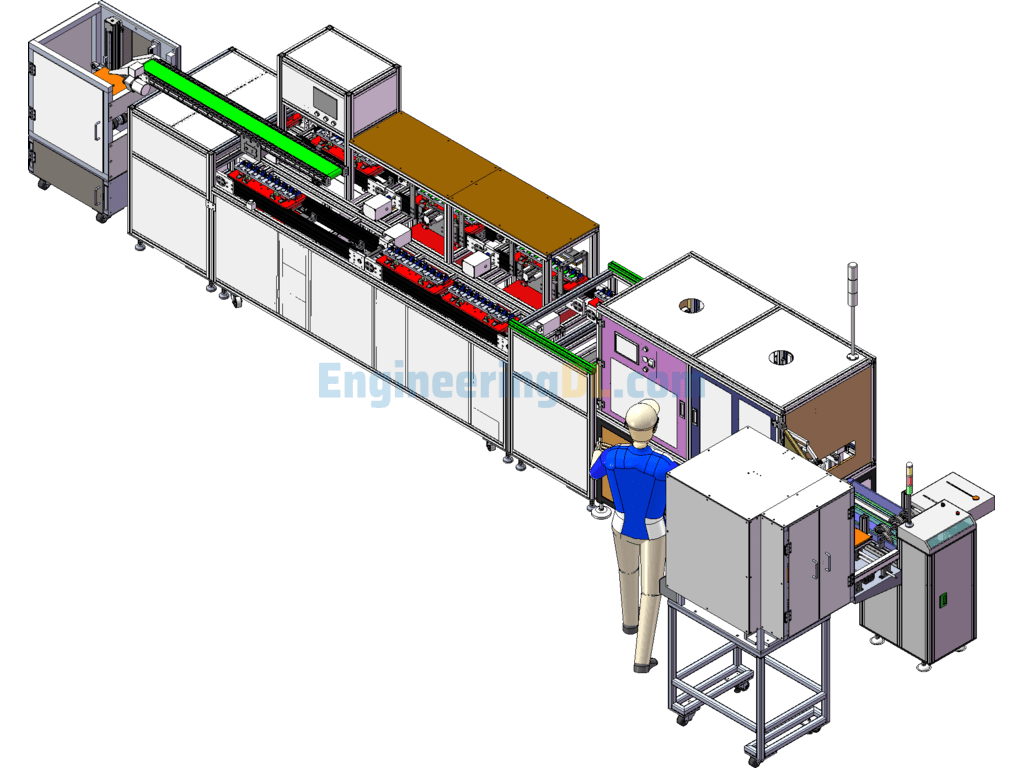

The drawing depicts an automatic assembly inspection production line. The line body is part of a charger automatic production line. Equipment functions and principles are introduced as follows: It is primarily used for the automatic assembly of chargers. The entire line includes a feeding machine, black glue dispensing, hot melt glue dispensing, CCD inspection function testing, pressure disassembly fixture, and discharge fixture. By simulating manual actions, mechanisms replace human involvement to complete the later-stage assembly, reducing labor and improving efficiency. Overall line dimensions: Length: approximately 8000mm; Width: approximately 2350mm; Height: approximately 2000 mm; The drawing includes a neutral format in xt, which is disassemblable.
