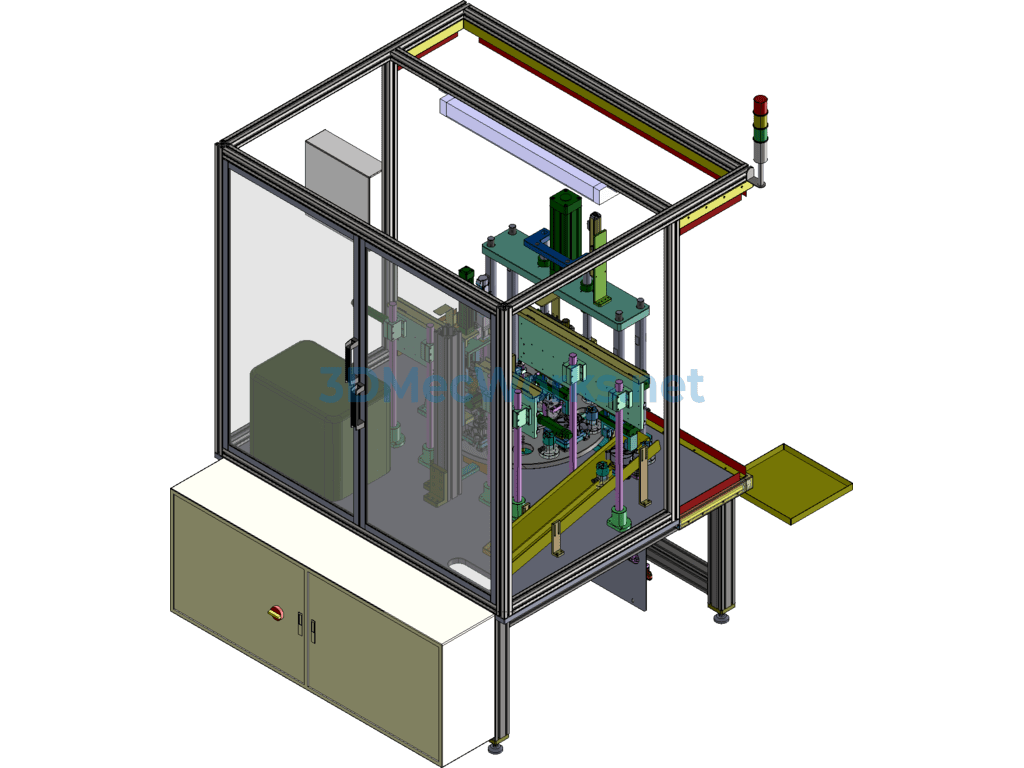

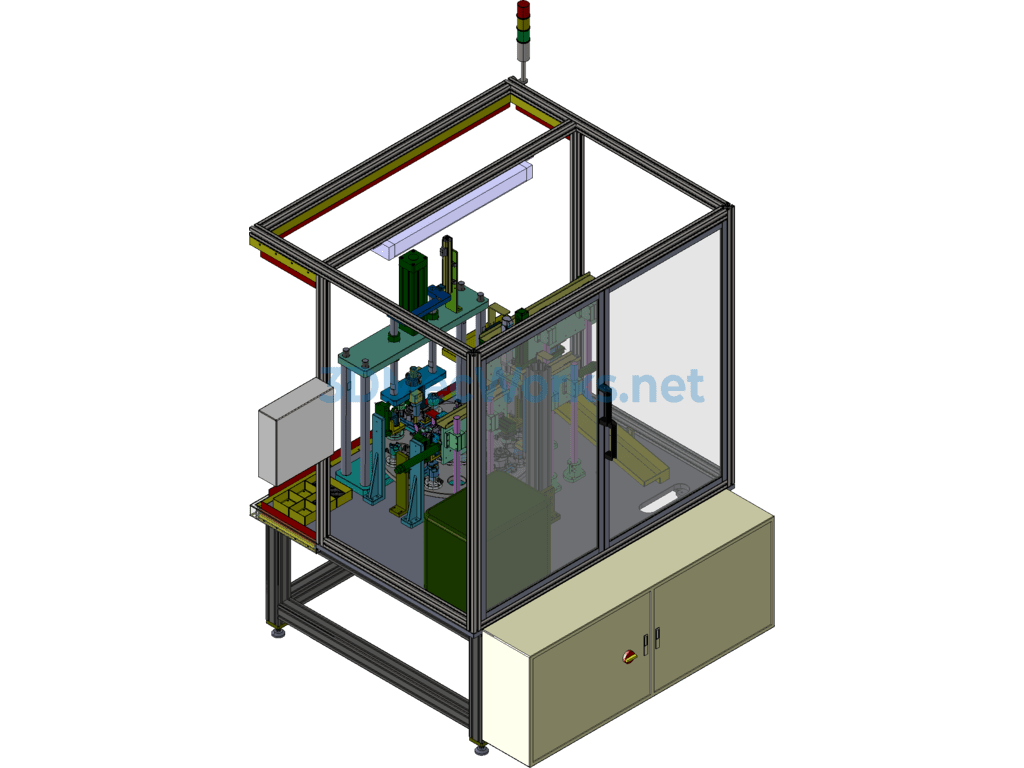

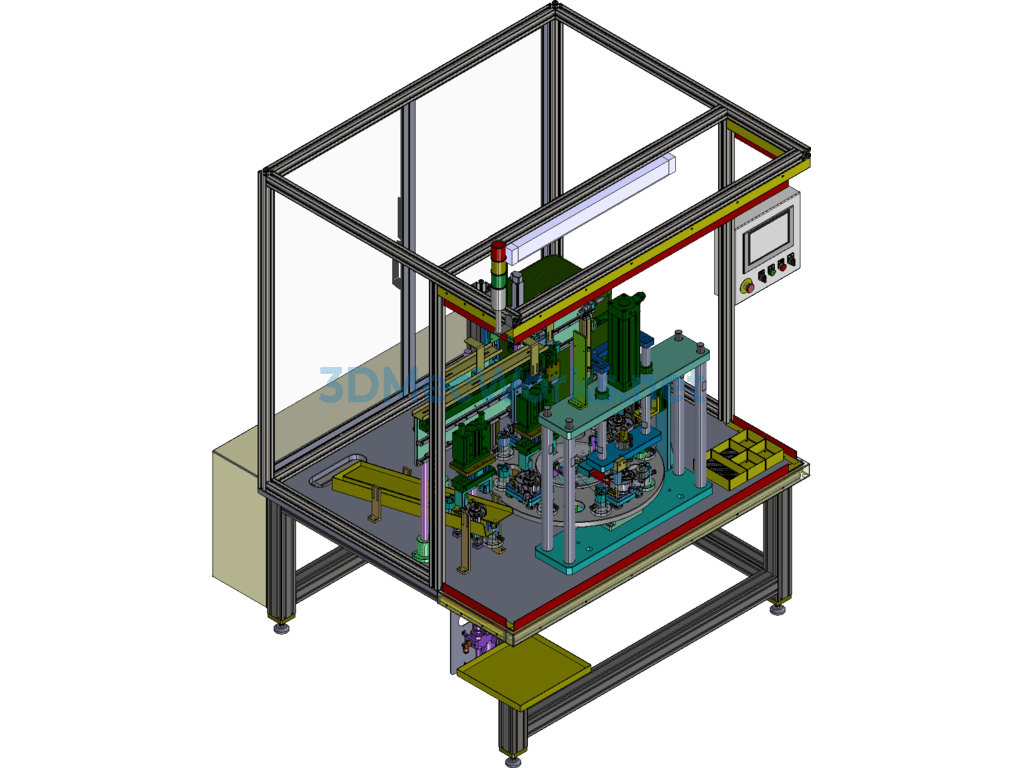

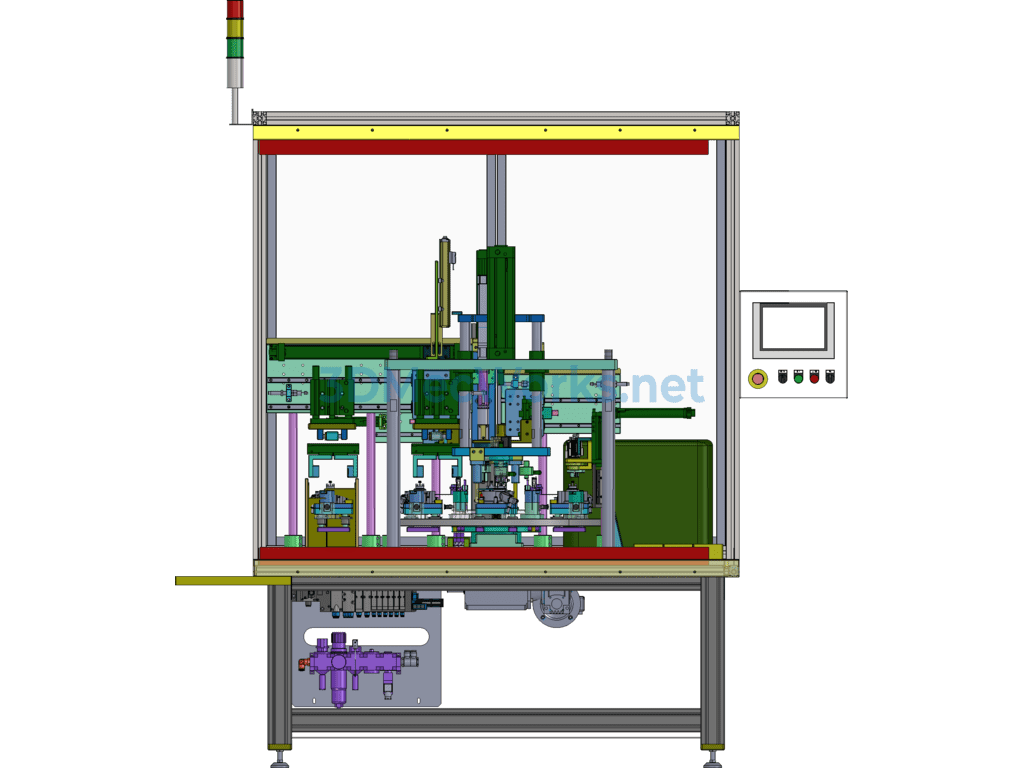

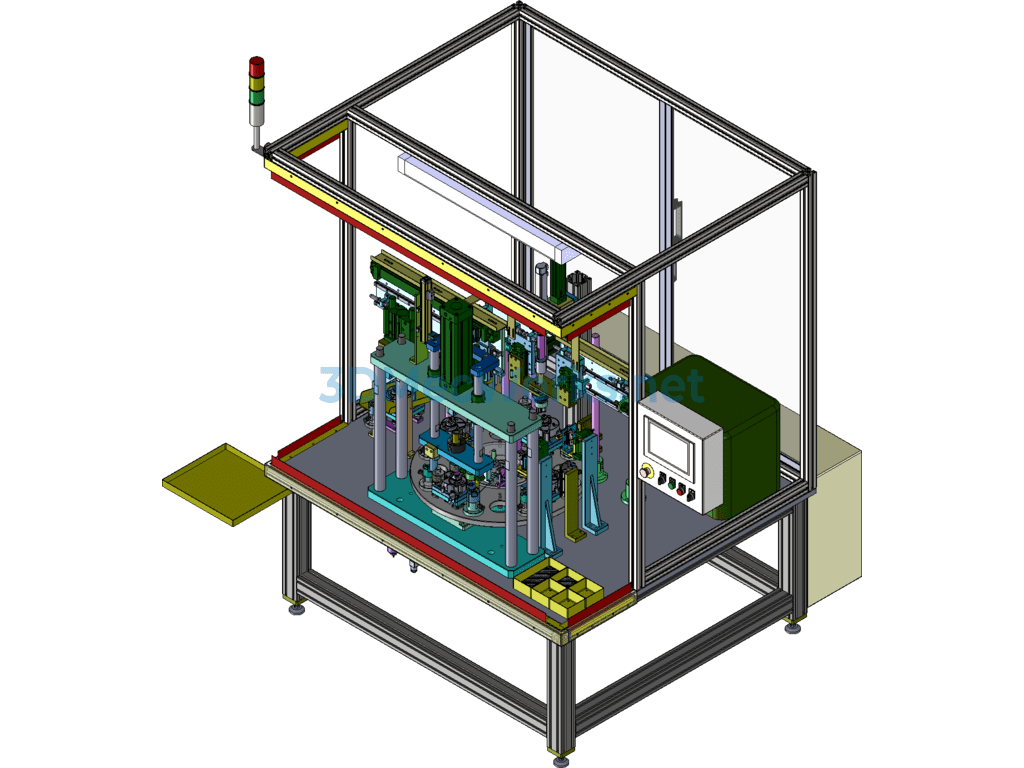

ZK 030 Spring Plate and Coupling Installation Station Equipment 3D Model, this equipment is mainly for the assembly of oil pump couplings and oil intake pipes, from automatic press-fit pressure monitoring machines and automatic screw-tightening machines, torque monitoring, and testing machines. The structure is advanced, welcome to refer, the file is complete and editable SW files, very valuable for reference.
ZK03001 Lower Frame ZK03002 Upper Frame ZK03003 Jig Assembly ZK03004 Scanner Gun Assembly ZK03005 Press Oil Pipe and Baffle Assembly ZK03006 Spring Plate Measurement Assembly ZK03007 Spring Plate Transfer Assembly ZK03008 Baffle Transfer Assembly ZK03009 Automatic Screw Tightening Assembly ZK03010 Defective Product Removal Assembly ZK03011 Detecting Baffle Bend Assembly, etc.
