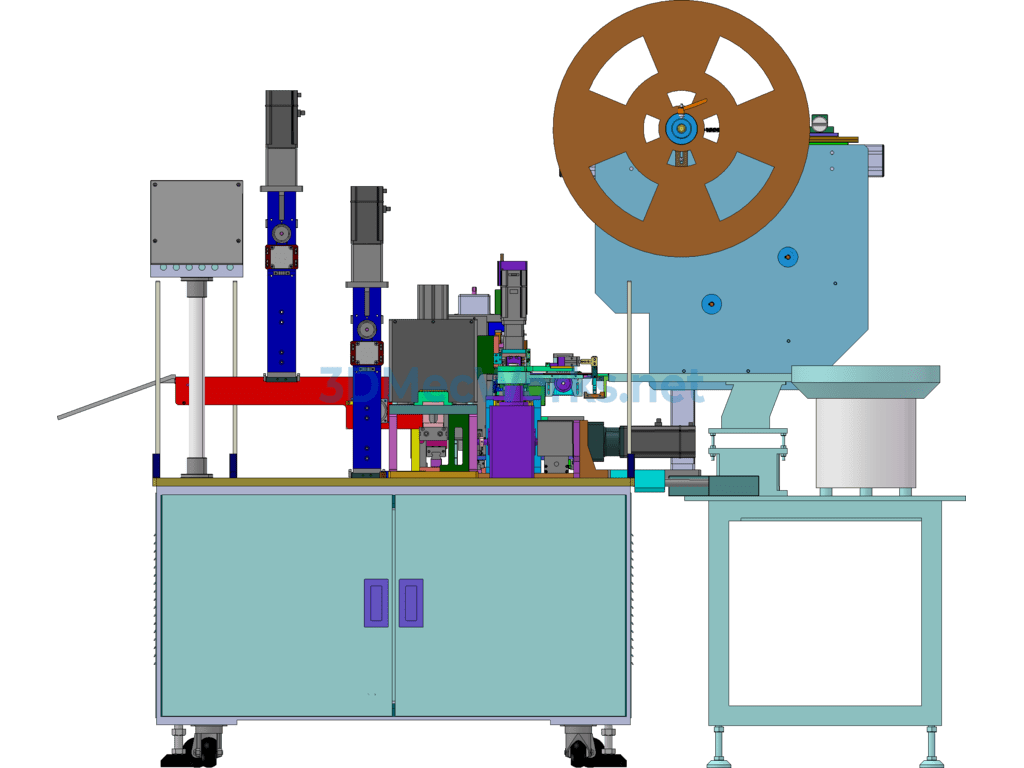

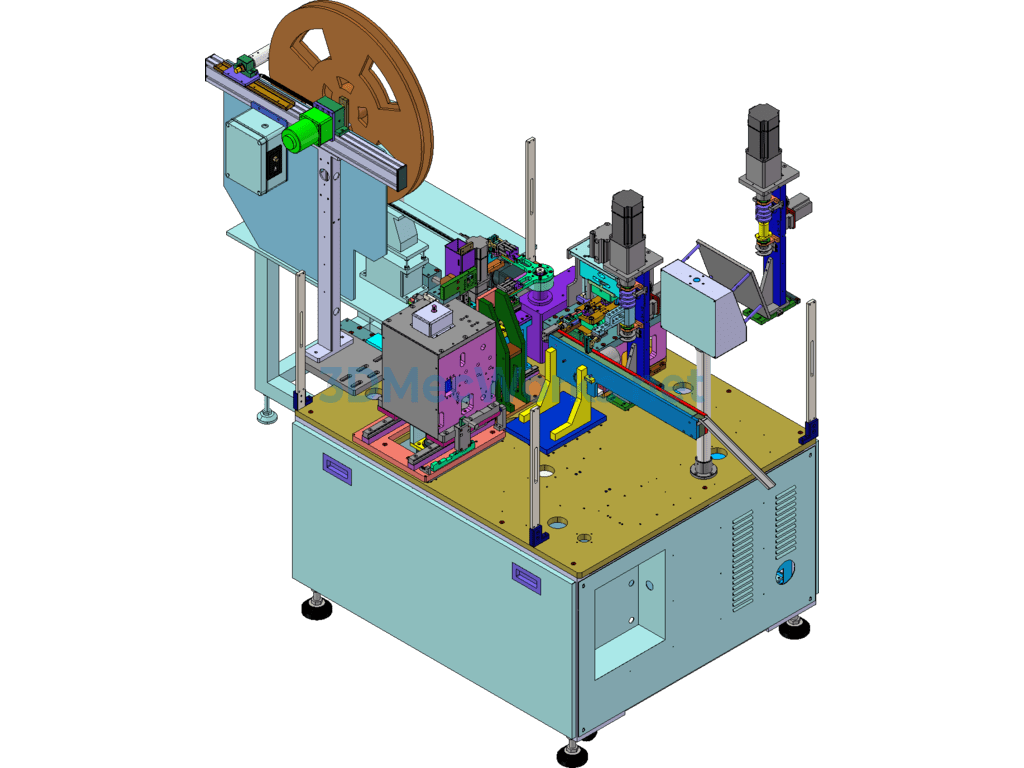

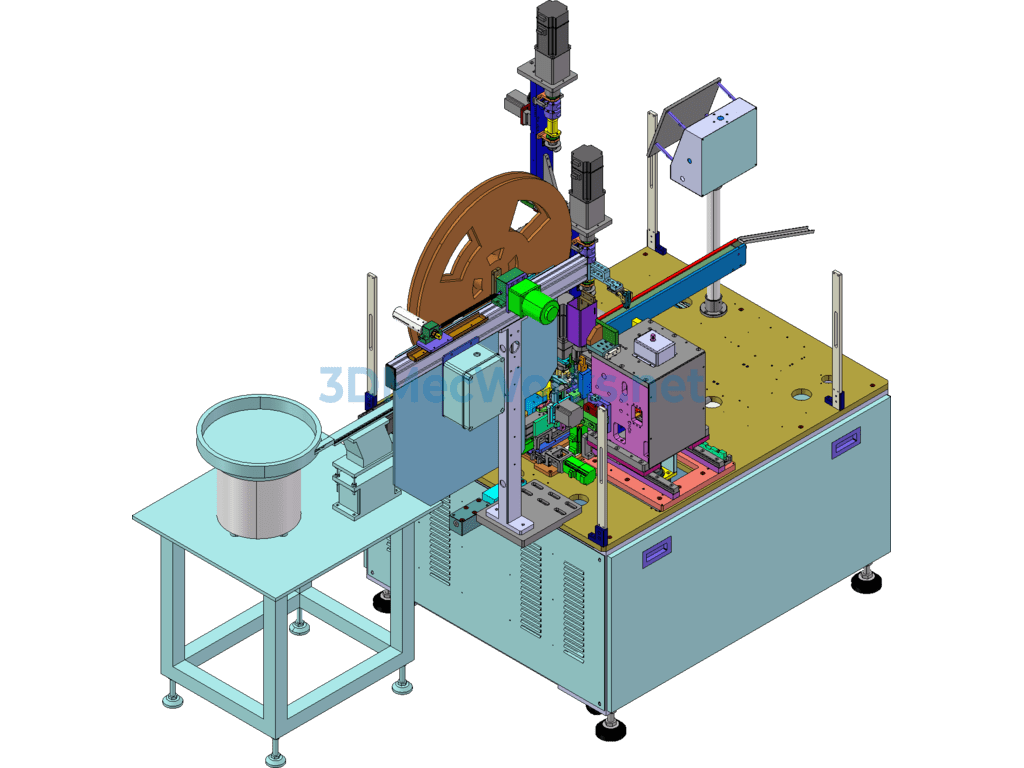

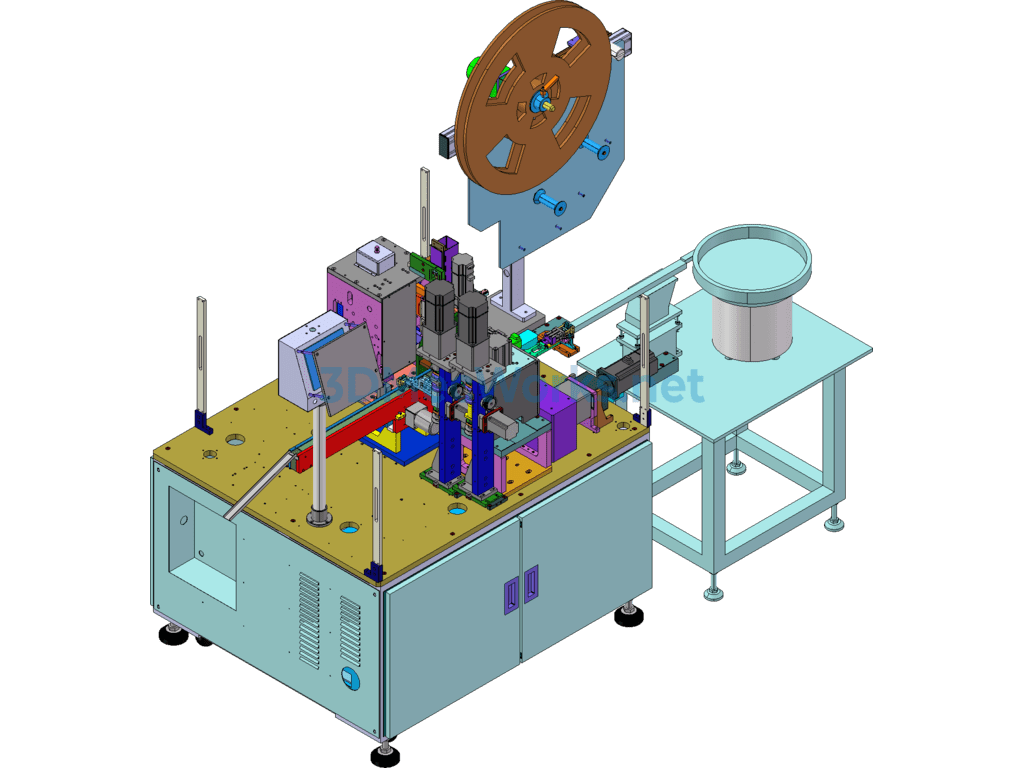

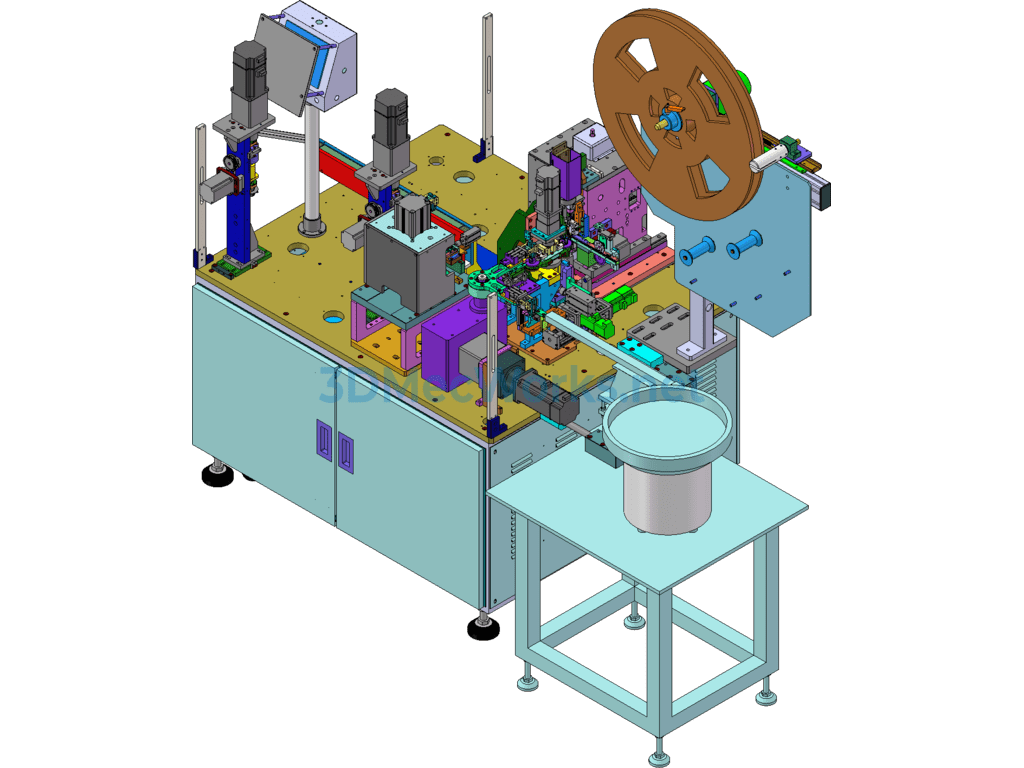

The SW model of this pin insertion machine is a 1:1 drawing, consisting of 500 files, including assembly drawings and part drawings. Due to the nature of the drawings, some drawings have been merged, and they are measurable, suitable for industry peers to reference. It is recommended to use SW2013 or later versions to open the entire set of pin insertion machine drawings!
The pin insertion machine does not contain a computer chip, only a motor provides power. The motor drives the rotation of the main shaft, and the cam on the main shaft moves the pinhead installed on the pin insertion mold up and down for pin insertion. The assembly difficulty is not high, maintenance difficulty is low, operation is simple, work efficiency is high, and it can achieve full automation. Therefore, the pin insertion machine is extremely useful for the electronics industry.
Specification: Auto Pin Insertion Machine (sw Model)
|
