Assembly Drawing of Stator Core Component Welding Fixture

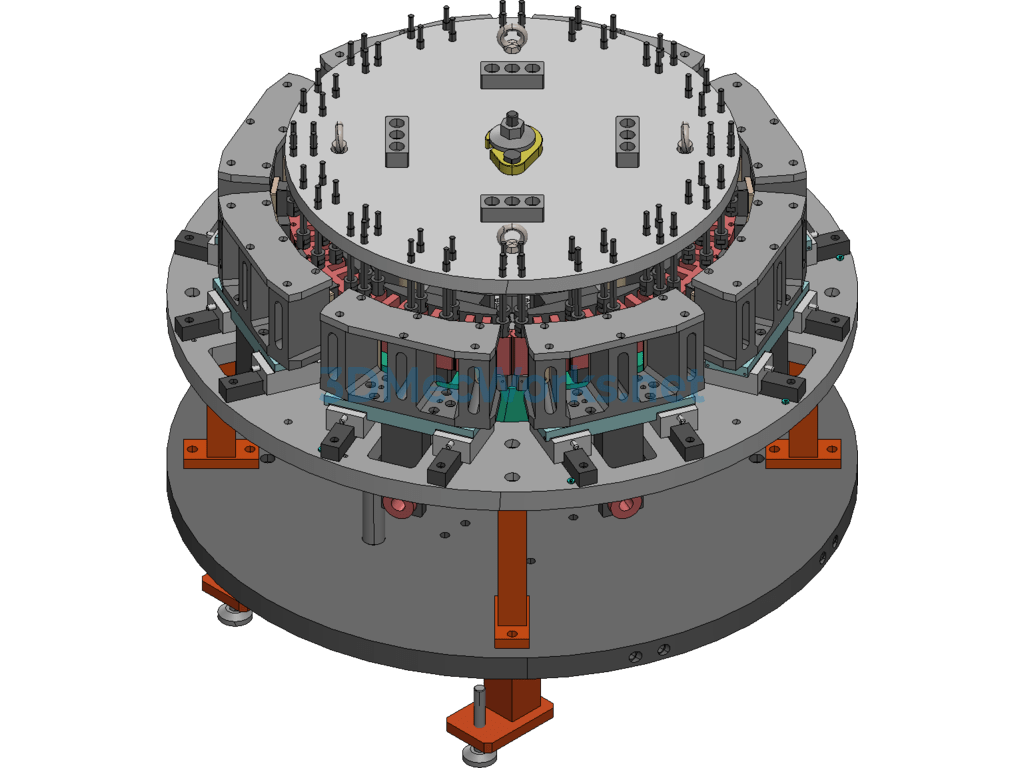

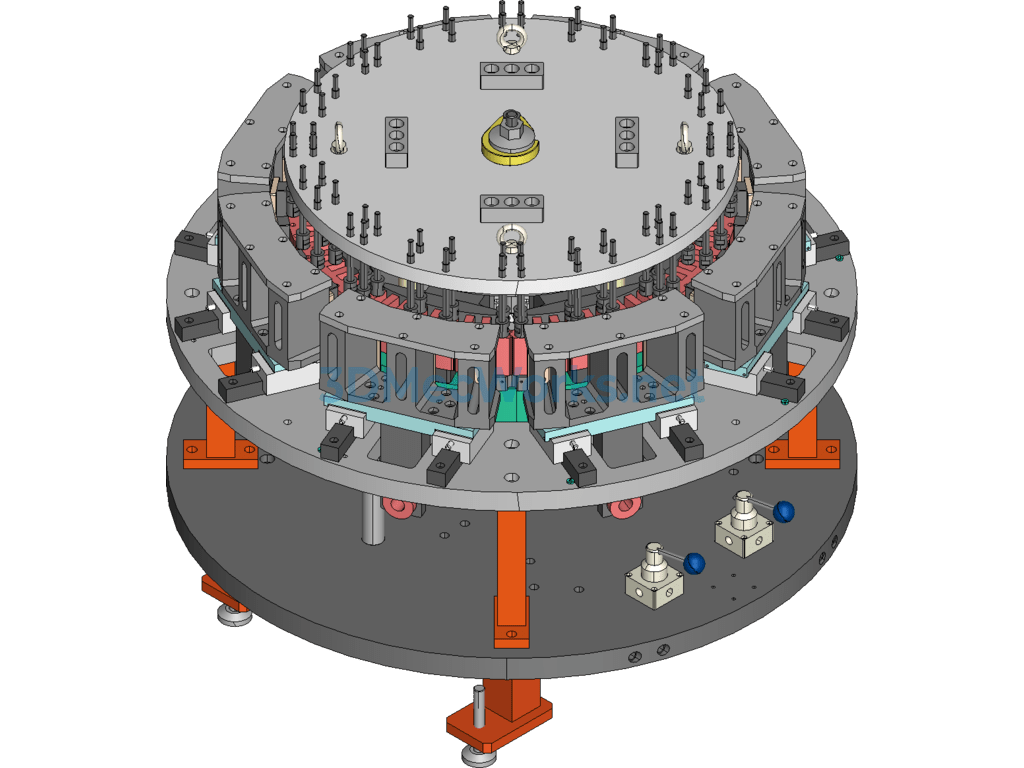

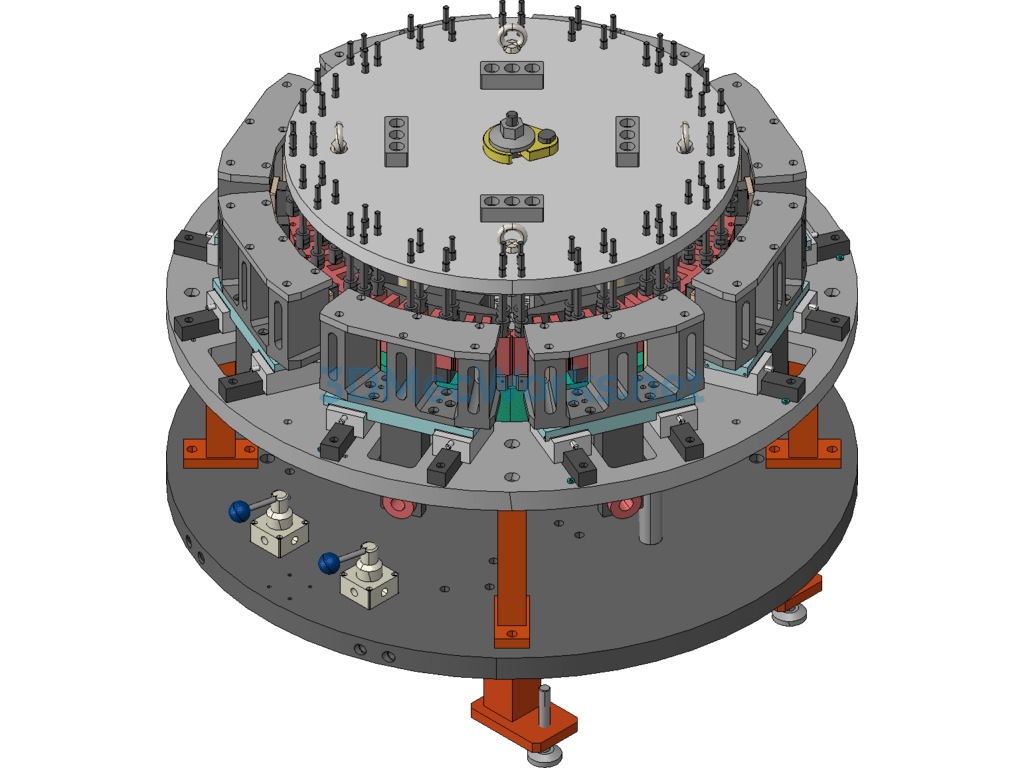

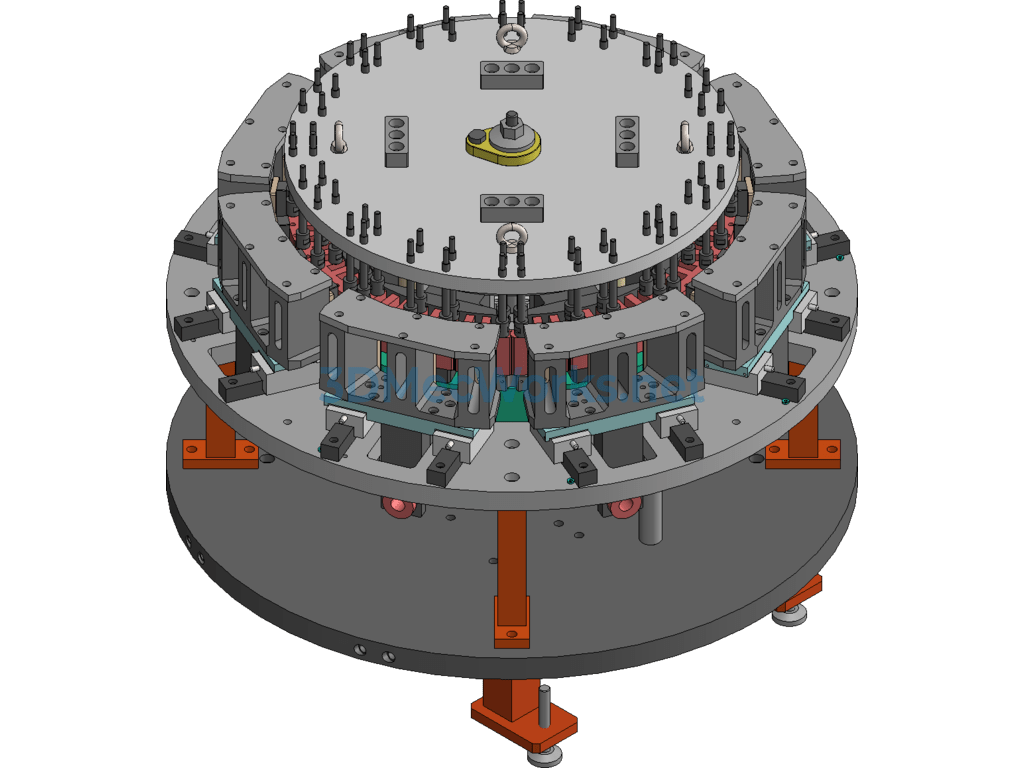

This drawing is an assembly diagram of the stator core component welding fixture; the product code is P101050A111-G01, height 60, P101050A111-G02, height 80. This fixture uses external circular positioning for the workpiece. The operation sequence is: external circular positioning → internal circular expansion → manual locking of the upper cover. The fixture weight is approximately 1150KG;
Specification: Assembly Drawing of Stator Core Component Welding Fixture
|
