Assembly Drawing of Intermediate Shaft Hydraulic Fixture

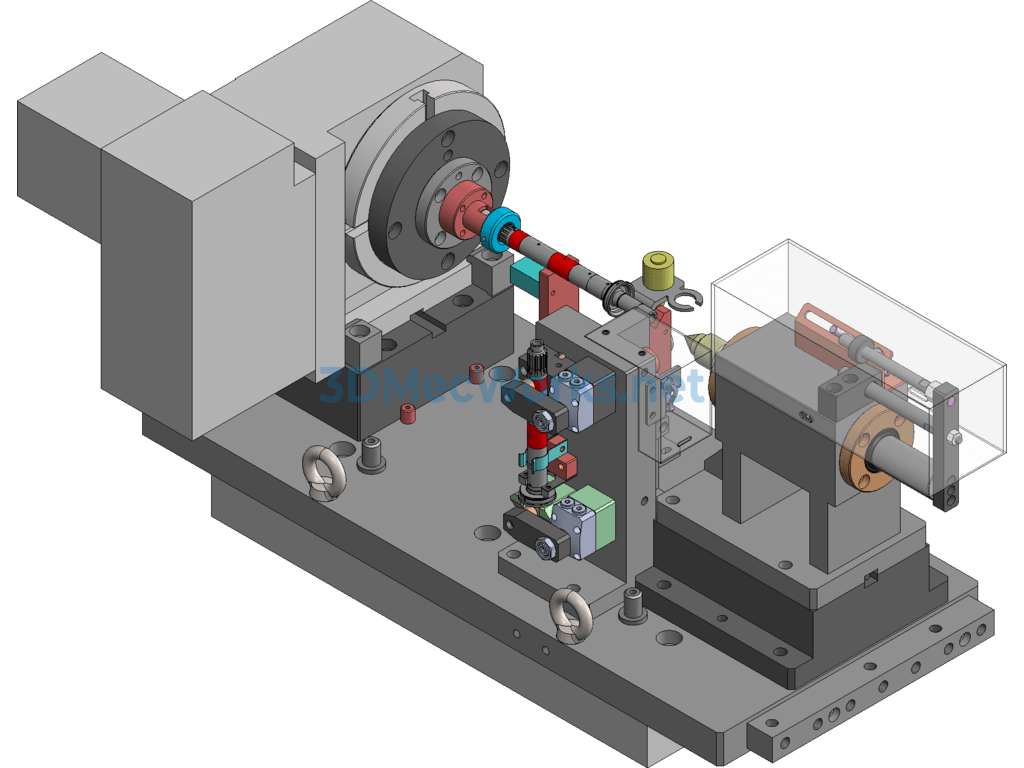

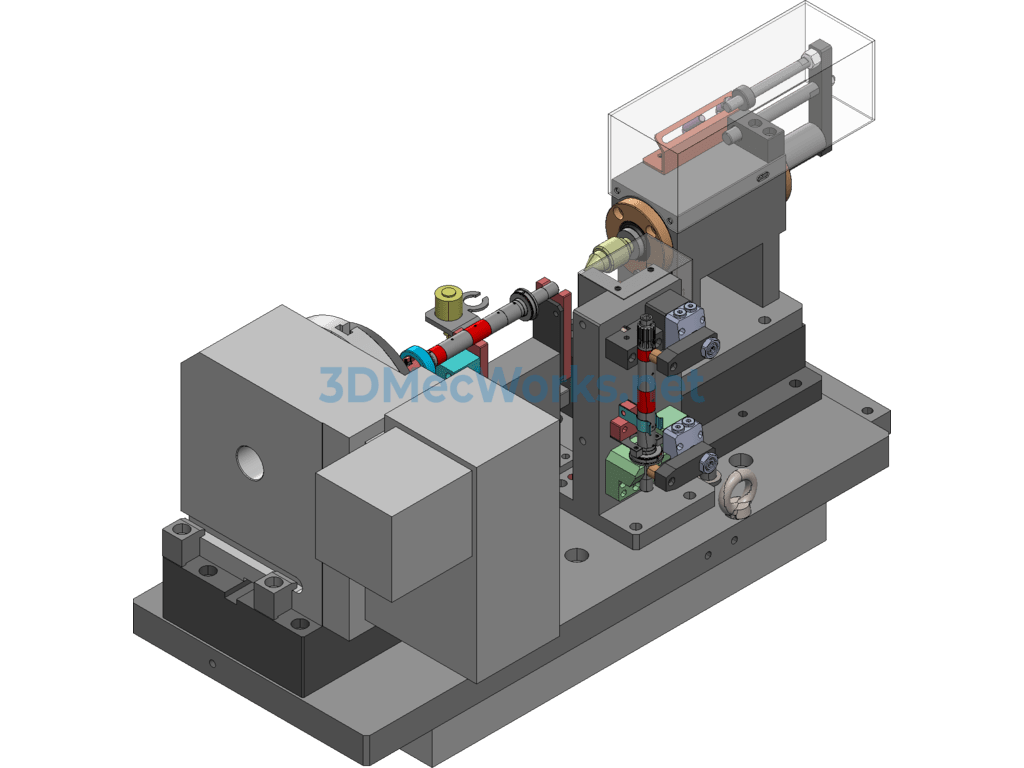

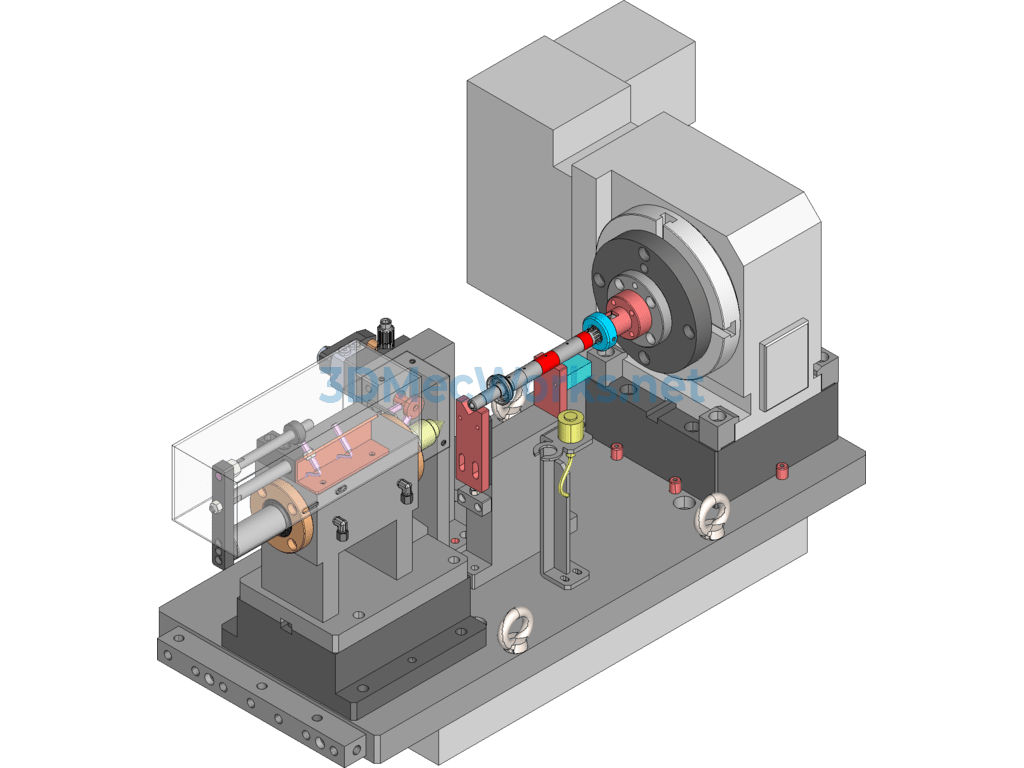

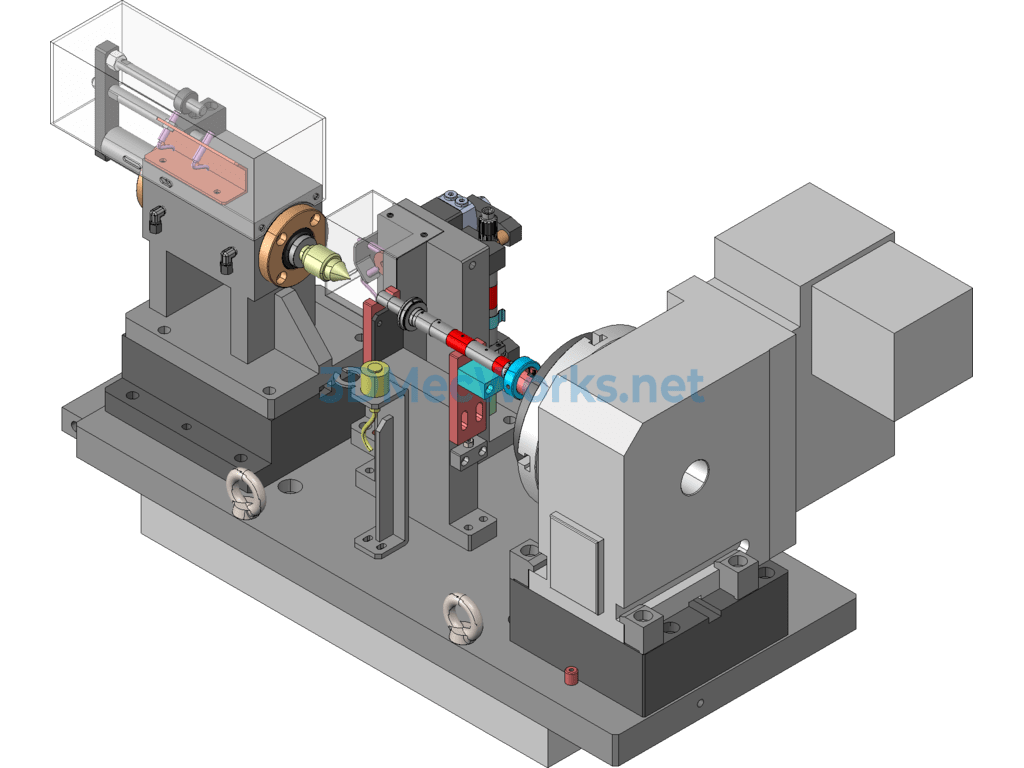

This drawing is the assembly drawing of the intermediate shaft hydraulic fixture, matching the CMV-510A machine tool, with a worktable size of 600X360; this fixture OP10 uses the workpiece center axis and spline end face for positioning; OP20 uses a V-block to position the workpiece center axis and bottom end face; OP10 oil circuit: 1 inlet, 1 outlet; OP20 oil circuit: 1 inlet, 1 outlet; 1 circuit for turntable brake; fixture weight is approximately: 250KG;
