Assembly Aging Test Line - SolidWorks - Free Download

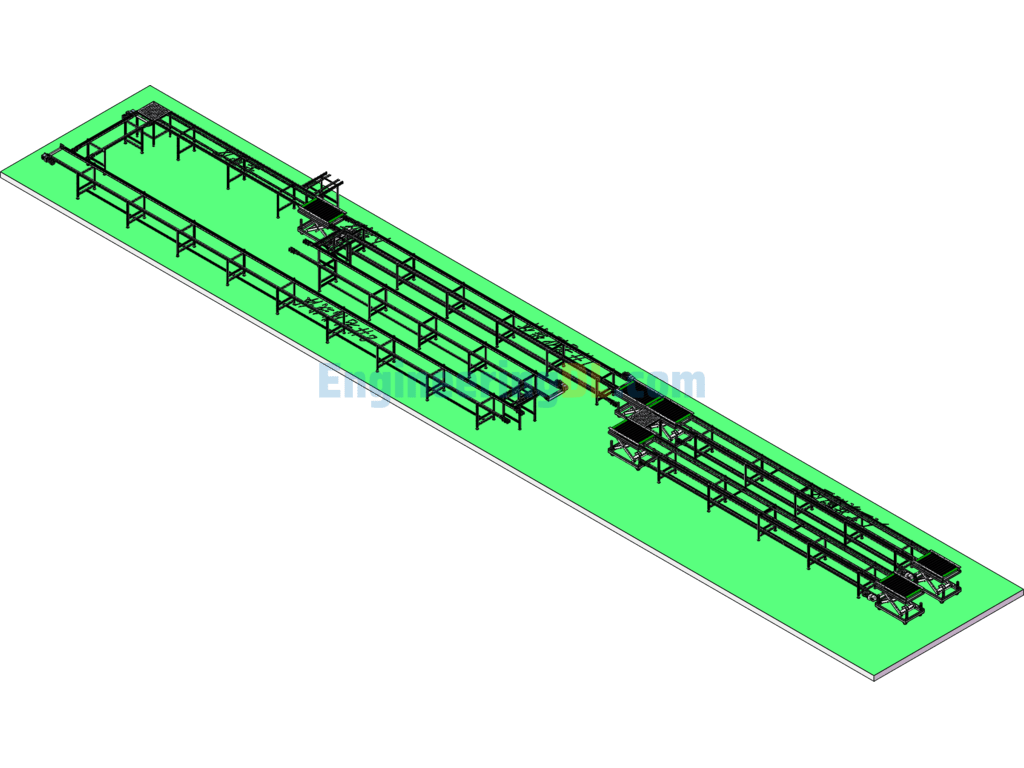

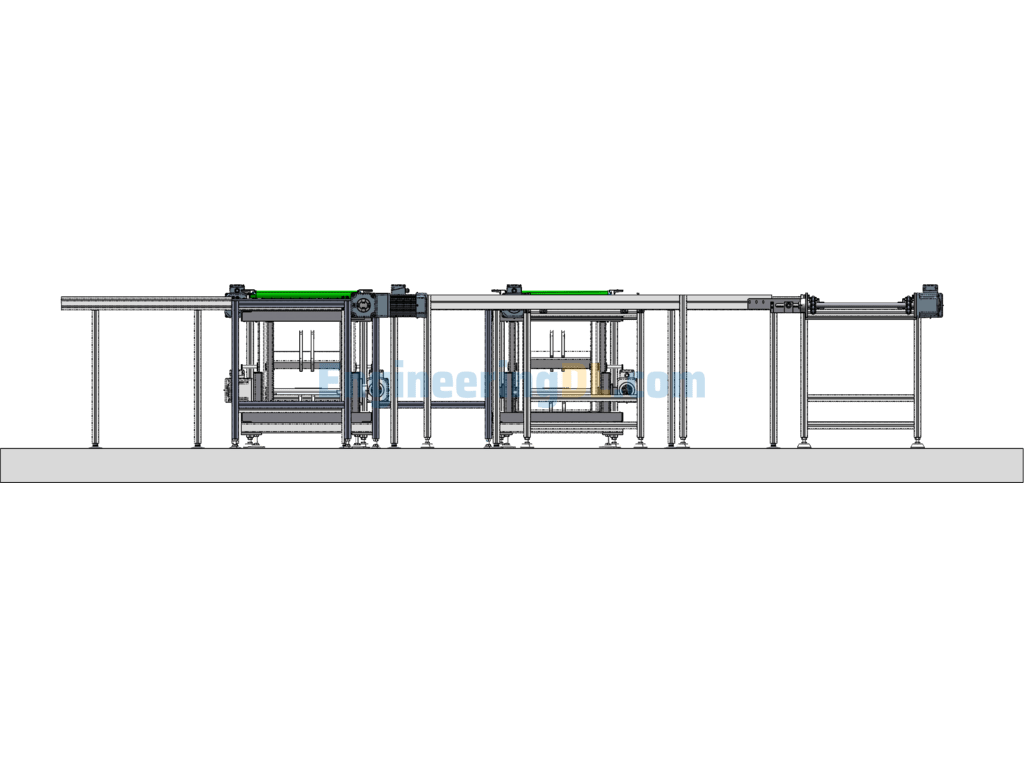

This drawing is for the assembly aging test line. The structure utilizes an S-shaped design, effectively saving space. The aging section line is a single-layer speed chain line. If a straight line design is used, it requires upper and lower layer recirculation, wasting the speed chain line. Currently, a flat recirculation method is used, with #1 as the upper and lower layer recirculation line. The lower line area extends from the middle position, effectively reducing the recirculation length of the line. Version SW2021, includes parameters, editable.
