Apple Project: Multi-Plane Curved Surface Grinding and Polishing Machine for Metal Buttons

Apple project metal button grinding and polishing equipment, an automated mechanical device for grinding and polishing multiple surfaces and arc surfaces of small metal buttons for the Apple project. It has extremely high reference value for mechanical designers and product development enthusiasts, Solidworks fully parametric design! Includes procurement list BOM.

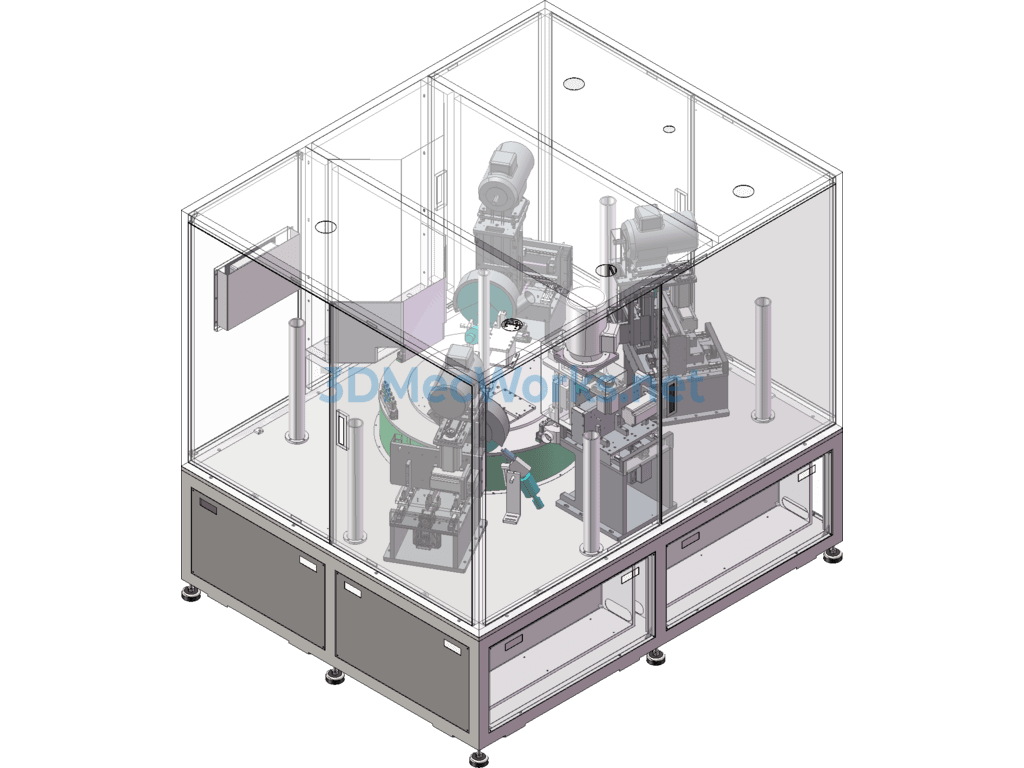

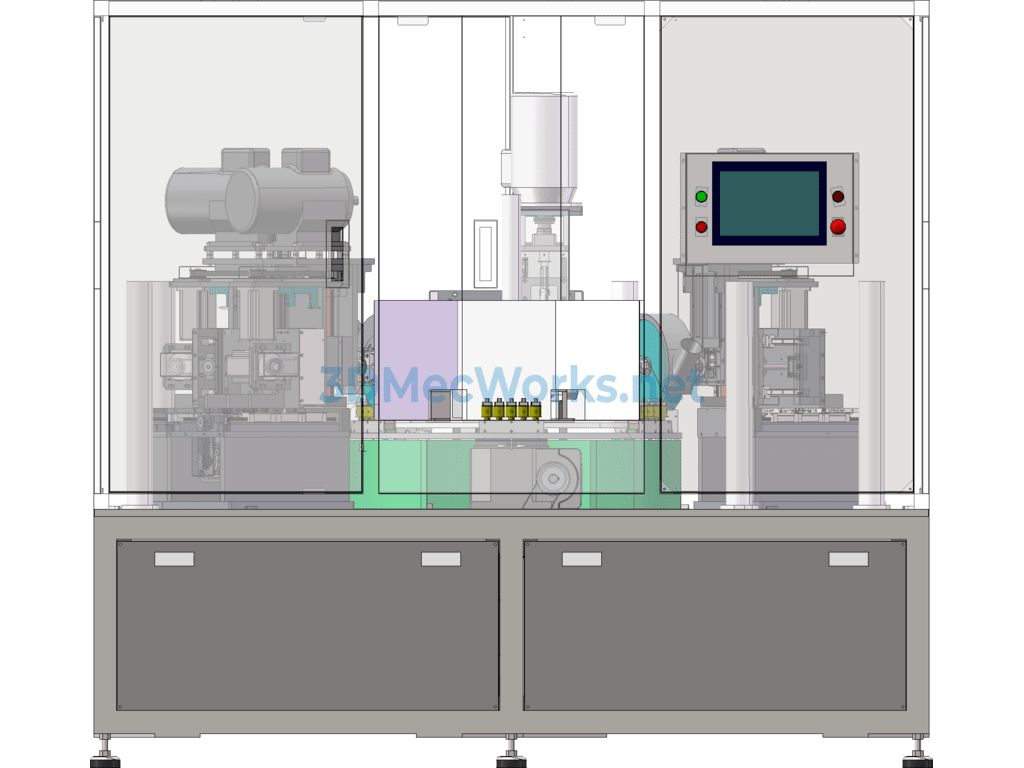

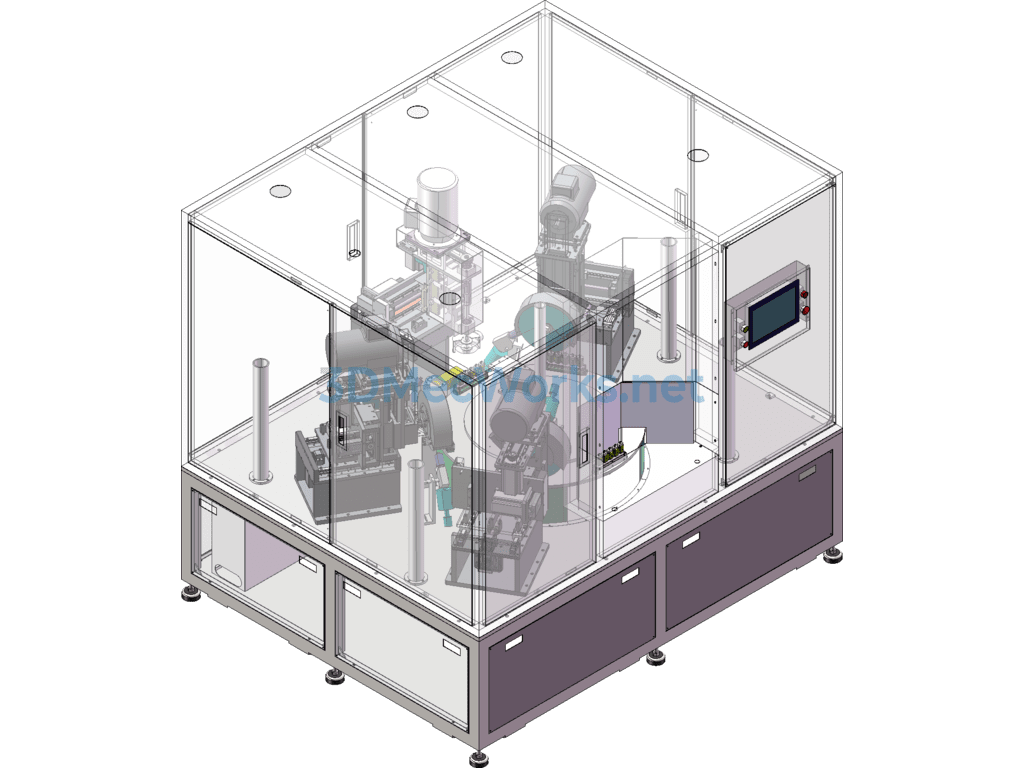

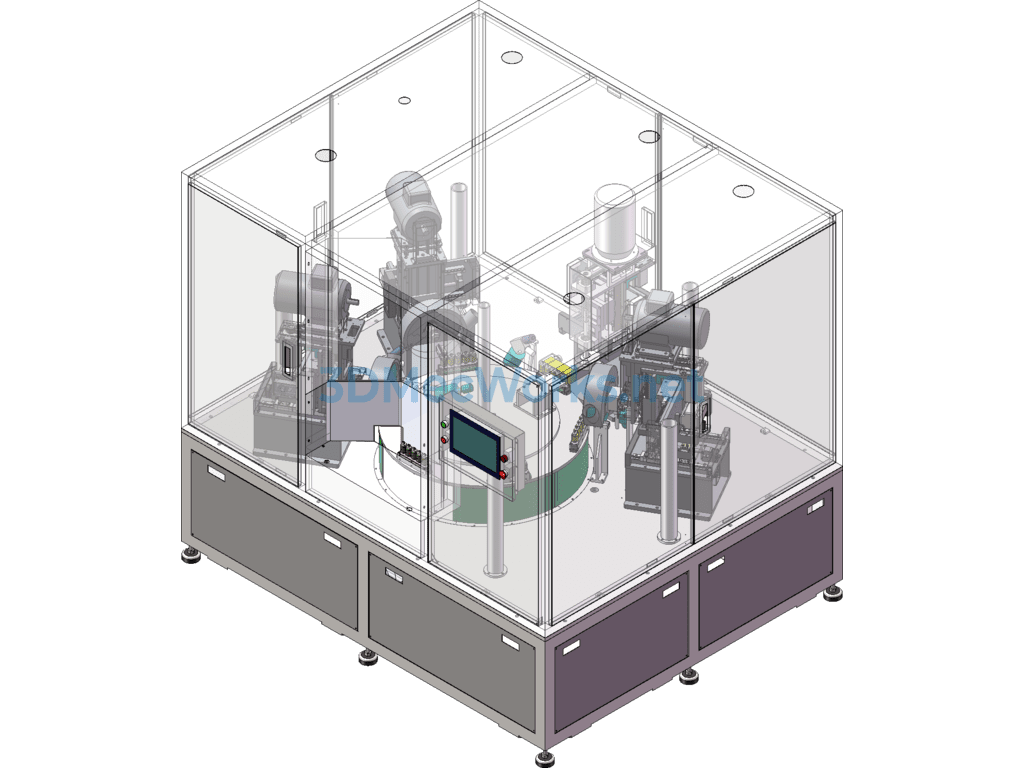

This is an Apple project metal button grinding and polishing equipment. The equipment drawings are complete; the structure is complex and ingenious. Only the 3D models and parts list are uploaded here. If the complete set of engineering drawings is needed, you can project them yourself. This equipment is currently in use at an Apple subcontractor’s factory. The main function of button grinding is to polish each surface of the button. Here, the machine can achieve multiple surface and arc surface functionalities. Manually placing 5 products at once into the fixture on the turntable, pressing both hands to start the turntable rotation for grinding. Each station is responsible for initial and fine grinding at different positions. The central turntable uses a divider for rotation, but the small plate in the middle does not rotate. Please download and open the drawing for internal structure details; no more will be said here. In short, for those who need it, the best drawings are welcome to download. Original exquisite design for a comprehensive grinding and polishing machine, fully parametric design model, welcome to download and learn!
