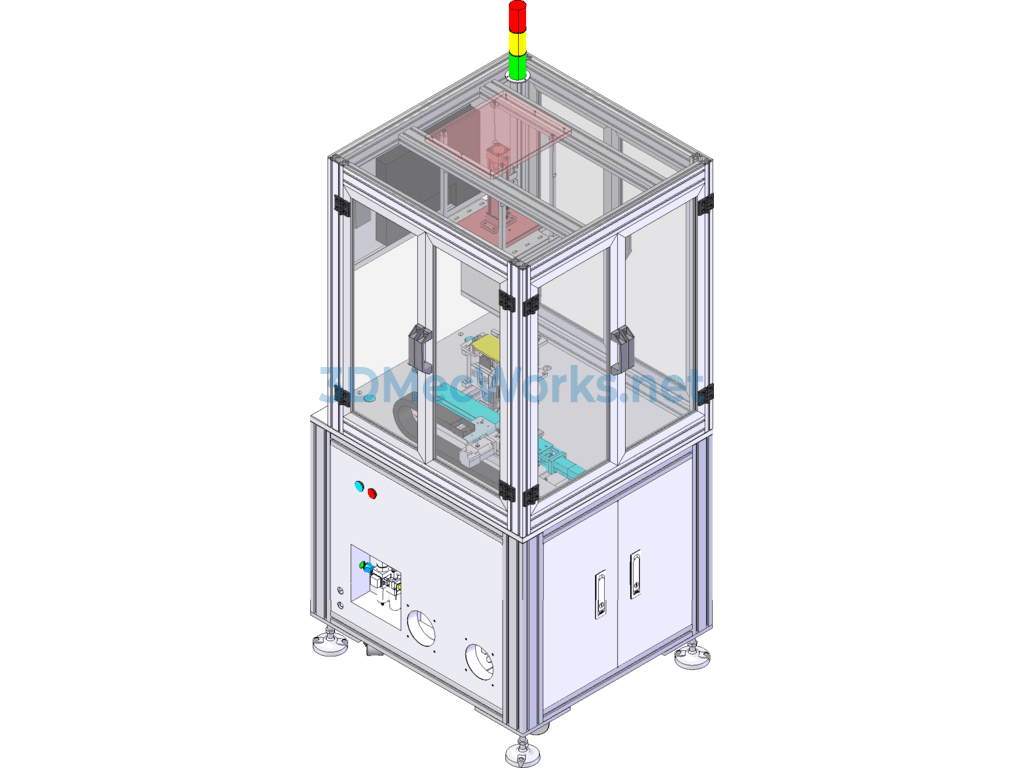

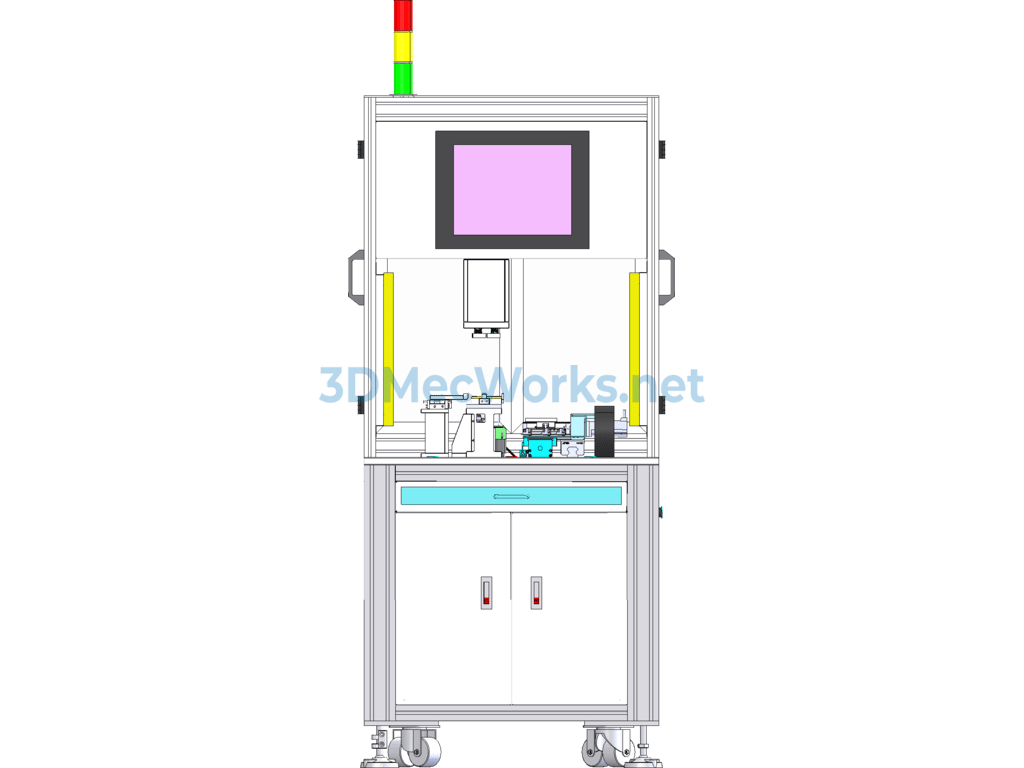

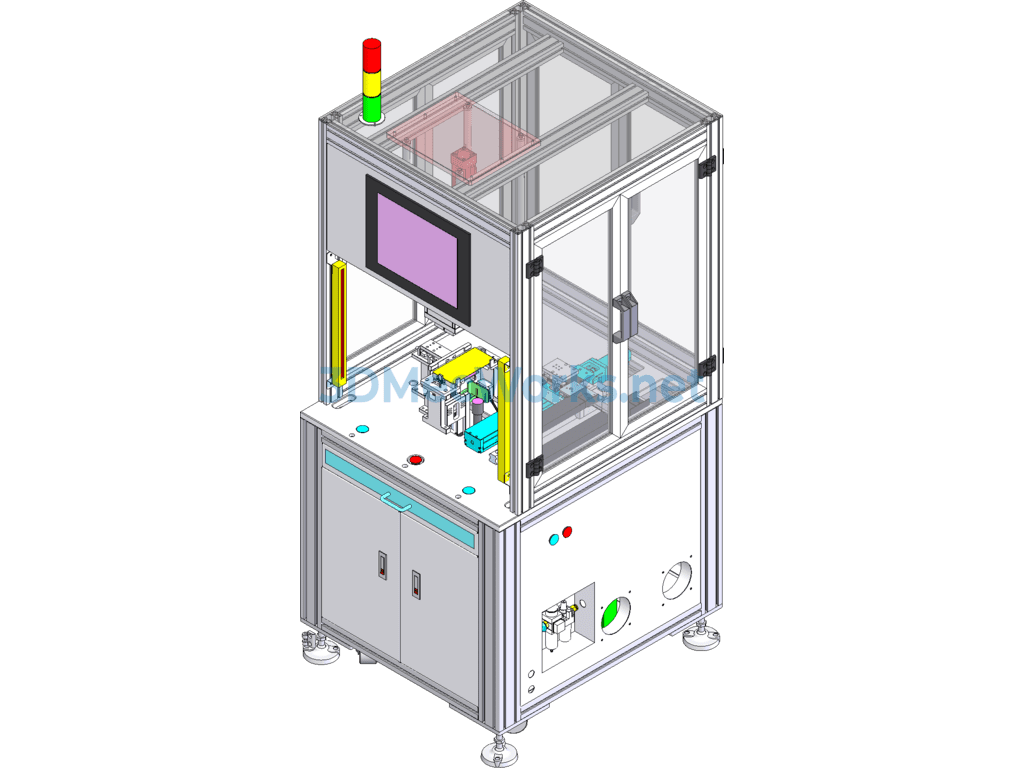

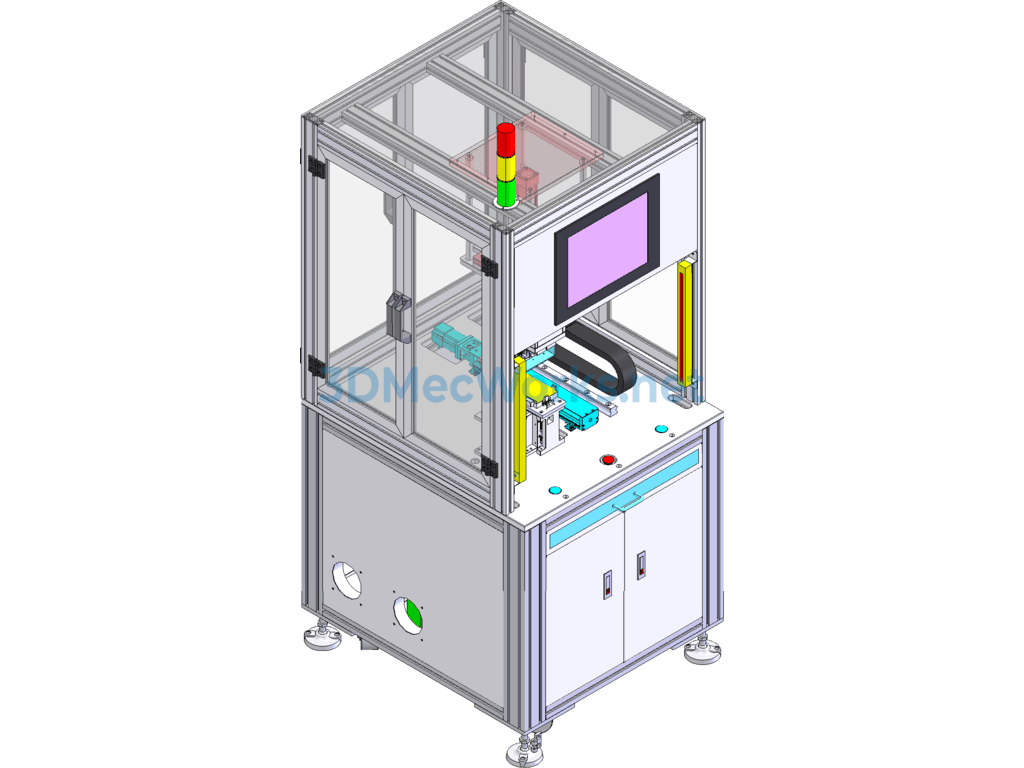

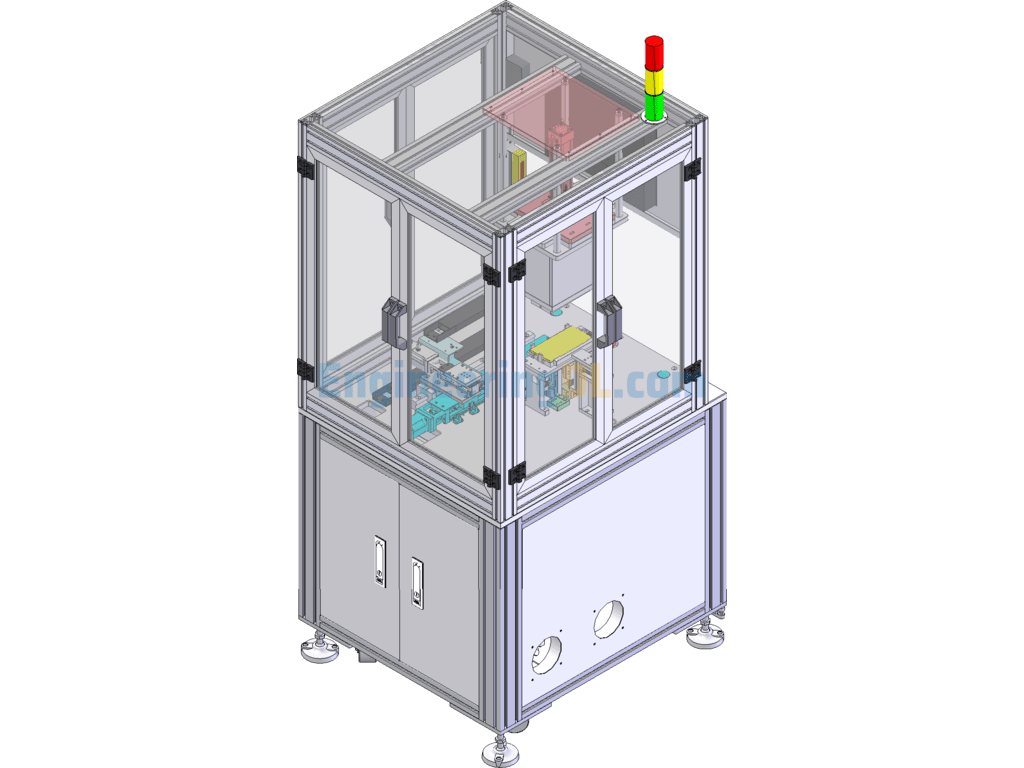

ANQU Magnet Inspection Machine (Includes DFM, BOM) - SolidWorks - Free Download
ANQU Magnet Testing Machine Operation Process:
1. Products are manually loaded into the equipment for positioning;
2. Magnets are manually placed into the moving module fixture for positioning;
3. CCD checks if magnets are installed correctly and within positional tolerance;
4. Magnet transfer module moves magnets below the product for inspection;
5. OK product prompts manual retrieval, NG alarm prompt.
Specification: ANQU Magnet Inspection Machine (Includes DFM, BOM) - SolidWorks - Free Download
|
