Aluminum Tape Welding Equipment for Cable Interior

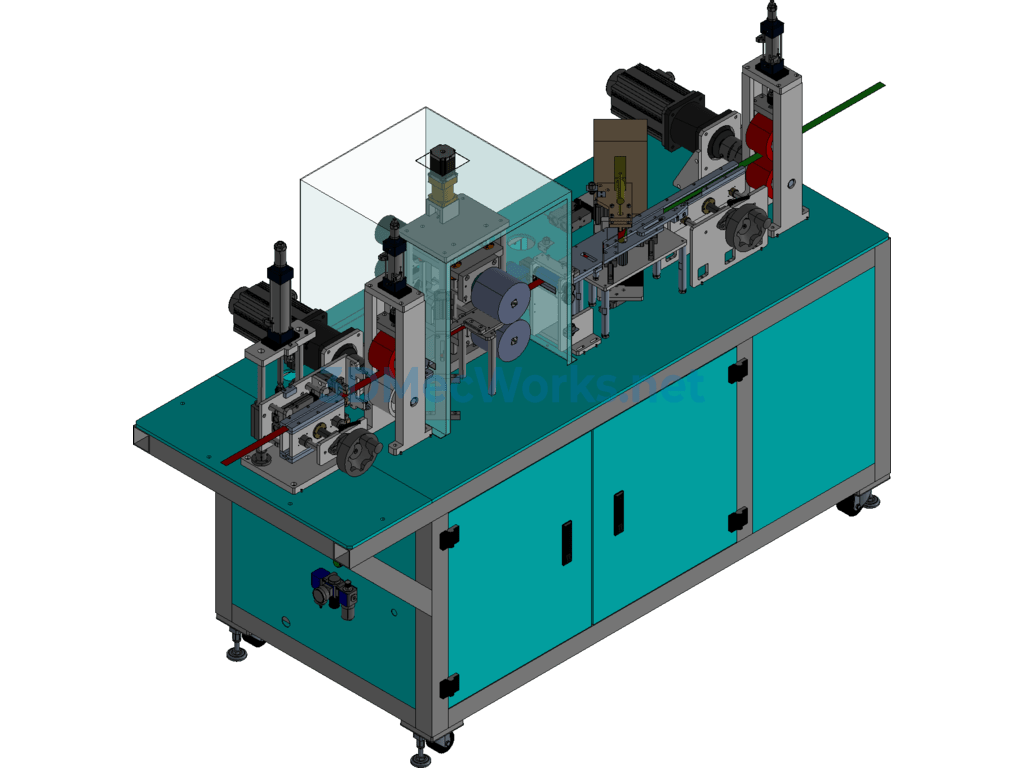

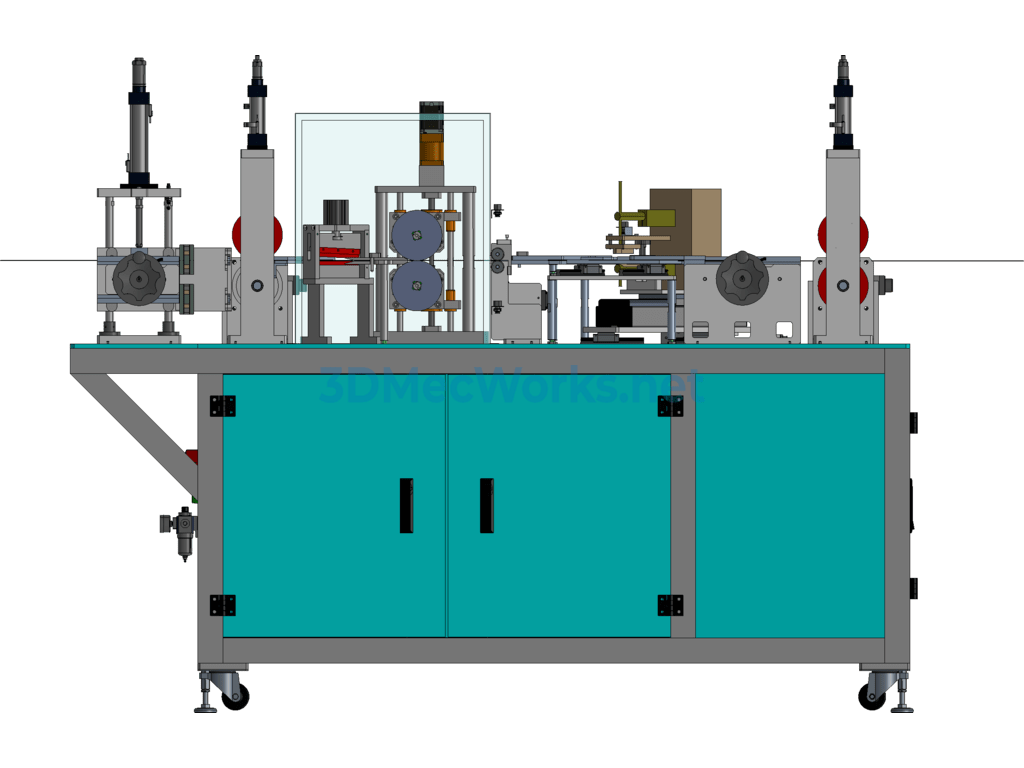

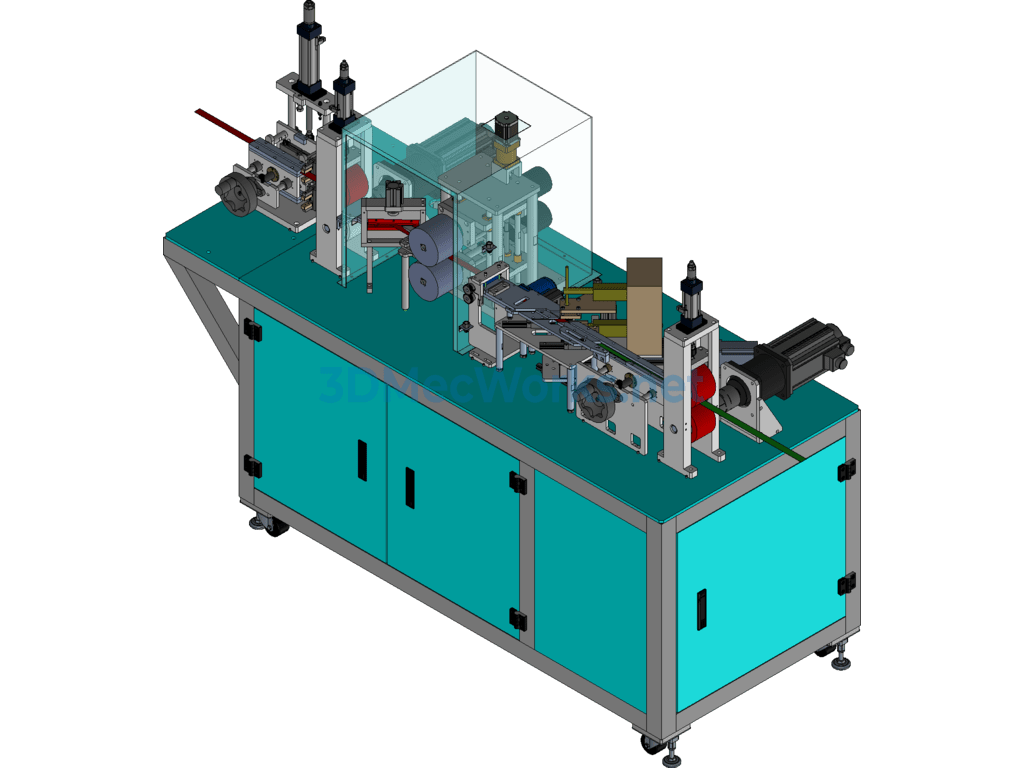

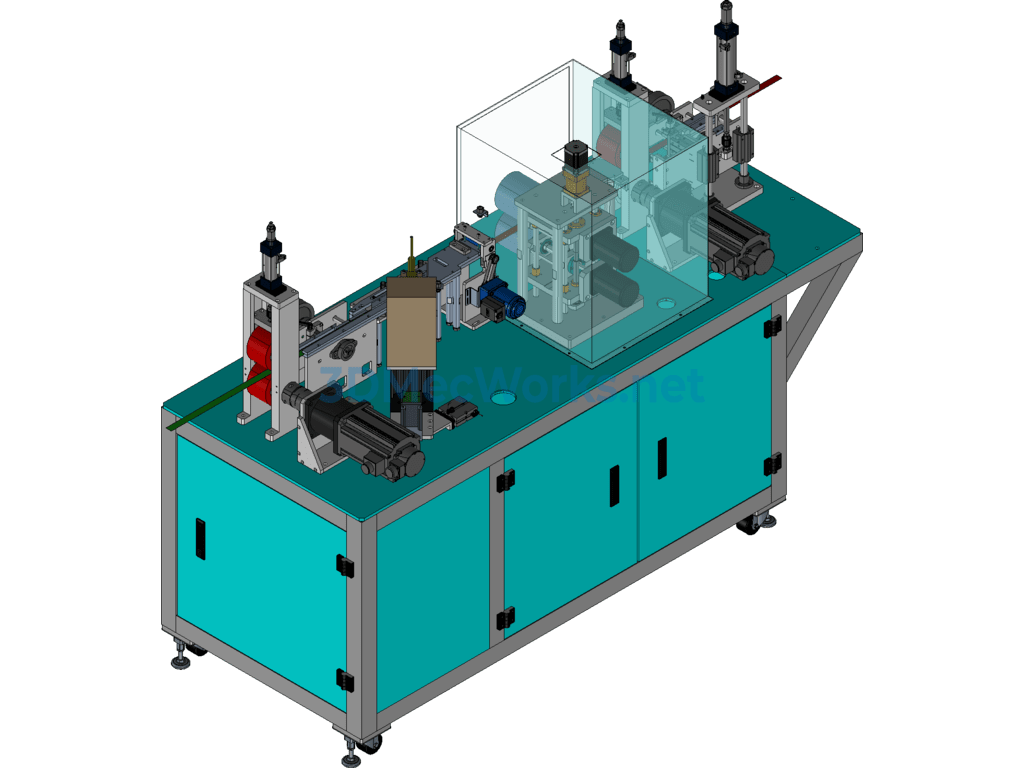

This drawing is for aluminum foil tape welding equipment used inside cable lines, and is actually in production use. It includes the aluminum tape cutting structure at the feeding end, the thin glue grinding mechanism on the outer layer of the aluminum tape, the pressing and feeding mechanism, the front and rear end splicing and welding mechanism, and the discharge structure after welding is completed. The drawing is complete, editable with parameters, using software solidEDGE T10, with step attached.
