SKU: A012501003806 Category: Tags: , , , , , ,

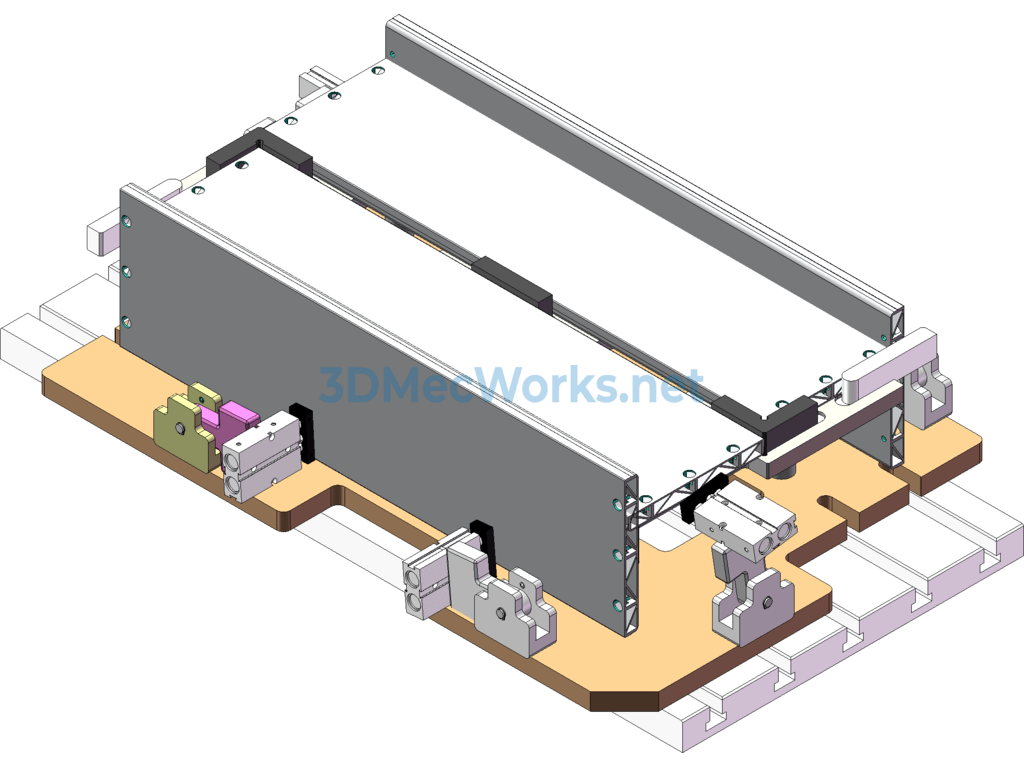

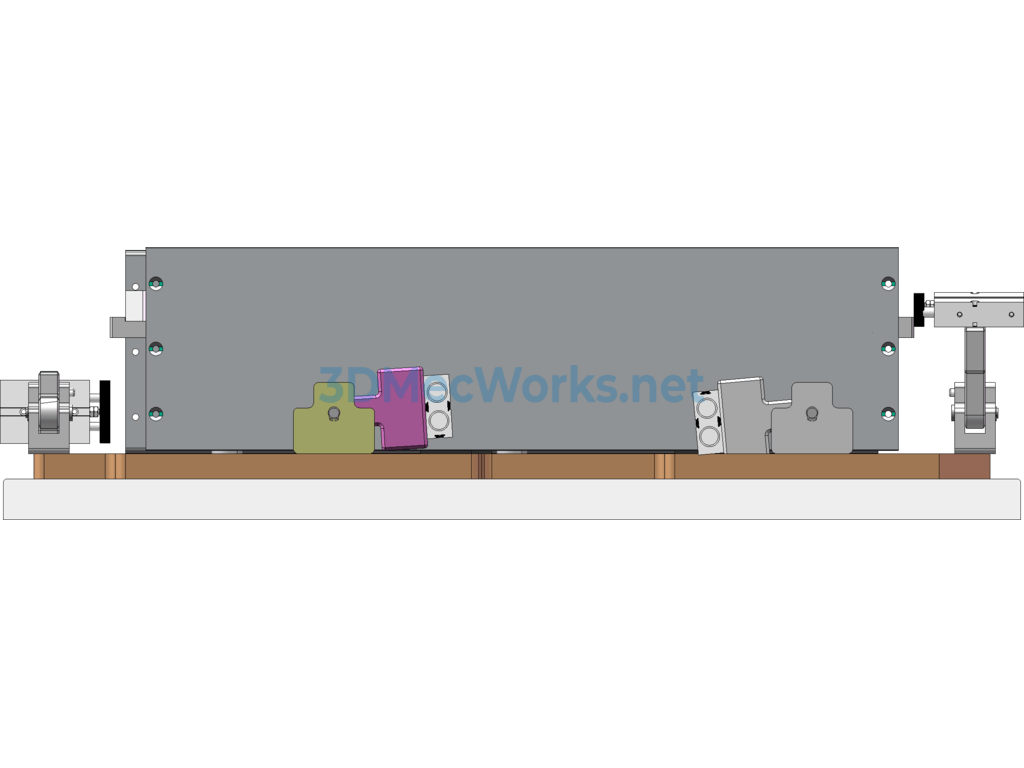

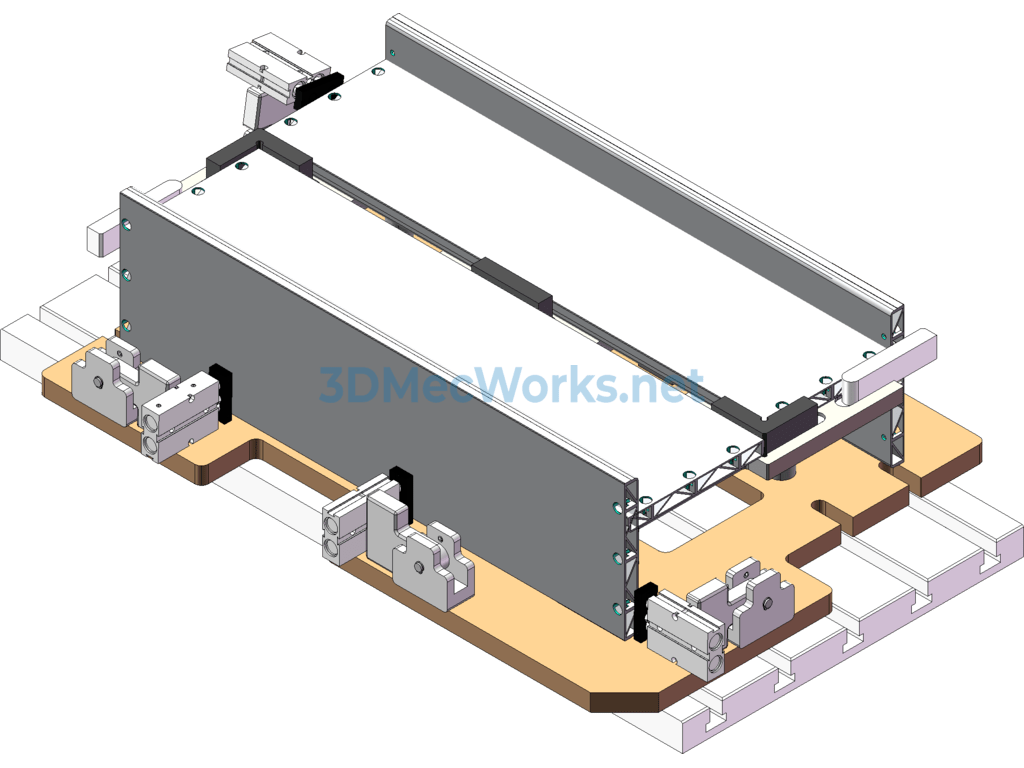

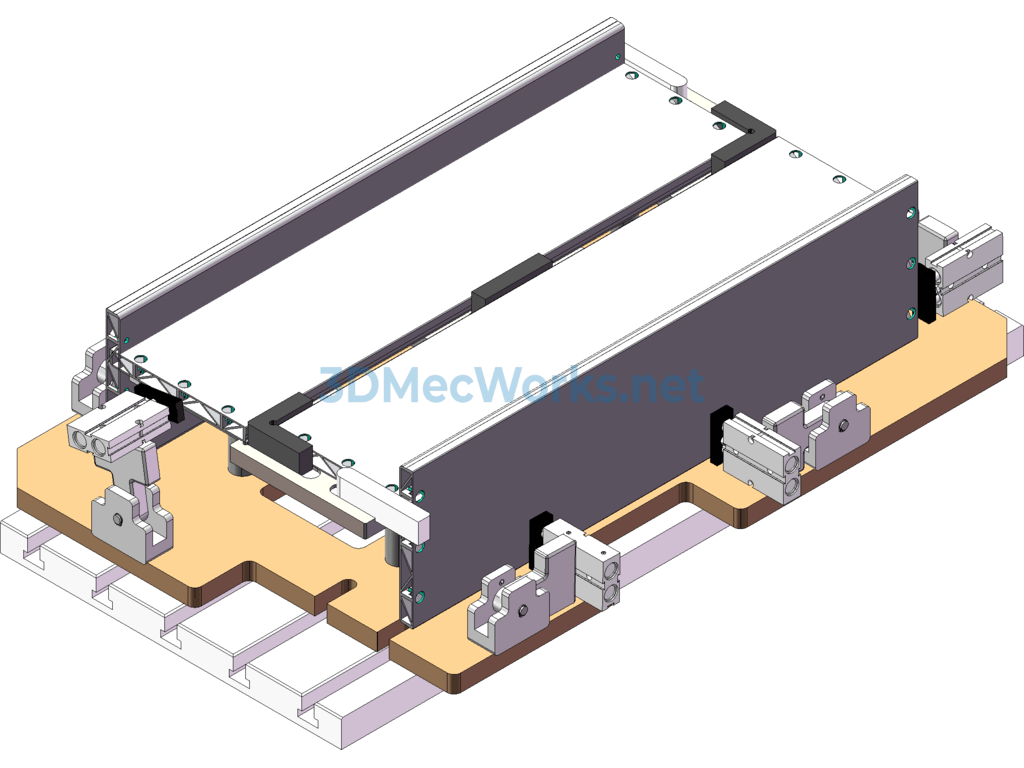

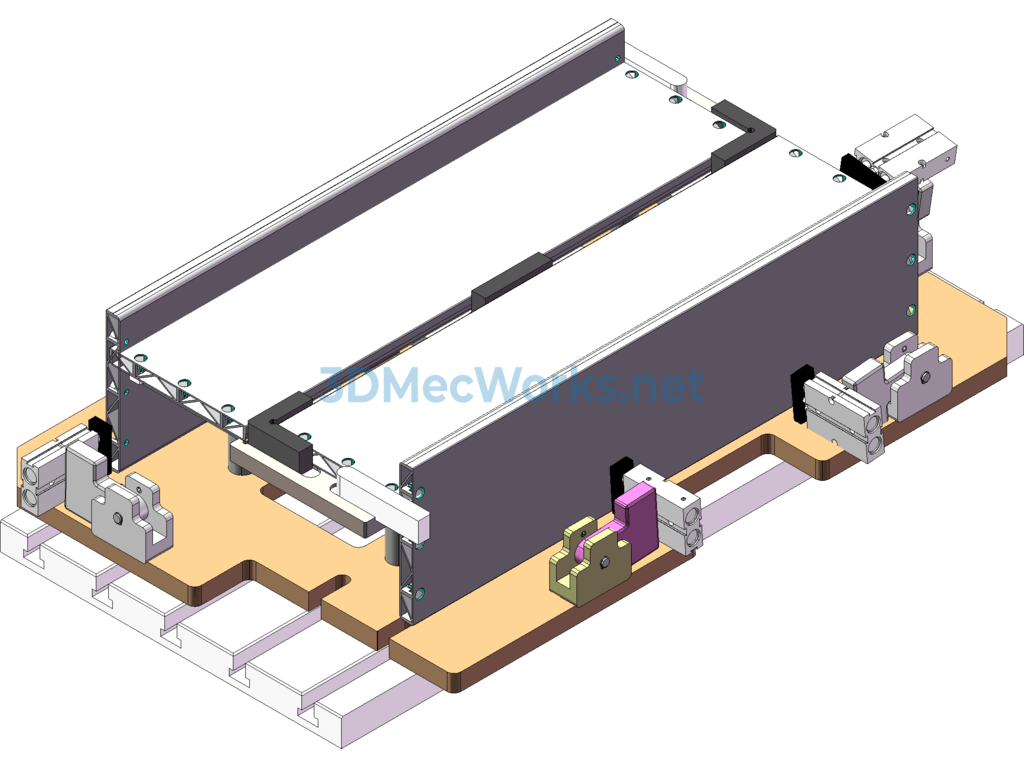

The jig is a 2D+3D modified tooling fixture designed for CNC machine tool processing of rectangular aluminum profiles for charging piles. The manual rotating cylinder position can accommodate two processing methods: flat placement and vertical placement of aluminum profiles.
