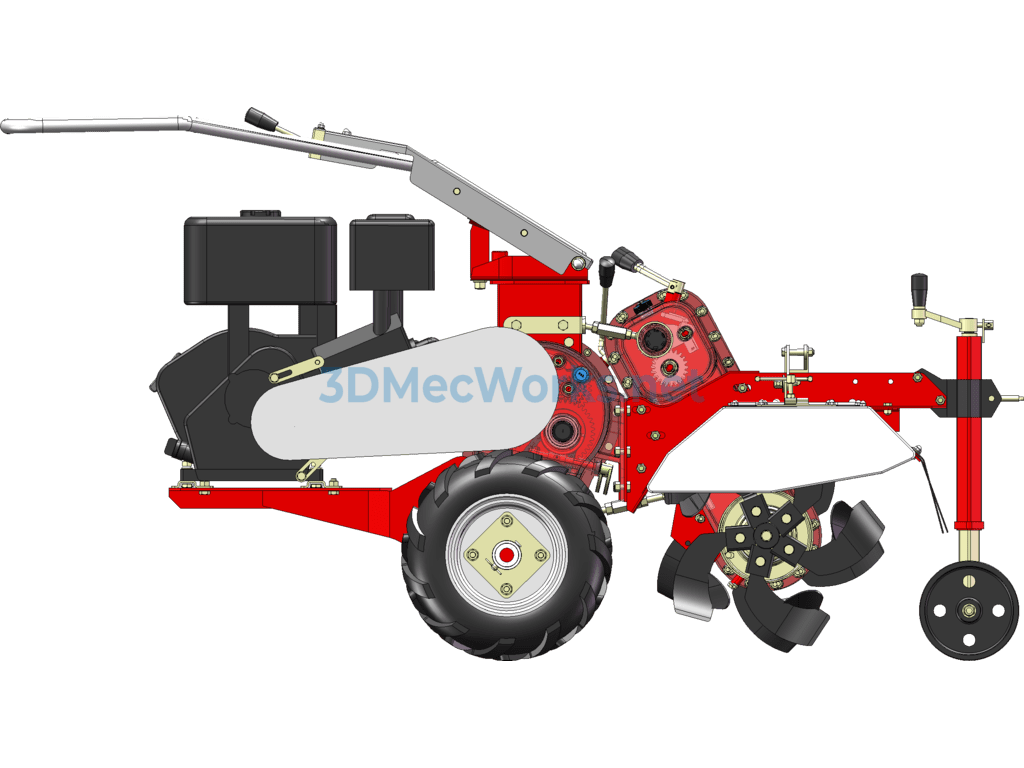

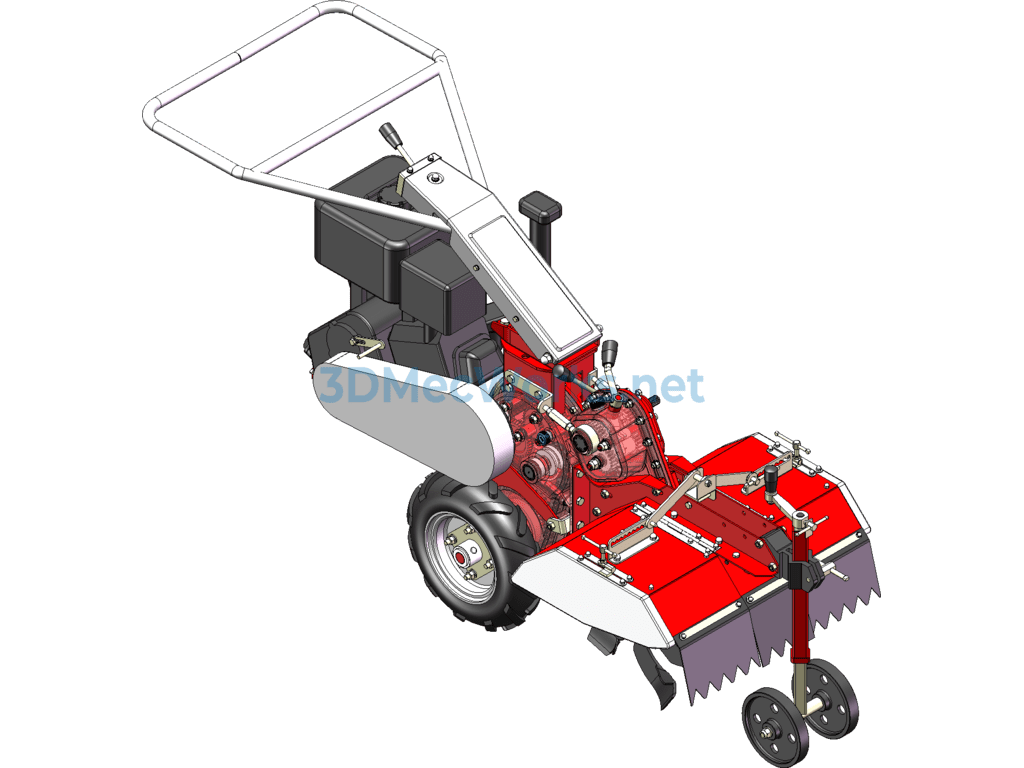

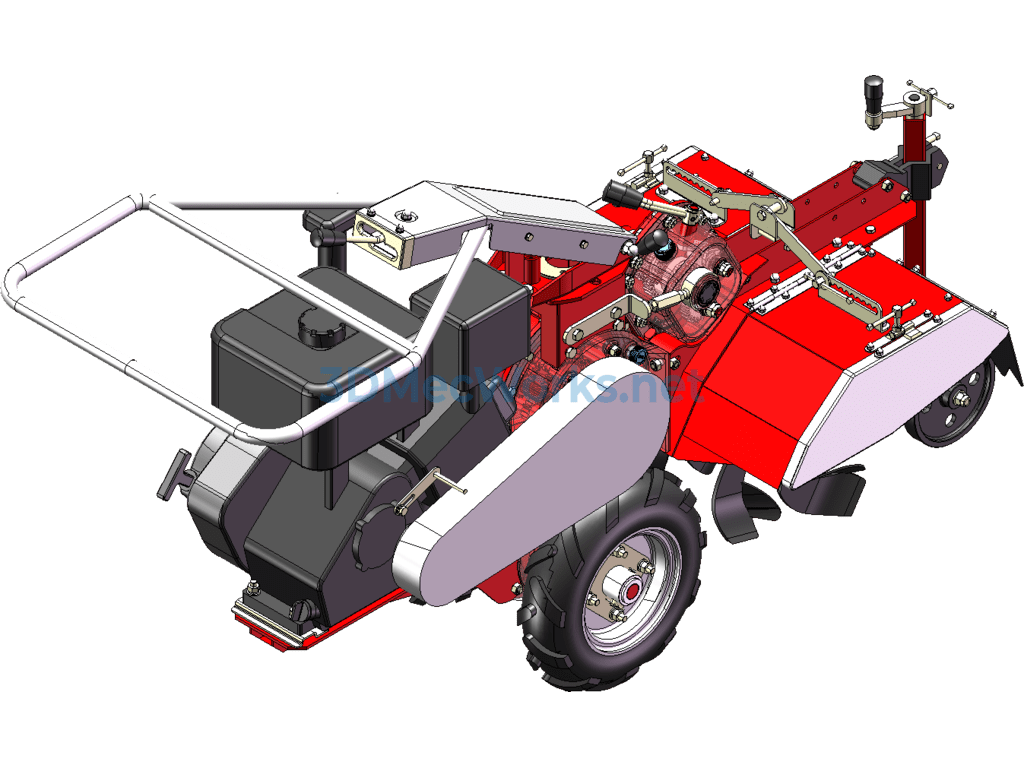

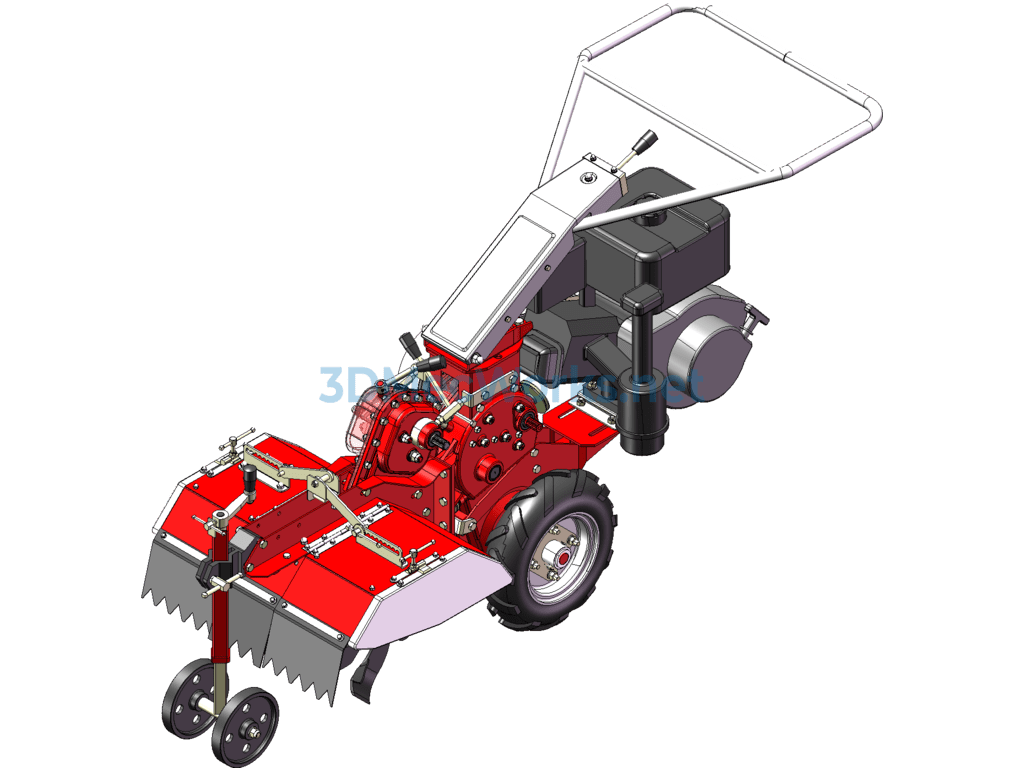

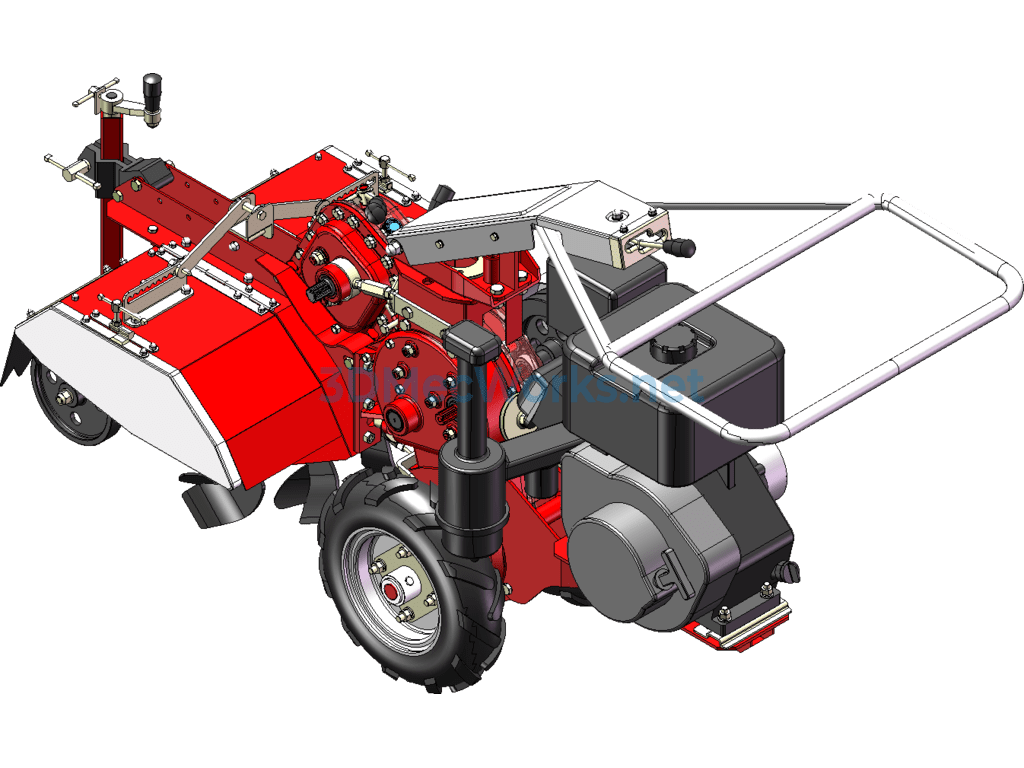

Agricultural Cultivator, Two-Wheel Cultivator

The intertillage management machine is self-powered and suitable for intertillage, weeding, soil hilling, trenching, and other field operations in mountainous orchards, vegetable gardens, banana plantations, tobacco fields, tea gardens, and other agricultural productions.
The machine’s gearbox is equipped with a steering clutch, featuring a short axle distance between the double wheels and a small turning radius, making it well-suited for field operations and turns at the end of the field. It can perform operations on both large and small plots of land.
The machine adopts a modular design: the frame, power, transmission, and maneuvering are one module; rotary tilling and soil covering are another module; protection and appearance constitute another module.

External dimensions mm 1735×940×600
Total Weight Kg Approximately 130kg
Supporting Power 6KW (9HP) 2000rpm 29Kg
Tillage Width mm 220～400
Maximum Tillage Depth mm 150
Operational Efficiency mu/day 8—12
Main Clutch Type Belt Tensioner Wheel Type
Transmission in Traveling Gearbox Sliding Gear Transmission, Gear Transmission Speed Reduction, Chain Transmission Output
Steel Ball Engaged Clutch Steering
Rotary Tiller Gearbox Transmission Type Sliding Gear Transmission
Chain Transmission Speed Reduction
Rotary Tiller Speed Rpm Low Speed 550, High Speed 750 (Linear Speed 11.51m/s 15.7m/s)
Forward Speed km/h 1.66, 5.64, 2.04, 0.98
Reverse Speed km/h 3.32, 1.20
