After Tightening The Bolt, Press-Fit And Inspect The Screw-Locking Equipment (Including DFM) - SolidWorks - Free Download

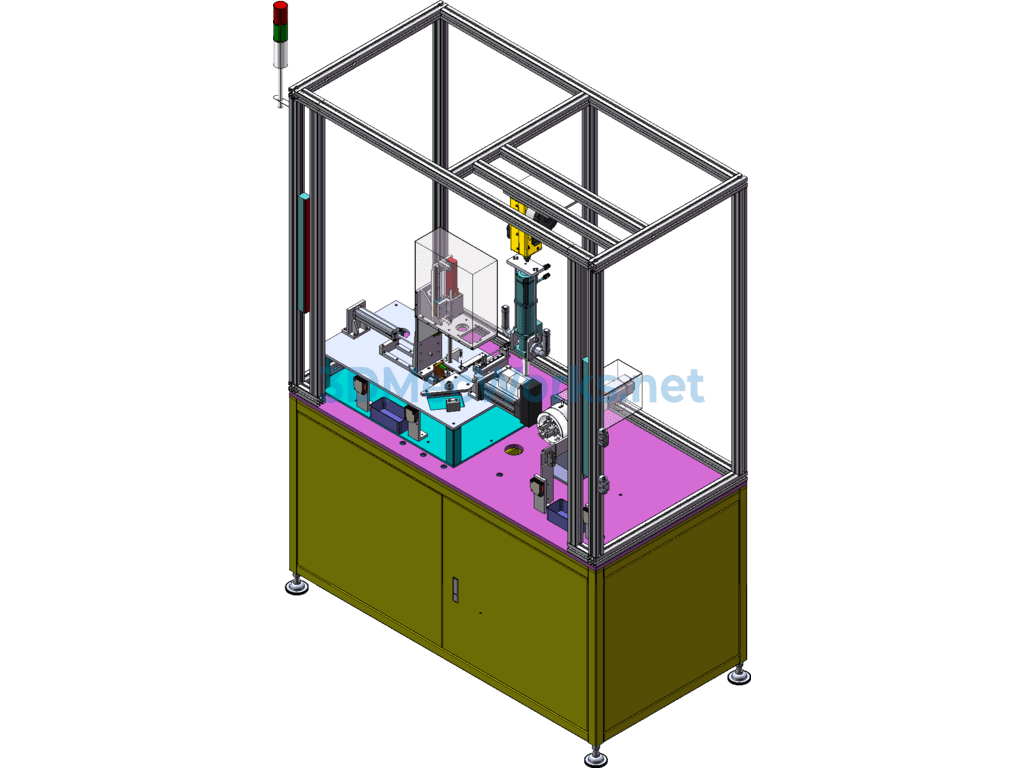

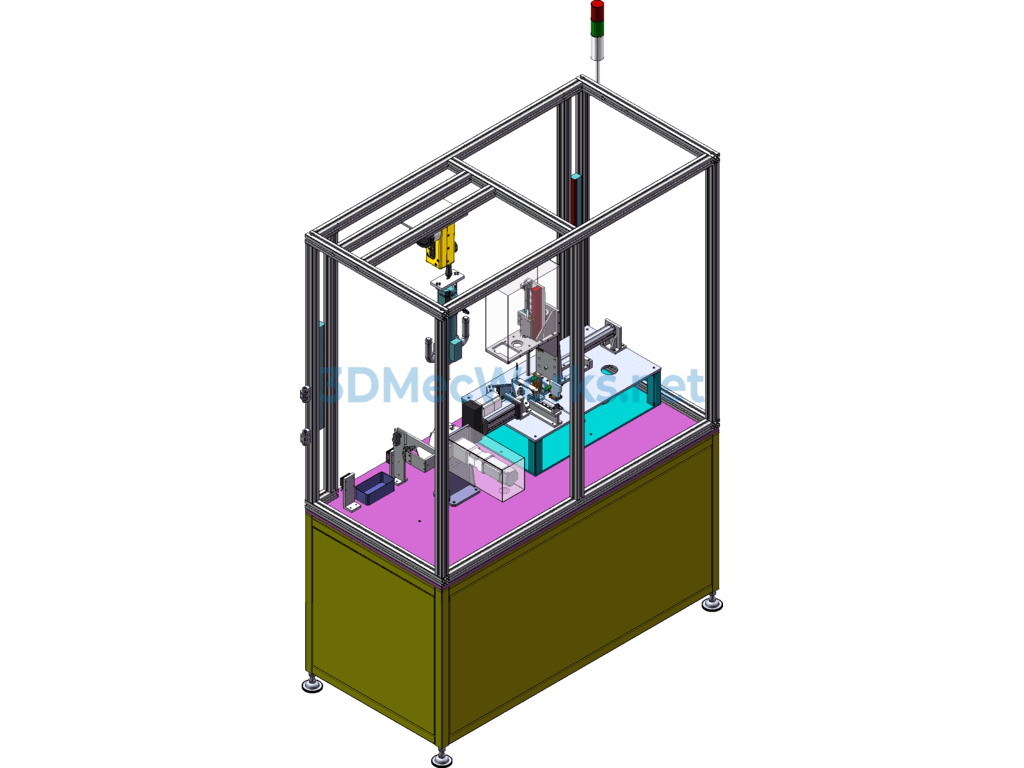

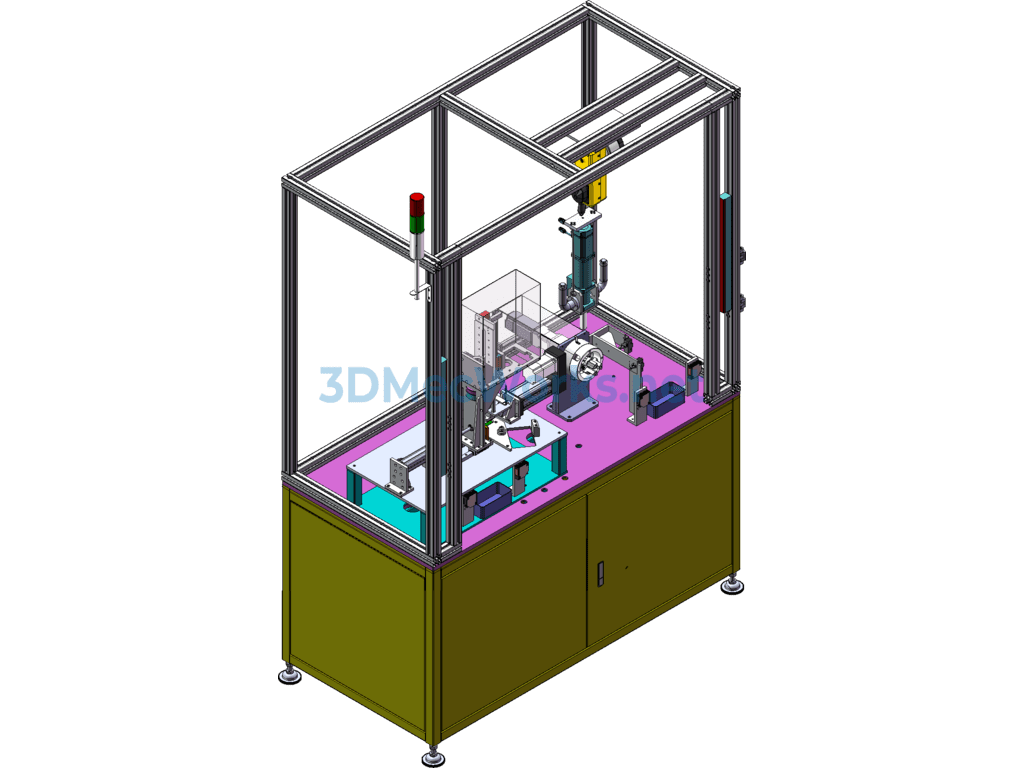

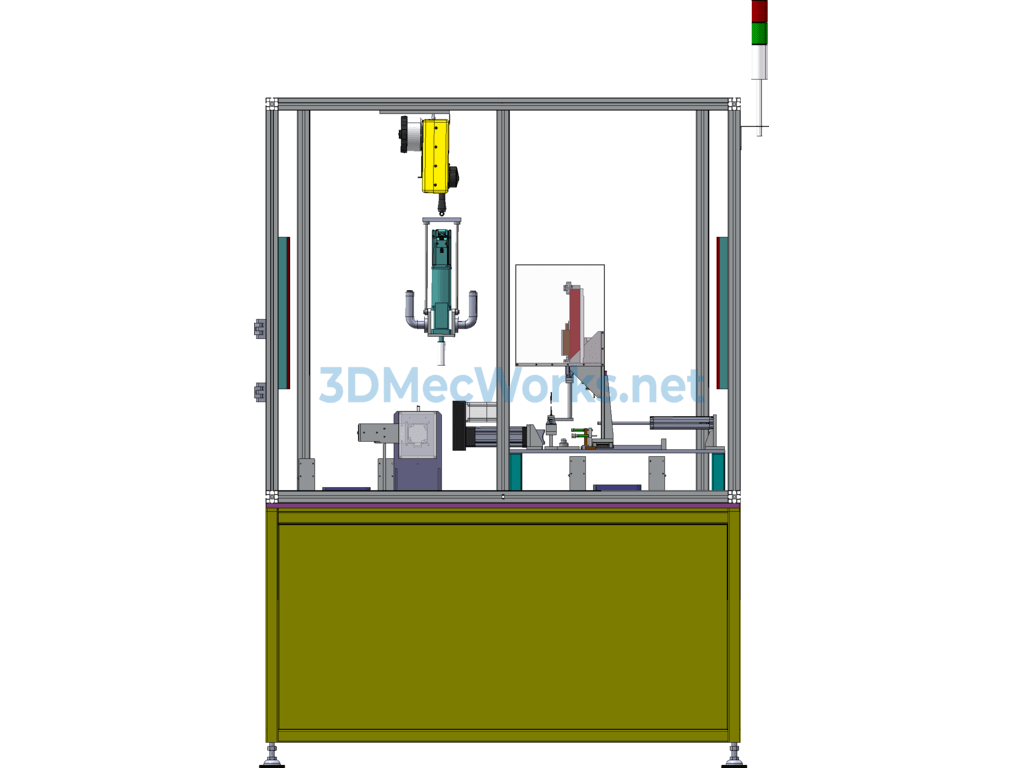

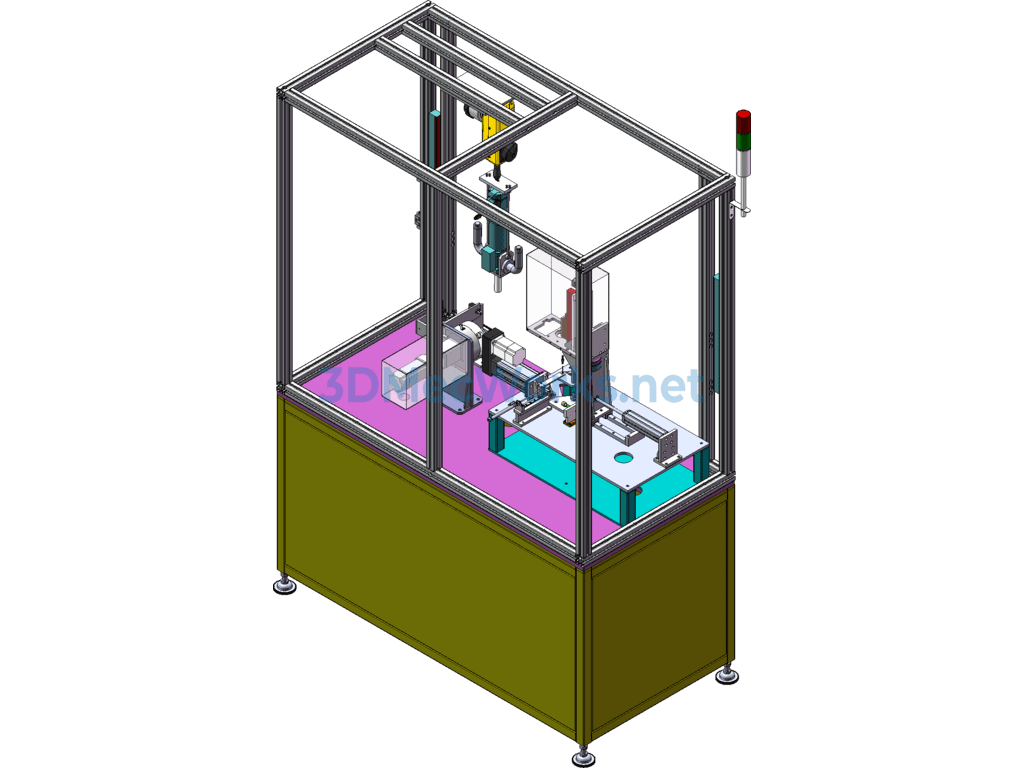

The press-fit detection and screw-locking equipment product is manually placed into the fixture for positioning. It utilizes an electric cylinder for controlled pressure and distance to press into the main body. Bolts are manually secured. After press-fit completion, the part is manually transferred into the rotary module for positioning and clamping of the inner hole. Rotation uses a displacement sensor to check the press-in depth and bolt locking status.
