A5 Door Strip Precision Cutting Machine - SolidWorks - Free Download

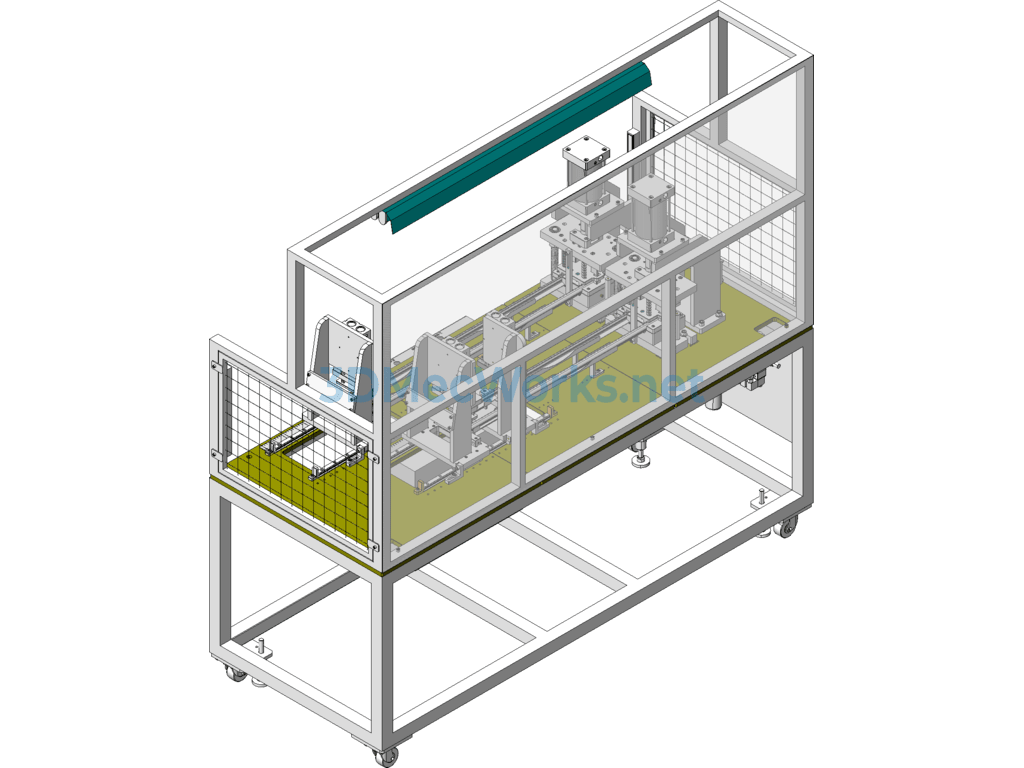

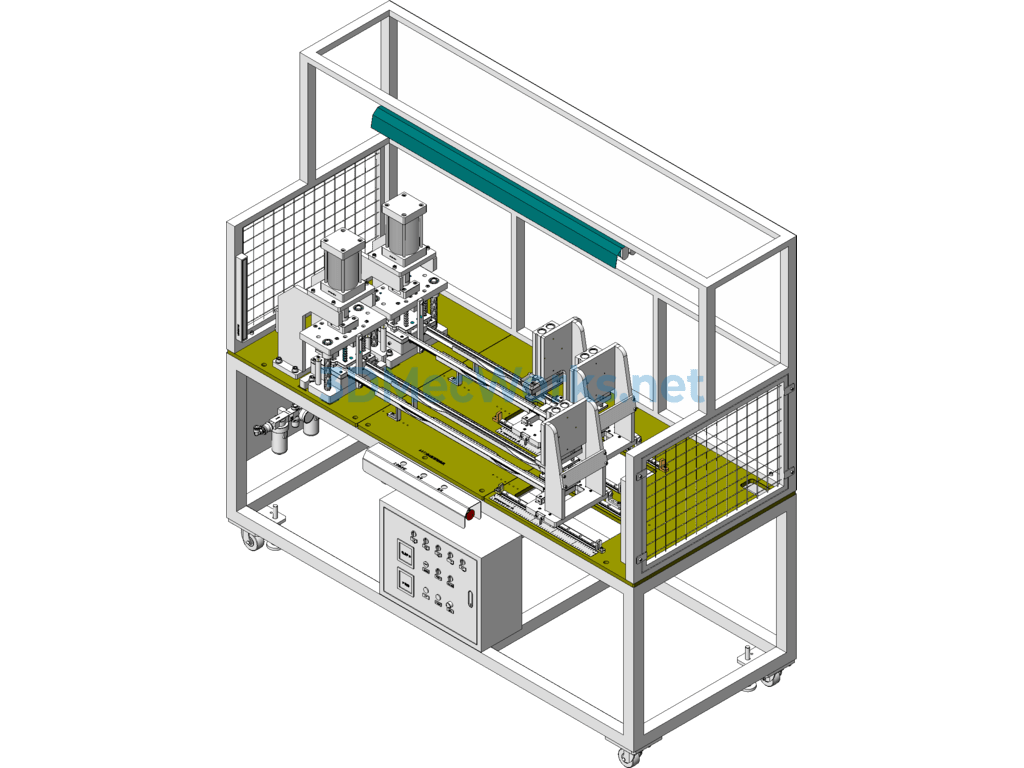

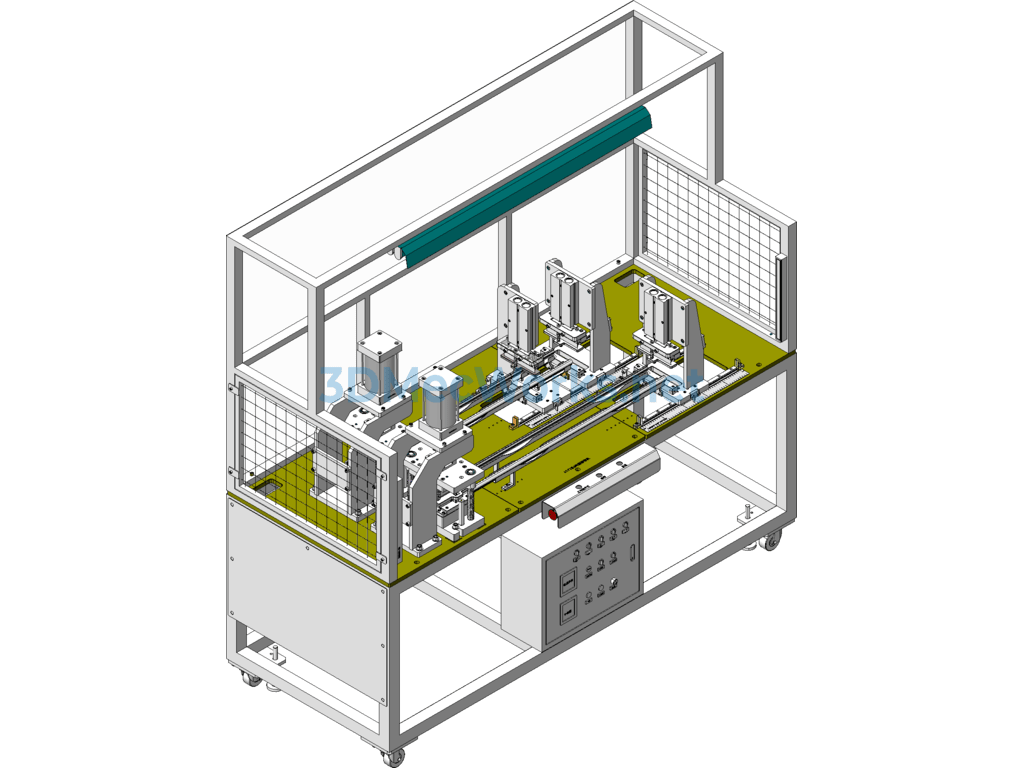

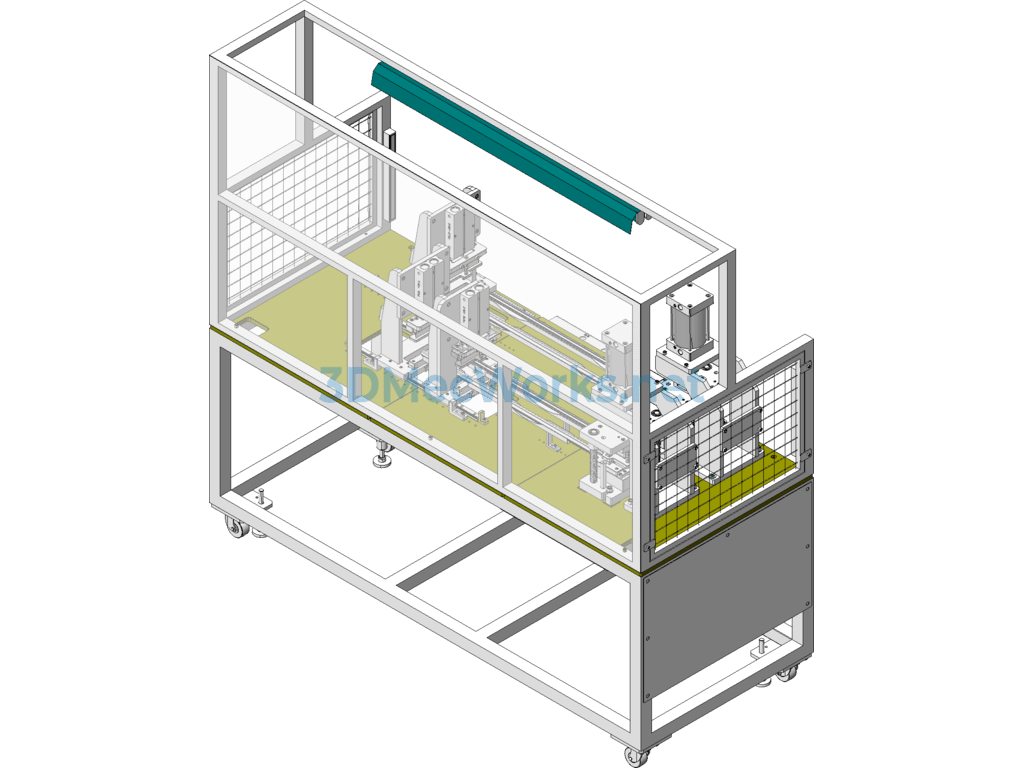

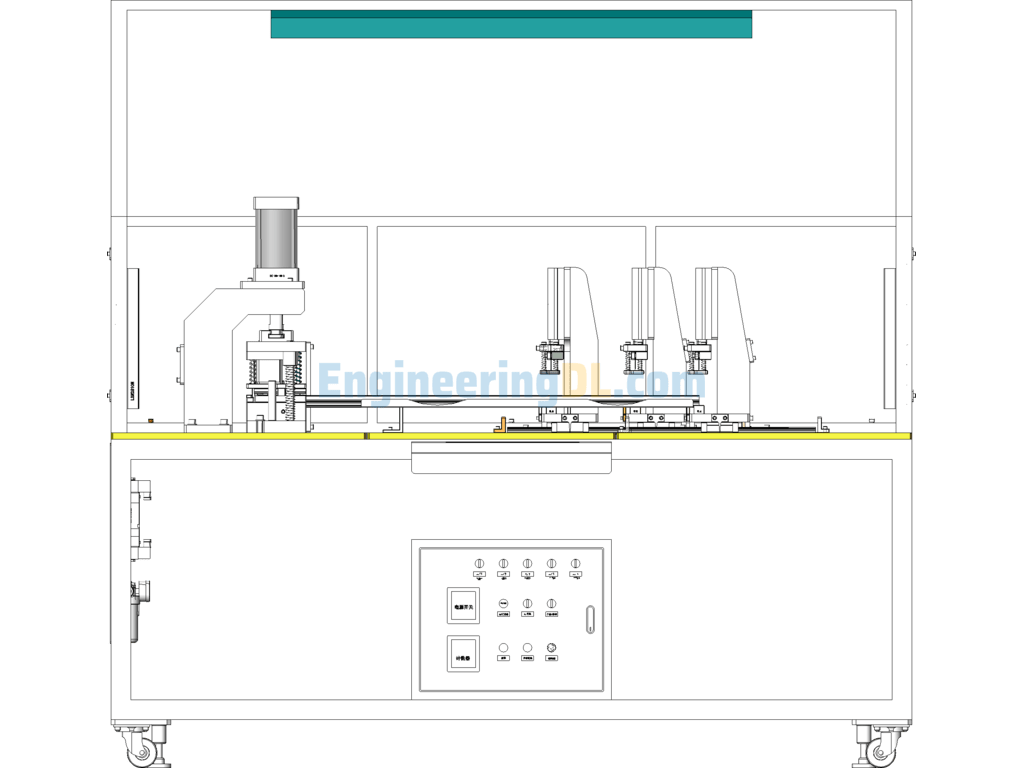

This is a 3D model drawing of a precision cutting machine for car door strip seals, with the product being car door strip seals. The equipment utilizes blade die cutting and blade pad cutting, with pneumatic cutting. One end is flat cut, while the other end is cut into a special L-shape or Z-shape. The equipment drawing is structurally detailed and reasonably designed. The drawing format is SolidWorks 2019, and everyone is welcome to download.
Specification: A5 Door Strip Precision Cutting Machine - SolidWorks - Free Download
|
