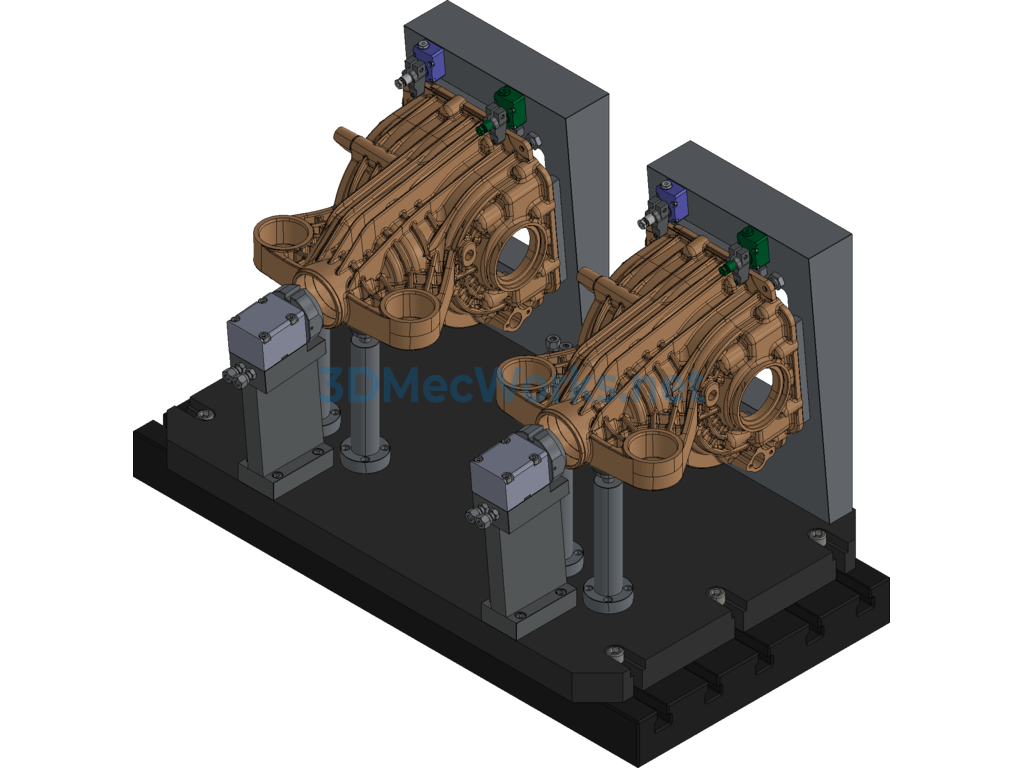

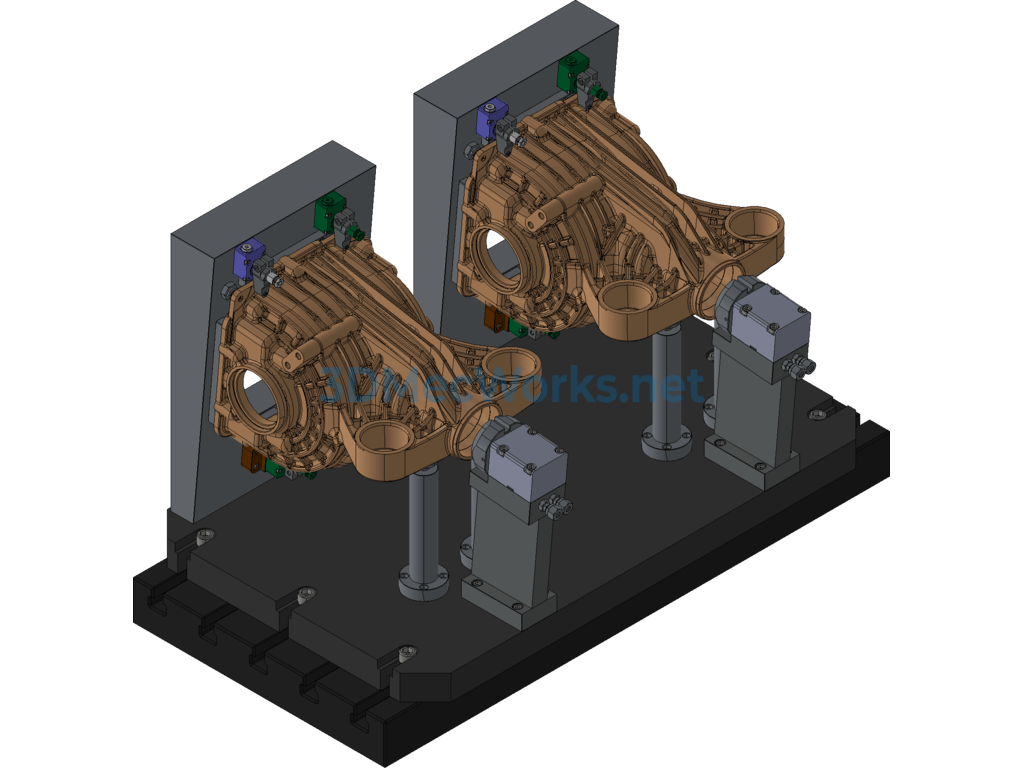

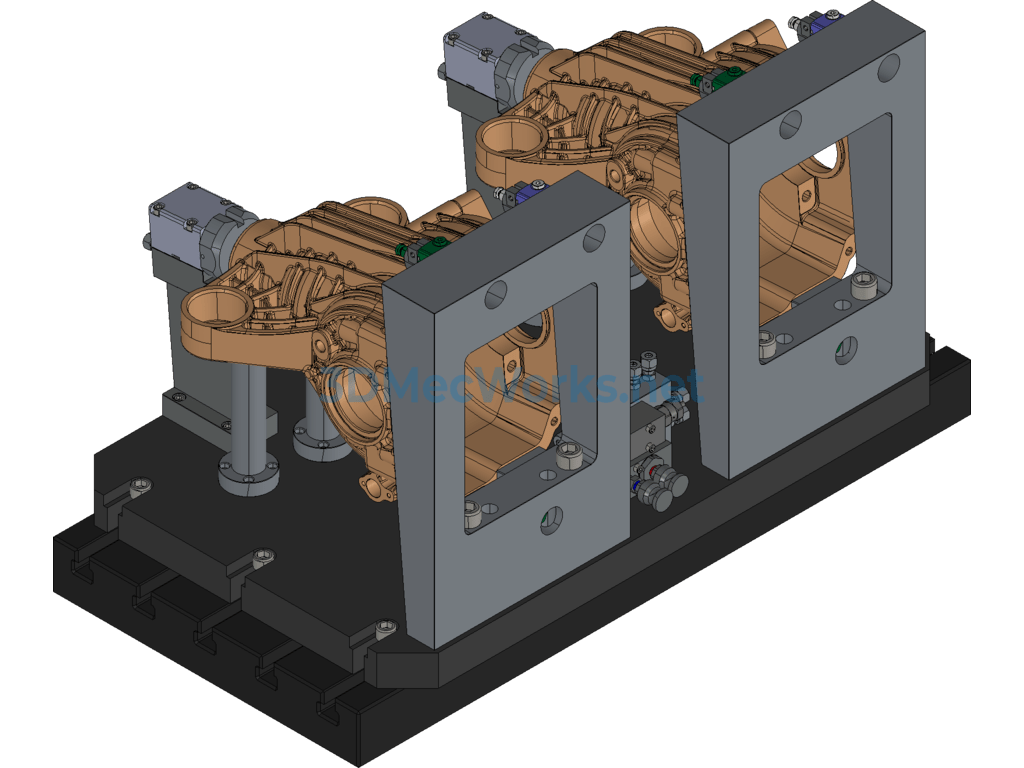

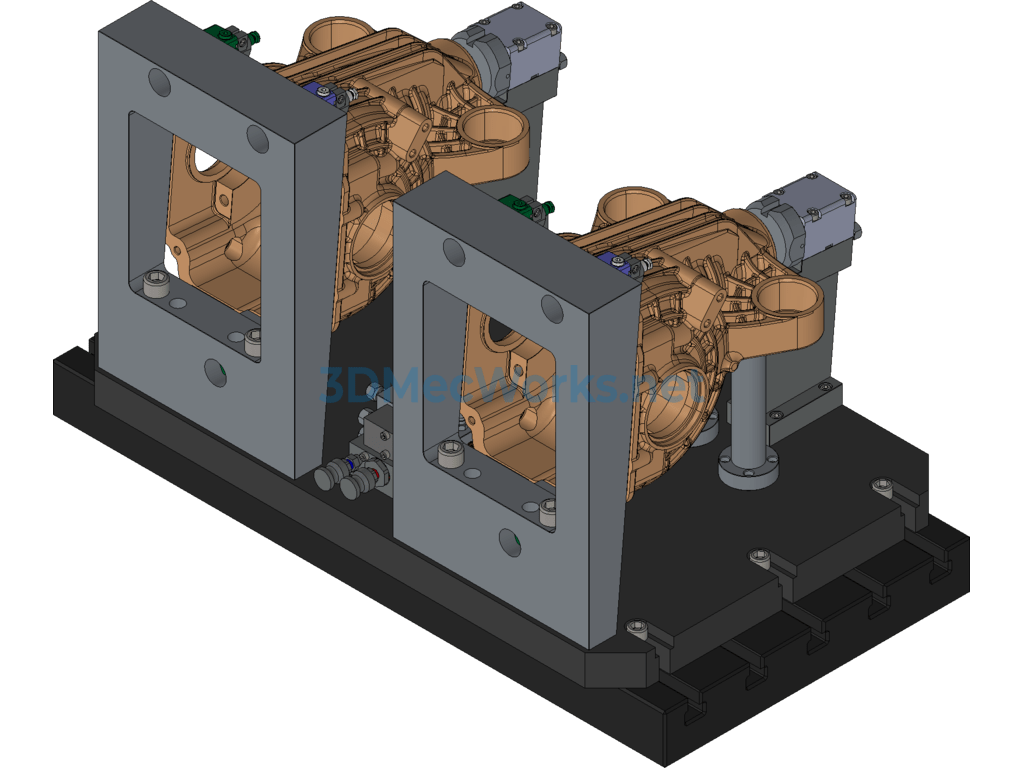

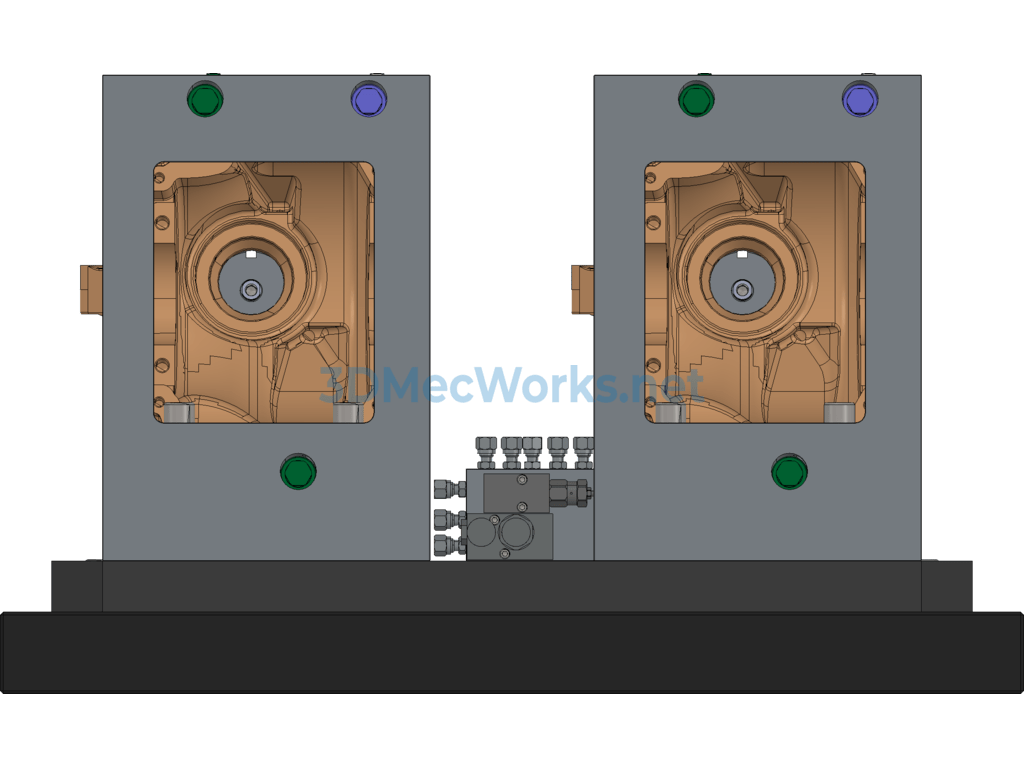

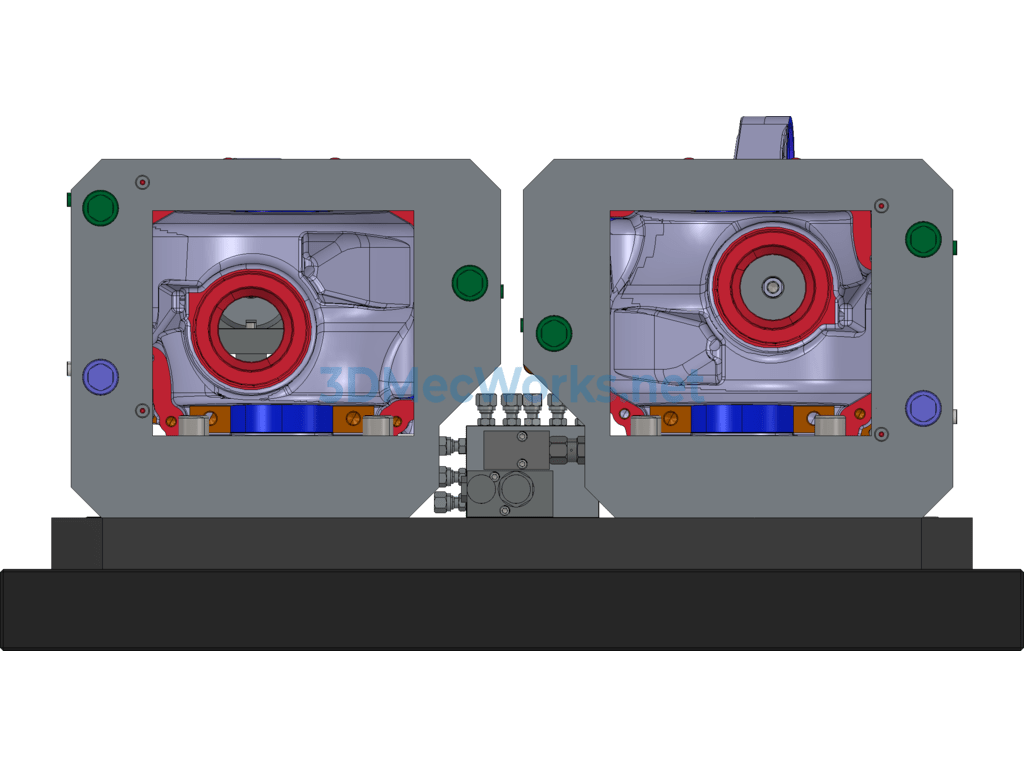

Sequence Five: Equipment Used: VMC850 (same as Sequence One)_x000D_
Processing Part: Ear holes on both sides of B-B and related features;_x000D_
Clamping Principle:_x000D_
Using the installation joint surface processed in Sequence One as the device surface, two 2-φ8 pin holes for centering, one face with two pins;_x000D_
Plan Requirements:_x000D_
Clamp two pieces at once, with two stations completely identical;
