Third Sequence:_x000D_
Equipment Used: CNC Vertical Lathe_x000D_
Machined Areas: A, B datum holes and end face;_x000D_

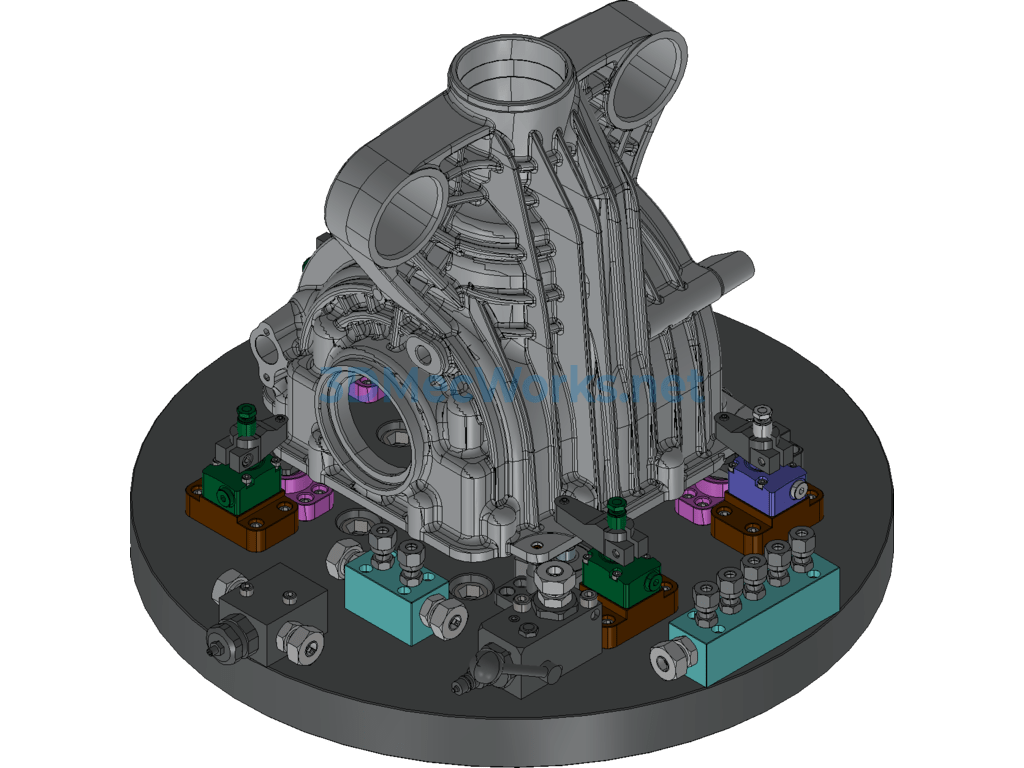

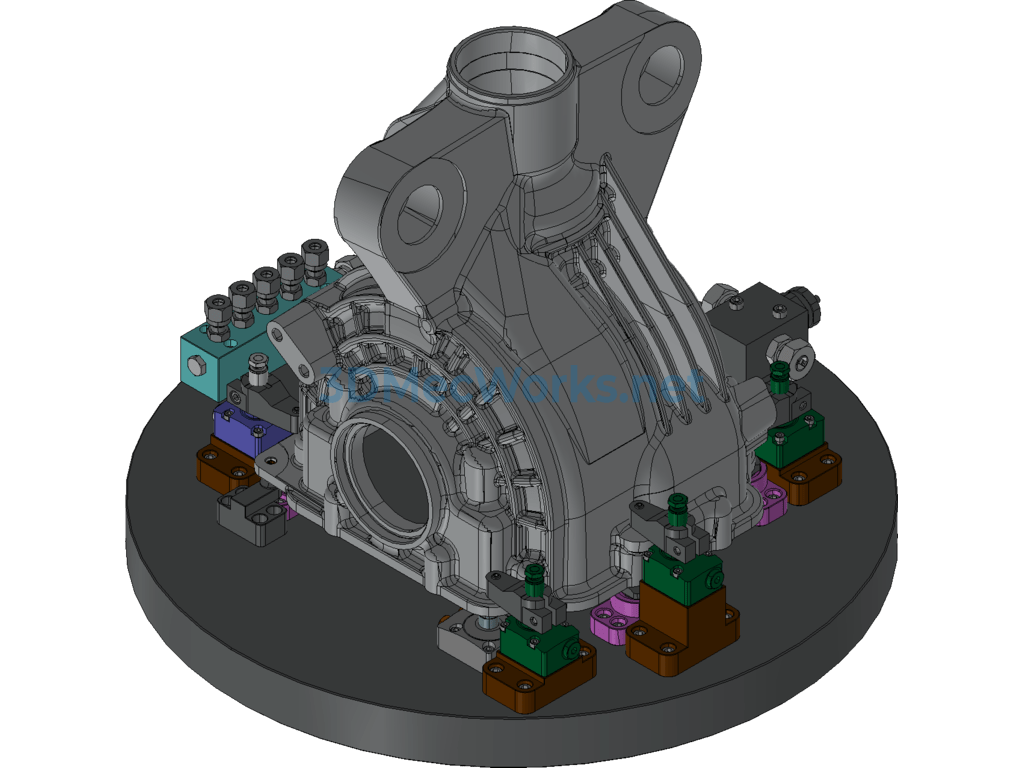

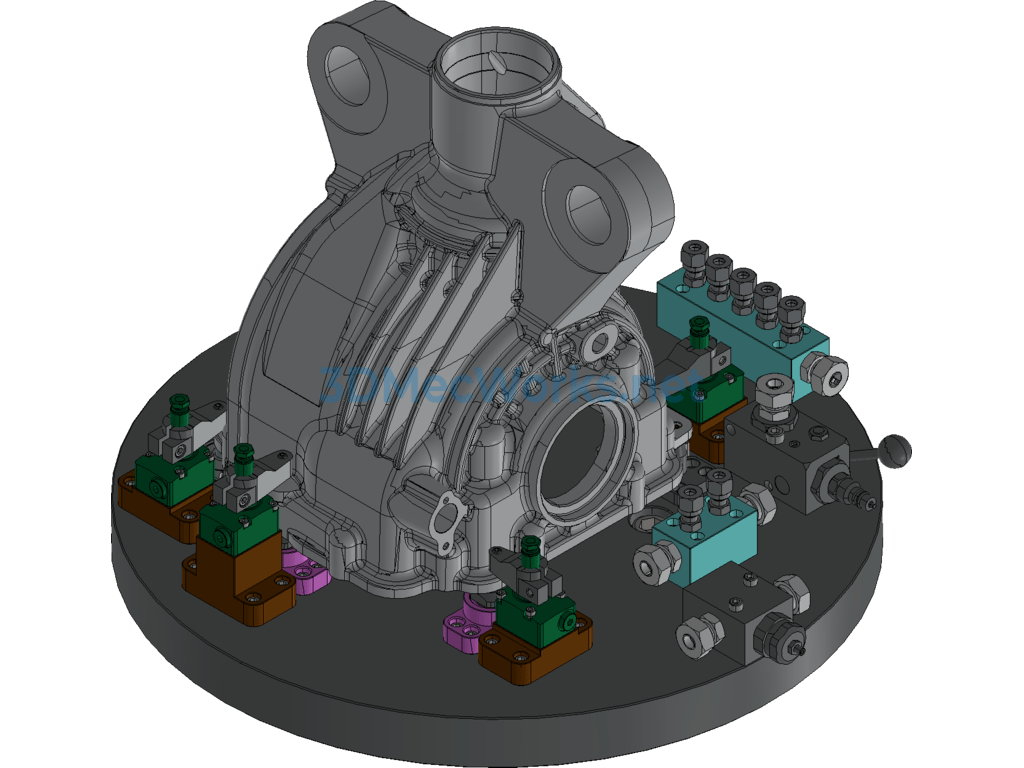

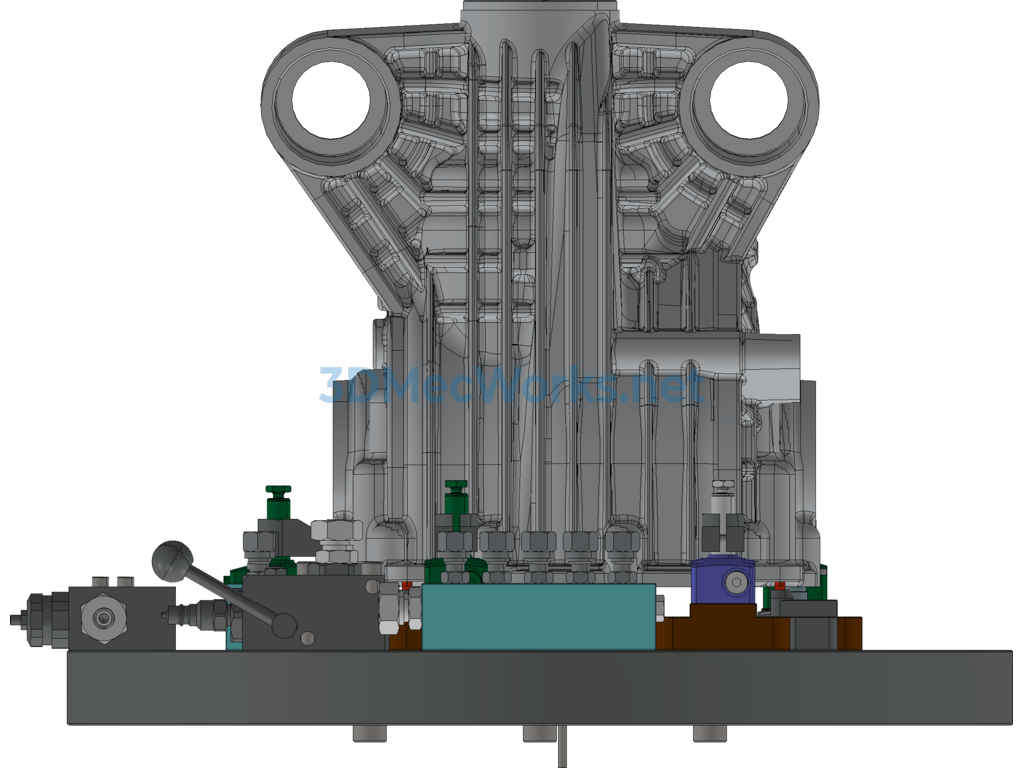

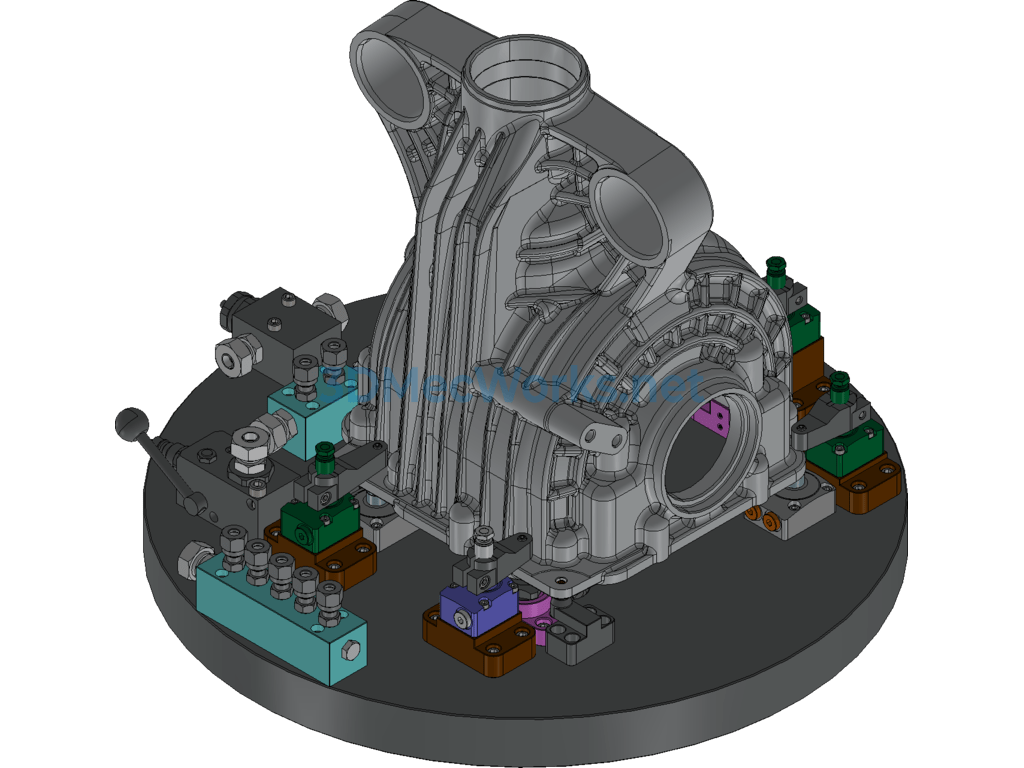

Clamping Principle:_x000D_
Use the mounting joint face processed in the first sequence as the device surface, centering with two 2-φ8 pin holes in the F-F view, one side two pins;
