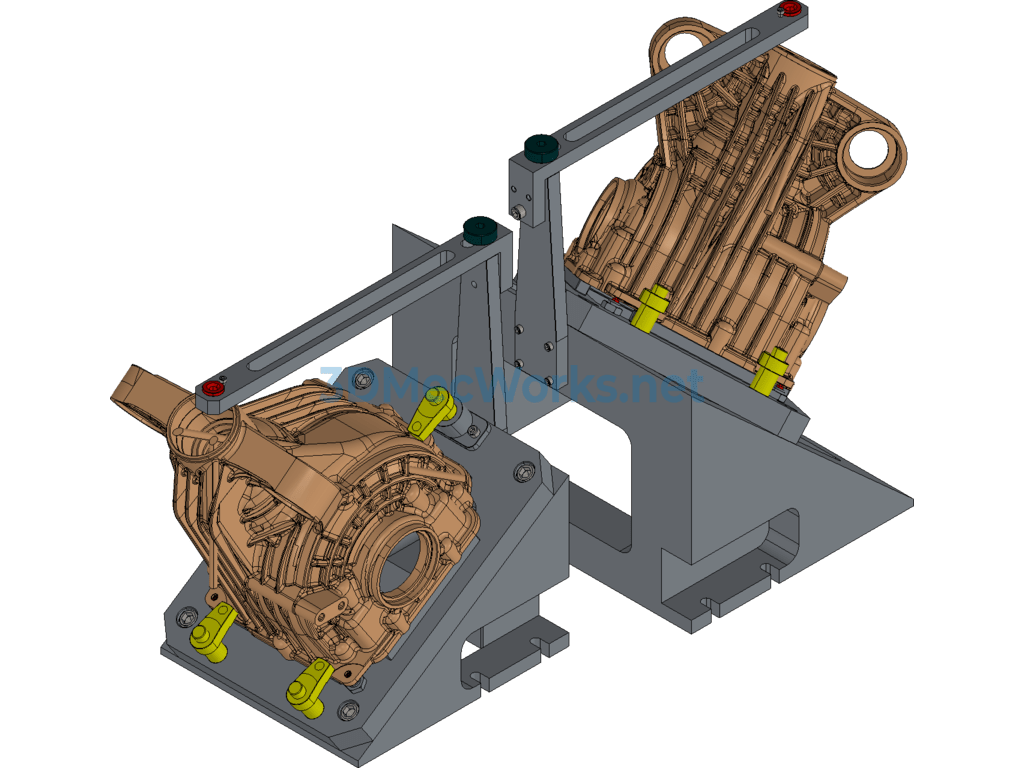

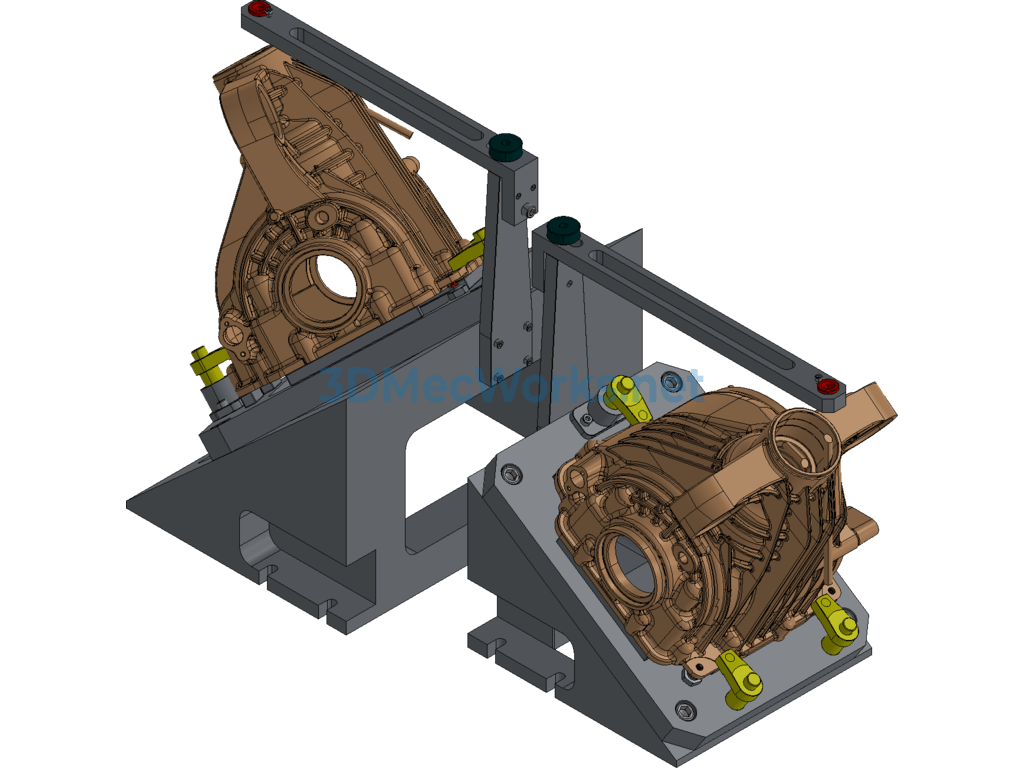

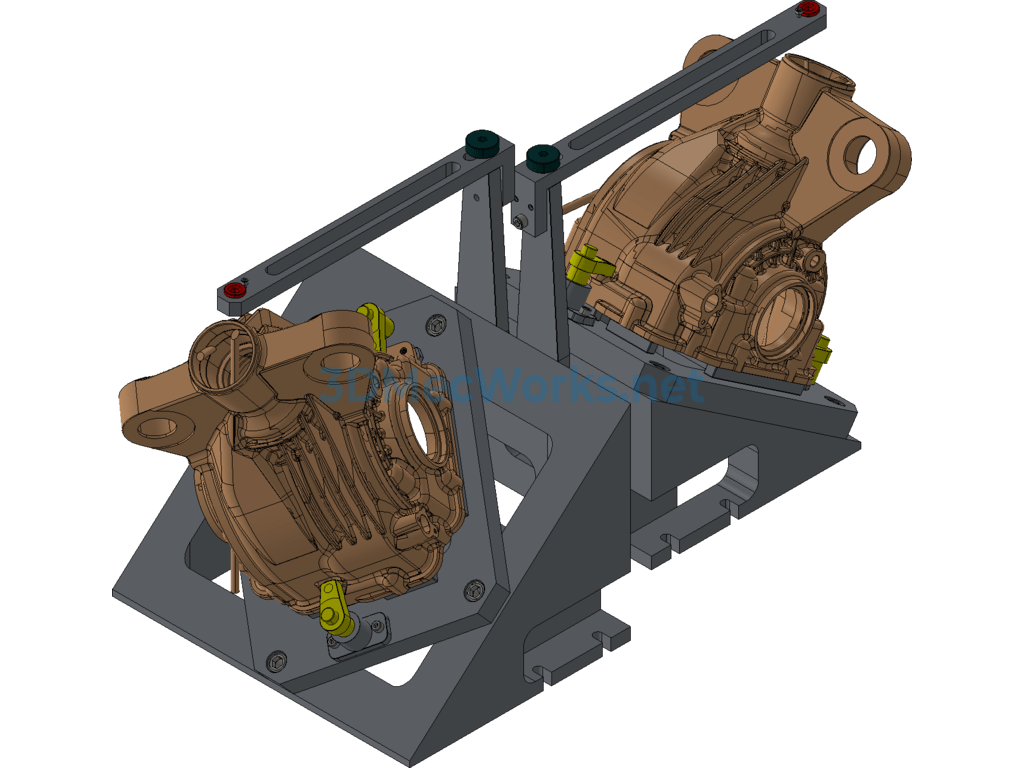

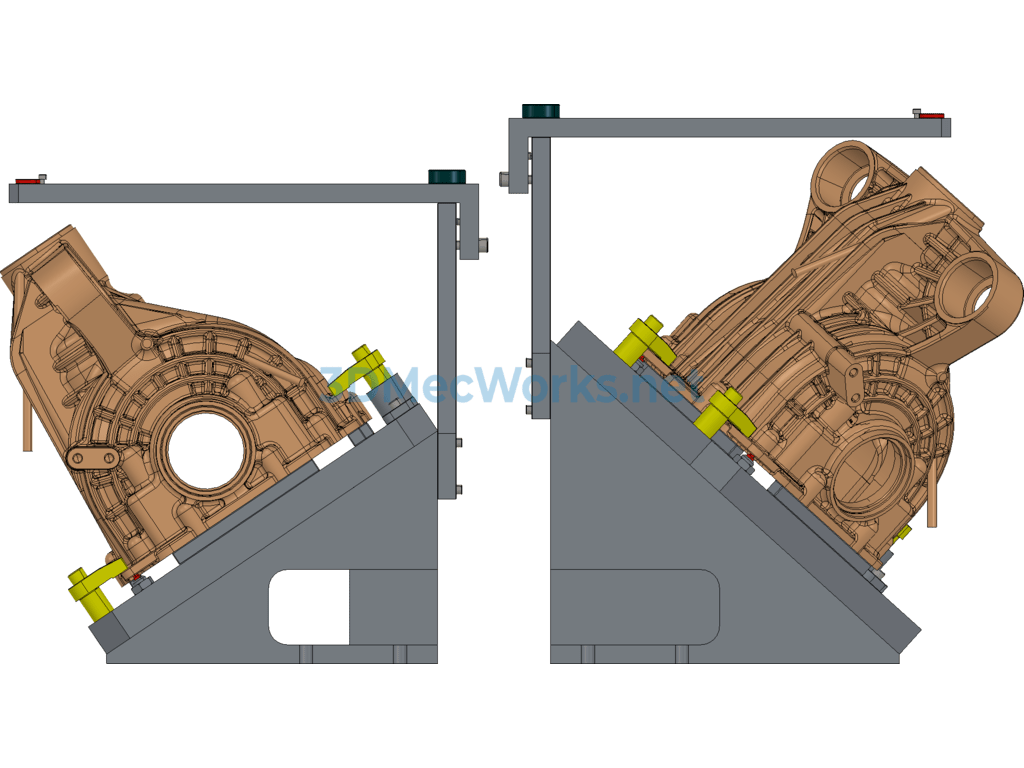

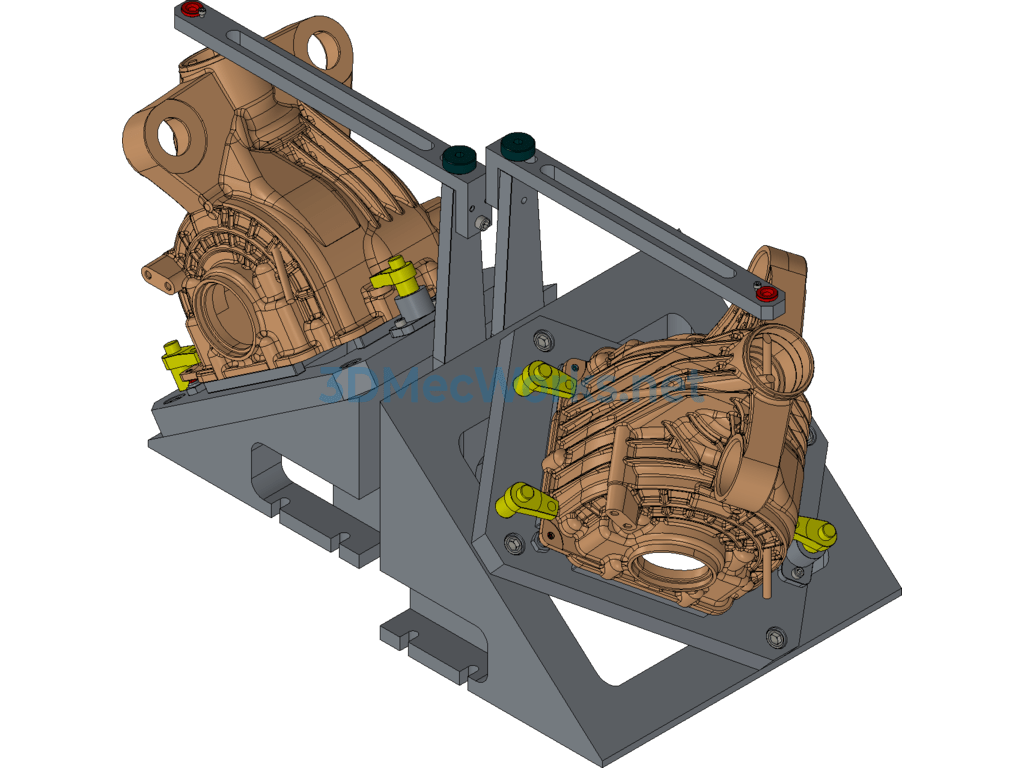

A Rear Shell Clamp (Second Sequence) - Exported - Free Download
Second sequence: Equipment used: Radial drill _x000D_
Processing part: Two 3D holes;_x000D_
Clamping principle:_x000D_
Use the installation mating surface processed in the first sequence as the installation surface, two 2-φ8 pinholes in the F-F view for centering, one side and two pins;
Specification: A Rear Shell Clamp (Second Sequence) - Exported - Free Download
|
