850 Servo Driven Manipulator, Transverse Type – Single Section Type

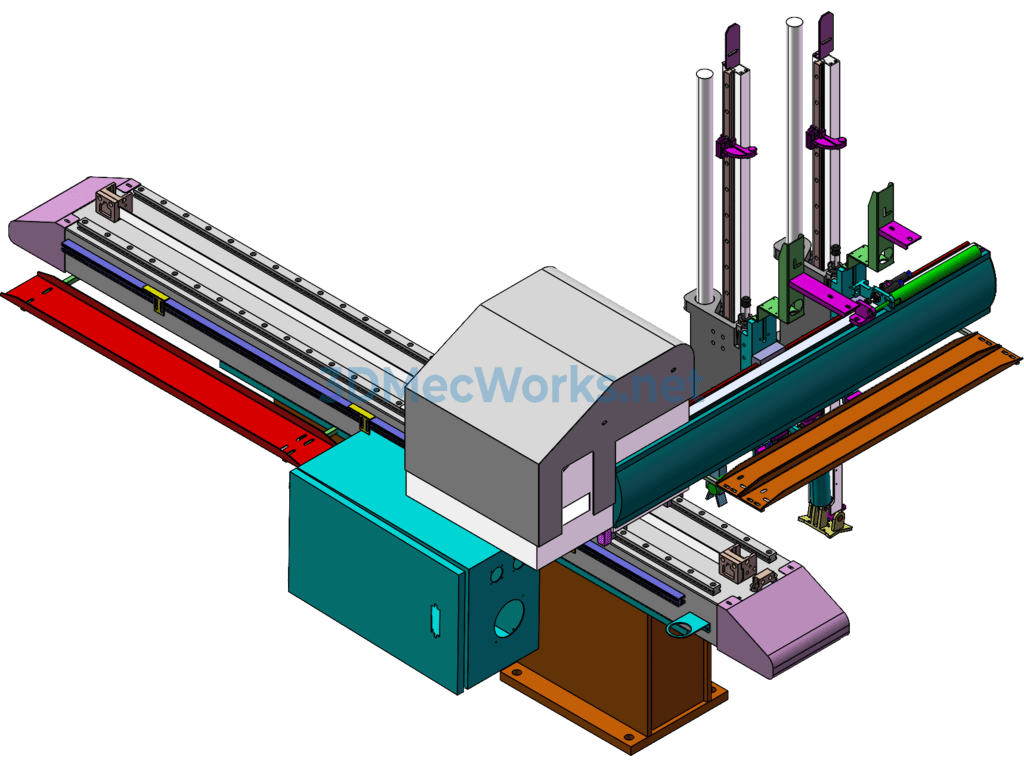

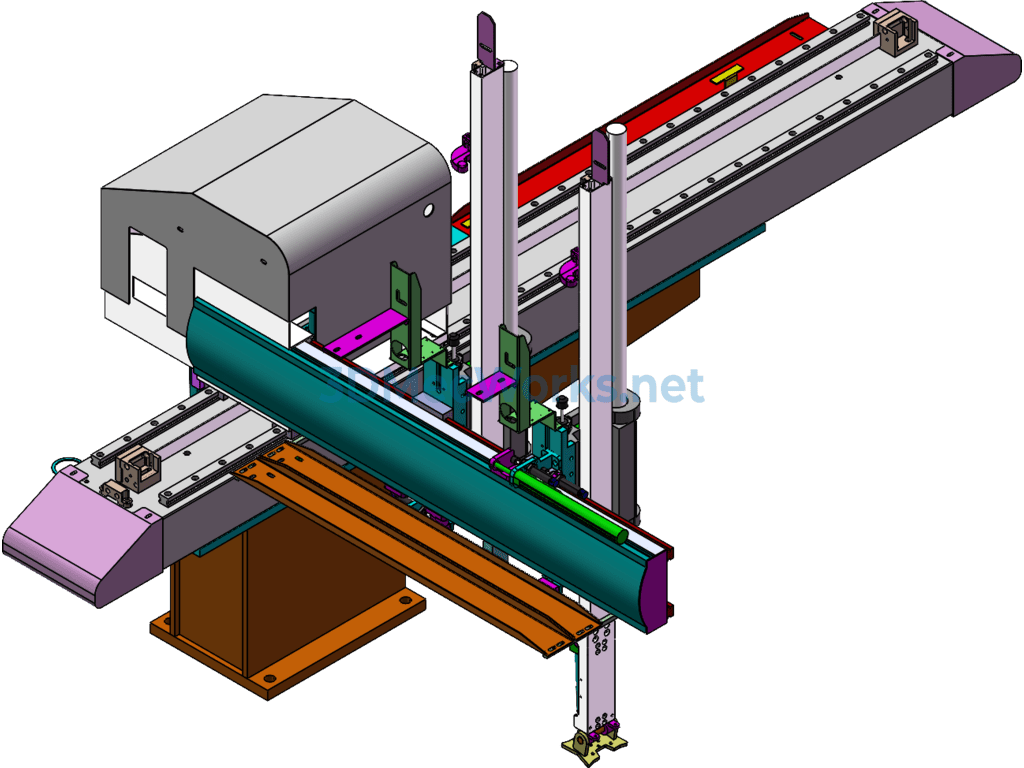

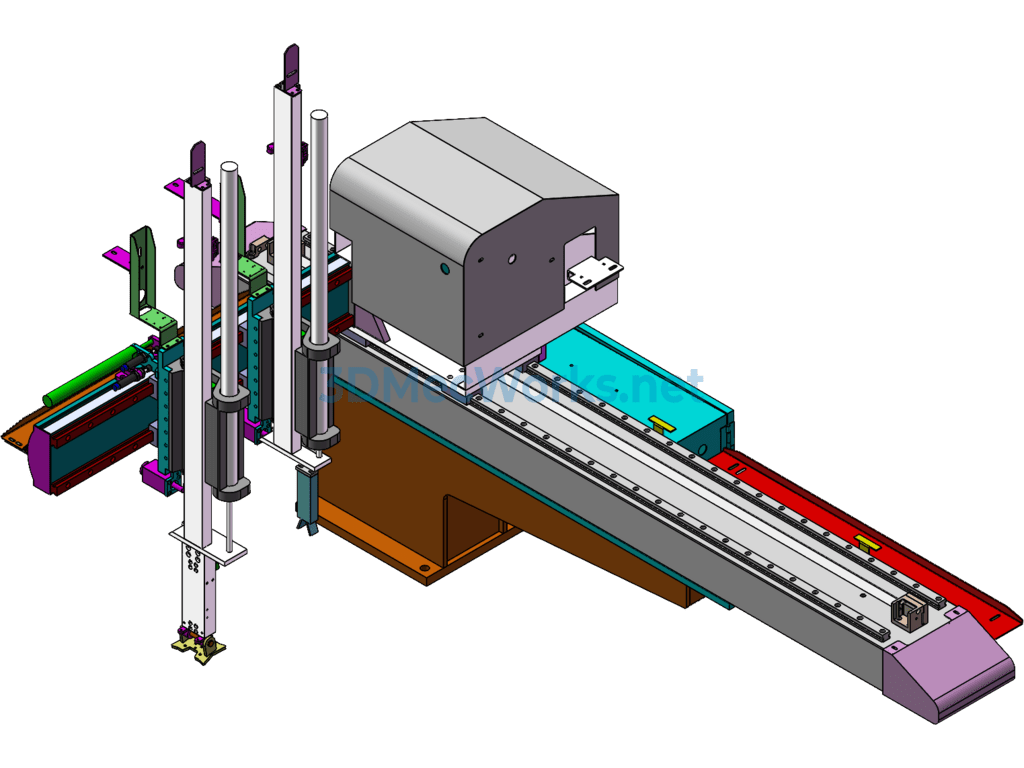

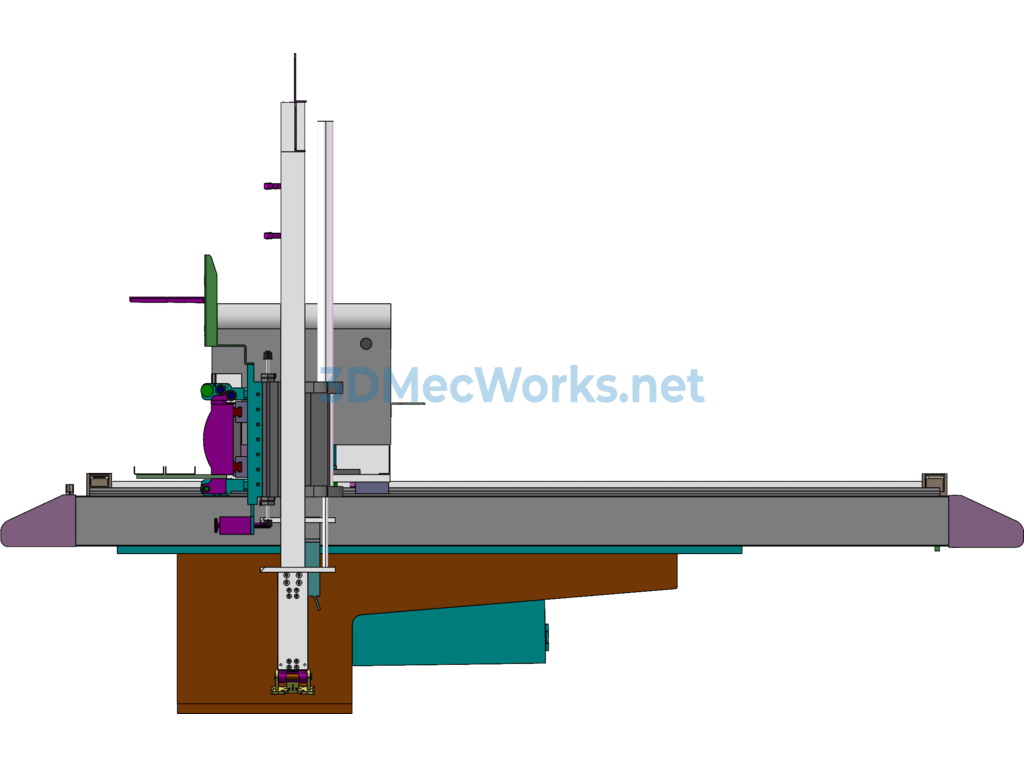

Mold Traveling Manipulator Structure, Tianxing 850 Manipulator Structure Diagram, includes a complete set of 3D and 2D drawings. The transmission method is servo-electric and belt high-speed motion, capable of quickly removing products from the mold, commonly used for plastic products such as: phone cases, cups, boxes, etc. The equipment has significant potential for modification, with a generic structure that includes internal components like belt sliders, making it very convenient for use with other machines. Designed using SolidWorks 2012, editable with parameters included.
