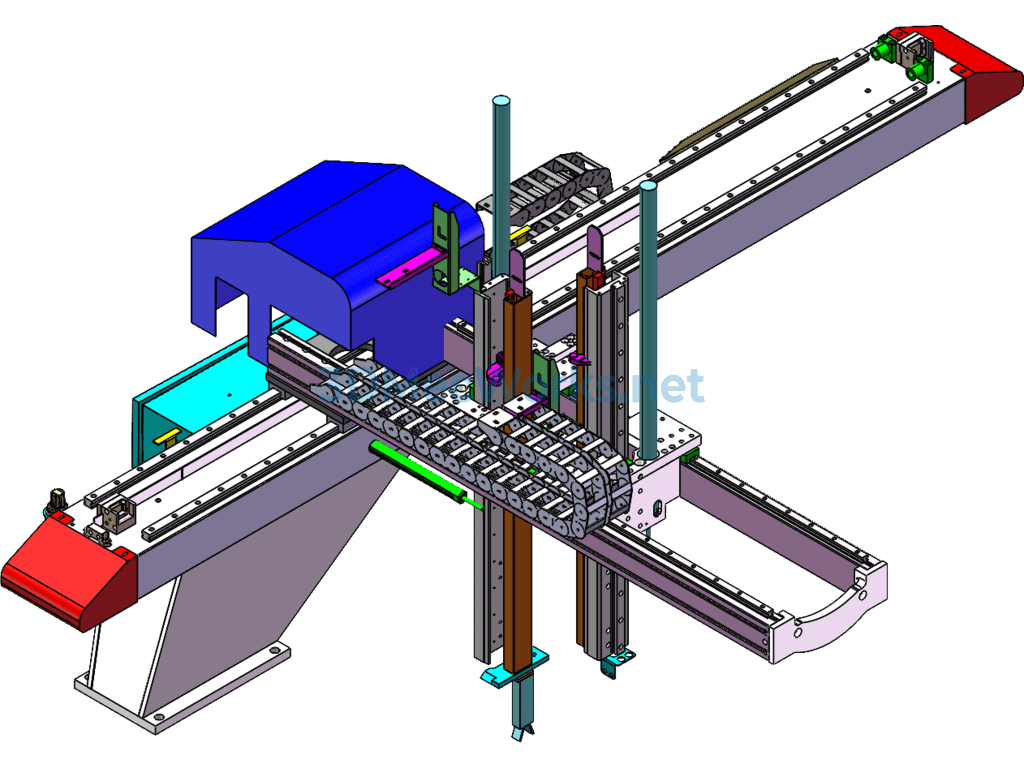

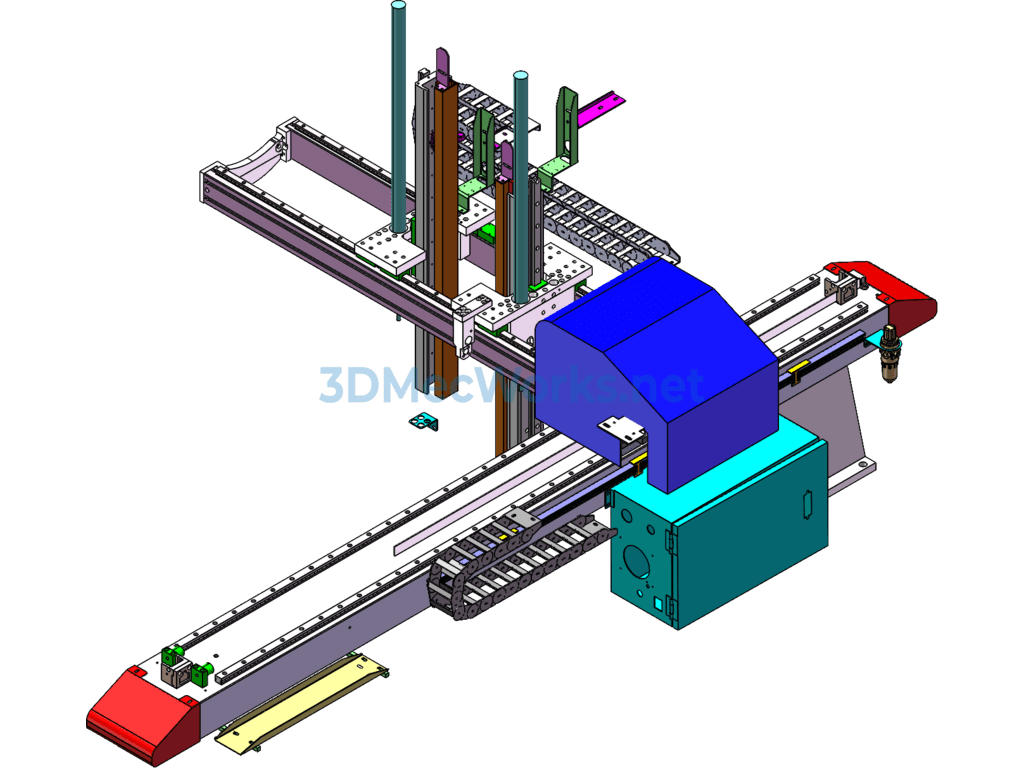

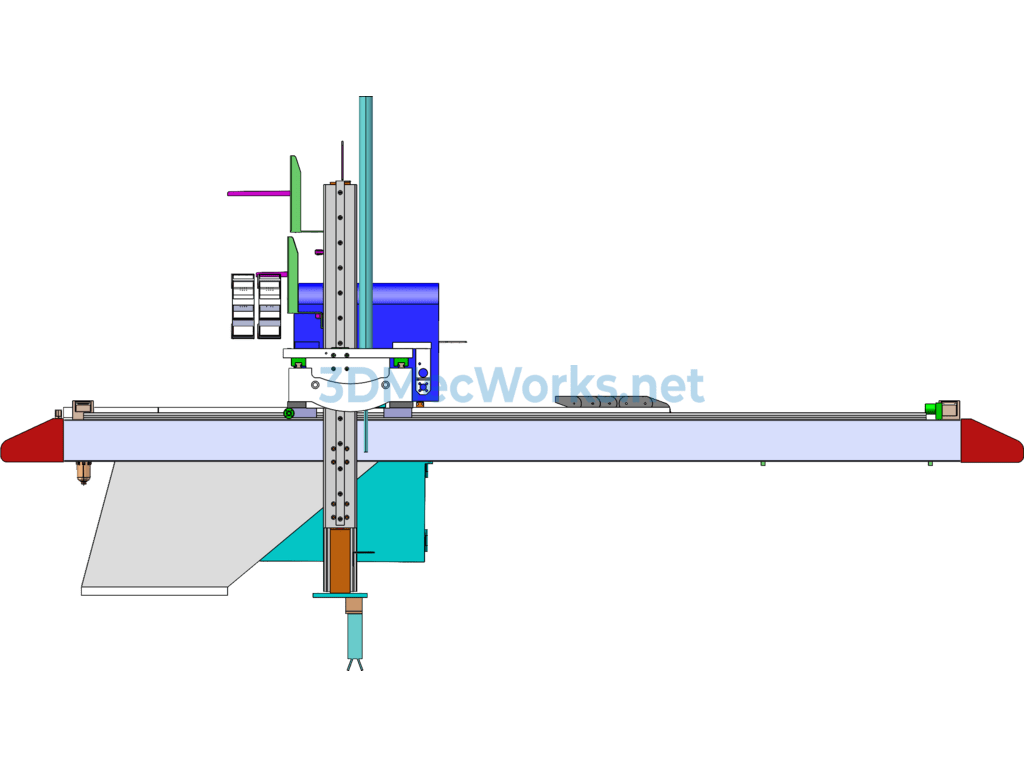

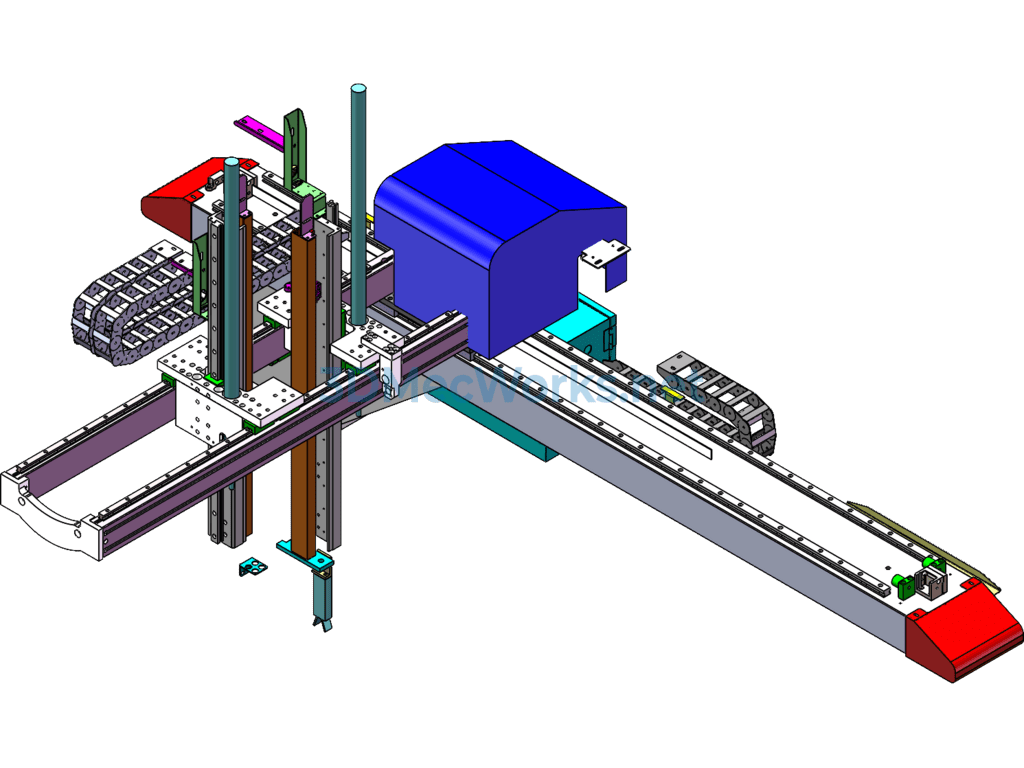

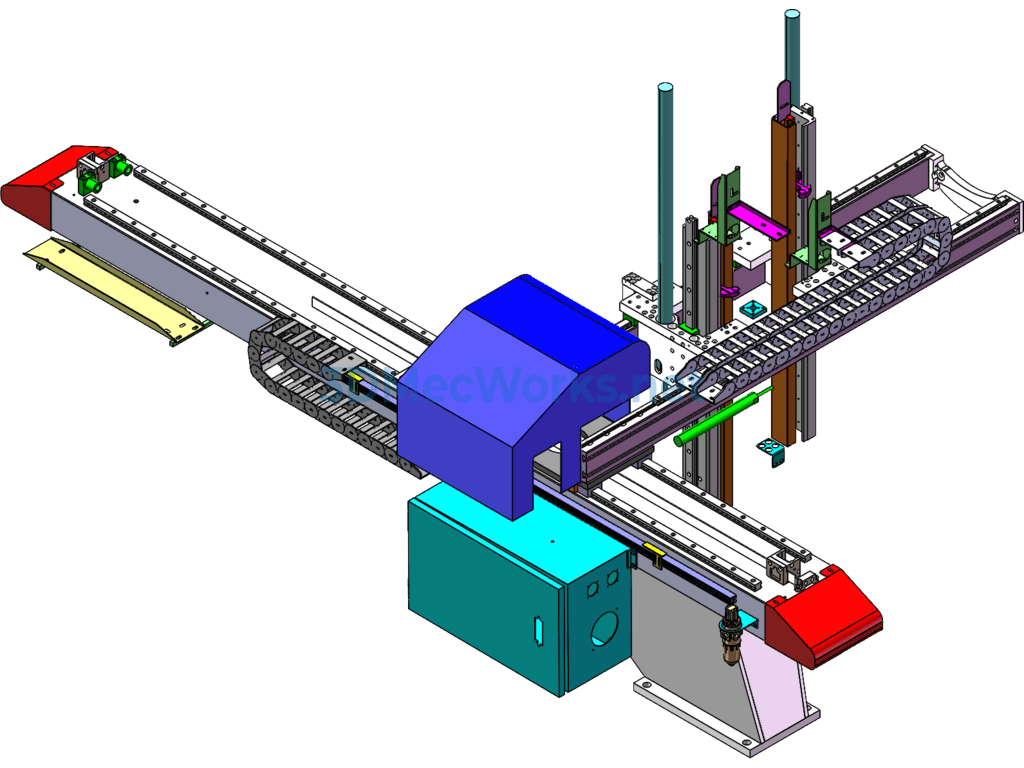

Servo Robot Arm Cross-Axis Structure Diagram. Its belt is split into two sections, allowing the cylinder to control its stroke. A typical robot arm with one cylinder and structure can only move to one position, but this set of diagrams enables dual-stroke operation, referred to as a dual-section dual-stroke robot arm. The complete drawings are available for interested parties to download or reference. It also includes the A Servo Drive Robot Arm Cross-Walking BOM.xls file. SW2011 design source files are provided.
Specification: 850 Frame-Type Double-Cut Double-Stroke Manipulator
|
