83 Flexible Chain Bottle Clamping Machine - SolidWorks - Free Download

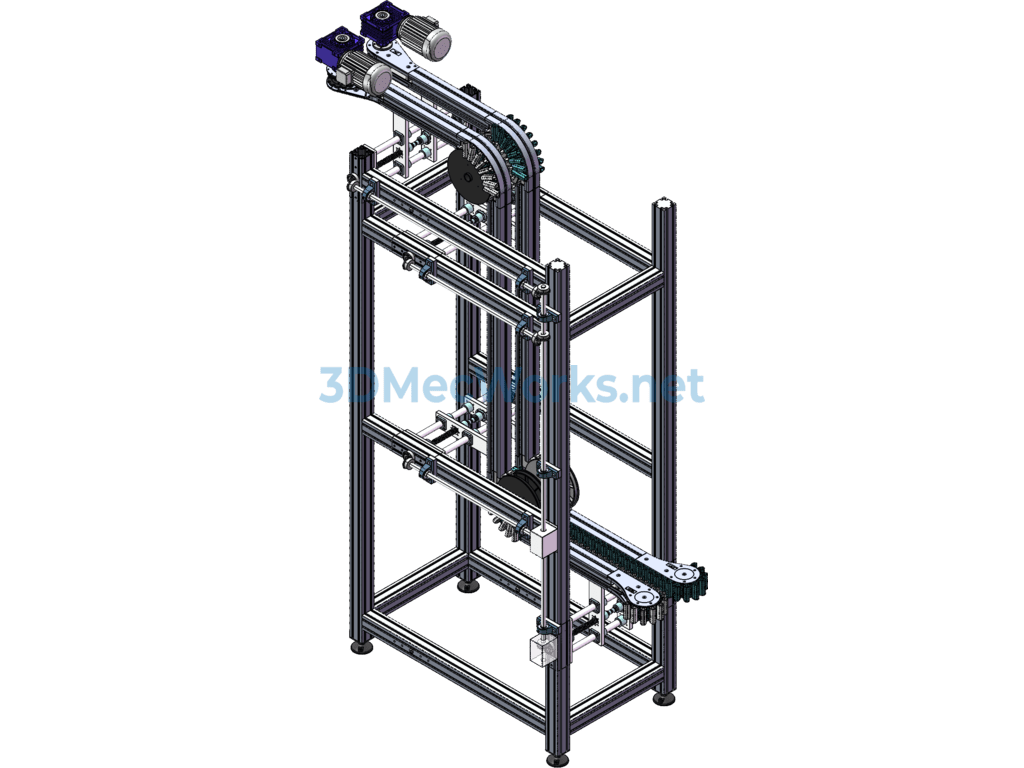

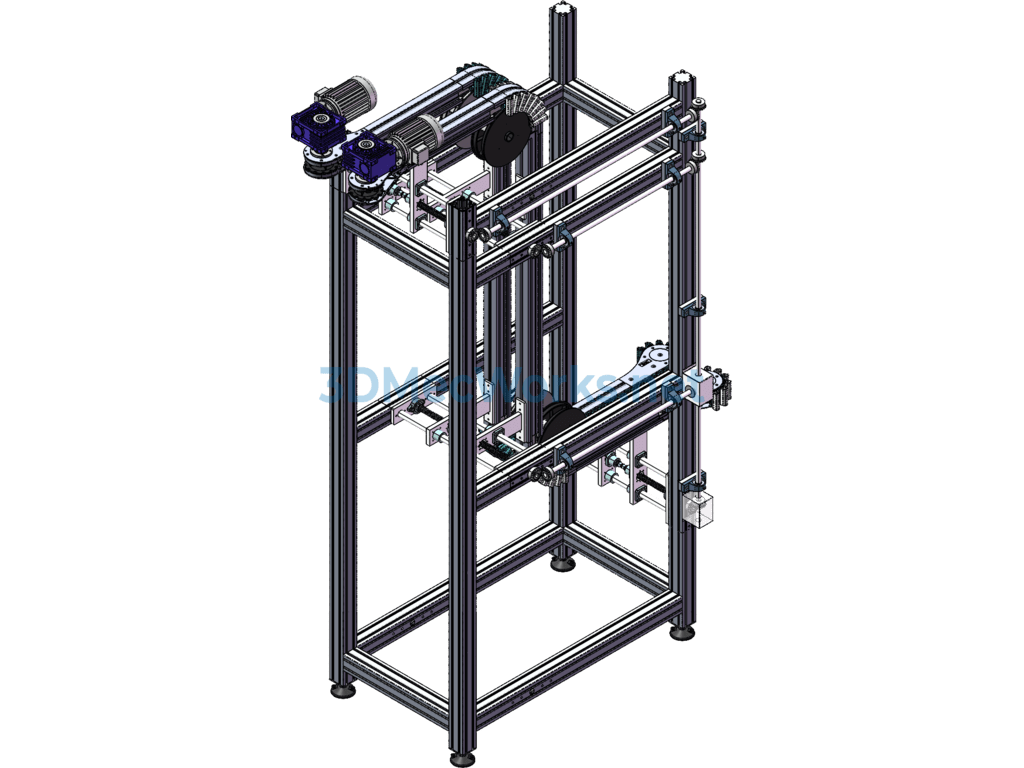

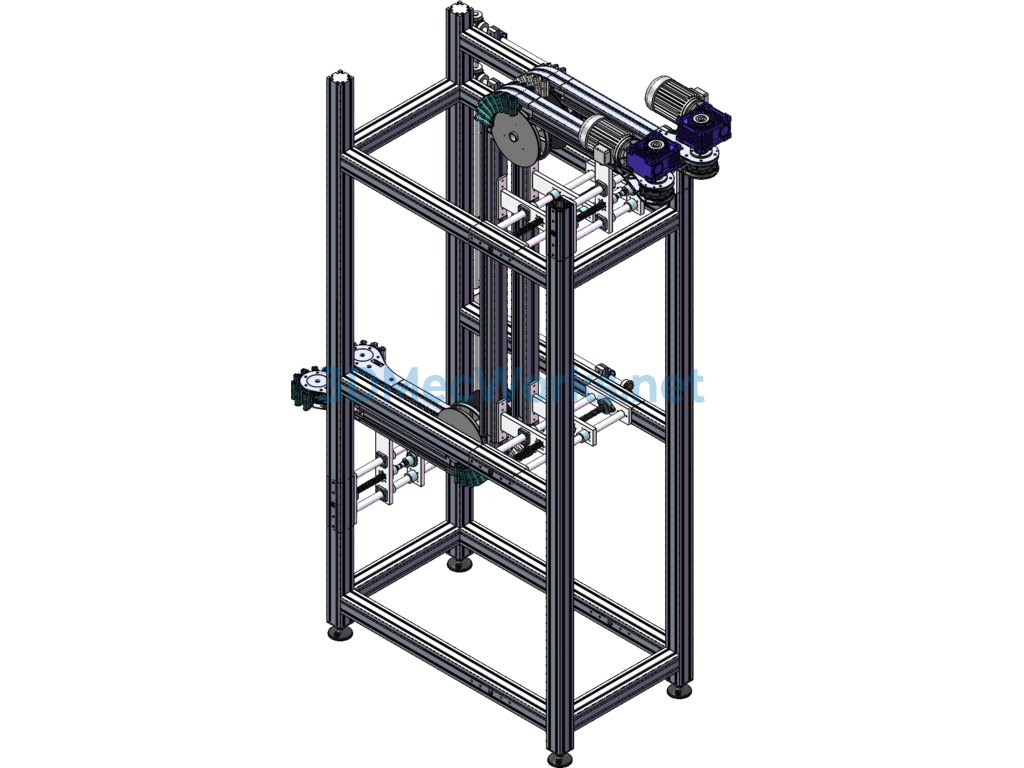

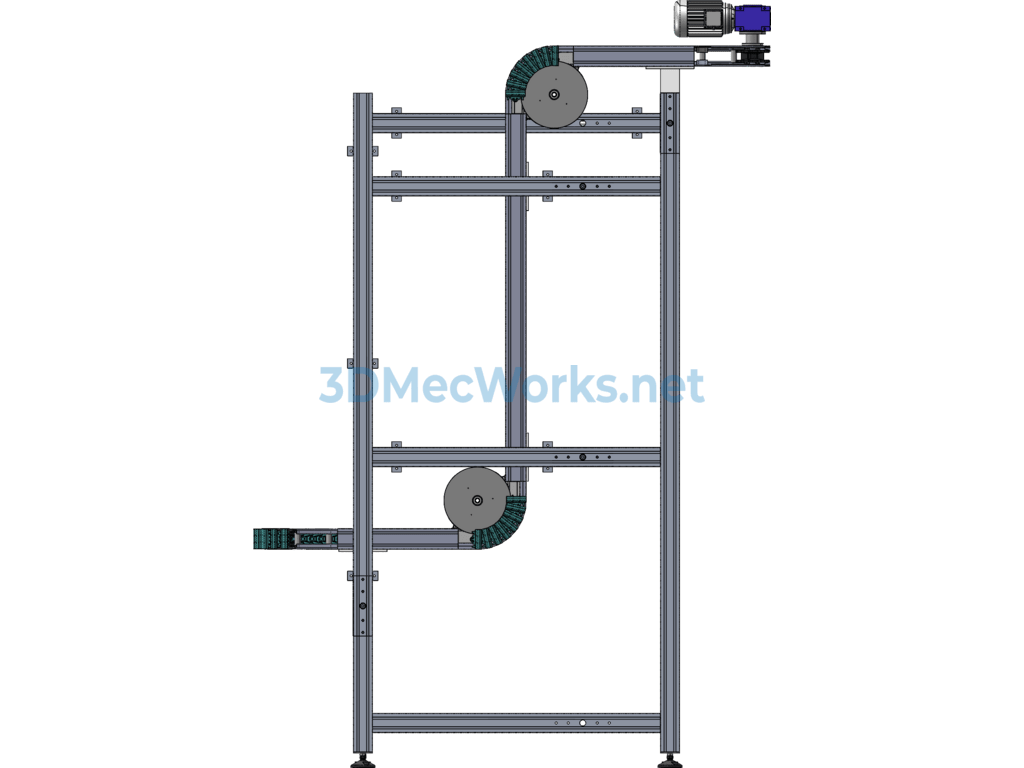

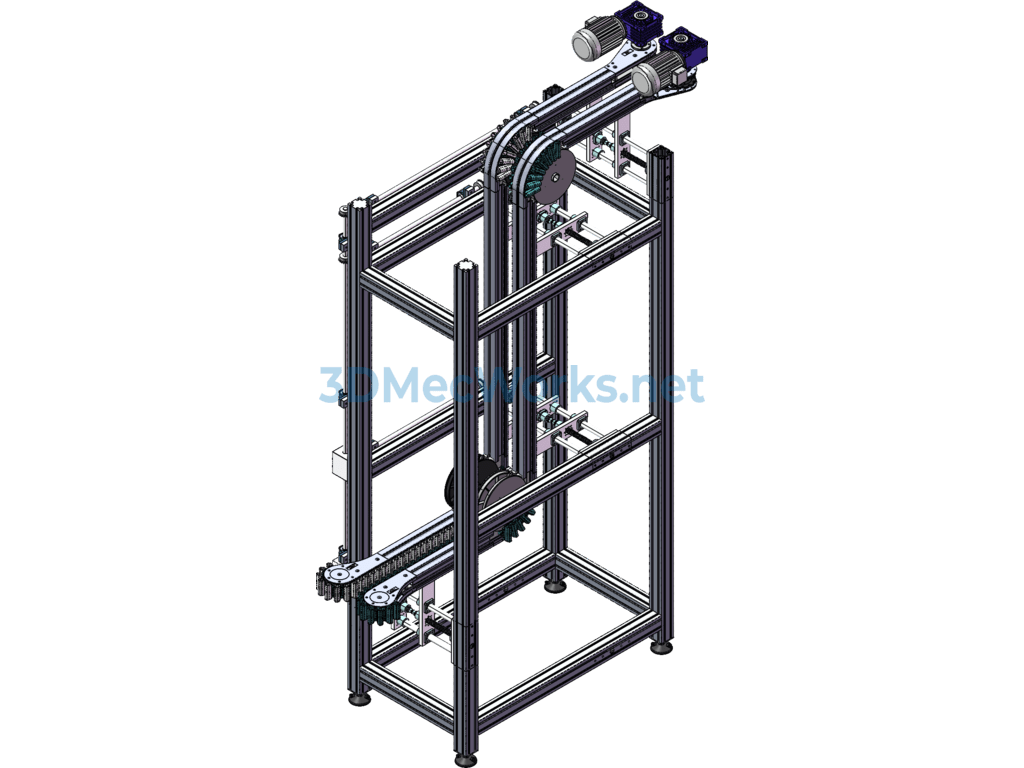

This is a flexible chain clamping conveyor, used for lifting or lowering products directly between floors. The equipment occupies a small area, which can improve plant utilization.
Operating principle: Products enter from below or above the conveyor belt and are clamped by the elastic silicone on the flexible chain plates on both sides. This secures the product and follows the movement of the chain plates to achieve lifting or lowering conveyor functions.
Note: It uses a manual width adjustment mechanism, but the transported goods should not be too large or too heavy.
Welcome to download for study guidance!!!
