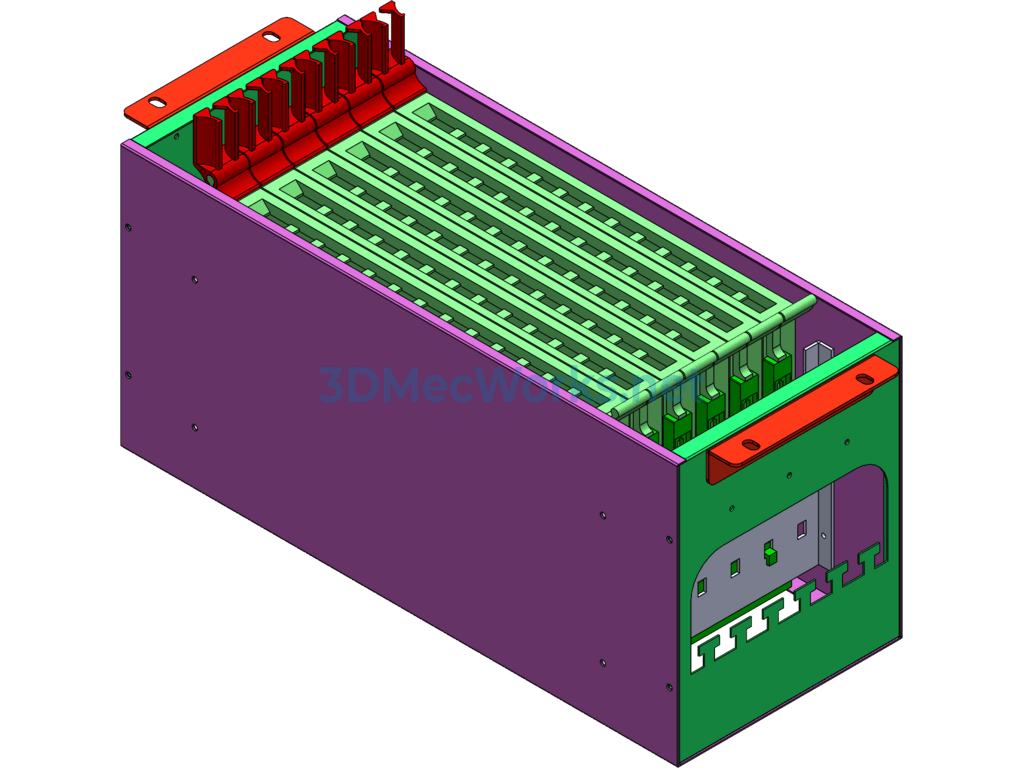

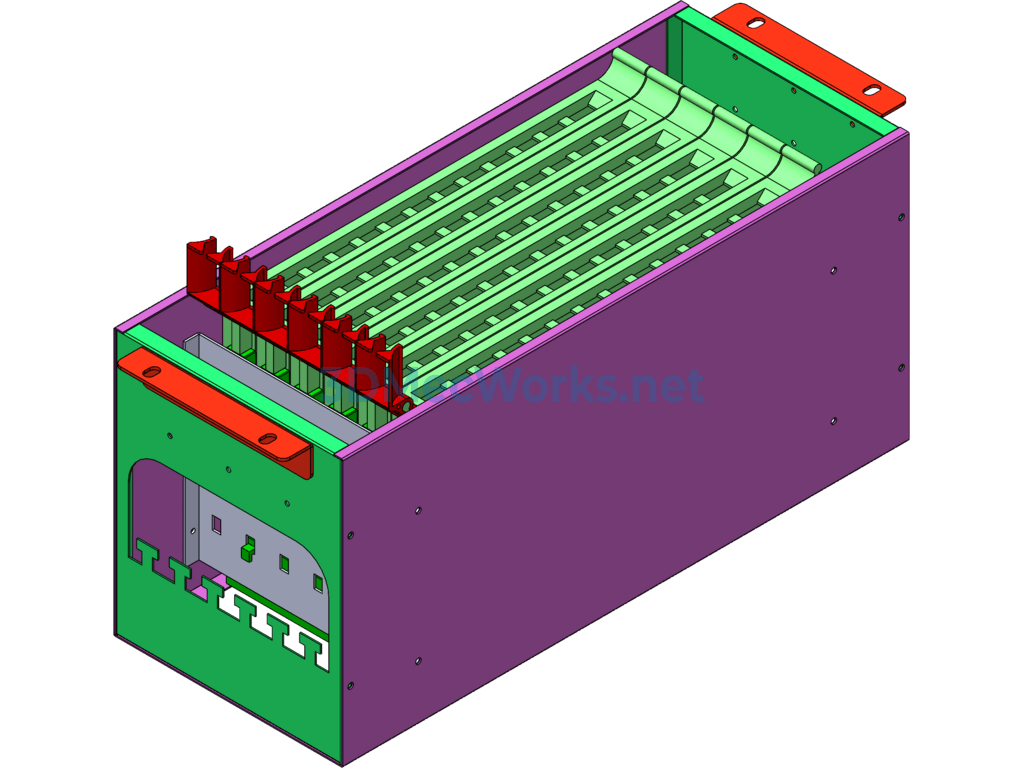

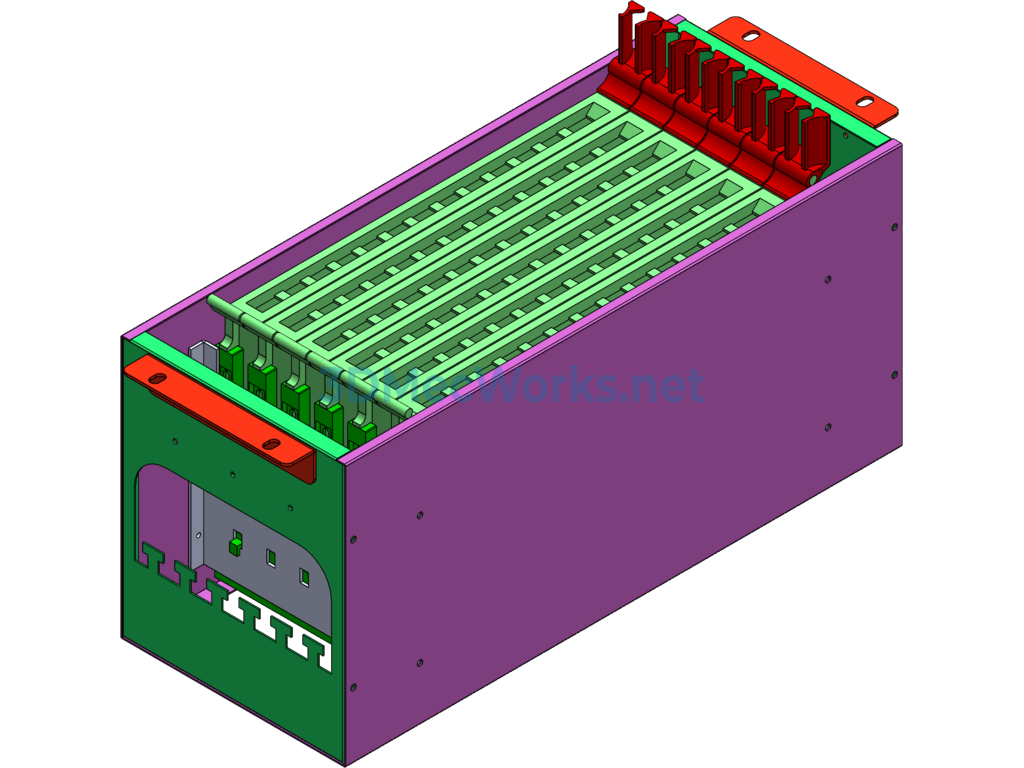

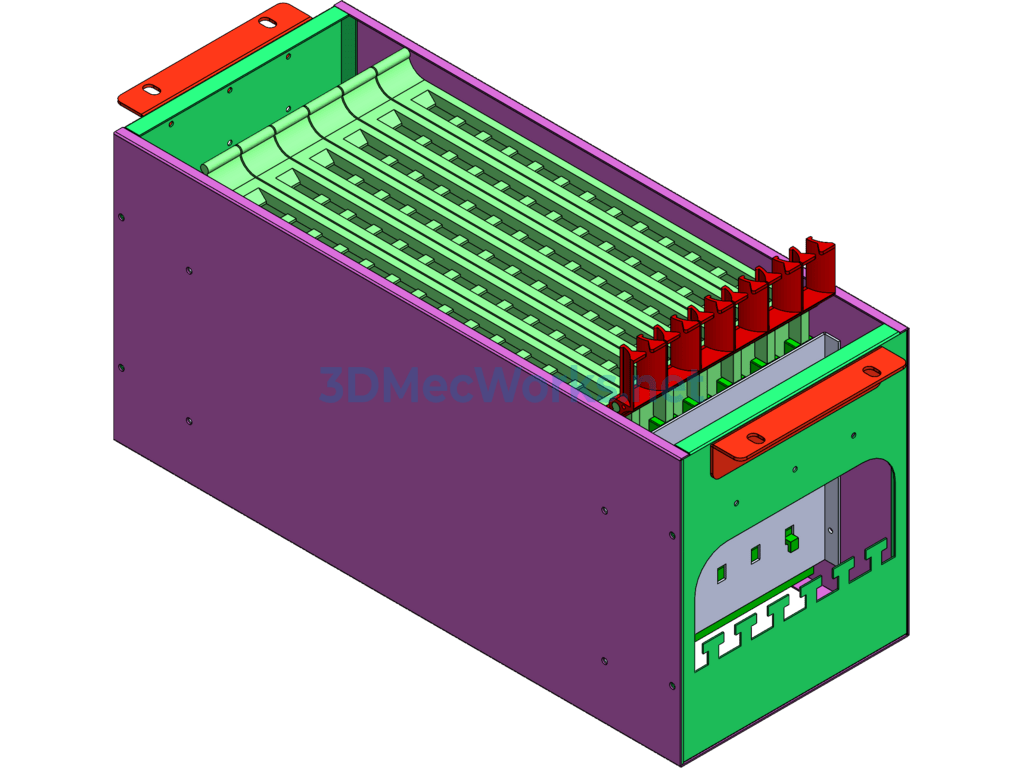

72-Core Odf Unit Box

ODF unit box is a product designed with high density and large capacity, featuring an attractive and elegant appearance, reasonable distribution, easy searchability, ease of management, convenient installation, and good operability. The ODF unit box provides functions such as optical cable fixation and protection, optical cable termination, cabling, and protection of optical cable fibers and pigtails. It can either be independently equipped as a fiber distribution frame or installed together with digital distribution units and audio distribution units in the same cabinet/rack, forming an integrated distribution frame. This equipment offers flexible configuration, simple installation applicability, easy maintenance, and facilitates management. It is an essential device for fiber optic communication cable network terminals or relay points to achieve fiber distribution, fiber patch cable splicing, and access.

All models are built using SW2012, and all parameters in the models can be edited and modified. The compressed package includes CAD unfold, STEP, and IGS files, ready for direct production use.
