630A Power Cabinet Side Mount - SolidWorks - Free Download

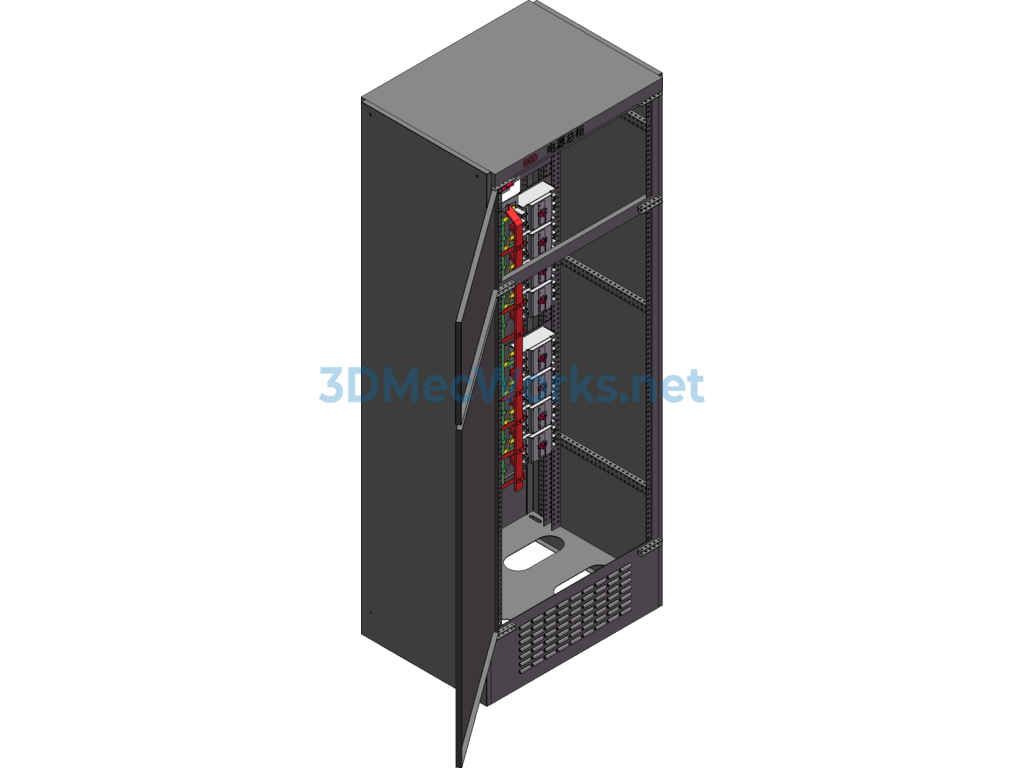

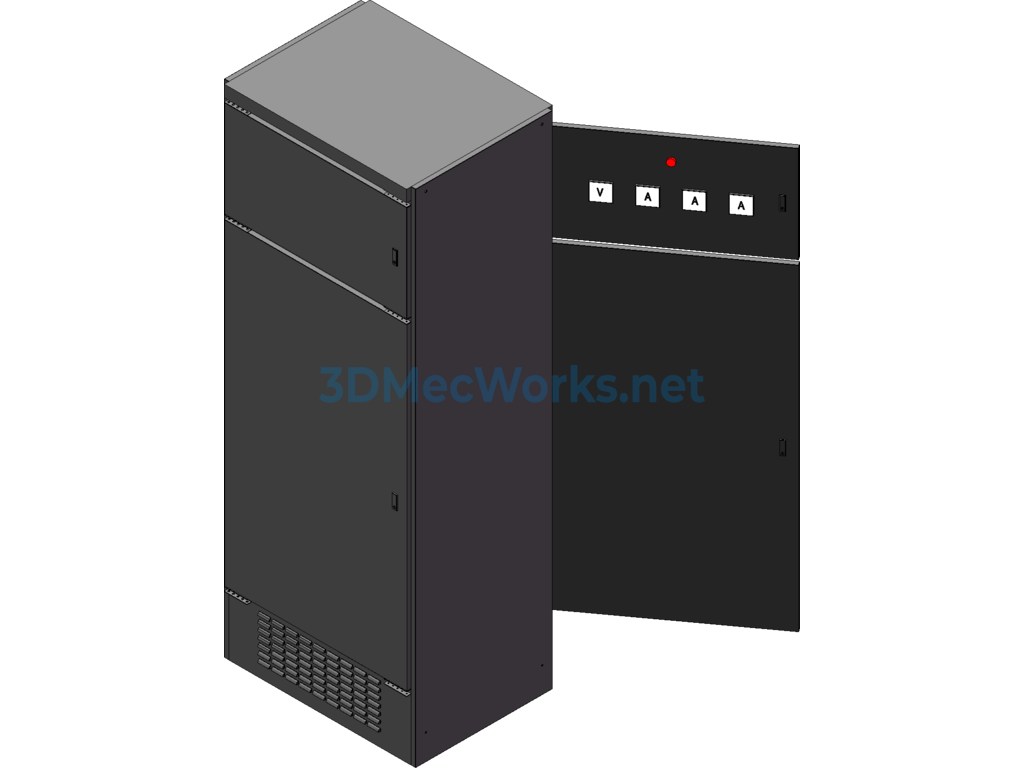

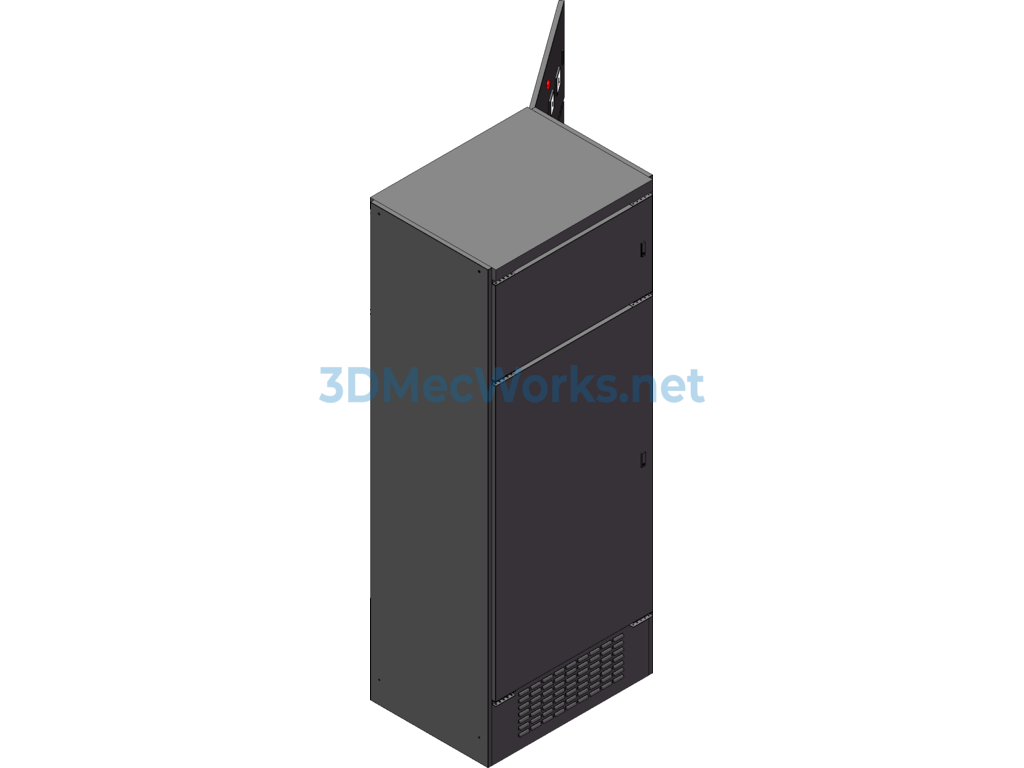

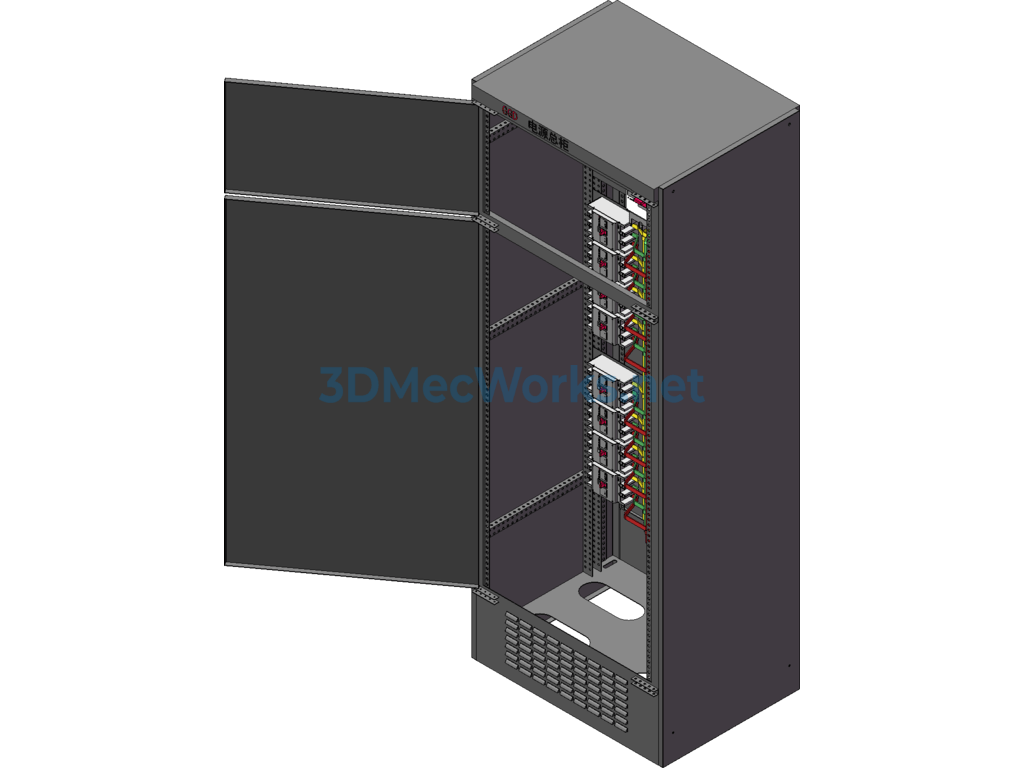

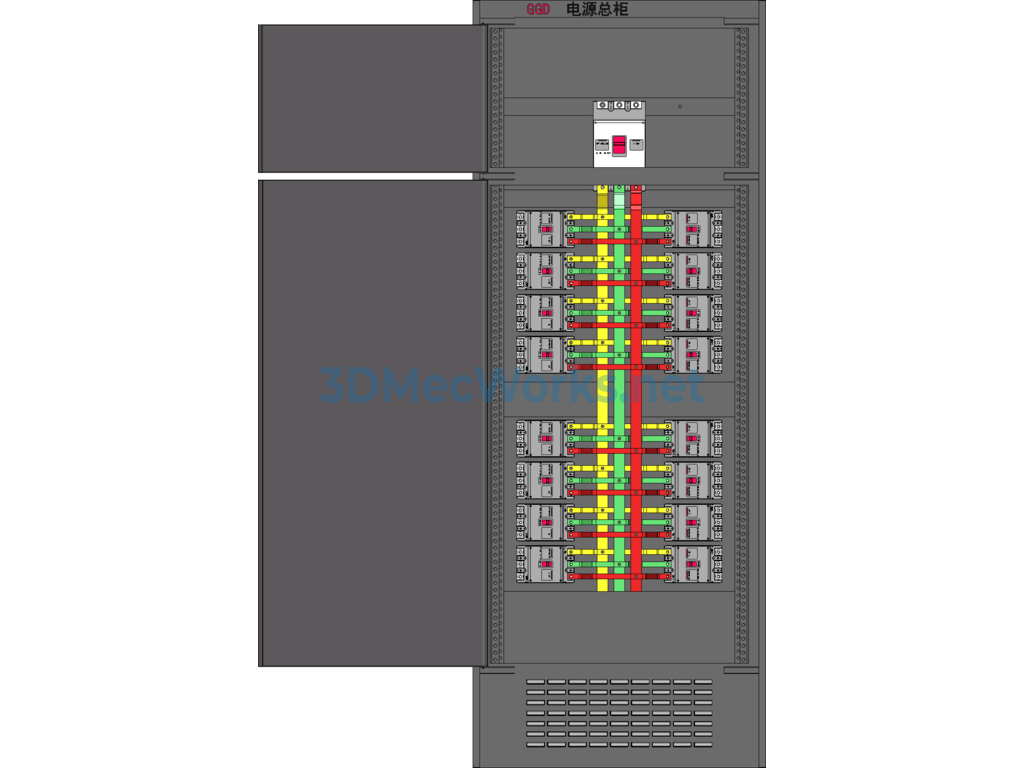

This design is for a power cabinet with a rated current of 630A. The busbar layout is horizontally installed in a staggered three-phase configuration, fixed at both ends with insulators, making the layout stable, reliable, and neat. Interested friends can download and take a look. It’s not perfect, but it meets all the processes and standards. Thank you!
Specification: 630A Power Cabinet Side Mount - SolidWorks - Free Download
|
