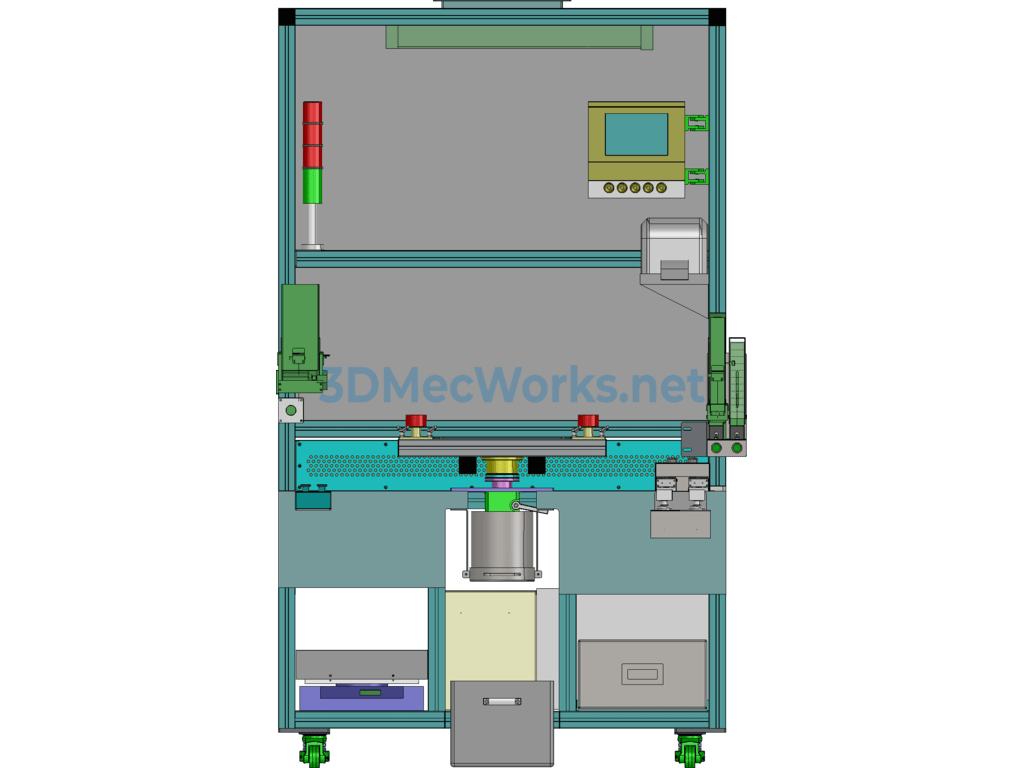

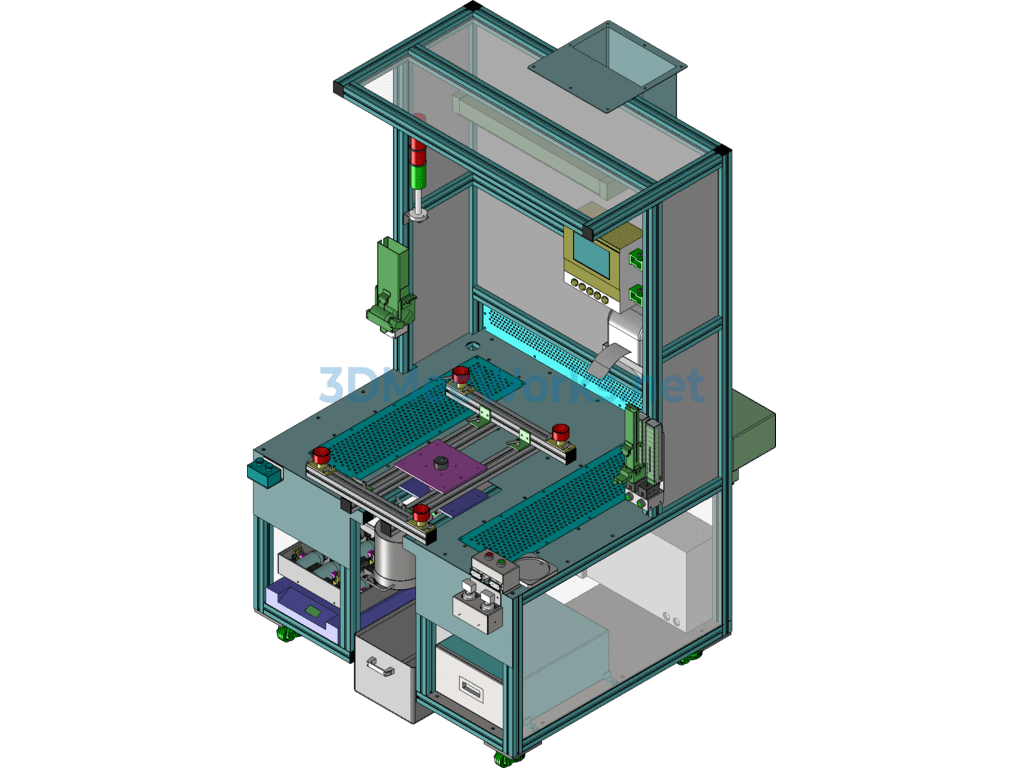

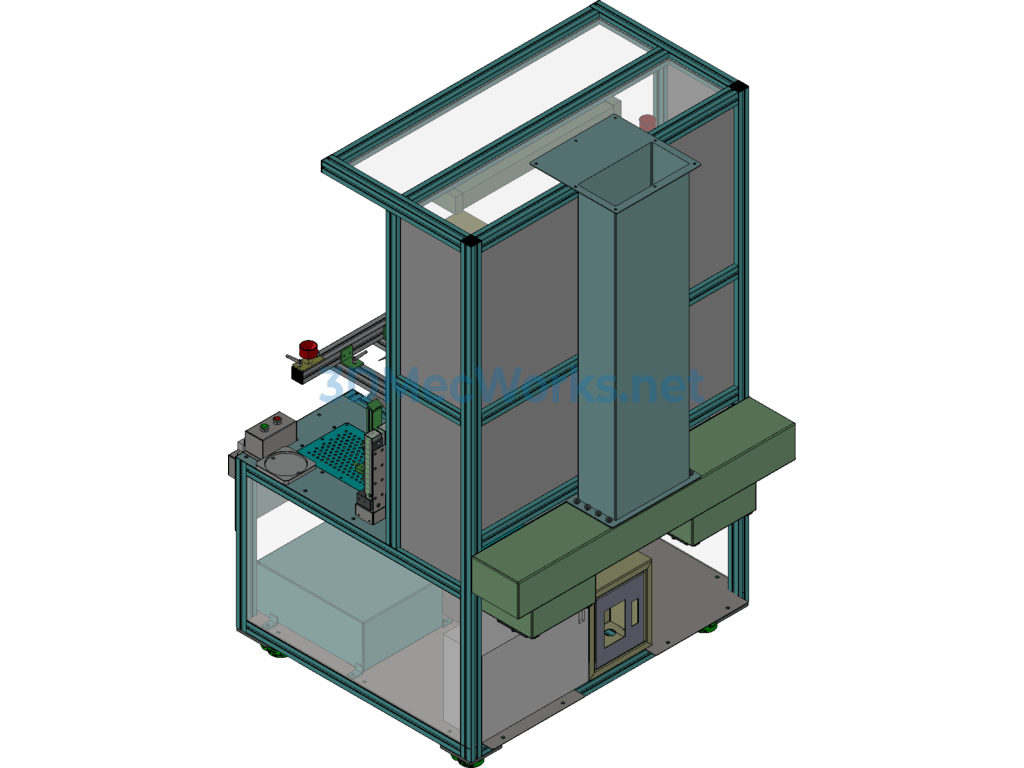

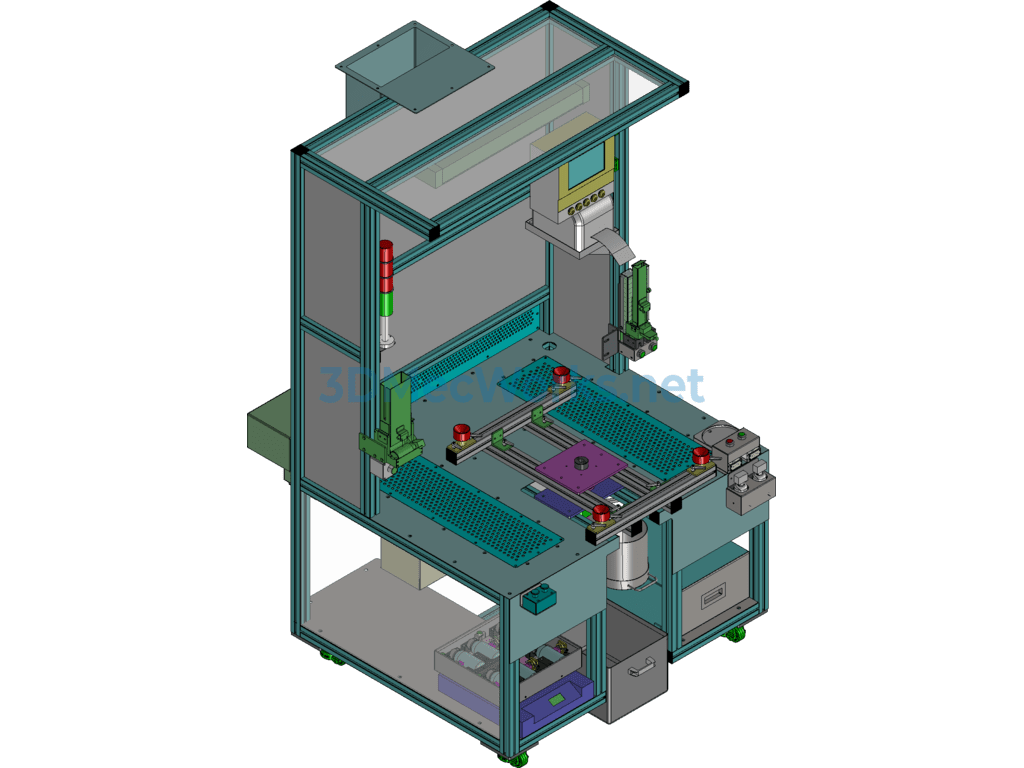

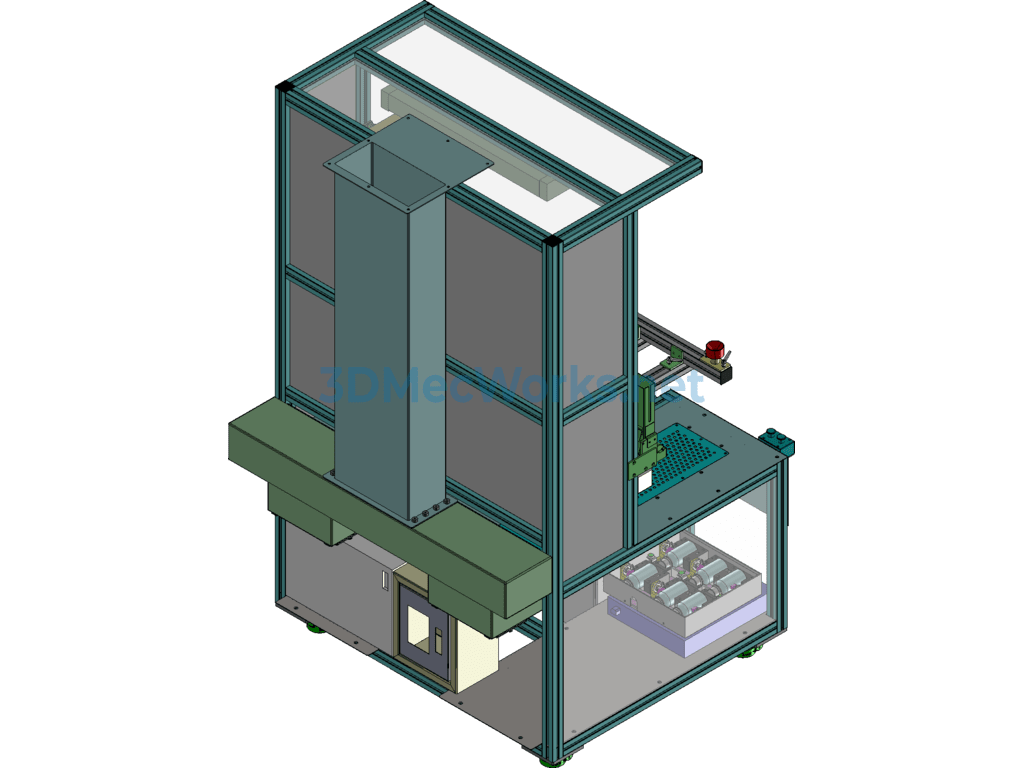

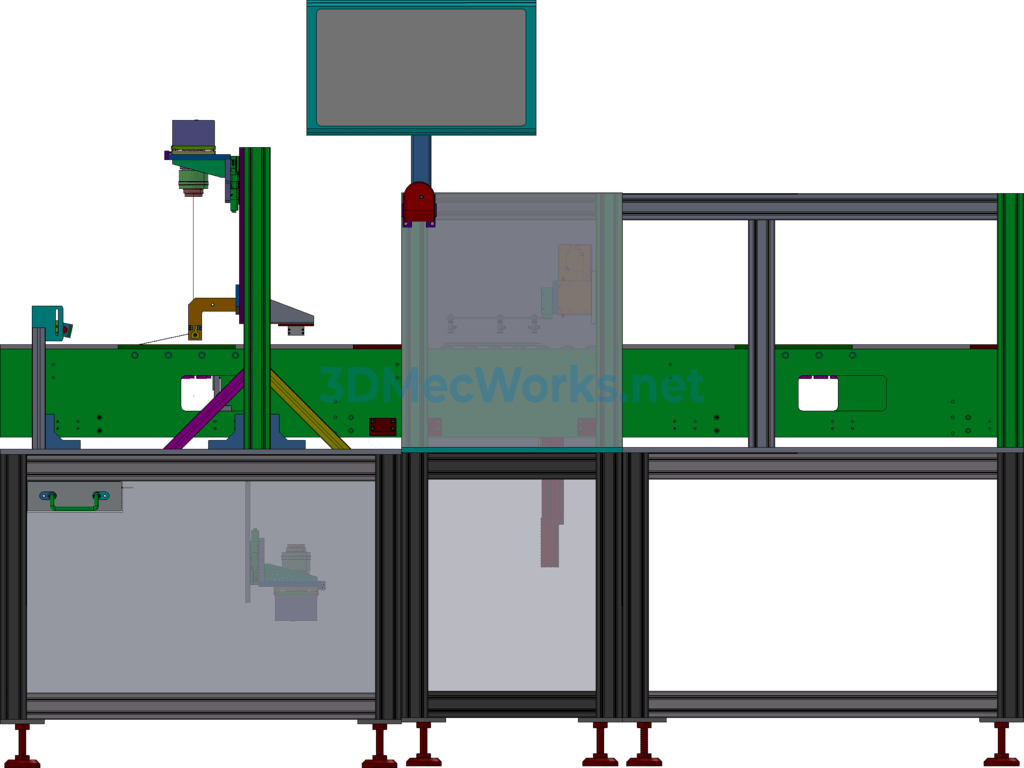

3d Model of Car Sunroof Primer Station + Bom + Design Specification

Automotive Sunroof Primer Workstation Process Flow: Pick up glass piece – Place glass onto the tray – Visual inspection – Pick up cleaning bottle – Clean the glass – Return the cleaning bottle – Wipe off cleaning agent – Discard wiping paper – Pick up primer bottle – Apply primer to the glass – Return primer bottle – Wipe off primer from detection hole – Attach process label – Move suction cup to the next position
One basic function:
Function: Workbench with a rotatable tray to hold a single piece of glass, capable of completing glass inspection, cleaning, and priming operations, equipped with exhaust/vent interfaces

Mistake-proof function:
1. Order of use for cleaner and primer
2. Felting head counting
3. Decanter timing
Three, operator
1. Number of operators: 1 person
2. Work posture – Standing operation
Four, durability
1. Continuous operating time – 24H/day
2. Service life – More than 10 years
Five, capacity
1. Total cycle time – < 45 sec
2. Manual operation time – < 45 sec
3. Product changeover tooling adjustment time – < 1 min (height adjustment, support width adjustment)
Six, working environment
1. Noise level – Below 70dB at 1m from the noise source
2. Stimulative gases – Chemical gases like MEK are vented
Seven, power specifications
1. Power specifications – Single-phase 220V 50Hz
2. Air source specifications – 6 ± 1 Kg/cm2
