3d Model and Engineering Drawing of a Synchronous Belt Conveyor System

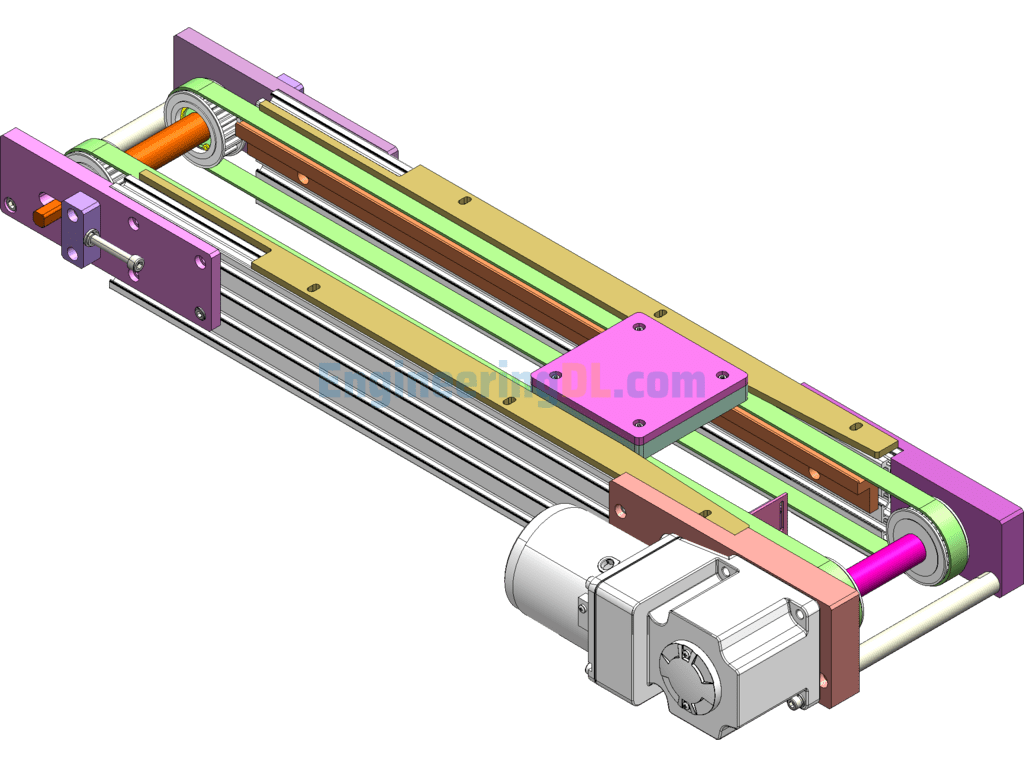

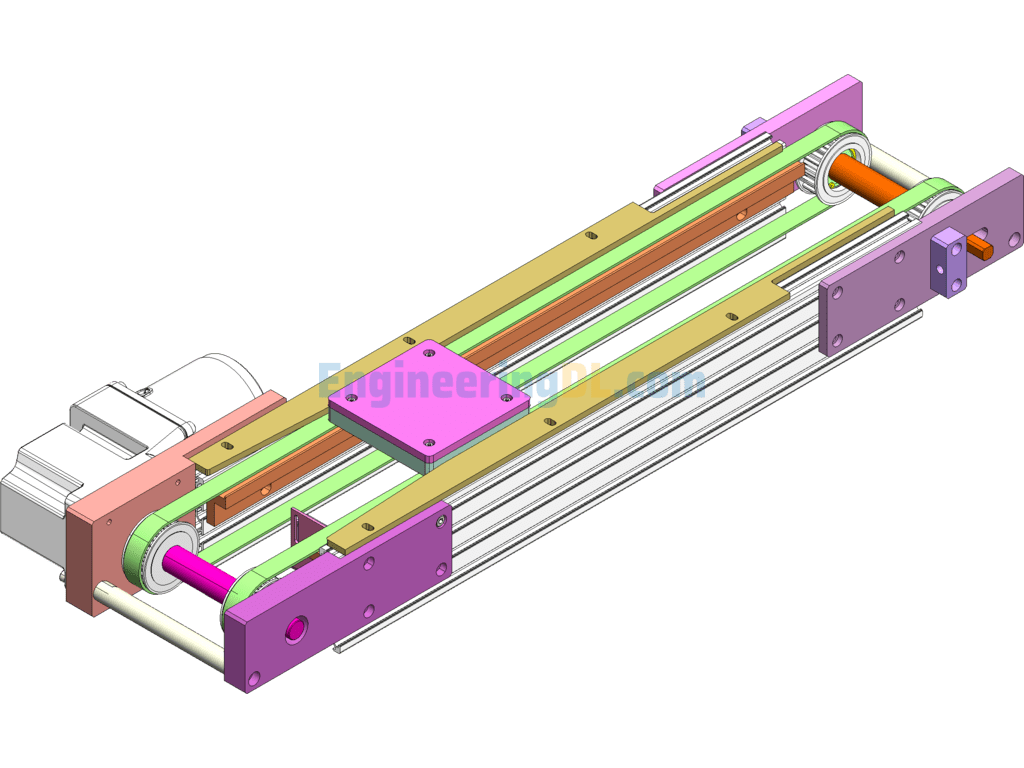

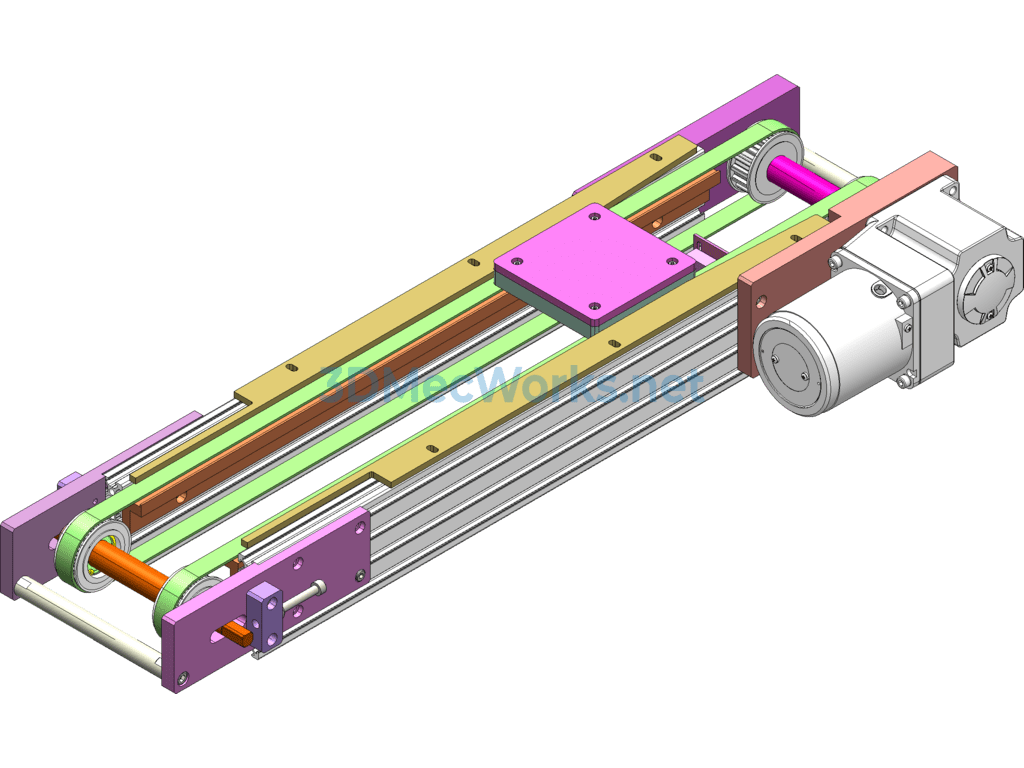

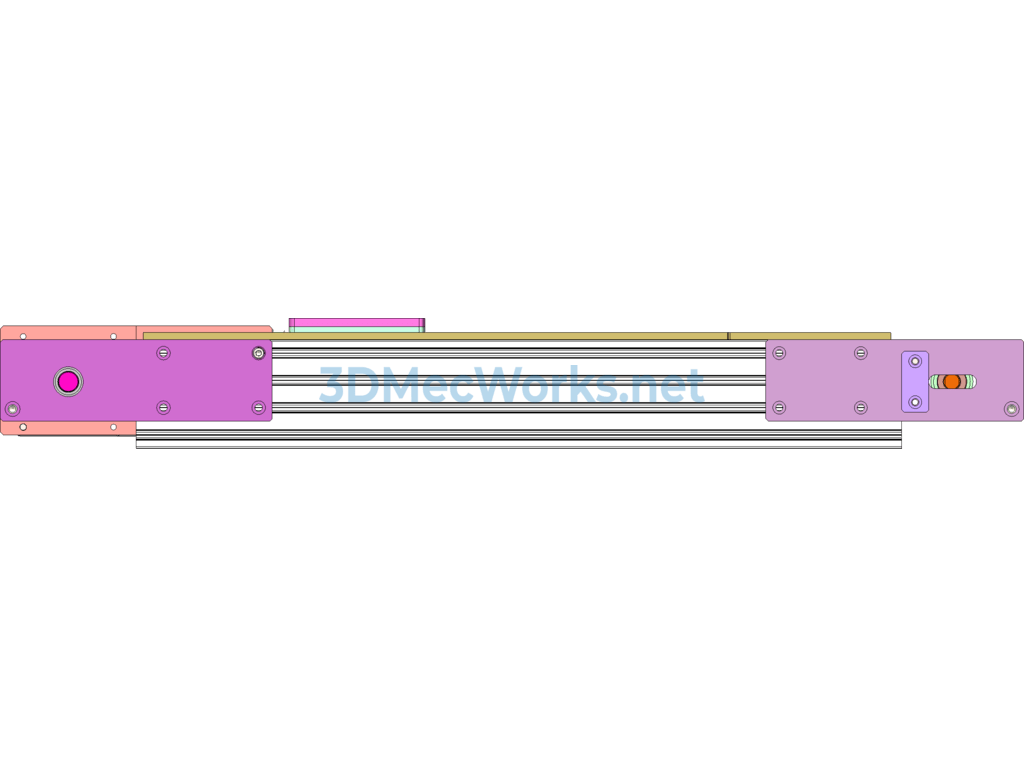

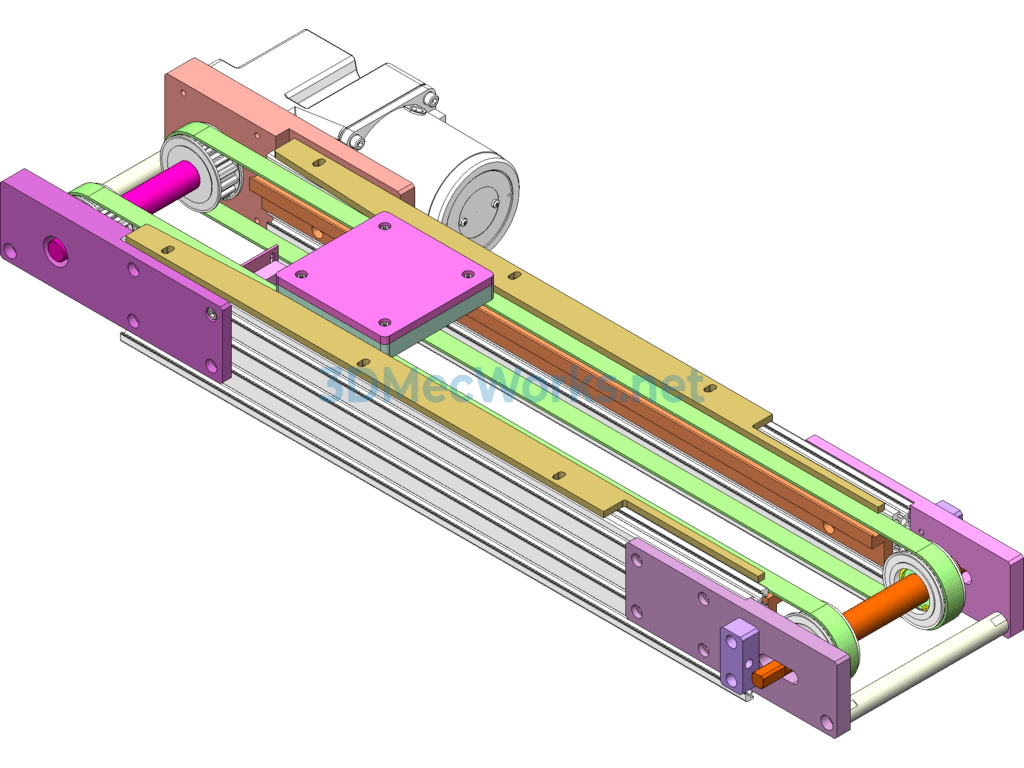

The timing belt conveyor line is composed of a DC gear motor, timing pulleys, timing belt, drive shaft, driven shaft, photoelectric sensors, and other components. The assembled workpiece is sent to the entrance of this conveyor line, and after the sensor detects the workpiece, it starts automatically. After being guided by the guide plate, it flows to the end of the belt line for subsequent stacking and other operations. Includes engineering drawings, parameters can be edited and modified.
