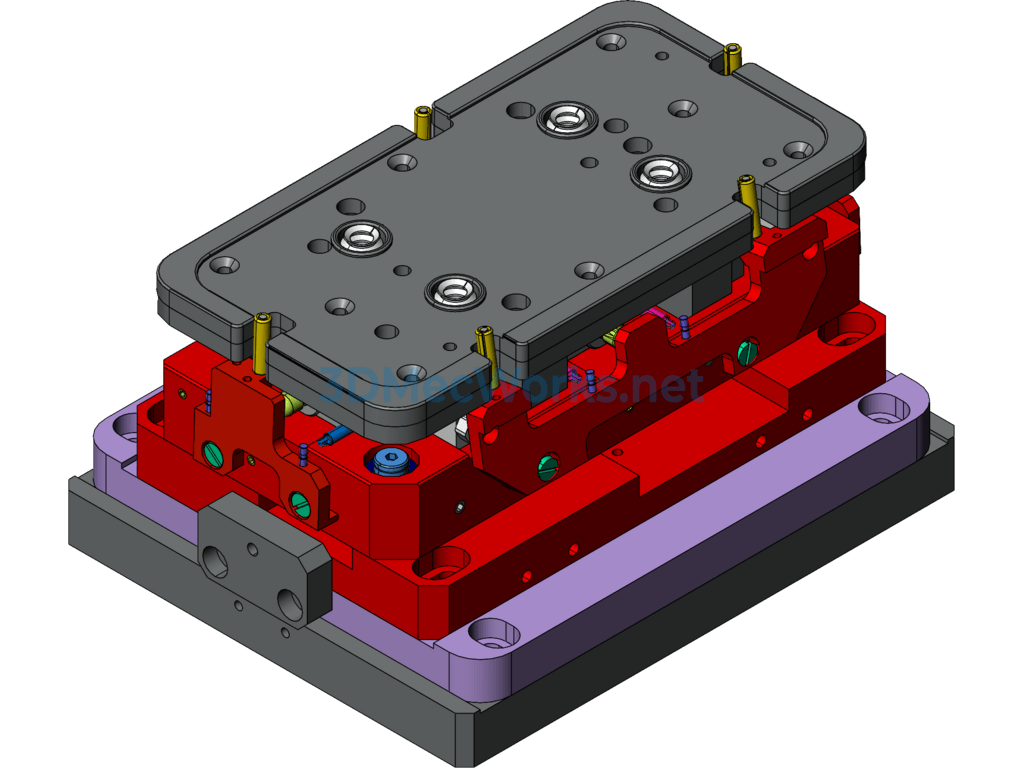

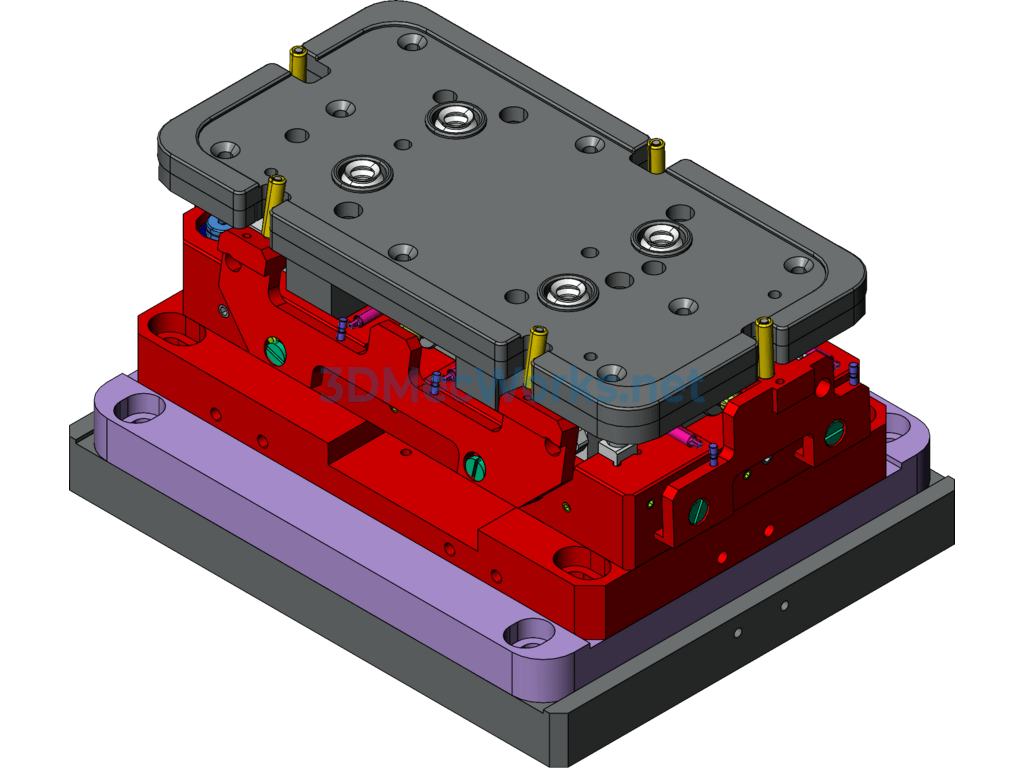

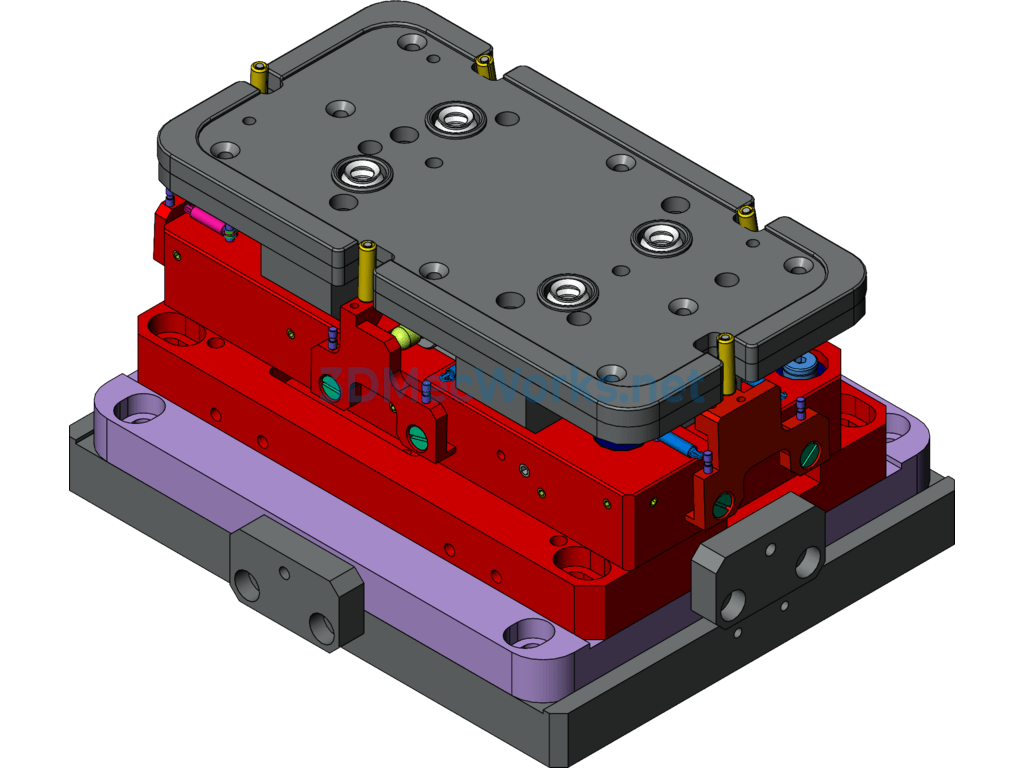

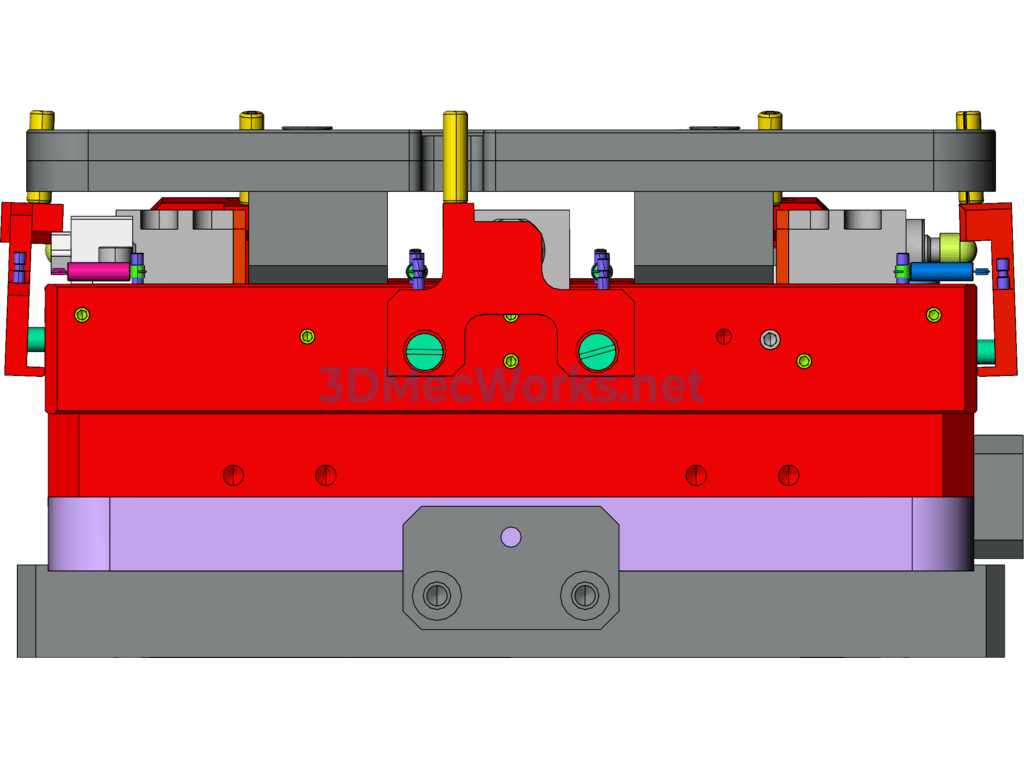

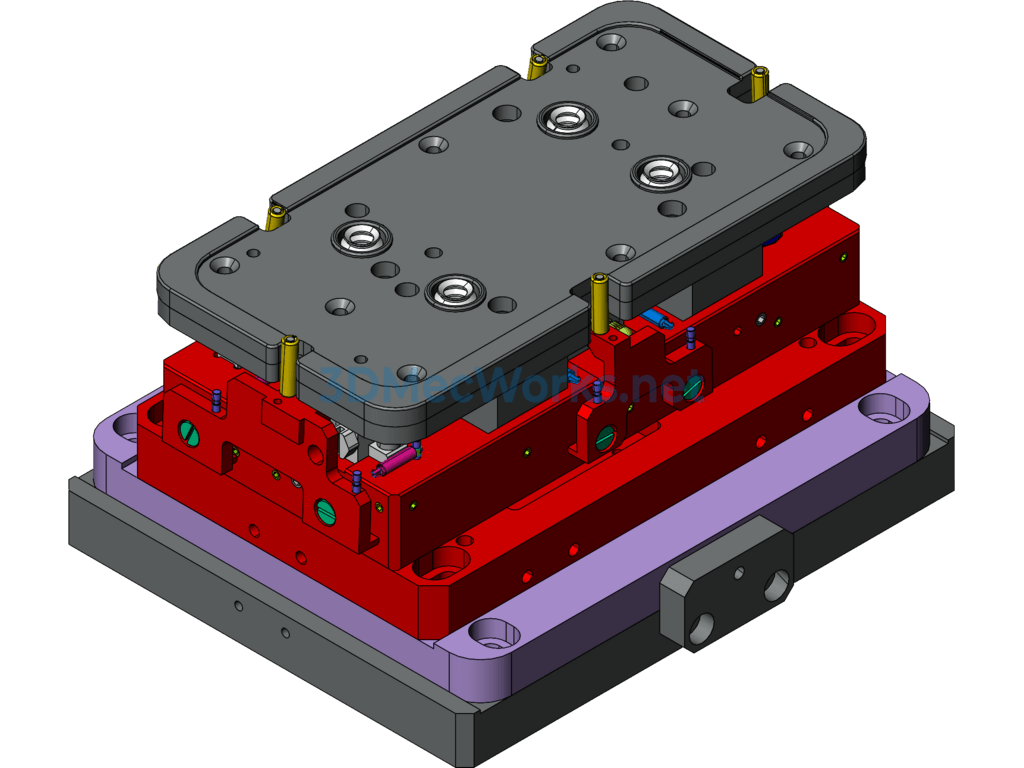

Fixture clamping and positioning mechanism. The side auxiliary positioning cylinder will clamp the side of the tooling, achieving positioning for the machining station of the product or carrier. Guide posts are equipped around the fixture to effectively ensure positional accuracy during product processing. This is a commonly used assembly positioning mechanism. The diagram file comes without parameters but is editable. Includes stp diagram file.
