30t Integrated Water Purifier General Assembly

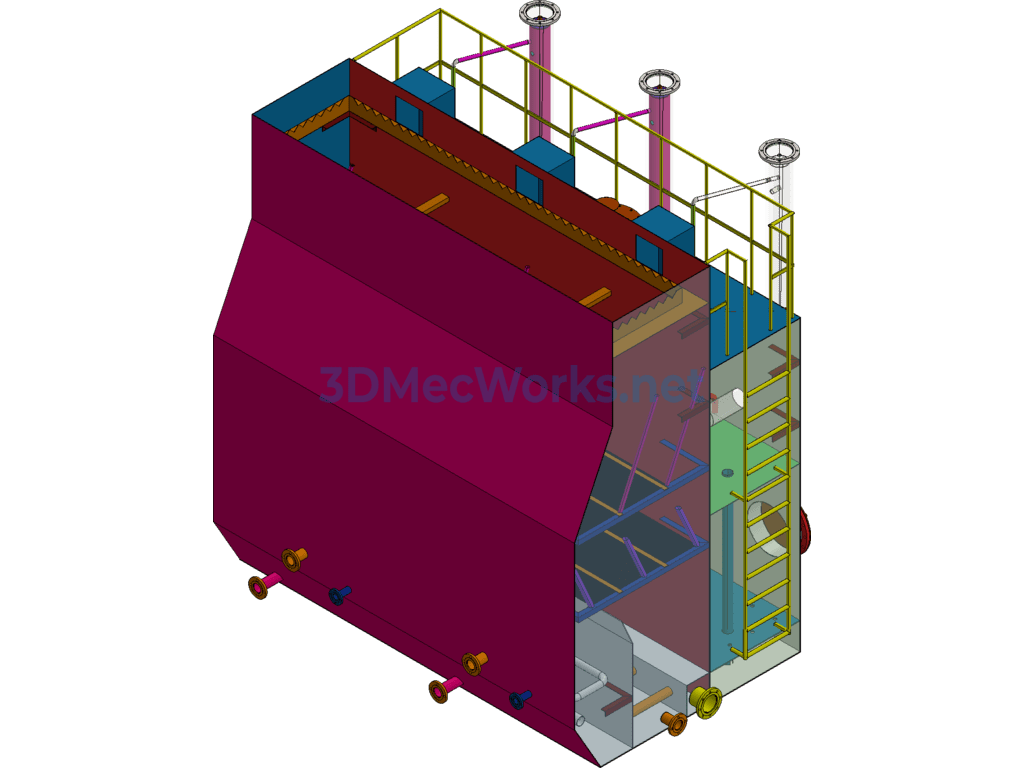

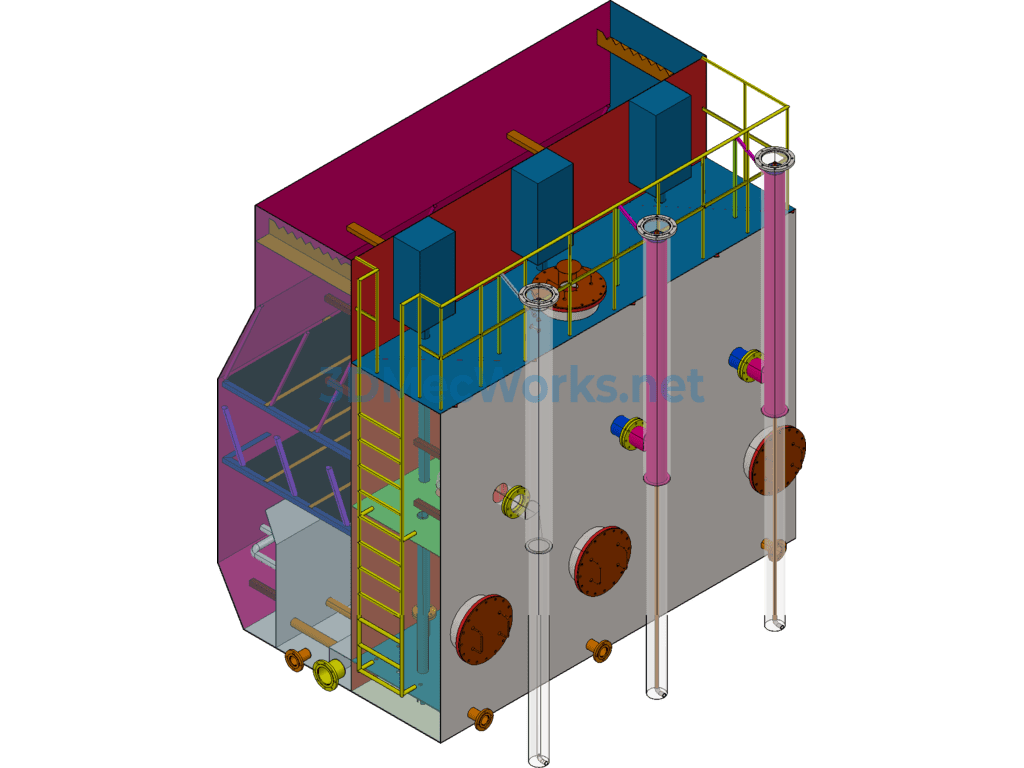

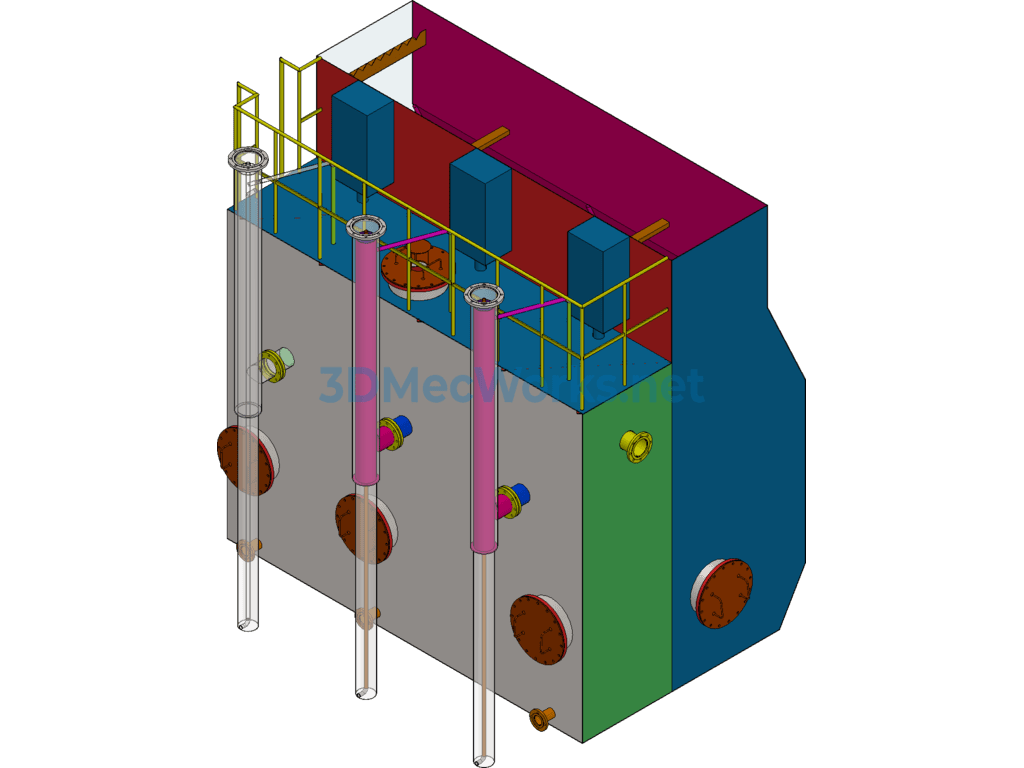

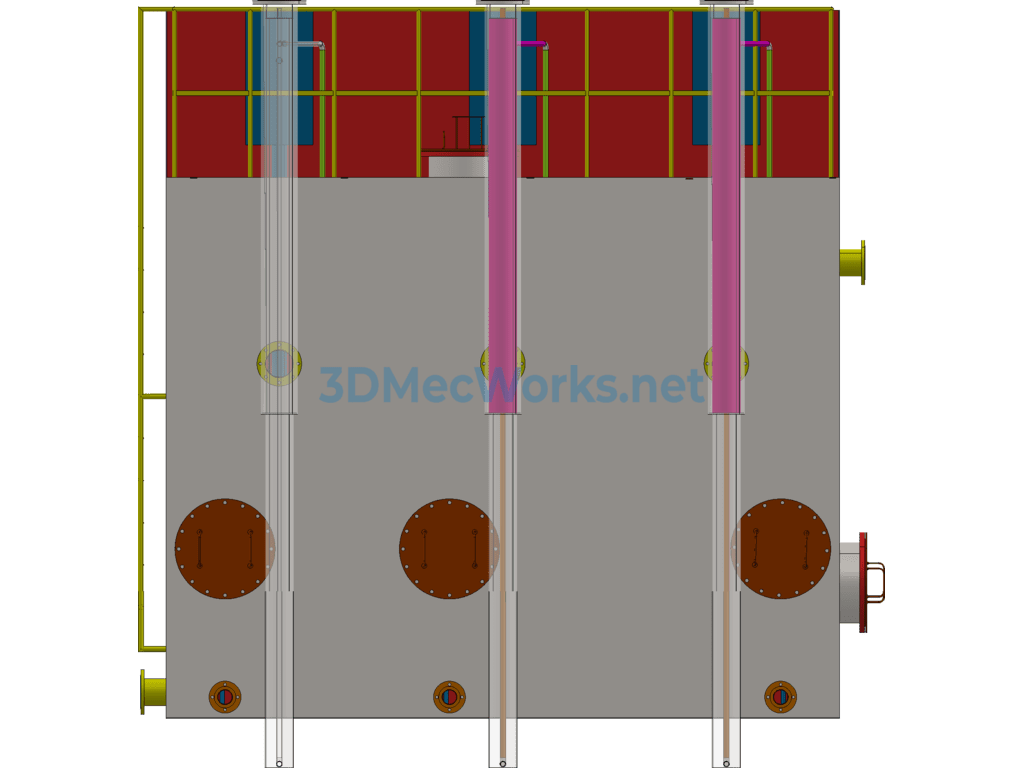

This drawing is for a 30-ton capacity integrated fully automatic water purifier, which can use the siphon principle for automatic backwashing. Sludge discharge is time-controlled via an electric valve. It is divided into: sedimentation zone, filtration zone, and clean water zone. The sedimentation zone needs to be equipped with inclined tube packing, and the filter needs to be filled with quartz sand. The material is anti-corrosive carbon steel with detailed internal structure.
