3 Switchgear Cabinets Assembled Together - SolidWorks - Free Download

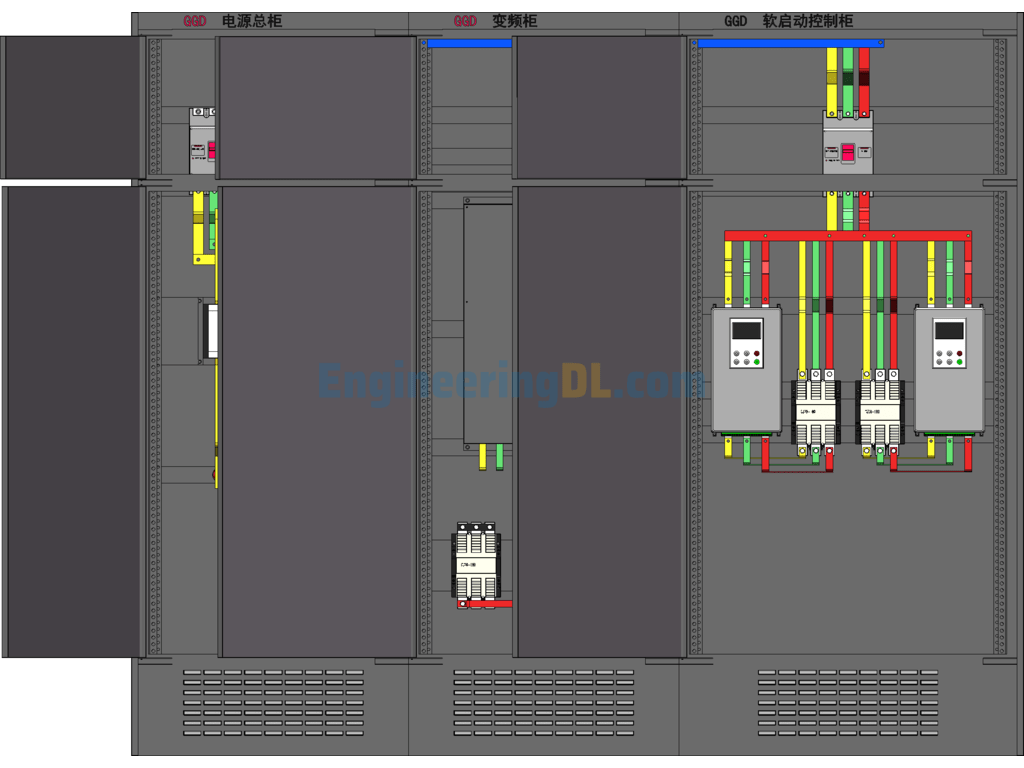

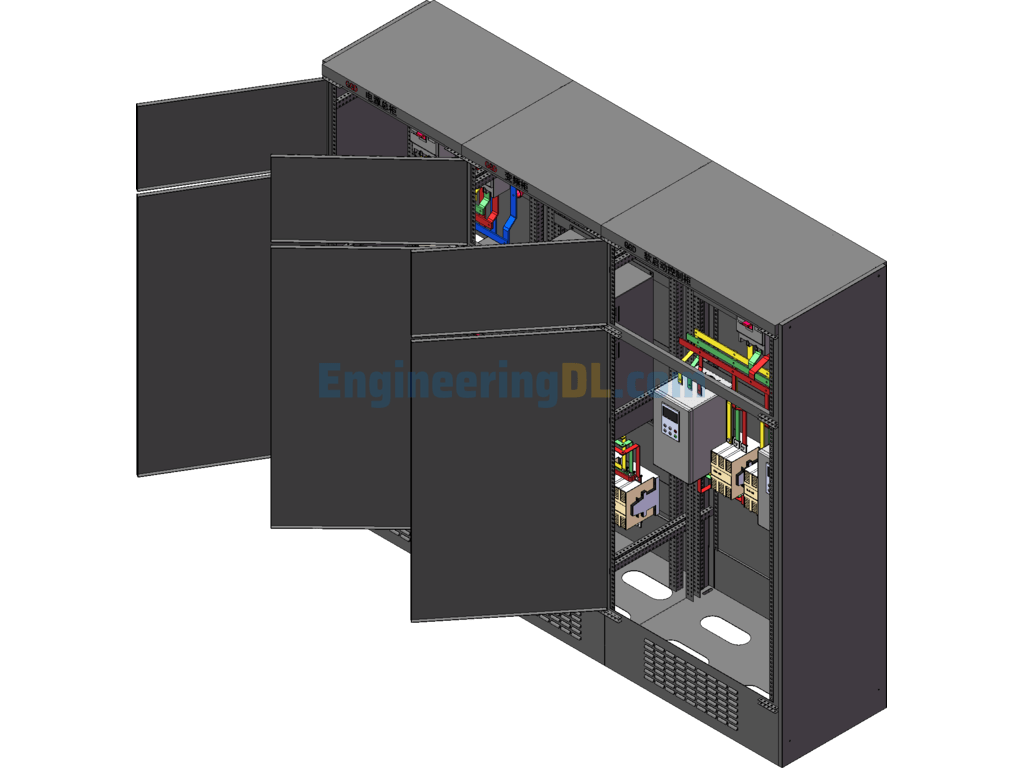

This design is a combination cabinet of a power supply cabinet + frequency converter cabinet + soft starter cabinet, with a rated current of 1000A. The copper bar layout is in a front-to-back stacked manner, fixed at both ends with insulators, ensuring a stable and reliable configuration that is also neat. Interested friends can download and take a look. It may not be perfect, but it meets all processes and standards. Thank you!
Specification: 3 Switchgear Cabinets Assembled Together - SolidWorks - Free Download
|
