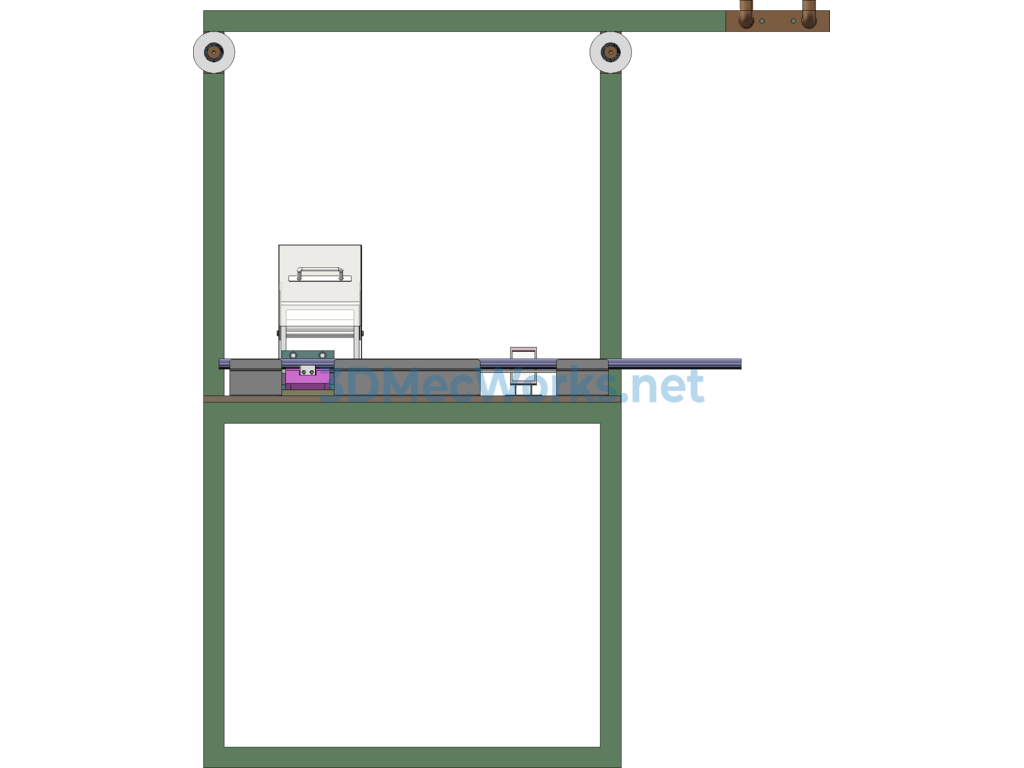

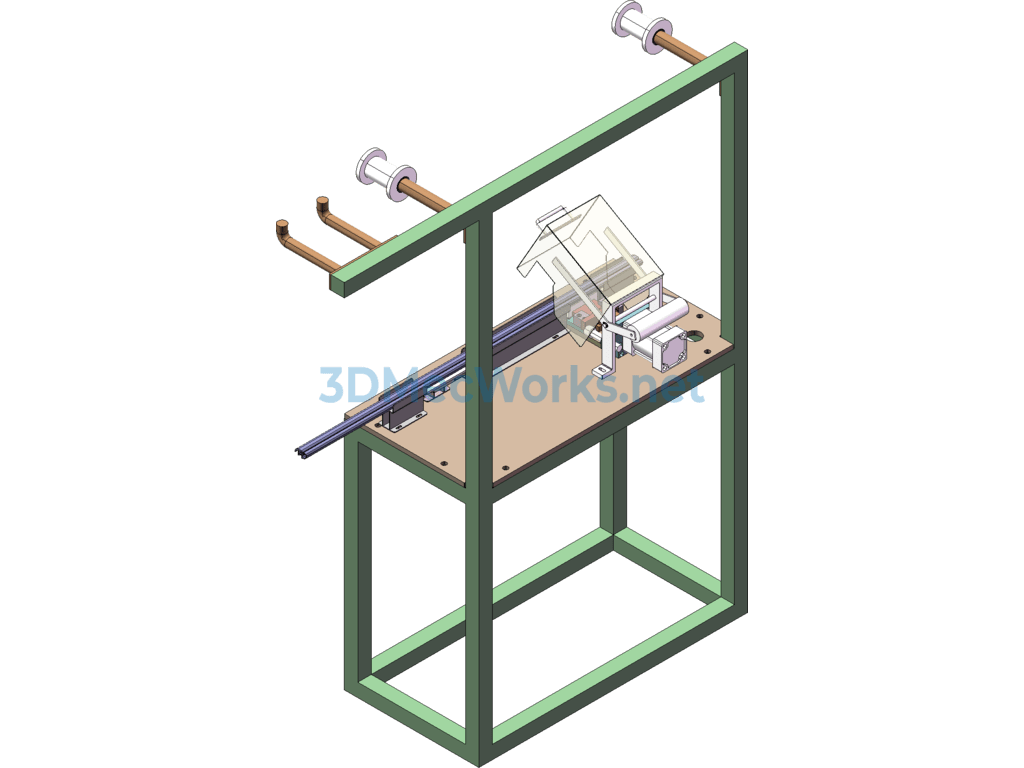

This is a 3D model of an automotive trunk seal strip opening tool, which is installed at the sealing edge between the trunk and the trunk lid. Its main function is to enlarge certain local areas of the product to facilitate the installation of the strips. The drawing’s structure is clear and the design is reasonable, and it includes engineering drawings. The drawing format is SolidWorks 2018, and you are welcome to download it.
Specification: 2TW FRI Automatic Opening Fixture - SolidWorks - Free Download
|
